Designline Heated Deli

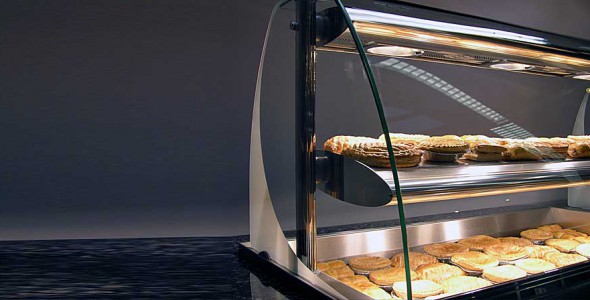

Designline drop in displays are elliptically styled displays utilising a clean curved design perspective, enhanced by durable chrome plated aluminium superstructures and lighting ducts, all enclosed within toughened curved glass hoods, sneeze screens and side panels.

Visual

Assisted Service Heated Deli

Features

Assisted Service Heated Deli
Features

Full height curved toughened front & end glass profile is designed to compliment other units within the range.
Assisted service application.

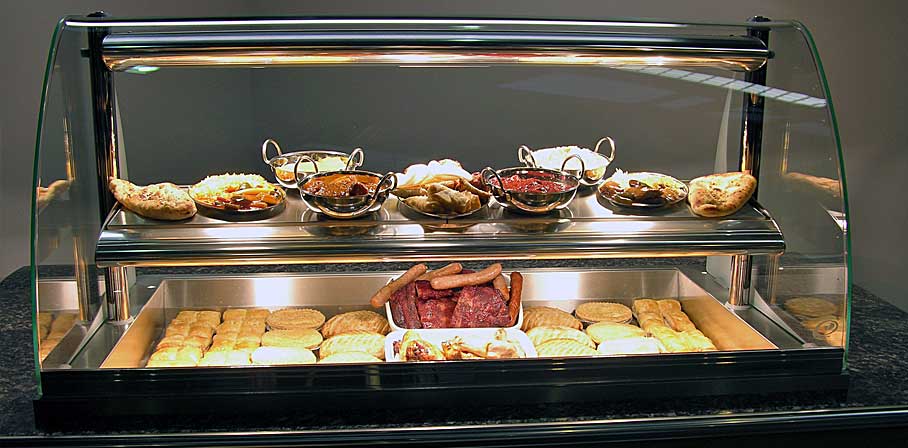

Heated inclined well for display of wrapped/ unwrapped savoury products or food presented in flat bottomed dishes.
Heated stainless steel mid-shelf provides increased product display area.
Superstructure in bright polished steel and aluminium profile.
‘Touch safe’ gantry mounted digital temperature display and eye level control panel (operator side)
Quartz mid-shelf and top heat are variably controlled from 2 no. gantry mounted dimmer switches.
24-hour operation as standard.
Top heat is variably controlled from a gantry mounted dimmer switch.

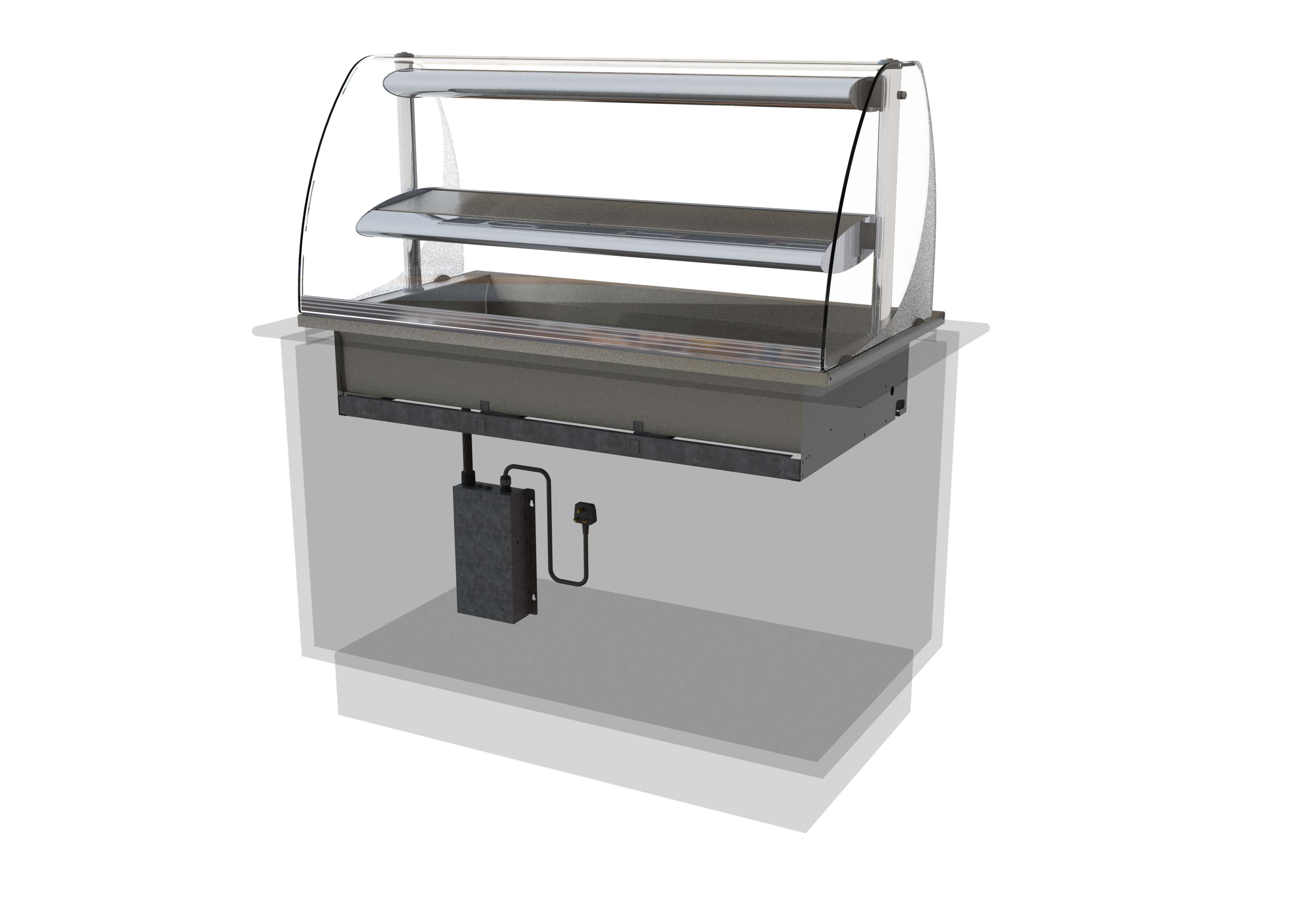

Supplied with concealed under counter control box on a 2m loom for connection to 13/20/32 Amp supply.
Optional compatibility to Dixell & Modbus RTU network store food monitoring systems.
Product illumination/heat is provided from an elliptical profile gantry and mid shelf.
Features ‘tamper proof’ temperature control panel facility.
Base heat output is thermostatically controlled from the gantry mounted control panel giving even heat spread.

Food Types

Assisted Service Heated Deli
Food Display Types

LONG TERM HOLDING (2-4 hours)
Breakfast: baked beans, tomatoes, bacon, sausage, black pudding, mushrooms, hash browns
Lunch / Dinner: pies, pastries, sausage rolls, stews, curry, chilli dishes, sliced meats in gravy or sauce, pasta in sauce, vegetables, ribs with sauce, chicken portions

SHORT TERM HOLDING (15-20 mins)

Breakfast / Brunch: toast/ panini, omlettes, fried/ boiled eggs, muffins, baked potatoes
Lunch / Dinner: plate presented meals, hot baguettes, battered fish, chips / fries, pizza

Dimensions

Assisted Service Heated Deli
Dimensions


Model	HDL2	HDL3	HDL4	HDL5
Capacity	2/1 GN	3/1 GN	4/1 GN	5/1 GN
Length (mm)	825	1175	1525	1875
Depth (mm)	660	660	660	660
Height above worktop (mm)	535	535	535	535
Depth below worktop (mm)	191	191	191	191
Weight (uncrated) (kg)	85	102	118	128
Power (kW)	1.9	2.9	3.8	4.8
Electrical supply	13A 230V	13A 230V	20A 230V	32A 230V
