Designline Cold Deli (HT)

Visual

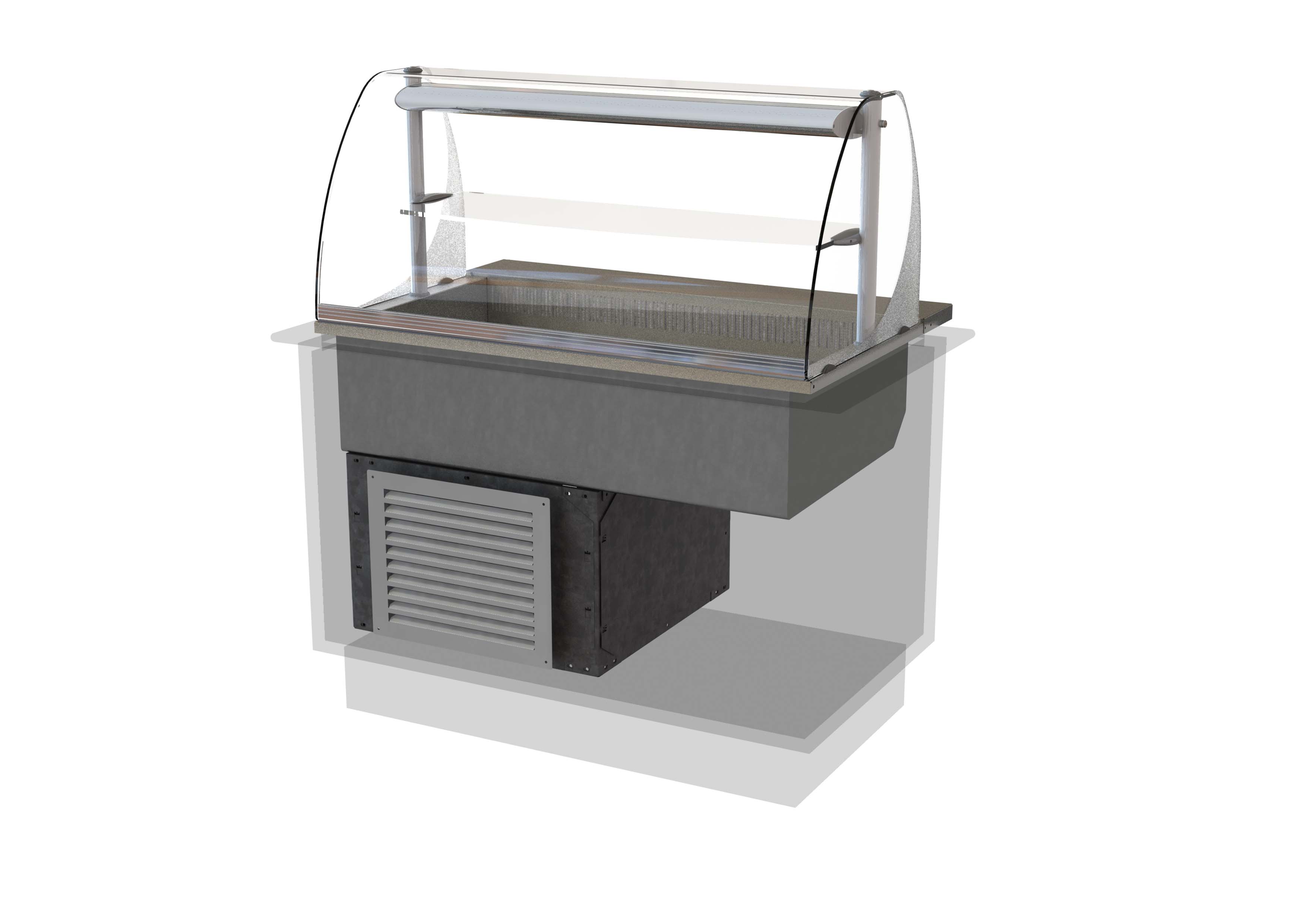

Assisted Service Cold Deli (HT)
Visual

Features

Assisted Service Cold Deli (HT)
Features

• Curved glass profile is designed to compliment other units within the range.
• Cold fan blown well unit features integral energy efficient chilled hydrocarbon refrigeration (HT).
• Assisted service application.
• Superstructure supports a toughened full height curved glass sneeze screen & side glass.
• Toughened curved glass ambient mid shelf increases product display diversity.
• Rear steel sandwich preparation shelf for food preparation.
• Features eye-level gantry mounted digital temperature display and control panel (operator side).
• Can achieve temperatures of 0°C to 5°C (max 27°C ambient 55% relative humidity).
• Superstructure in bright polished steel and aluminium profile.
• Product illumination is from diffused LED lighting (4000 Kelvin) in an elliptical profile gantry.
• Integral automatic condensate water evaporation eliminates the need for site drainage.
• Supplied with 2 m lead for connection to a single 13 Amp socket (13A 230V 50 Hz).
• 24-hour operation as standard.
• Refrigeration condensing unit is housed in an under slung self contained cradle.
• Optional compatibility to Dixell & Modbus RTU network store food monitoring systems.
• Features ‘tamper proof temperature control facility.
• Modular removable deck plate system for easier cleaning and maintenance.

Food Types

Assisted Service Cold Deli (HT)
Food Display Types

Drinks (Well Area): Still & carbonated, bottled, canned or carton, water, dairy, lemonade, wine, beer, lager, fruit juice & health drinks.

Food (Well Area): Pies, pasties, sausage rolls & cooked meats, sandwich fillings, baked potato fillings, salad items & cheese, sandwiches, baguettes, rolls, barm cakes, salad, pasta, cheese snacks, cream cakes & pastries, cakes, yoghurt, fruit in juice & fruit.

Food (Glass Shelving Area): Danish pastries, muffins, donuts, fruit cake, biscuits, fruit, chocolate, crackers, rice cakes, tacos, crisps, nuts.

Dimensions

Assisted Service Cold Deli (HT)
Dimensions.

• (HT) = R290 Refrigeration.
• This model has controls fitted on operator side of gantry as standard.

Downloads

General Layout Drawings.
Designline Assisted Service Cold Delis (HT)

General Layout Drawings.
Non Standard Airflow Options (Cold Displays)

Fitting Instructions & User Manual.
Designline Assisted Service Cold Delis (HT)

Visual

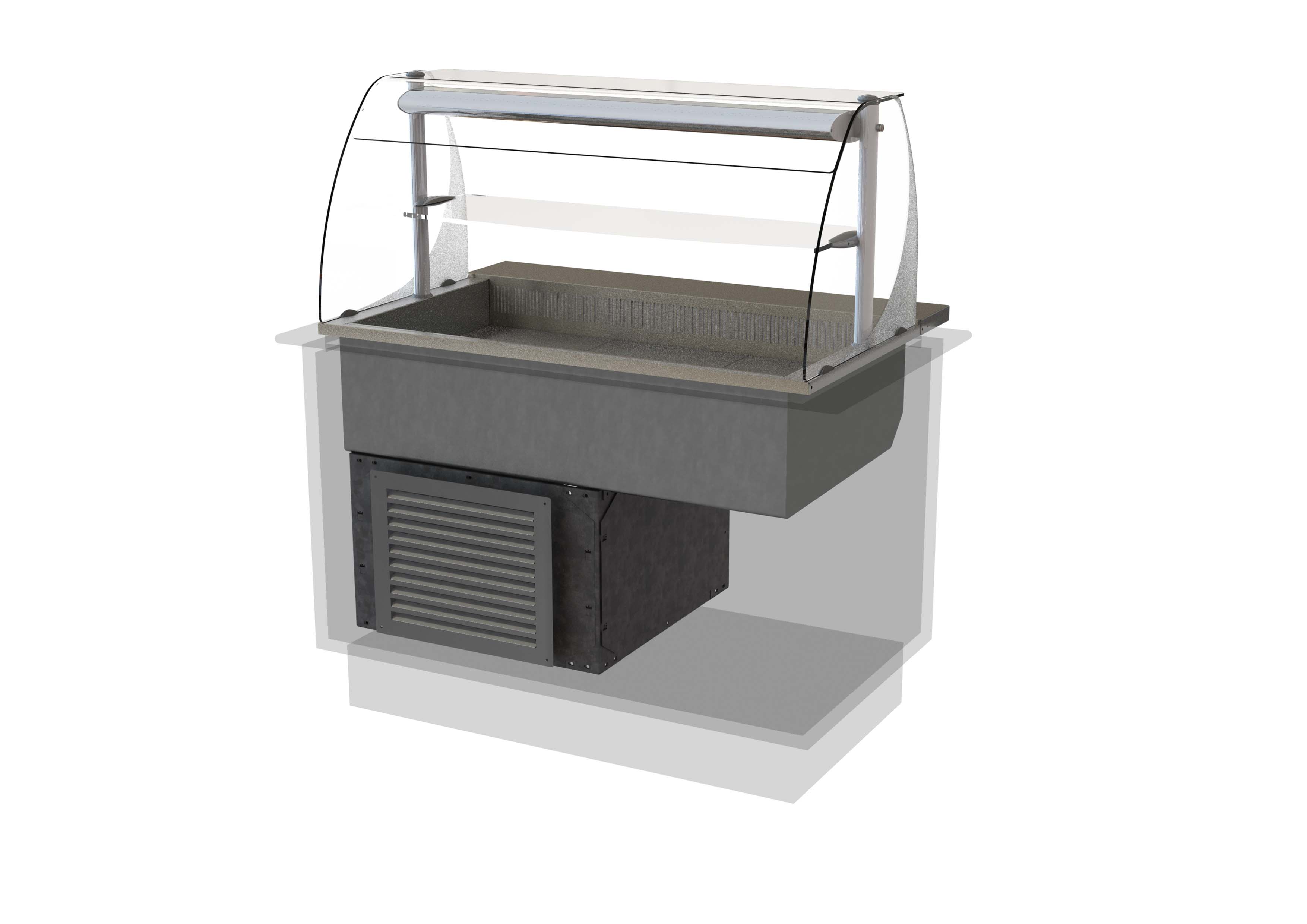

Self Help Cold Deli (HT)
Visual

Features

Self Help Cold Deli (HT)
Features

• Curved glass profile is designed to compliment other units within the Designline range.
• Cold fan blown well unit features integral energy efficient chilled hydrocarbon refrigeration (HT).
• Self help application.
• Superstructure supports a toughened curved glass sneeze screen & side glass.
• Toughened flat glass ambient mid shelf increases product display diversity.
• Rear steel sandwich preparation shelf for food preparation.
• Features eye-level gantry mounted digital temperature display and control panel (operator side).
• Can achieve temperatures of 0°C to 5°C (max 27°C ambient 55% relative humidity).
• Superstructure in bright polished steel and aluminium profile.
• Product illumination is from diffused LED lighting (4000 Kelvin) in a rectangular profile gantry.
• Integral automatic condensate water evaporation eliminates the need for site drainage.
• Supplied with 2 m lead for connection to a single 13 Amp socket (13A 230V 50 Hz).
• 24-hour operation as standard.
• Optional 1/1 GN polyethylene cutting board for sandwich preparation, can be used in multiples. (Option CB1)
• Refrigeration condensing unit is housed in an under slung self contained cradle.
• Optional compatibility to Dixell & Modbus RTU network store food monitoring systems.
• Features ‘tamper proof temperature control facility.
• Modular removable deck plate system for easier cleaning and maintenance.

Food Types

Self Help Cold Deli (HT)
Food Display Types

Drinks (Well Area):  Still & carbonated, bottled, canned or carton, water, dairy, lemonade, wine, beer, lager, fruit juice & health drinks.

Food (Well Area): Pies, pasties, sausage rolls & cooked meats, sandwich fillings, baked potato fillings, salad items & cheese, sandwiches, baguettes, rolls, barm cakes, salad, pasta, cheese snacks, cream cakes & pastries, cakes, yoghurt, fruit in juice & fruit.

Food (Glass Shelving Area): Danish pastries, muffins, donuts, fruit cake, biscuits, fruit, chocolate, crackers, rice cakes, tacos, crisps, nuts.

Dimensions

Self Help Cold Deli (HT)
Dimensions

Downloads

General Layout Drawings.
Designline Self Help Cold Delis (HT)

General Layout Drawings.
Non Standard Airflow Options (Cold Displays)

Fitting Instructions & User Manual.
Designline Self Help Cold Delis (HT)
