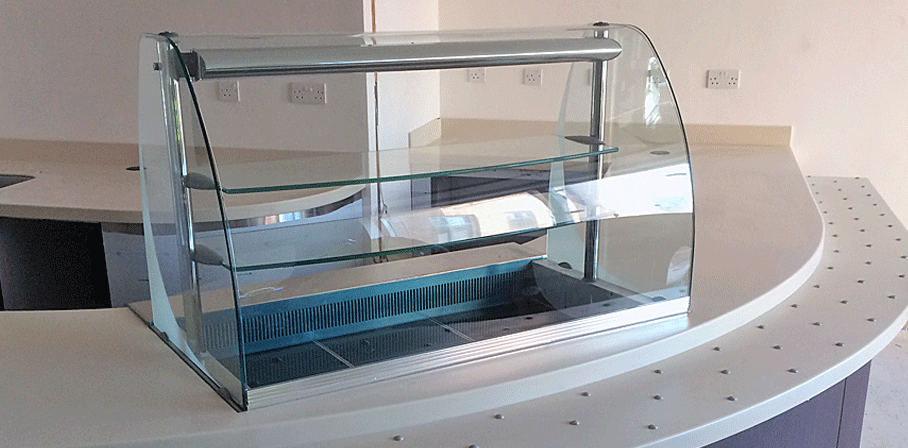

Designline Cold Multi Level Deli (HT)

Visual

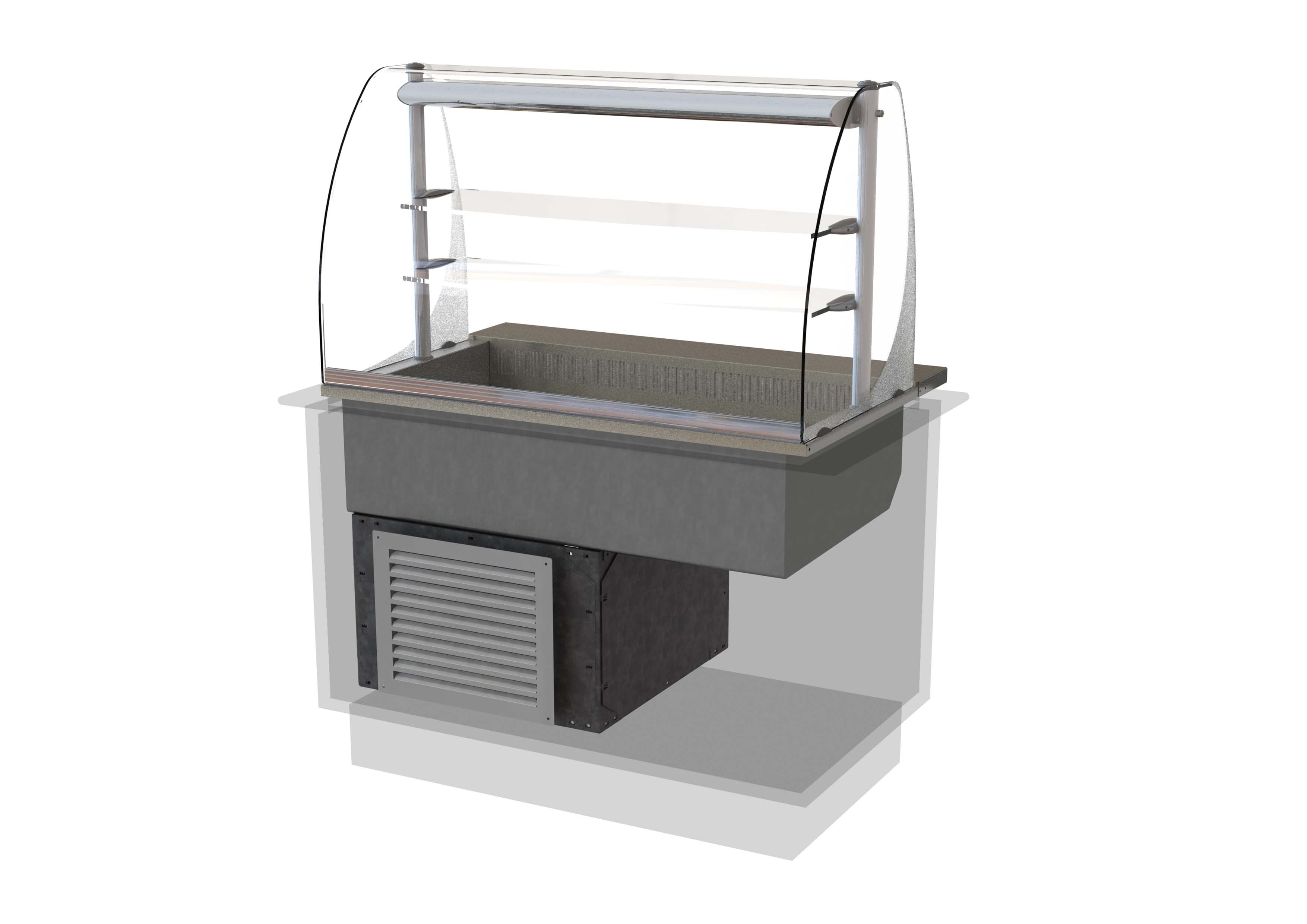

Assisted Service Cold Multi Level Deli (HT)
Visual

Features

Assisted Service Cold Multi Level Deli (HT)
Features

• Curved glass profile is designed to compliment other units within the range.
• Cold fan blown well unit features integral energy efficient chilled hydrocarbon refrigeration (HT).
• Assisted service application.
• Superstructure supports a toughened full height curved glass sneeze screen & side glass.
• 2 no. toughened curved glass ambient mid shelves increase product display diversity.
• Rear steel sandwich preparation shelf for food preparation.
• Features eye-level gantry mounted digital temperature display and control panel (operator side).
• Can achieve temperatures of 0°C to 5°C (max 27°C ambient 55% relative humidity).
• Superstructure in bright polished steel and aluminium profile.
• Product illumination is from diffused LED lighting (4000 Kelvin) in an elliptical profile gantry.
• Integral automatic condensate water evaporation eliminates the need for site drainage.
• Supplied with 2 m lead for connection to a single 13 Amp socket (13A 230V 50 Hz).
• 24-hour operation as standard.
• Refrigeration condensing unit is housed in an under slung self contained cradle.
• Optional compatibility to Dixell & Modbus RTU network store food monitoring systems.
• Features ‘tamper proof temperature control facility.
• Modular removable deck plate system for easier cleaning and maintenance.

Food Types

Assisted Service Cold Multi Level Deli (HT)

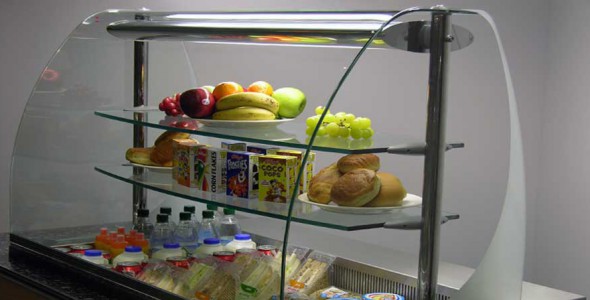

Food Display Types

Drinks (Well Area): Still & carbonated, bottled, canned or carton, water, dairy, lemonade, wine, beer, lager, fruit juice & health drinks.

Food (Well Area): Pies, pasties, sausage rolls & cooked meats, sandwich fillings, baked potato fillings, salad items & cheese, sandwiches, baguettes, rolls, barm cakes, salad, pasta, cheese snacks, cream cakes & pastries, cakes, yoghurt, fruit in juice & fruit.

Food (Shelving Area): Danish pastries, muffins, donuts, fruit cake, biscuits, fruit, chocolate, crackers, rice cakes, tacos, crisps, nuts.

Dimensions

Assisted Service Cold Multi Level Deli (HT)
Dimensions

• (HT) = R290 Refrigeration.
• This model has controls fitted on operator side of gantry as standard.

Downloads

General Layout Drawings
Designline Assisted Service Cold Multi Level Delis (HT)

General Layout Drawings
Non Standard Airflow Options (Cold Displays)

Fitting Instructions & User Manual.
Designline Assisted Service Cold Multi Level Delis (HT)
