Designline Cold Island Well (HT)

Visual

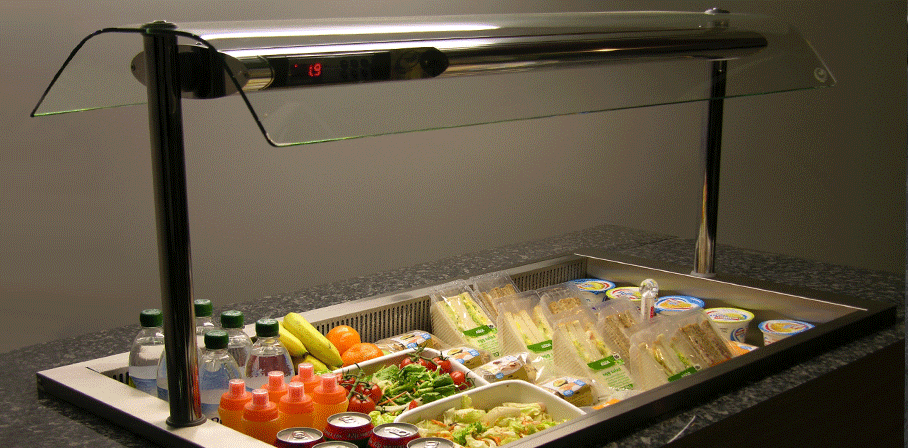

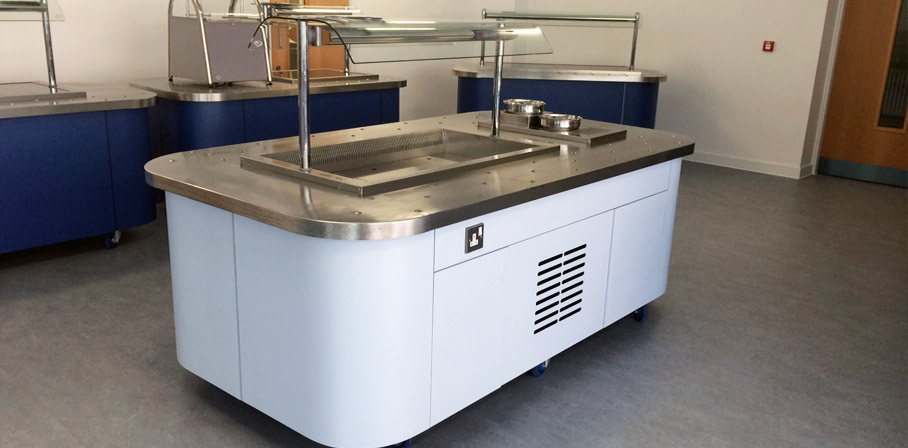

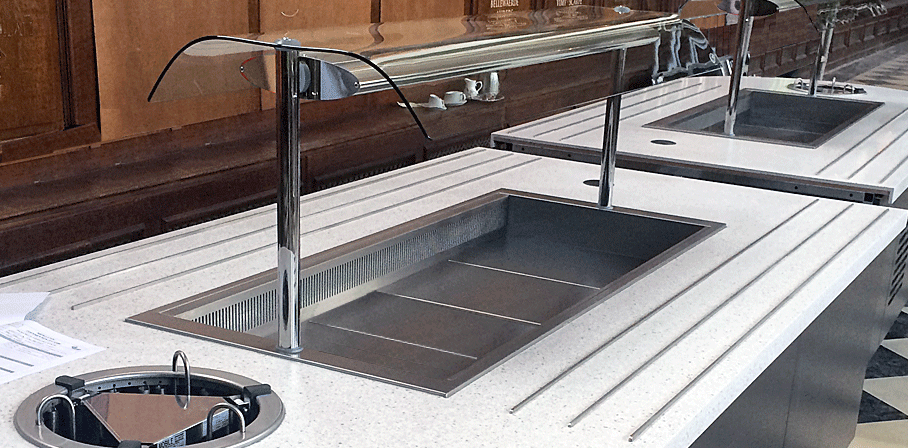

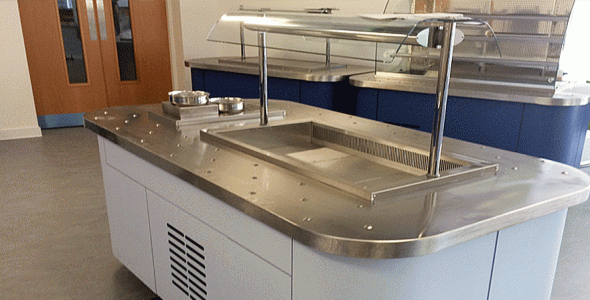

Self Help Cold Island Well (HT).

Features

Self Help Cold Island Well (HT).
Features.

• Double curved toughened glass profile is designed to compliment other units within the range.
• Self help application.
• Features eye-level gantry mounted digital temperature display and control panel.
• Cold fan blown well display features integral energy efficient chilled hydrocarbon refrigeration (HT).
• Can achieve temperatures of 0°C to 5°C (max 27°C ambient 55% relative humidity).
• Product illumination is from diffused LED lighting (4000 Kelvin) in an elliptical profile gantry.
• Integral automatic condensate water evaporation eliminates the need for site drainage.
• Superstructure in bright polished steel and aluminium profile.
• 24-hour operation as standard.
• Non standard airflow arrangements available.
• Supplied with 2m lead for connection to a single 13 Amp socket (13A 230V 50 Hz).
• Refrigeration condensing unit is housed in an underslung self contained cradle.
• Modular removable deck plate system for easier cleaning and maintenance.
• Optional compatibility to Dixell & Modbus RTU network store food monitoring systems.
• Features ‘tamper proof’ temperature control facility.

Food Types

Self Help Cold Island Well (HT).
Food Display Types.

Drinks (Well Area): Still & carbonated, bottled, canned or carton, water, dairy, lemonade, wine, beer, lager, fruit juice & health drinks.

Food (Well Area): Sandwiches, baguettes, rolls, barm cakes, salad, pasta, cheese snacks, cream cakes & pastries, cakes, yoghurt, cereals, fruit in juice & fruit.

Dimensions

Self Help Cold Island Well (HT).
Dimensions.

• (HT) = R290 Refrigeration.
• This model has controls fitted on operator side of gantry as standard.
  If controls are required on customer side i.e. for wall sited counters, please state ‘controls to customer side’ when ordering.

Downloads

General Layout Drawings.
Designline Self Help Cold Island Wells(HT).

General Layout Drawings.
Non Standard Airflow Options (Cold Displays).

Fitting Instructions & User Manual.
Designline Self Help Cold Island Wells(HT).
