Designline Soup Unit (Dry Heat)

Designline drop in displays are elliptically styled displays utilising a clean curved design perspective, enhanced by durable chrome plated aluminium superstructures and lighting ducts, all enclosed within toughened curved glass hoods, sneeze screens and side panels.

Visual

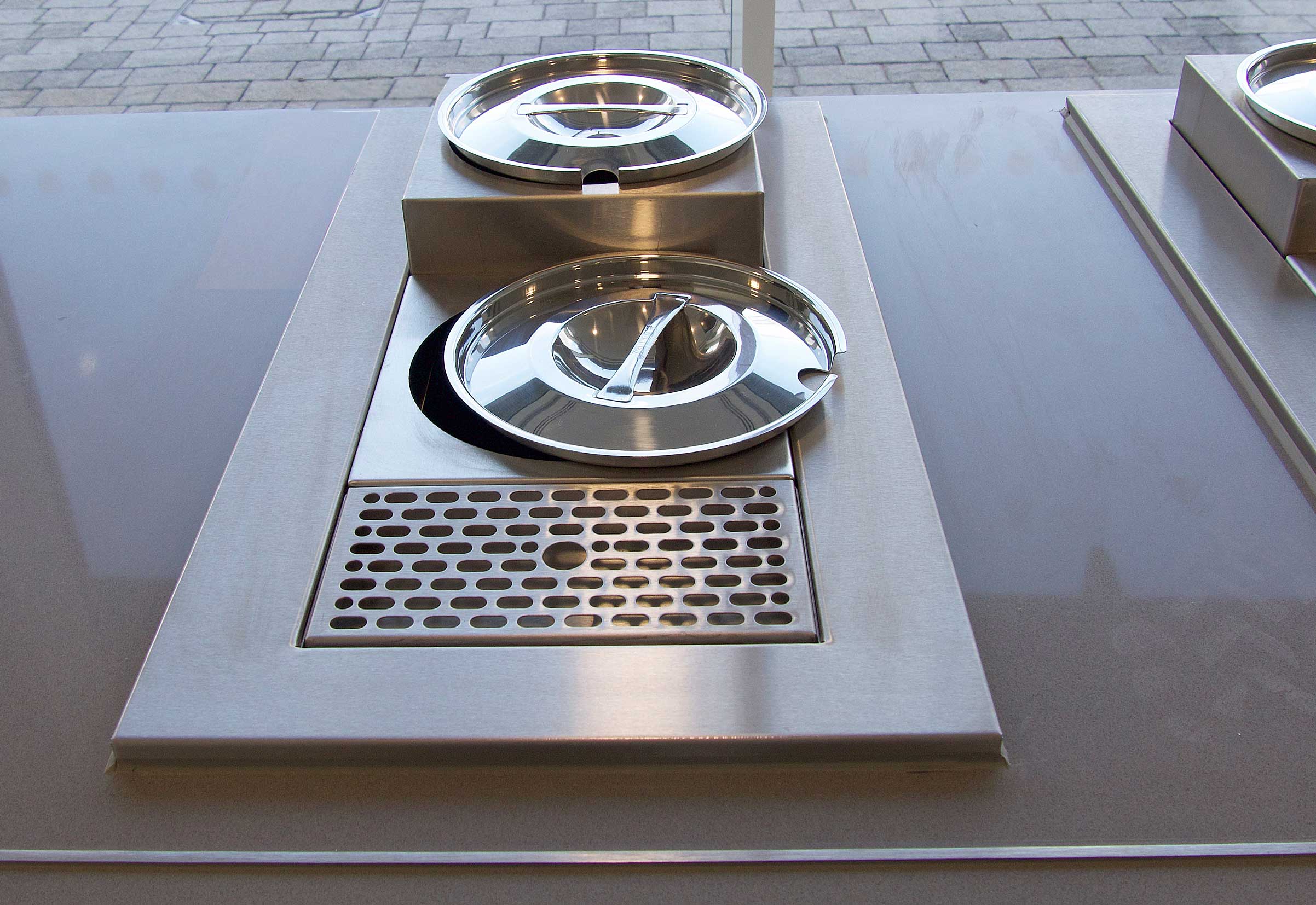

Self Help Dry Heat Soup Unit

Features

Self Help Dry Heat Soup Unit
Features

Dry heat bain marie supplied with 2 no. 4.5 litre (8 pint) s/steel soup containers & notched s/steel lids, supported in collars.
Removable steel drip tray/ soup bowl set down area.
Self help application.
Rear soup container in raised collar for improved customer access/ product presentation.
Designed to compliment other units within the range.
Base heat is controlled via remotely connected digital control panel/ digital probe.
Superstructure in bright polished and satin steel.
24-hour operation as standard.
Remote control panel & elliptical fascia mounting plate on 2m loom for fitting in rear valance panel.
Features ‘tamper proof’ temperature control facility.

Food Types

Self Help Dry Heat Soup Unit
Food Display Types

LONG TERM HOLDING (2-4 hours)

Breakfast: baked beans, tomatoes in juice, meat / vegetable soups, broths & cream soups

Dimensions

Self Help Dry Heat Soup Unit
Dimensions


Model	SUP1
Capacity	2 x 4.5 Litre
Length (mm)	345
Depth (mm)	660
Height above worktop (mm)	127
Depth below worktop (mm)	220
Weight (uncrated) (kg)	20
Power (kW)	0.5
Electrical supply	13A 230V
