Glass Display King (Roll In Chilled Displays)

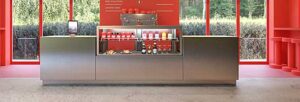

The ‘Glass Display King’ range are assisted service roll-in chilled drinks & food display decks, for use as either freestanding or within a front servery counter recess as a ‘fish tank effect’ type display. They feature a chilled steel deck area for worktop height merchandising, and a toughened glass chilled storage shelf above.

Available in both 1000 & 1500mm lengths, energy efficient hydrocarbon cooling is provided with airflow in/out to the rear operator side, for simple installation in a counter cut out. An optional front fascia panel allows them to be freestanding also.

The Glass Display King can achieve temperatures of 0-5 degrees C in max. 27 deg C ambient at 55 % humidity.

The displays feature a glazed roof area viewing panel, double glazed rear door/s for easier restocking access and are fitted with double glazed front and side glass, for optimum product impact. The displays have low energy LED diffused lighting (4000k), 24 hour operation and an integral condensate water evaporation tray which eliminates the need for site drainage.

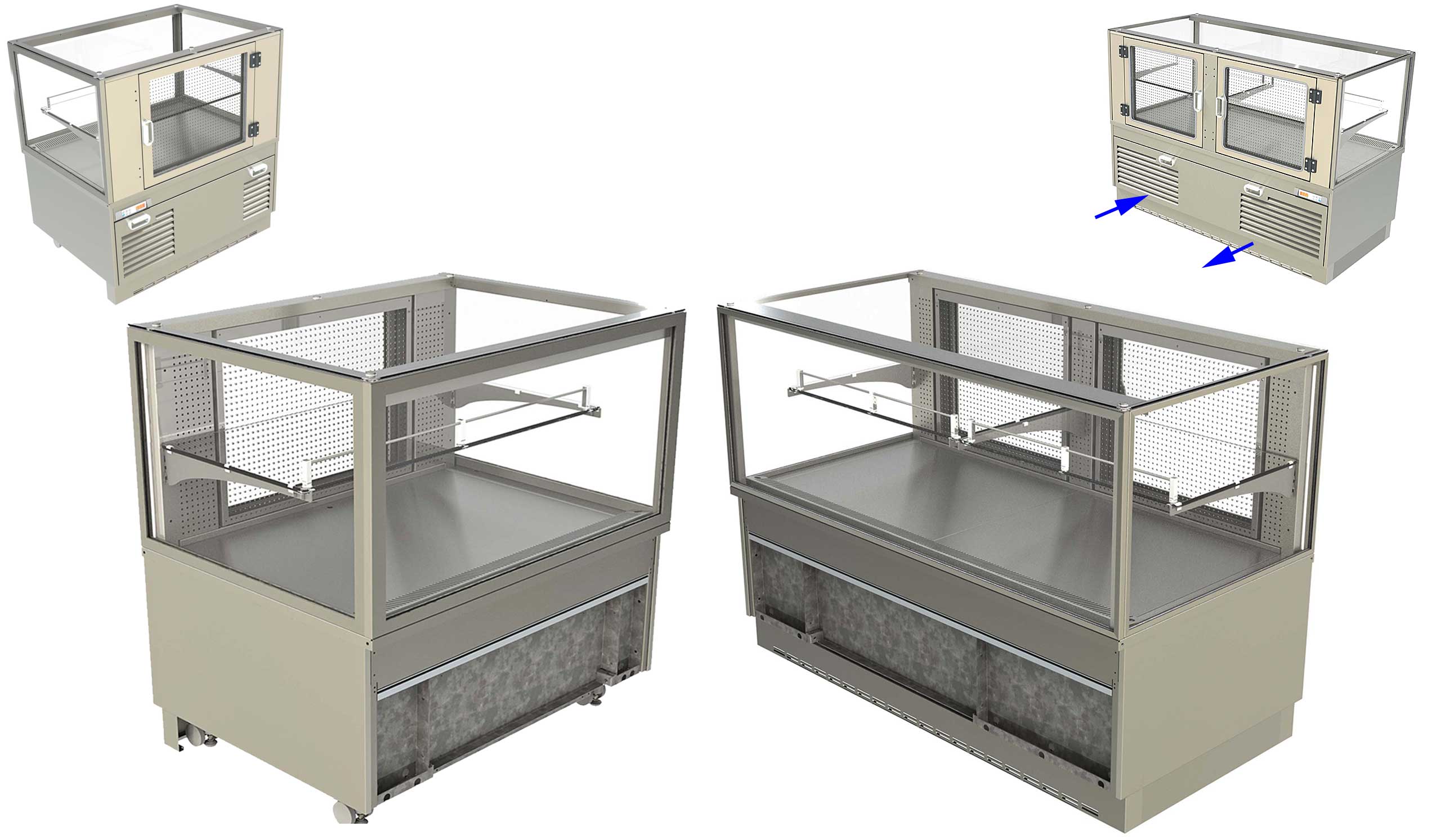

Visual

Ass. Serve Roll In Cold Display (Rear Doors) (HT)

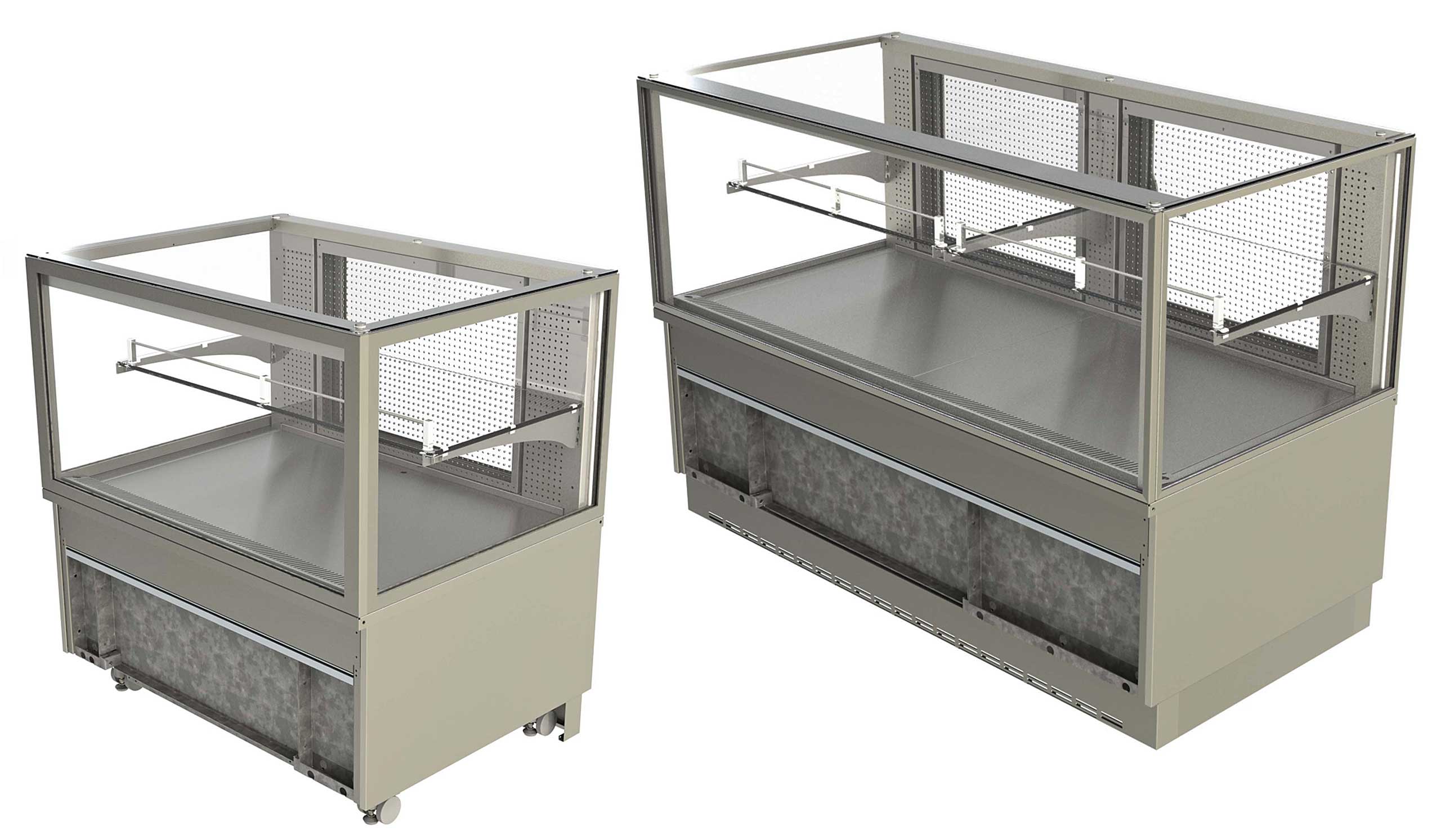

Visual

Features

Ass. Serve Roll In Cold Display (Rear Doors) (HT)
Features

Roll in chilled drinks & food display deck.

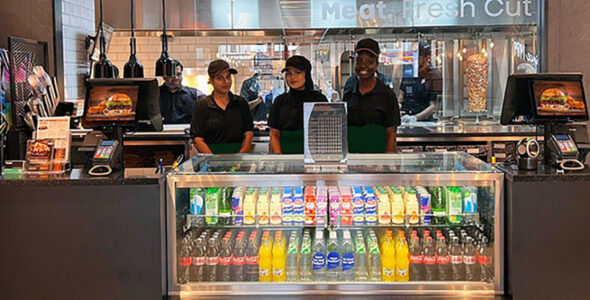

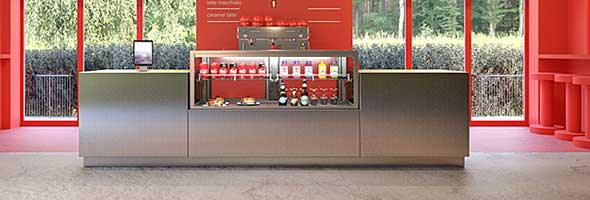

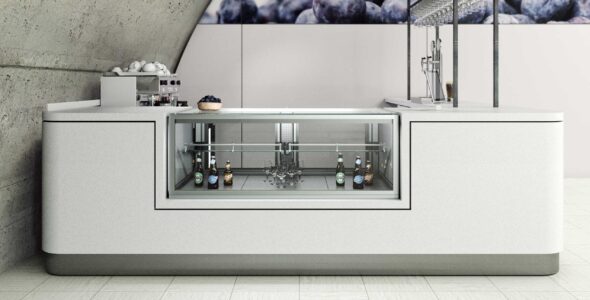

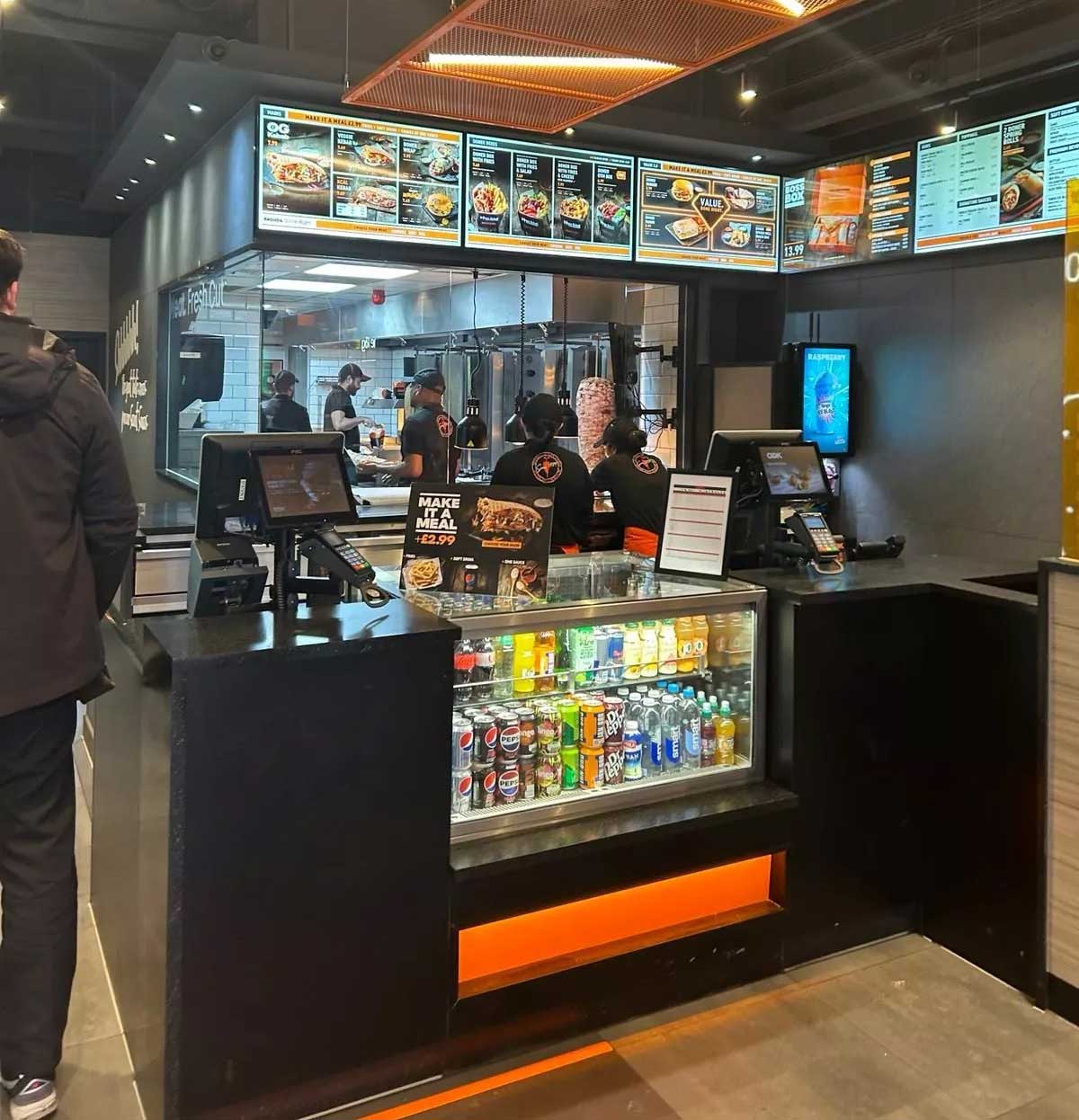

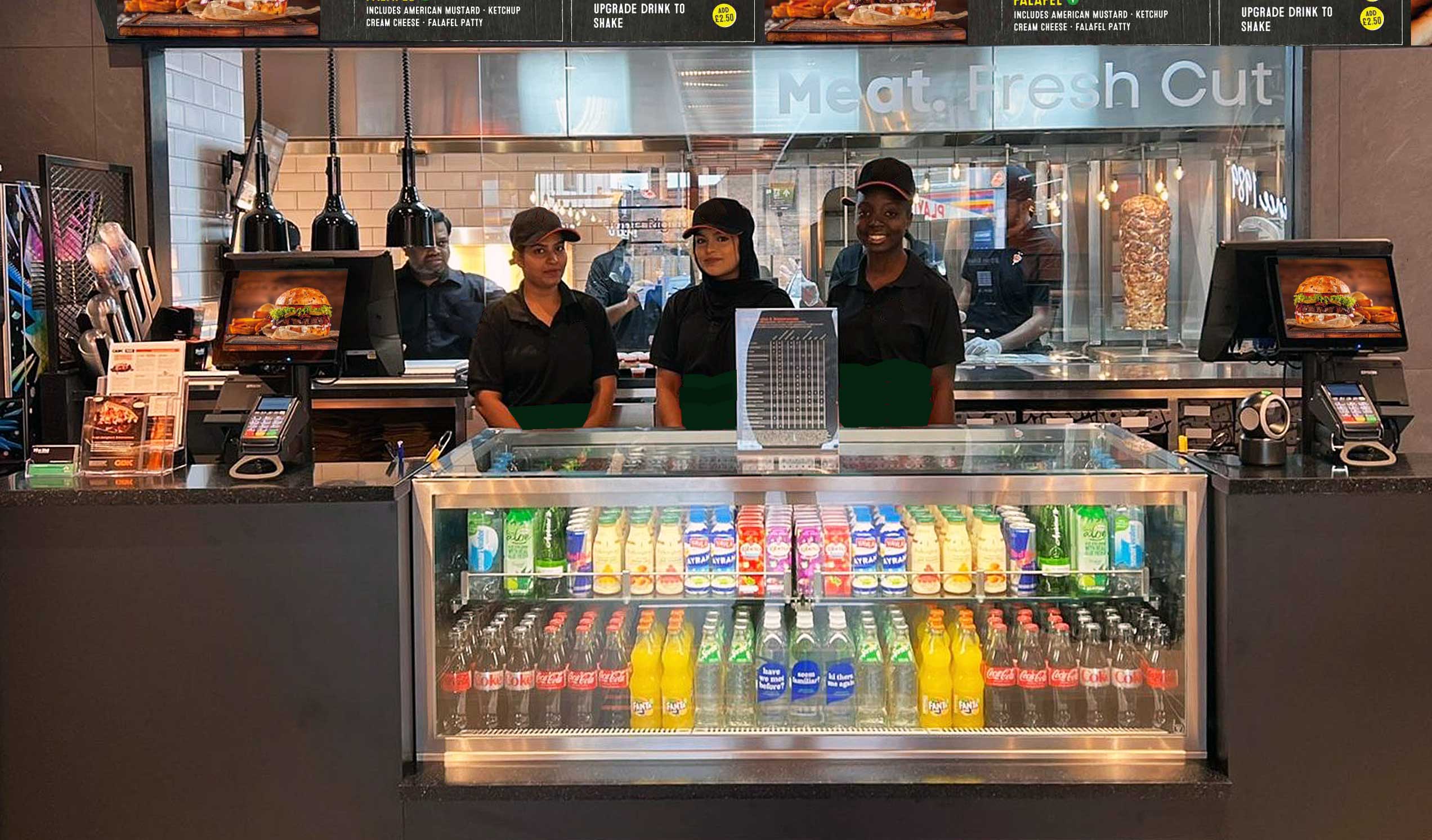

For use within servery counter recess as ‘fish tank effect’ type display, or freestanding.
Assisted Service operation.
Airflow in/out to operator side.
Chilled steel deck area for worktop height merchandising.
Toughened glass chilled storage shelf.
Available in 1000 & 1500mm lengths.
Glazed roof area viewing panel for optimum product impact.
Double glazed front and side glass.
Double glazed, hinged rear door/s for easier restocking access.
Digital temperature display and control panel (operator side).
Chilled by energy efficient hydrocarbon refrigerant.
Can achieve temperatures 0-5 deg. C in 27 deg. C ambient at 55% relative humidity.
Product stops at each display level.
Low energy diffused LED lighting (4000 kelvin)
24 hour operation as standard.
Integral condensate water evaporation tray, eliminates the need for site drainage.
Mobile positioning/ transportation combined castor/ levelling feet.

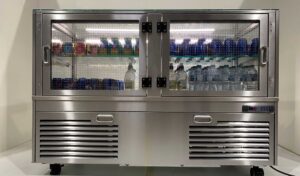

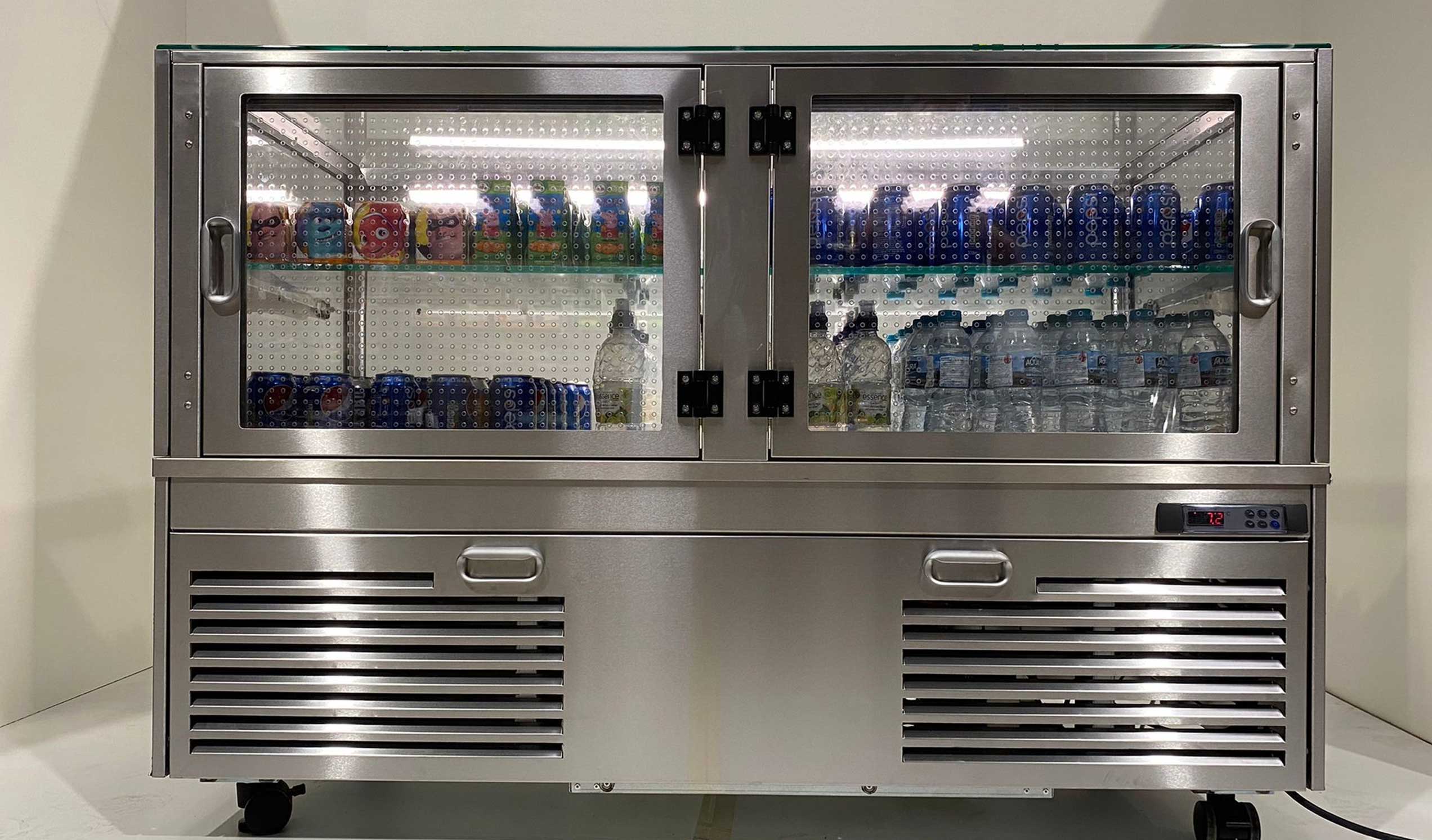

Refrigeration maintenance access is by lift off s/steel ventilated rear panel.
Side panels finished in s/steel.

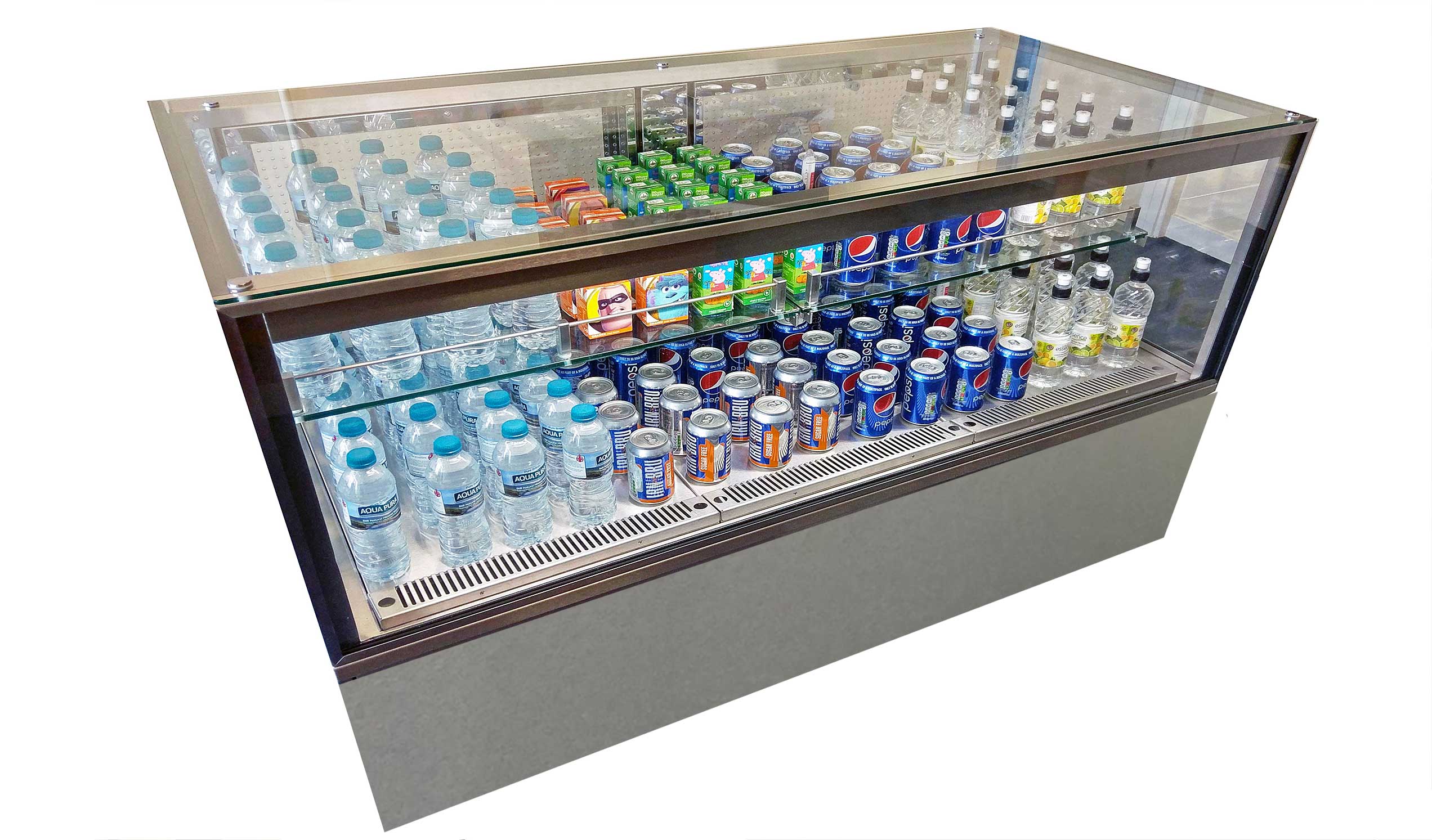

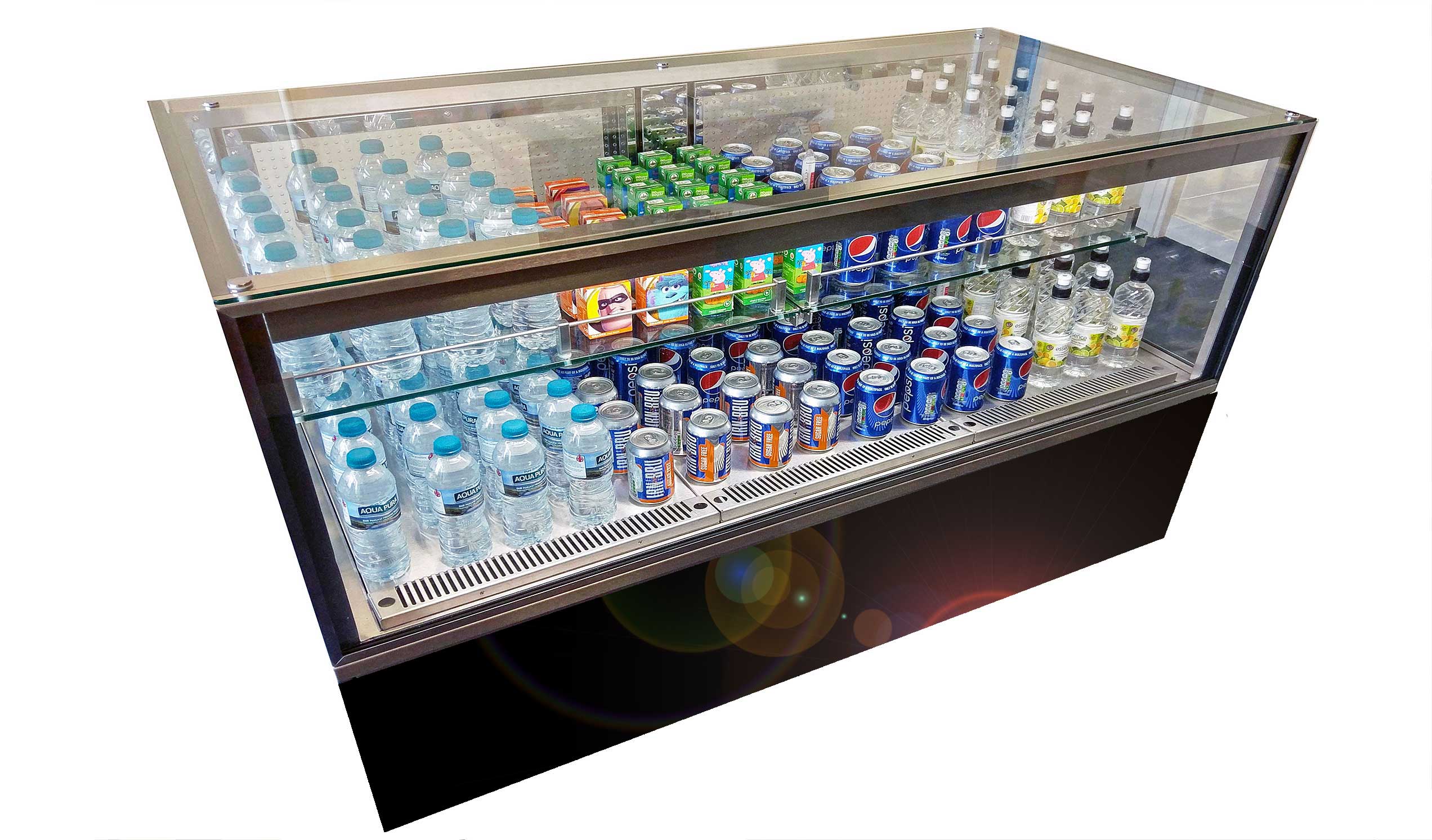

Optional s/steel or black plastisol fascia panel if required as freestanding.
Optional s/steel kickplinth if required as freestanding.
Supplied with 2m lead and UK 3 pin plug top, 13A 230V.

Dimensions

Ass. Serve Roll In Cold Display (Rear Doors) (HT)
Dimensions


Model	GDK1000	GDK1500
Capacity (Litres)	162	247
Length (mm)	1000	1500
Depth (mm)	750	750
Height (mm)	1050/1060	1050/1060
Weight (uncrated) (kg)	165	200
Refrigeration Airflow In/ Out To Operator Side	Included	Included
Power (kW)	1.47	1.47
Total Heat Rejection @ 32°C Ambient (watts)	1340	1340
Electrical Supply	13A 230V	13A 230V

Control panel to ‘operator side’ of display.
R290 Refrigerant

Options

Ass. Serve Roll In Cold Display (Rear Doors) (HT)
Options


Option	GDK1000	GDK1500
S/Steel Front Panel (Solid) (Airflow In/Out To Rear)	GDKSF10	GDKSF15
Black Plastisol Front Panel (Solid) (Airflow In/Out To Rear)	GDKBF10	GDKBF15
Black Plastisol Side Panels (Set)	GDKBSP	GDKBSP
Kickplinth S/Steel (Set): Cold Patisserie	PKICK10C	PKICK15C

Food Types

Ass. Serve Roll In Cold Display (Rear Doors) (HT)
Food Display Types

Drinks (Deck Area): Still & carbonated, bottled, canned or carton, water, dairy, lemonade, wine, beer, lager, fruit juice & health drinks.

Food (Deck and Shelving Area): (Wrapped or unwrapped) pies, pasties, sausage rolls & cooked meats, sandwich fillings, baked potato fillings, salad items & cheese, sandwiches, baguettes, rolls, barm cakes, salad, pasta, cheese snacks, cream cakes & pastries, cakes, yoghurt, fruit in juice & fruit.
