Glide Twin Ambient Plate Dispenser

The twin ambient plate dispenser forms part of the Glide range of mobile dining carts – a choice of cold, hot & ambient commercial catering carts that combine to form a food servery counter solution as unique as your requirements !

Glide Twin Ambient Plate Dispenser.
The dispenser is available as 2-1 Gn (825mm) long, 700mm deep & 900mm high. It has two spring loaded, self levelling plate storage sections within a s/steel worktop. Each spring loaded dispenser section is adjusted by lifting the four plate guide rods inwards/ outwards, to enable the storage of various diameter plates, between 8”-12” (205mm-305mm) with a total capacity of 88 -106 plates – depending on plate type & thickness etc.

The springs keep the plates below rising to the top of the dispenser, as top plates are taken. These springs can be easily removed to facilitate smaller and lighter weight plates.

Standard Finishes. The customer front /side base panels are in leathergrain plastisol steel, colour merlin grey (BS 18B25). The operator rear panel is in s/steel and the worktop is 304 gd. s/steel & other external surfaces are in 430 gd. s/steel. The plate dispenser base has lockable, non-marking rubber tyre castors fitted.

Simple Use & Set Up. The dispensers two plate storage sections can be adjusted for 8”-12” (205mm-305mm) diameter plates. The plate guide bars lift/ turn inwards and the dispensers lift out so springs can be removed, to allow for using the dispenser with smaller and lighter plates.

Versatile Positioning.
The dispenser can suite with other Glide dining carts in the counter run, or be used as freestanding. The plate sections are positioned forwards in the top to allow the rest of the worktop to be used for additional storage behind (if required).The ambient plate dispenser can be customised with accessories such as tray slides, tray rails, colour finishes and low height versions for junior/ primary age use.

A wall sited version of the ambient plate dispenser is also available, for alcoves or recesses, c/w front facing steel base panel, if used with other wall sited Glide models. (See separate model GWSAPD2).

l

Height Options. Low Height Model (Glide Junior) – in 850mm or 800mm high options for junior/ primary use.

Accessories & Finishes.

Folding Steel Solid or Tubular Tray Slides – Tray slides add 40mm to unit depth and are set at the worktop height – 55mm.

Colour Finishes To Front/ Side Panels – 11 alternative choices of durable steel, colour & wood effect finishes for plate dispenser front/ side panels, to compliment other selected models in the servery colour scheme.

Visual

Glide Twin Ambient Plate Dispenser.
Visual

Features

Glide Twin Ambient Plate Dispenser.
Features

Glide mobile dining cart, ambient twin plate dispenser trolley.
Free standing application.
Model Code GAPD2.
Spring loaded, self levelling.
Adjustable to suit 205-305mm (diam.) 8-12″ plates.
Unit size 825 mm (l) x 700 mm (d) x 900 mm (h) – 2/1 Gn size.
Total capacity 88 -106 plates, depending on plate type.
Removable dispensers for weight (spring) adjustment.
Customer front/side base panels in leathergrain plastisol steel, colour merlin grey (BS 18B25).
Worktop in 304 gd steel, all other external steel surfaces (operator side rear base panel/ corner trims etc.) in 430gd.
Fitted with lockable non-marking rubber tyre castors.
Unit weight 54kg.

Options

Optional folding s/steel solid tray slide available (option code GSTS2).
Optional folding s/steel tubular tray rail Ø25 tube, available (option code GTTS2).
Unit depth with tray slide-rail fitted – tray slide up (1000mm)/ tray slide down (740mm).
Optional choice of 11 solid colour & woodgrain base outer side panel finishes available.
Optional low height model 850mm (h) available.
Optional low height model 800mm (h) available.*
800mm (h) = bespoke option with extended lead time*.

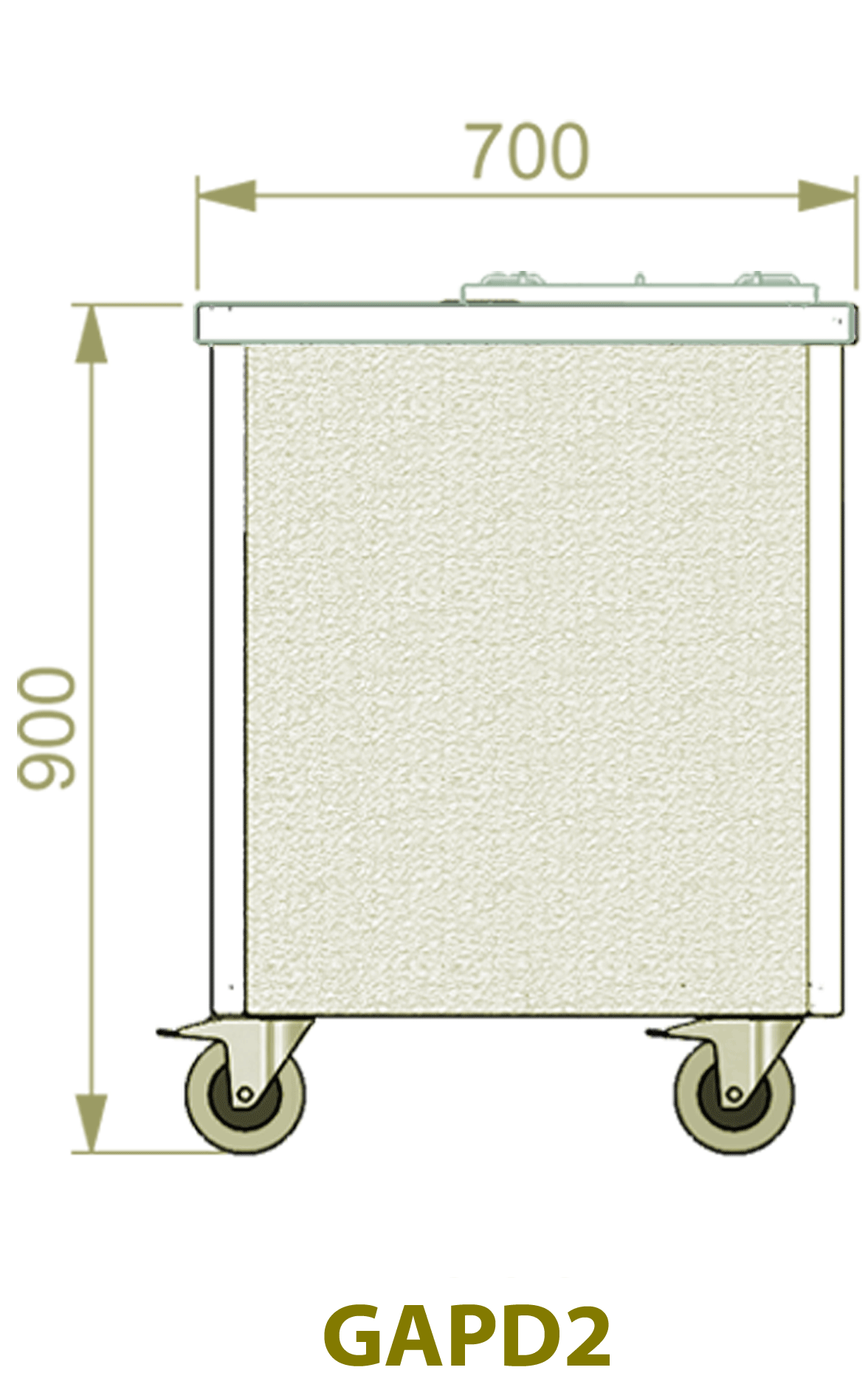

Dimensions

Glide Twin Ambient Plate Dispenser.
Dimensions

Model Code GAPD2.
Glide mobile dining cart, ambient twin plate dispenser trolley.
2/1 Gn size.
Model dimensions: 825 mm (l) x 700 mm (d) x 900 mm (h).
Model weight 54 kg.
Spring loaded, self levelling dispensers.
Dispensers adjustable to suit 205-305mm (diam.) 8-12″ plates.
Unit size 825 mm (l) x 700 mm (d) x 900 mm (h) – 2/1 Gn size.
Total capacity 88 -106 plates, depending on plate type.
Customer front/side base panels in leathergrain plastisol steel, colour merlin grey (BS 18B25).
Worktop in 304 gd steel, all other external steel surfaces (operator side rear base panel/ corner trims etc.) in 430gd.
Unit weight 54kg.

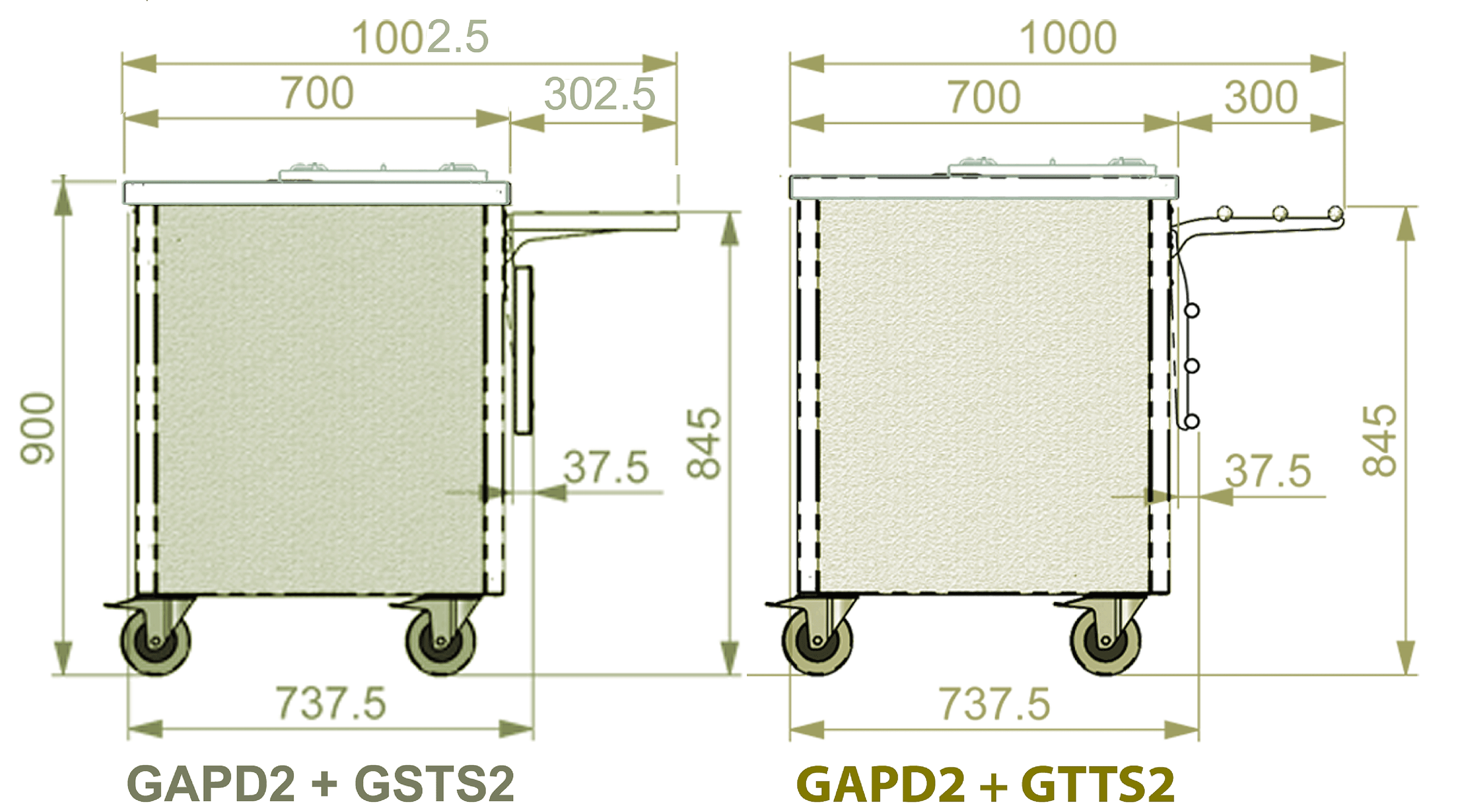

Model depth with optional folding tray slide/tray rail fitted: tray slide up = 1000mm (d)/ tray slide down = 740mm (d).
Optional tray slide height: for standard 900 mm (h) worktop = 845 mm, low height 850 mm model = 795mm (h), low height 800 mm model = 745mm (h).
Supplied With Lockable Castors With Non-Marking Rubber Tyres.
Power Supply N/A.

Options : Glide Twin Ambient Plate Dispenser (Model GAPD2)

Option	Code	Option	Code	Option	Code
Solid S/steel Tray Slide (Folding)	GSTS2	Tubular S/steel Tray Rail (Folding)	GTTS2	Low Height Model 850mm (h)	G850H
Low Height Model 800mm (h)	G800H	Satin S/steel Front & Side Panels (430gd.)	GSSTLCHA2	Colour Front & Side Panels Ocean Blue (BS18C37)	GBLUECHA2
Colour Front & Side Panels Light Grey (BS10A05)	GGREYCHA2	Colour Front & Side Panels Forest Green (RAL6002)	GGRENCHA2	Colour Front & Side Panels Poppy Red (BS04E5B)	GPREDCHA2
Colour Front & Side Panels Cream (BS10c31)	GCREMCHA2	Colour Front & Side Panels White (BS00E55)	GWHITCHA2	Colour Front & Side Panels Black (BS00E53)	GBLAKCHA2
Woodgrain Front & Side Panels Walnut (DL85)	GWALNCHA2	Woodgrain Front & Side Panels Beech (DL76)	GBEECCHA2	Woodgrain Front & Side Panels Oak (DL84)	GOAKCHA2

Popular Model Codes & Options

Model	Model Code	Option Code	Option Code

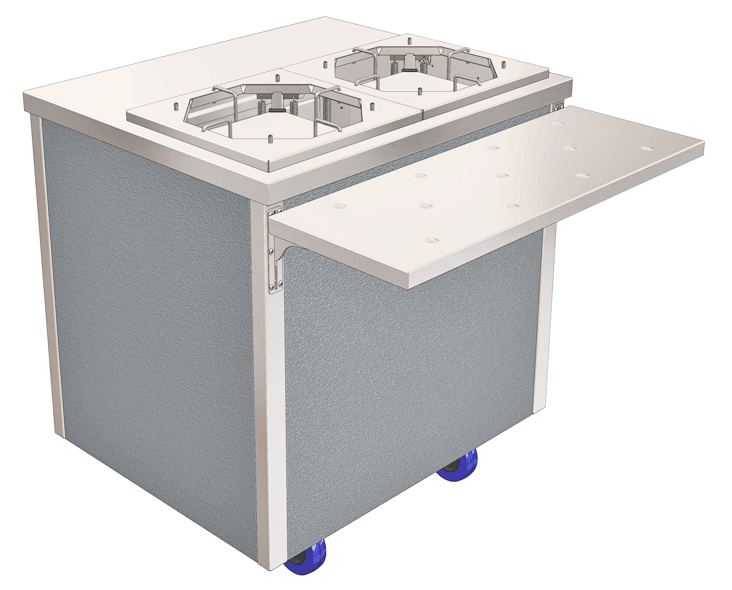

Glide Twin Ambient Plate Dispenser (& Solid Tray Slide)	GAPD2	GSTS2	YYYYX
Glide Twin Ambient Plate Dispenser (& Tubular Tray Rail)	GAPD2	GTTS2	YYYY
Glide Twin Ambient Plate Dispenser (& Colour Finish Ends – Red)	GAPD2	GPREDCHA2	YYYY

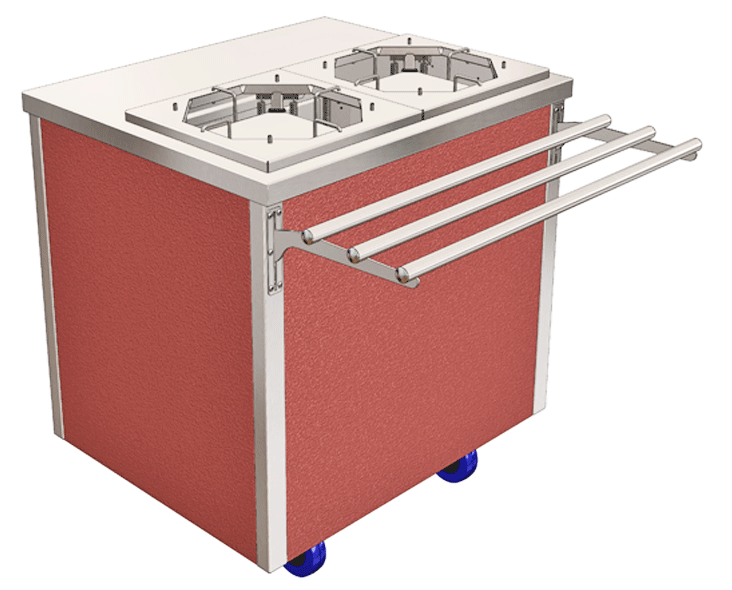

Glide Twin Ambient Plate Dispenser (& Tubular Tray Rail & Colour Finish Ends – Red)	GAPD2	GTTS2	GPREDCHA2
Glide Twin Ambient Plate Dispenser (& Solid Tray Slide & Colour Finish Ends – Red)	GAPD2	GSTS2	GPREDCHA2
Glide Twin Ambient Plate Dispenser (& Colour Finish Ends – Blue)	GAPD2	GBLUECHA2	YYYY

Options

Glide Twin Ambient Plate Dispenser.
Options.

Glide S/Steel Folding Solid Tray Slide.
(GSTS2) Glide option: 2-1 Gn, s/steel solid tray slide with dimpled surface to assist tray movement, drop down bracket type.
Up position adds 302mm to depth. Down position + 40mm to base unit depth. Trayslide height = base unit height less 55mm.

Glide Glide S/Steel Folding Tubular Tray Rail.
(GTTS2) Glide option: 2-1 Gn, s/steel tubular tray rail, 304 gd. Ø25 tube. Drop down bracket type.
Up position adds 298 mm to depth. Down position + 40mm to base unit depth. Trayslide height = base unit height less 55mm.

Low Height Model ( Glide Junior) – 850mm.
(G850H) Glide junior option: (all cold, hot, ambient, till & corner units) 850mm (h) base unit, c/w 100mm lockable castors.
Height suitable for Junior/Primary Use (Optional trayslide height becomes 795mm high).

Low Height Model ( Glide Junior) – 800mm.
(G800H) Glide junior option: (all cold, hot, ambient, till & corner units) 800mm (h) base unit, c/w 100mm lockable castors.
Height suitable for Junior/Primary Use (Optional trayslide height becomes 745mm high). * Bespoke Option/ Extended Lead Time *

Glide Colour Finishes To Front/ Side Panels.

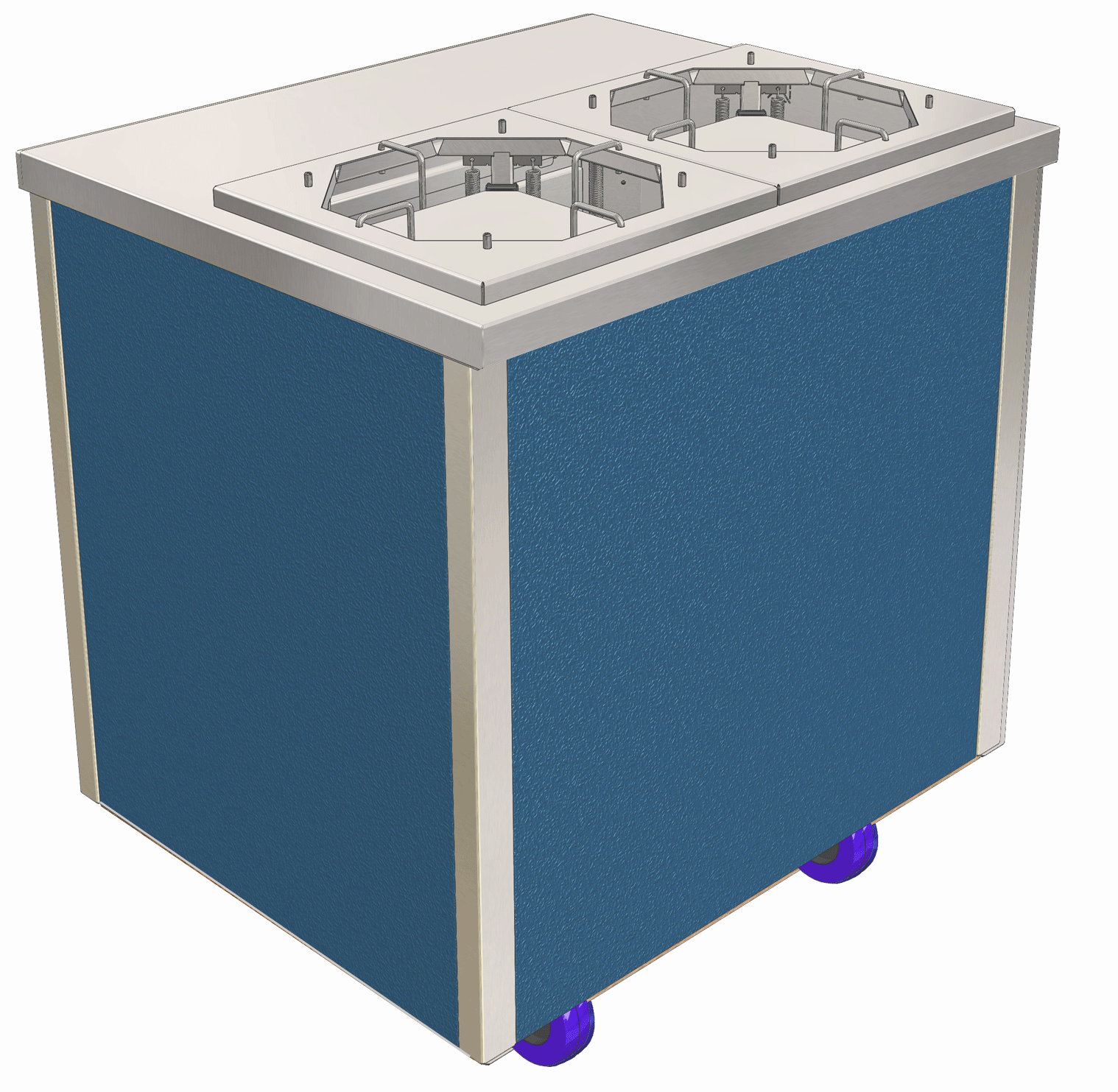

Blue Finish. (Option Code GBLUECHA2) 2-1 Gn set of outer side panels in leathergrain plastisol steel, colour ocean blue (BS 18C37) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

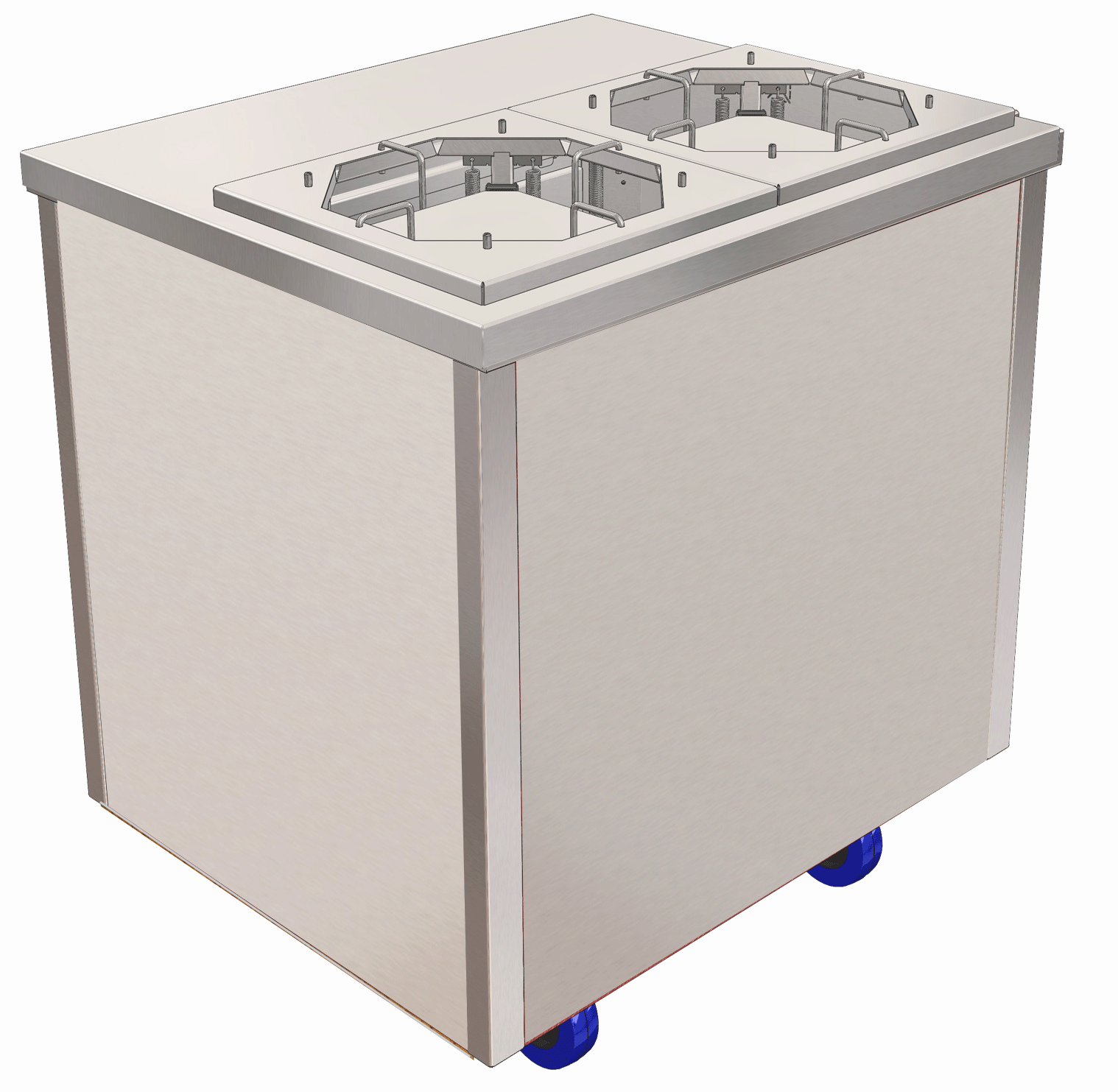

S/steel Finish. (Option Code GSSTLCHA2) 2-1 Gn set of outer side panels in satin s/steel 430 gd. to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

Light Grey Finish. (Option Code GGREYCHA2) 2-1 Gn set of outer side panels in leathergrain plastisol steel, colour goosewing light grey (BS 10A05) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

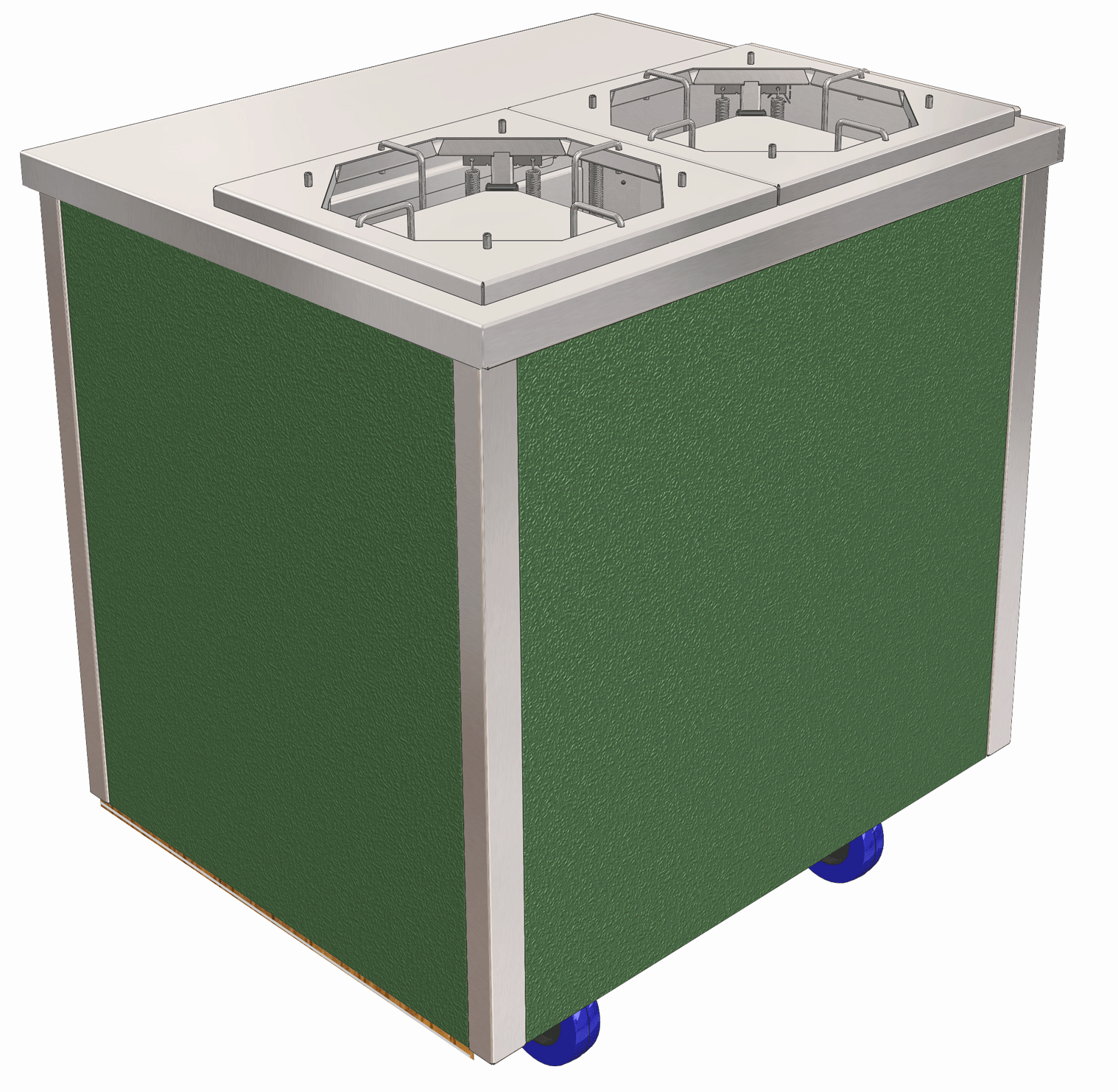

Forest Green Finish. (Option Code GGRENCHA2) 2-1 Gn set of outer side panels in leathergrain plastisol steel, colour forest green/heritage (RAL 6002) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

Poppy Red Finish. (Option Code GPREDCHA2) 2-1 Gn set of outer side panels in leathergrain plastisol steel, colour poppy red (BS 04E5B) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

Cream Finish. (Option Code GCREMCHA2) 2-1 Gn set of outer side panels in leathergrain plastisol steel, colour buttermilk cream/ honesty (BS 10C31) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

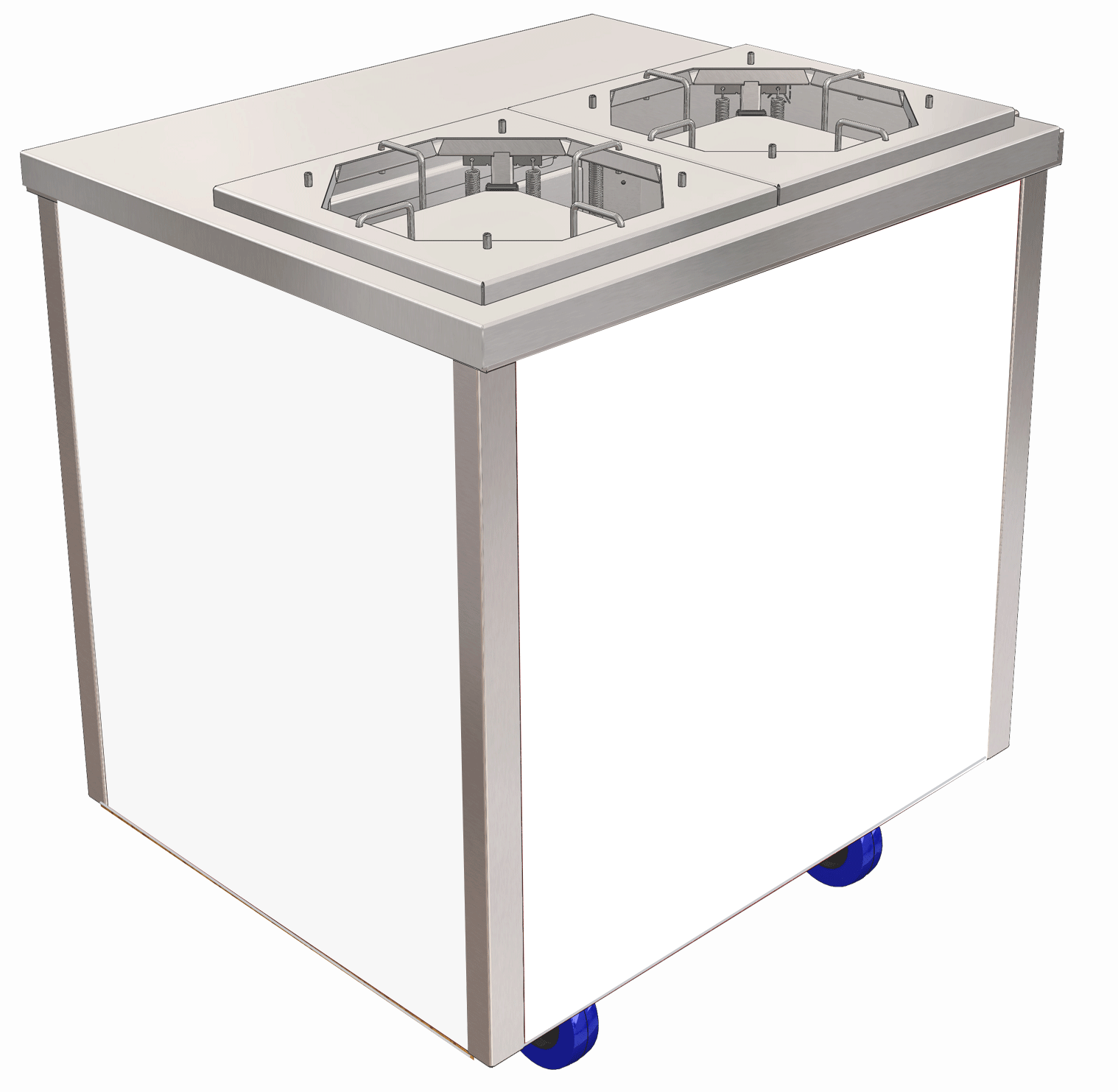

White Finish. (Option Code GWHITCHA2) 2-1 Gn set of outer side panels in leathergrain plastisol steel, colour white (BS 00E55) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

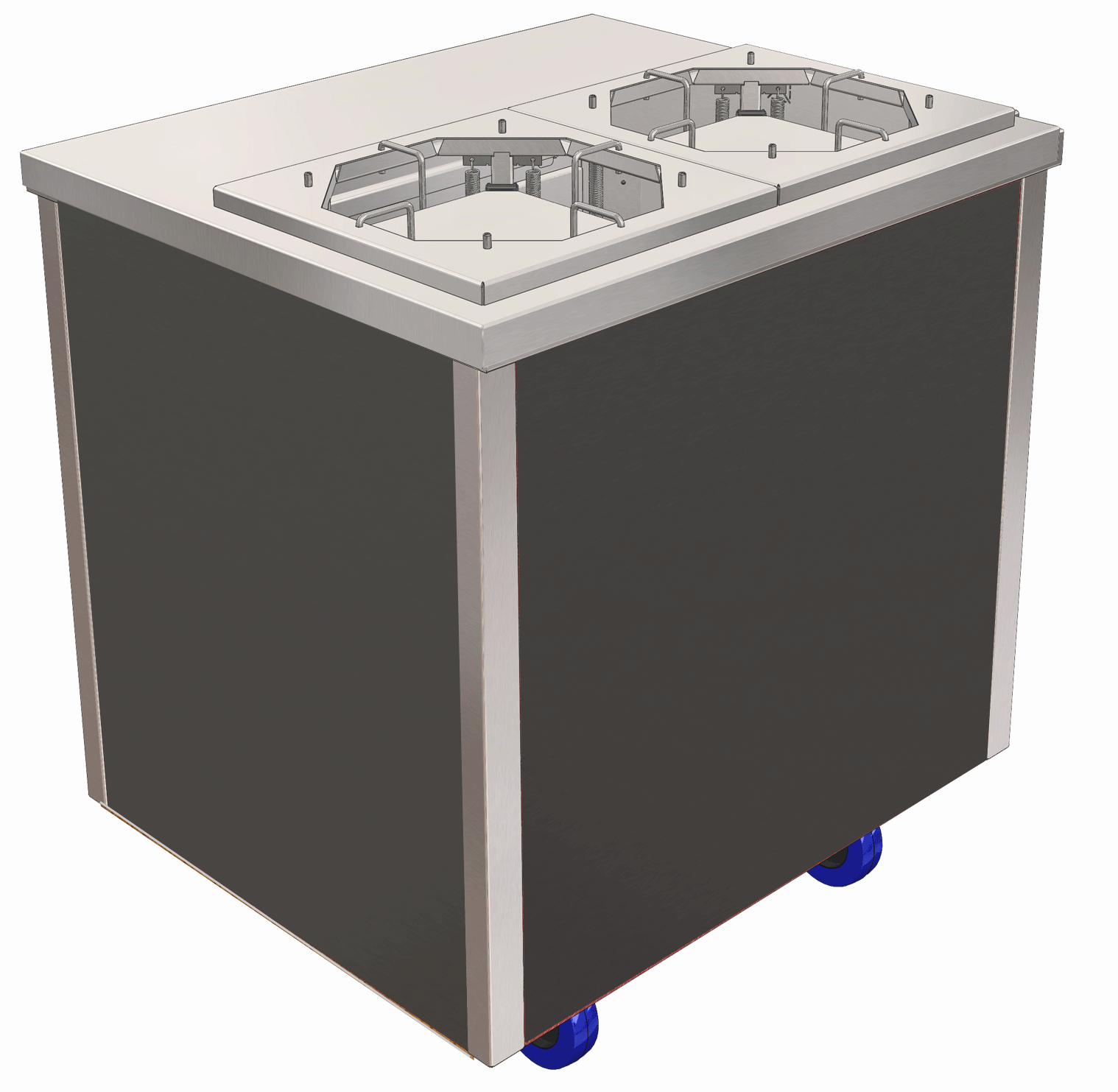

Black Finish. (Option Code GBLAKCHA2) 2-1 Gn set of outer side panels in leathergrain plastisol steel, colour black (BS 00E53) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

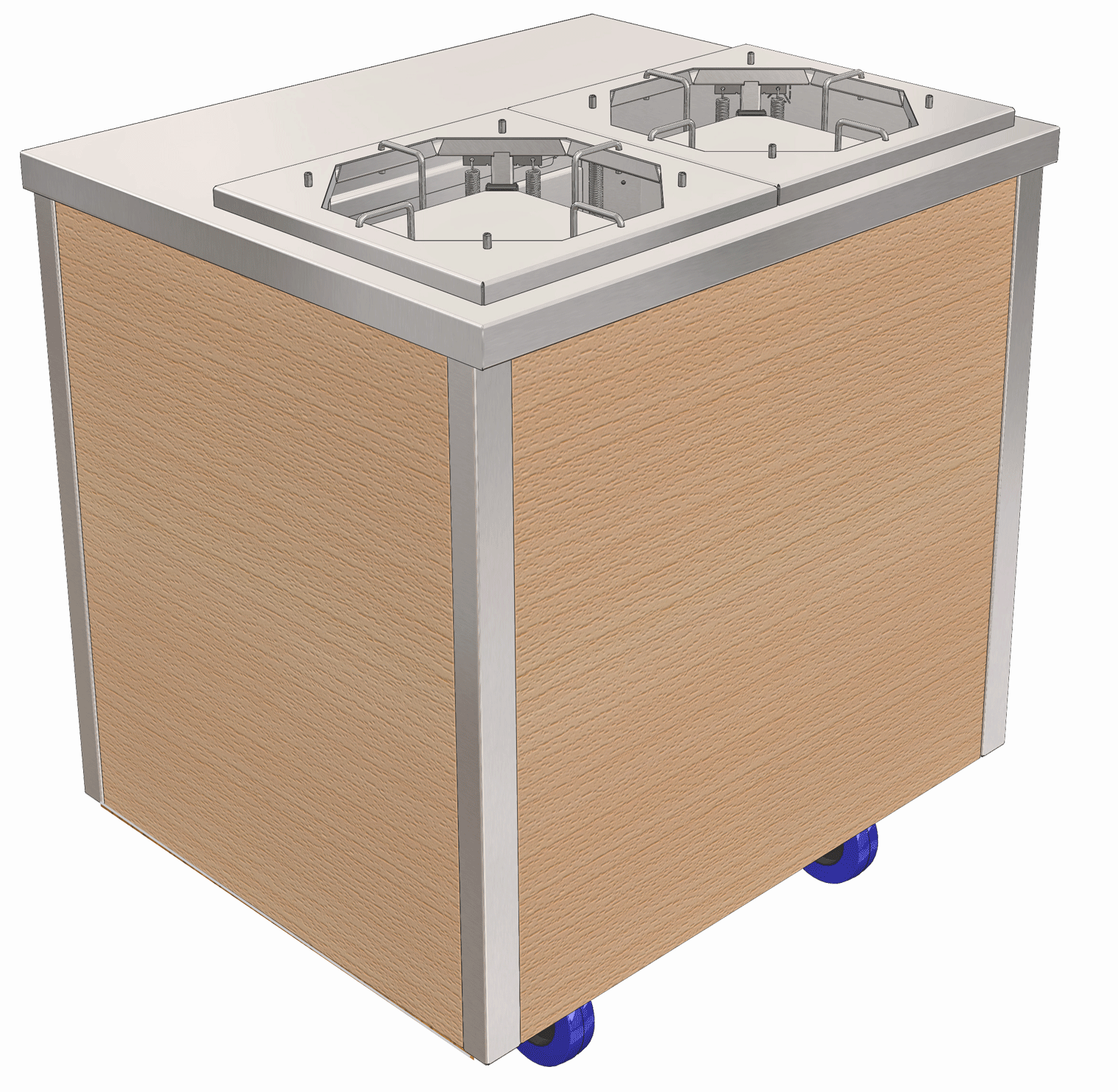

Beech Woodgrain Finish. (Option Code GBEECCHA2) 2-1 Gn set of outer side panels in wood grain effect DL76 beech finish to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

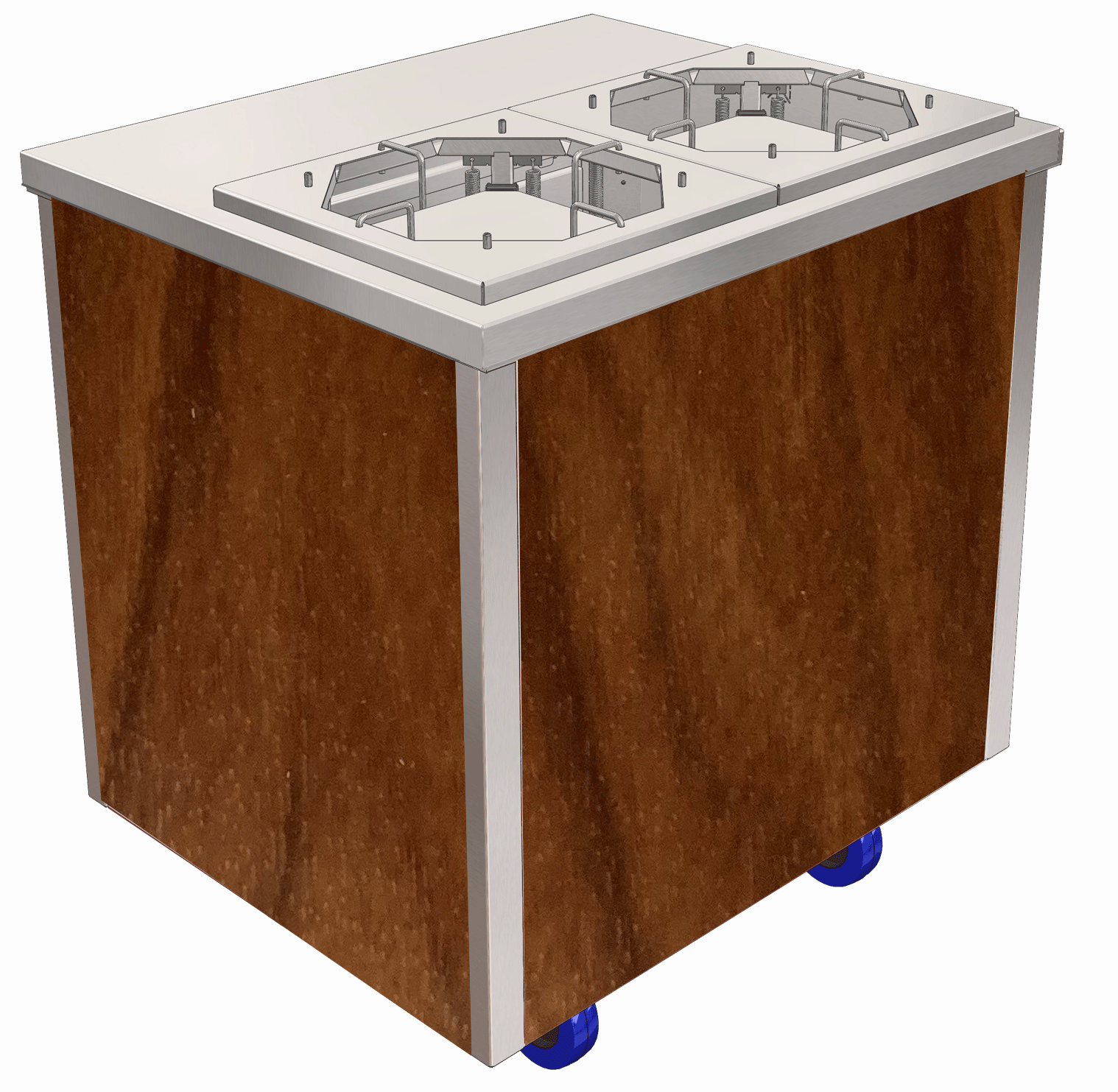

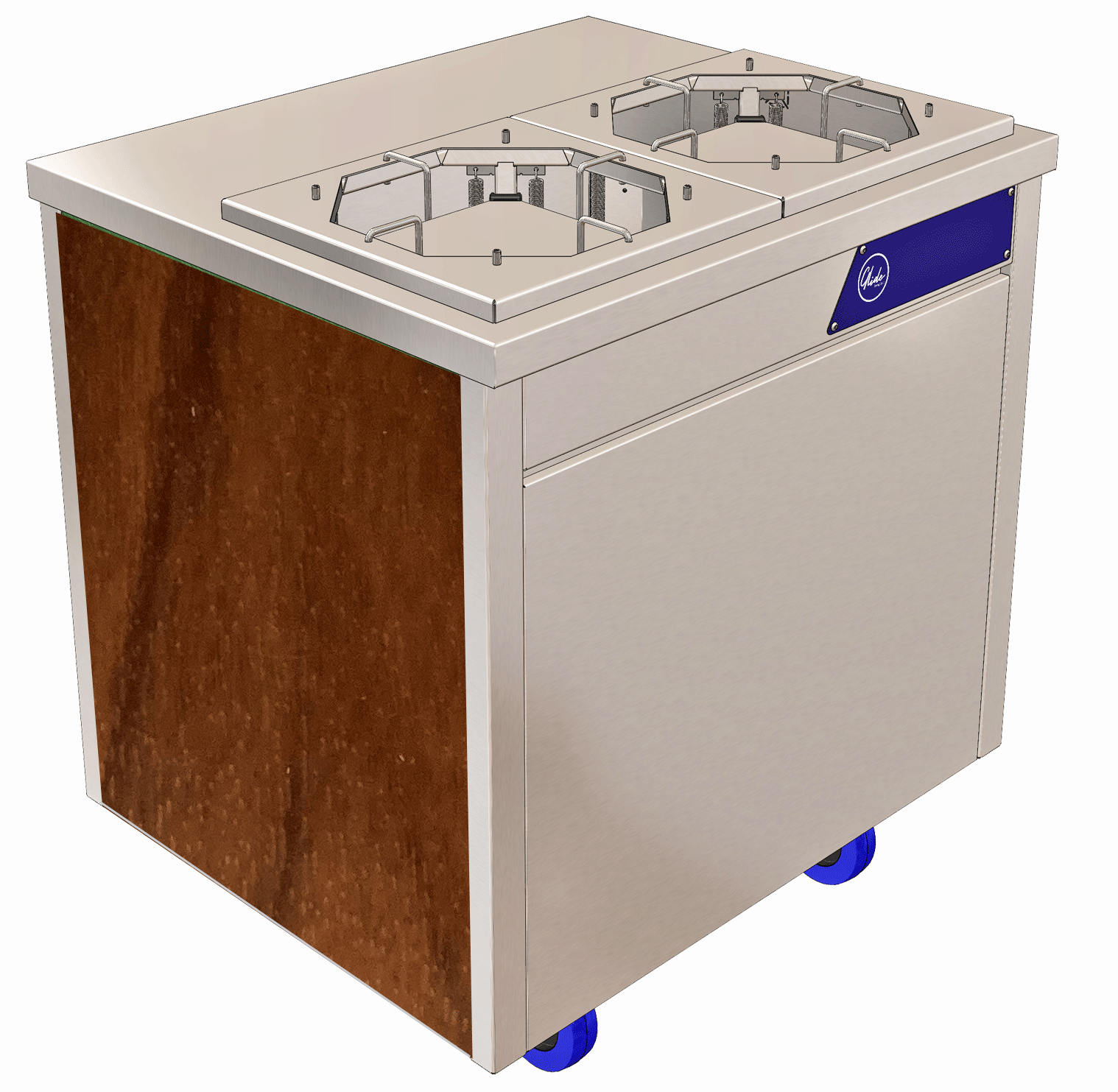

Walnut Woodgrain Finish. (Option Code GWALNCHA2) 2-1 Gn set of outer side panels in wood grain effect panel DL85 walnut finish to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

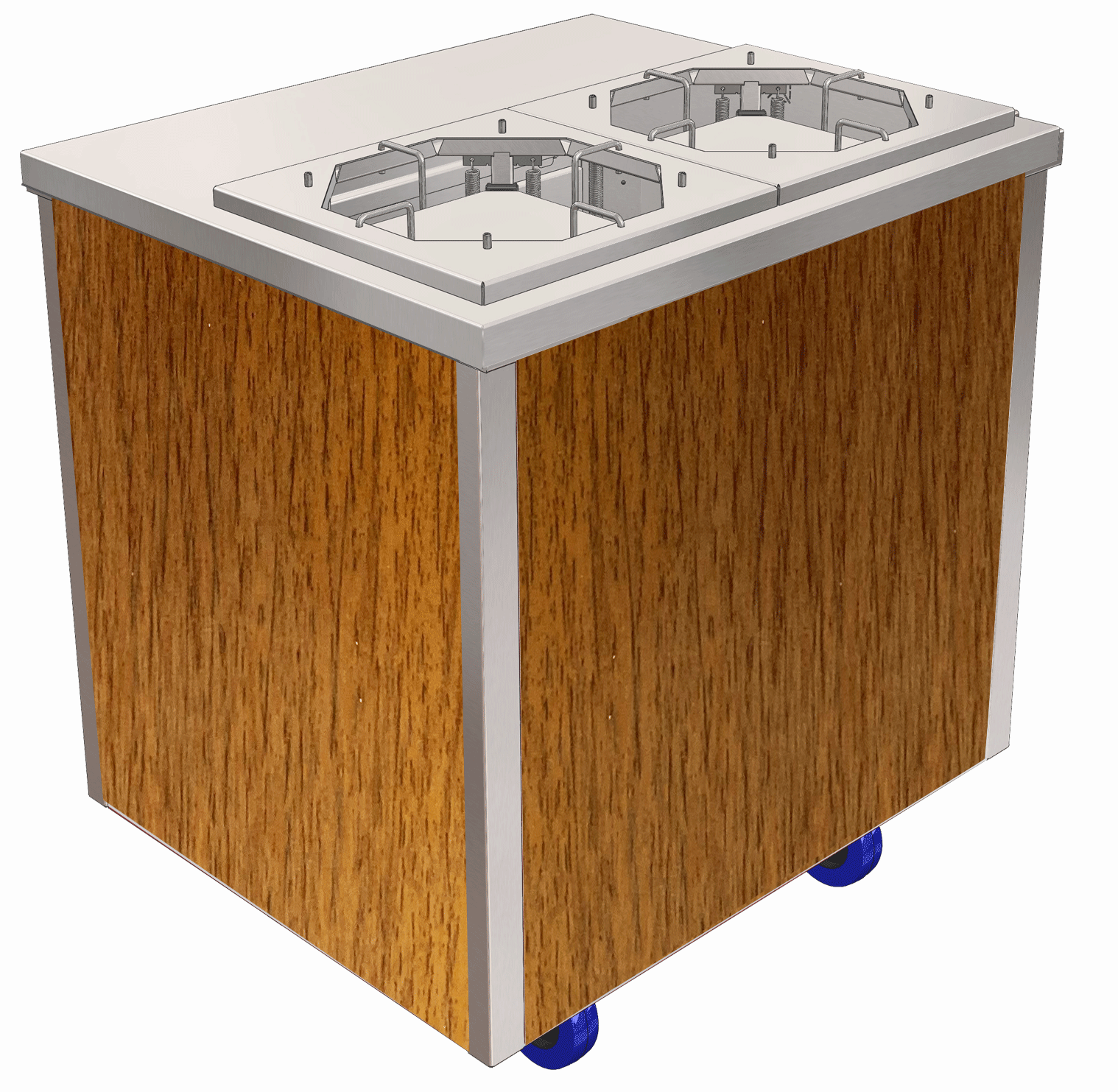

Oak Woodgrain Finish. (Option Code GOAKCHA2) 2-1 Gn set of outer side panels in wood grain effect DL84 oak finish to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

Options : Glide Twin Ambient Plate Dispenser (Model GAPD2)

Option	Code	Option	Code	Option	Code
Solid S/steel Tray Slide (Folding)	GSTS2	Tubular S/steel Tray Rail (Folding)	GTTS2	Low Height Model 850mm (h)	G850H
Low Height Model 800mm (h)	G800H	Satin S/steel Front & Side Panels (430gd.)	GSSTLCHA2	Colour Front & Side Panels Ocean Blue (BS18C37)	GBLUECHA2
Colour Front & Side Panels Light Grey (BS10A05)	GGREYCHA2	Colour Front & Side Panels Forest Green (RAL6002)	GGRENCHA2	Colour Front & Side Panels Poppy Red (BS04E5B)	GPREDCHA2
Colour Front & Side Panels Cream (BS10c31)	GCREMCHA2	Colour Front & Side Panels White (BS00E55)	GWHITCHA2	Colour Front & Side Panels Black (BS00E53)	GBLAKCHA2
Woodgrain Front & Side Panels Walnut (DL85)	GWALNCHA2	Woodgrain Front & Side Panels Beech (DL76)	GBEECCHA2	Woodgrain Front & Side Panels Oak (DL84)	GOAKCHA2

Popular Model Codes & Options.

Glide Twin Ambient Plate Dispenser
(& Tray Slide).
Model Code Option Code
GAPD2 GSTS2

Glide Twin Ambient Plate Dispenser

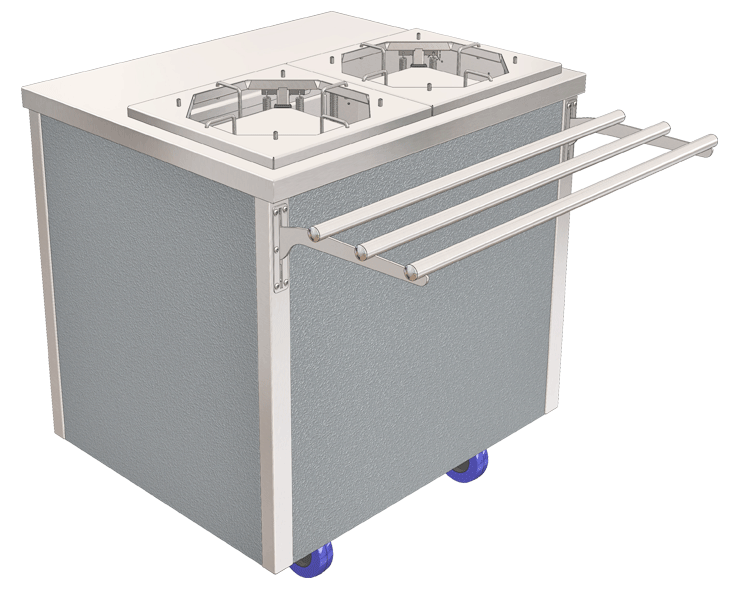

(& Tray Rail).
Model Code Option Code
GAPD2 GTTS2

Glide Twin Ambient Plate Dispenser
(& Colour Finish – Red).
Model Code Option Code
GAPD2 GPREDCHA2

Glide Twin Ambient Plate Dispenser
(& Tray Rail & Colour Finish – Red).
Model Code Option Code Option Code
GAPD2 GTTS2 GPREDCHA2

Glide Twin Ambient Plate Dispenser

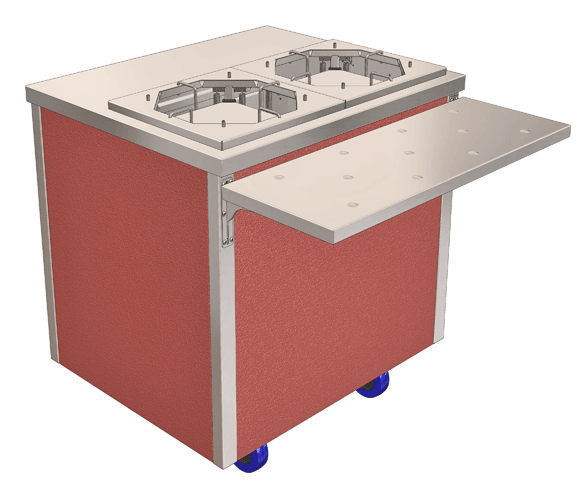

(& Tray Slide & Colour Finish – Red).
Model Code Option Code Option Code
GAPD2 GSTS2 GPREDCHA2

Glide Twin Ambient Plate Dispenser
(& Colour Finish – Blue).
Model Code Option Code
GAPD2 GBLUECHA2

Downloads

General Layout Drawings
Glide Twin Ambient Plate Dispenser.

Specification Sheet, Base Panel Colour Options, User Manual.
Glide Twin Ambient Plate Dispenser.

Visual

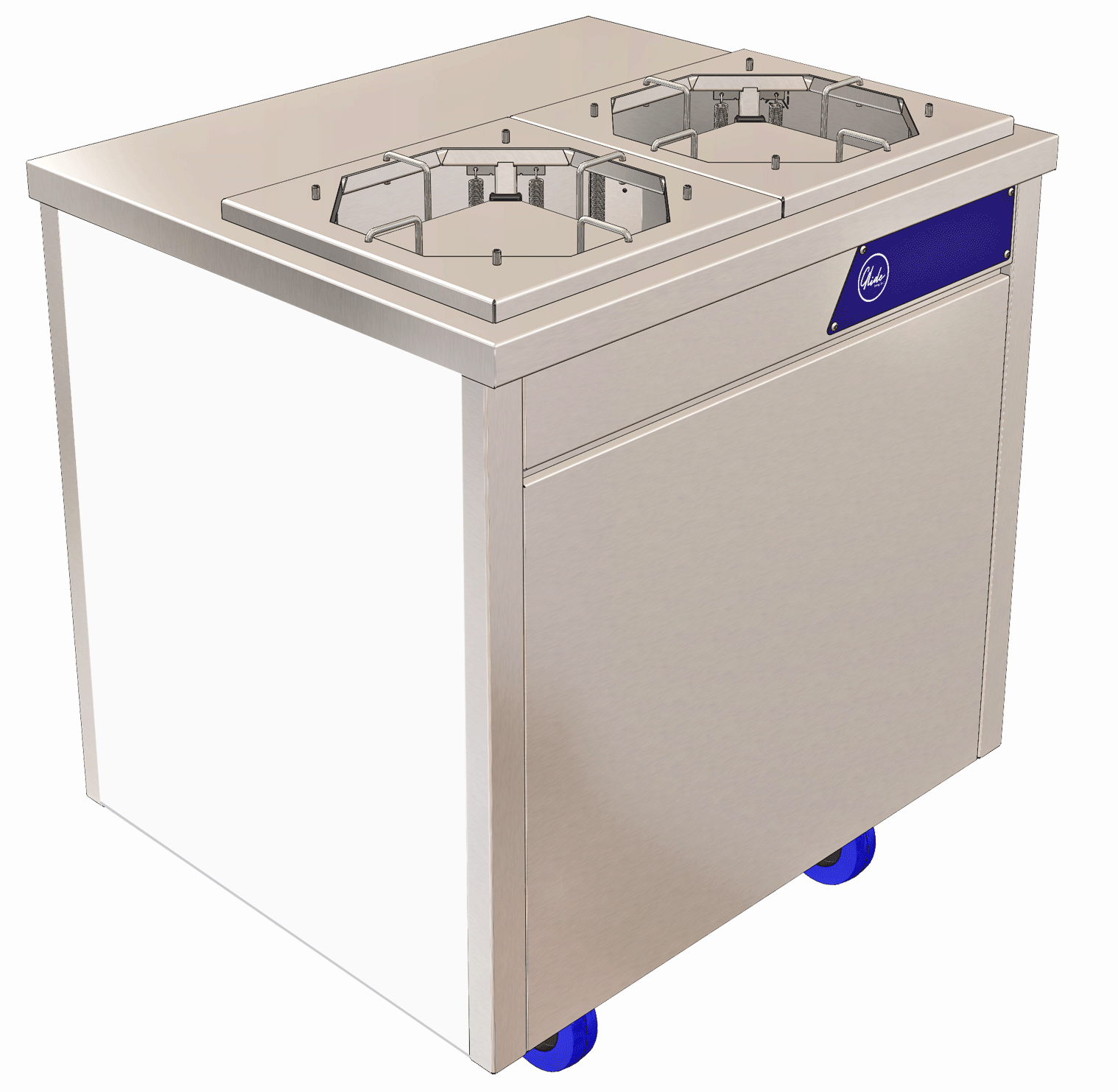

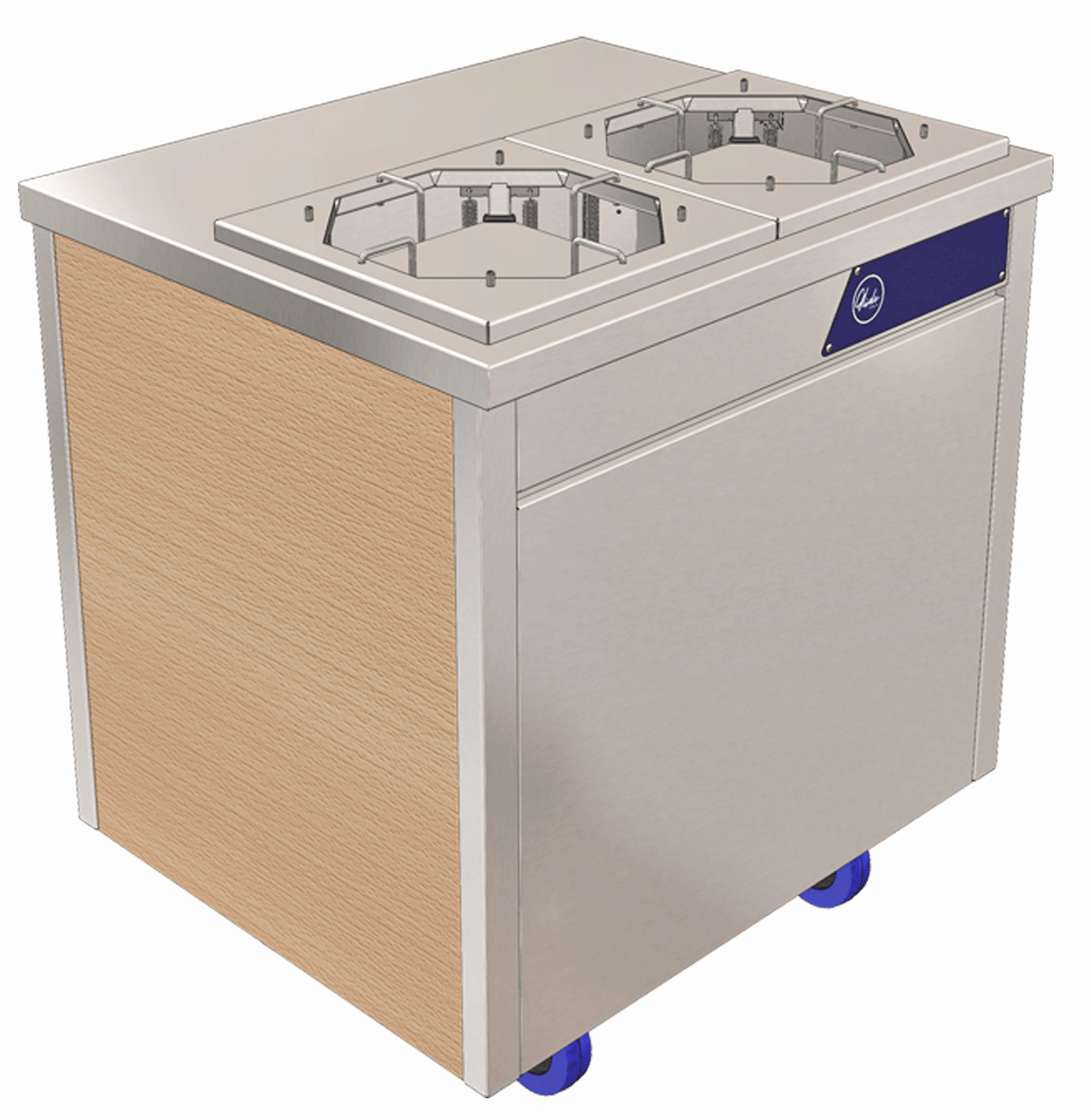

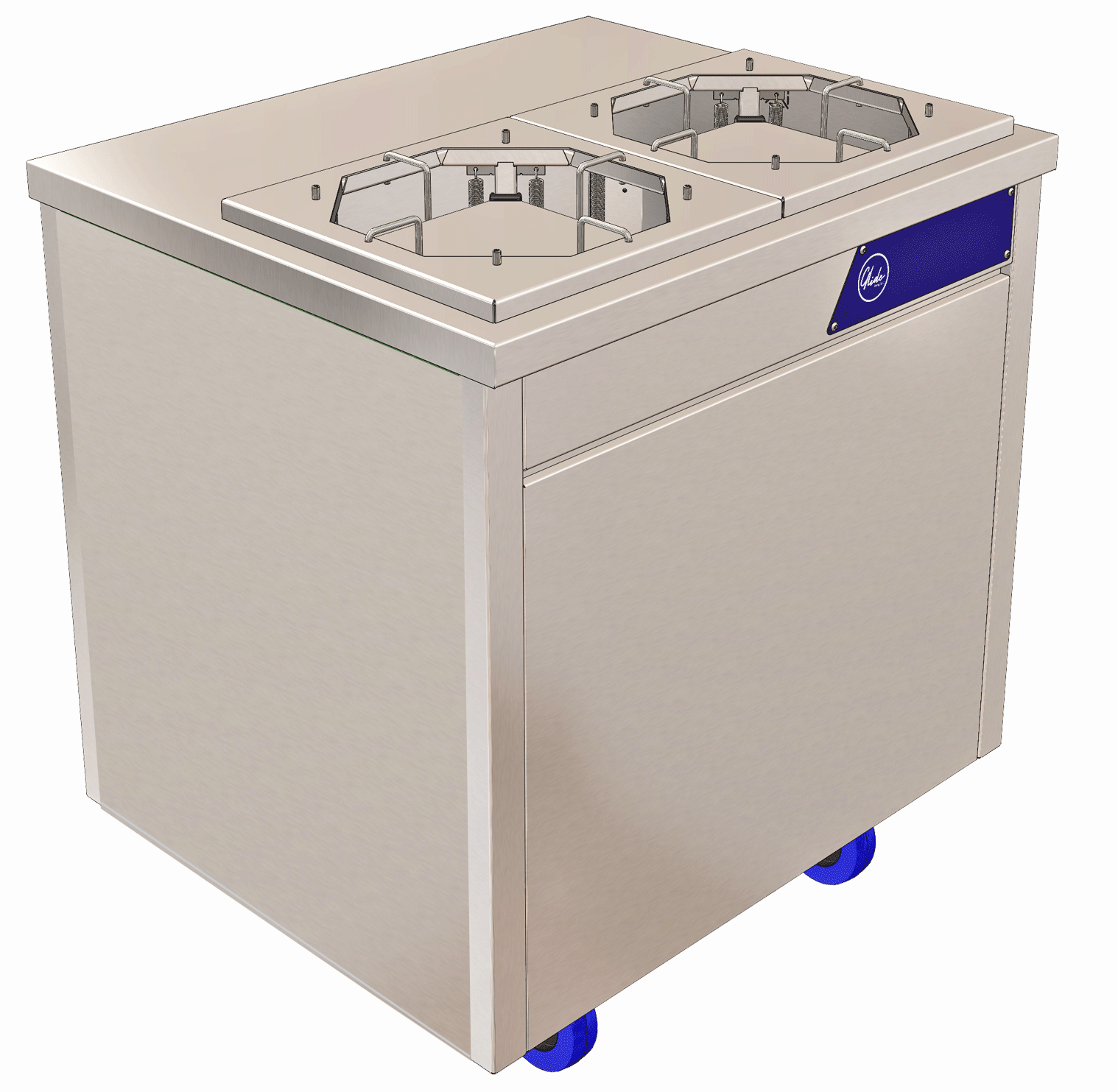

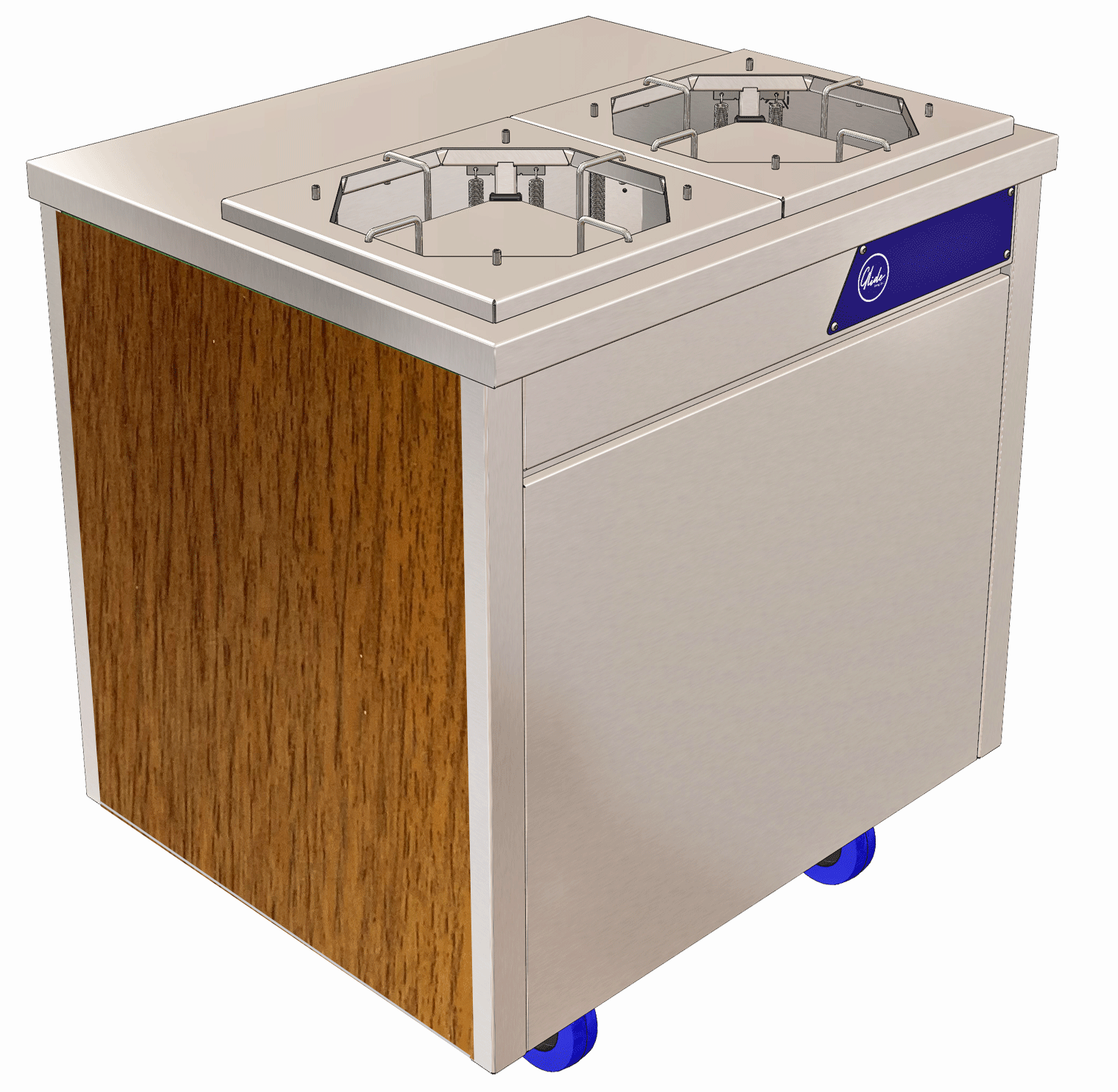

(Wall Sited) Glide Twin Ambient Plate Dispenser.
Visual

Features

(Wall Sited) Glide Twin Ambient Plate Dispenser.
Features

(Wall Sited) Glide mobile dining cart, ambient twin plate dispenser trolley.
For wall sited use in either a wall sited counter run, within alcoves, recesses or individually against a wall.
Model Code GWSAPD2.
Spring loaded, self levelling.
Adjustable plate guides to suit 205-305mm (diam.) 8-12″ plates.
Unit size 825 mm (l) x 700 mm (d) x 900 mm (h) – 2/1 Gn size.
Total capacity 88 -106 plates, depending on plate type.
Removable dispensers for plate weight (spring) adjustment.
Customer side front panel in s/steel finish, to match other wall sited Glide units.
Rear/side base panels in leathergrain plastisol steel, colour merlin grey (BS 18B25).
Worktop in 304 gd steel, all other external steel surfaces (customer side front base panel/ corner trims etc.) in 430gd.
Fitted with lockable non-marking rubber tyre castors.
Unit weight 54kg.

Options

Optional folding s/steel solid tray slide available (option code GSTS2).
Optional folding s/steel tubular tray rail Ø25 tube, available (option code GTTS2).
Unit depth with tray slide-rail fitted – tray slide up (1000mm)/ tray slide down (740mm).
Optional choice of 11 solid colour & woodgrain base outer side panel finishes available.
Optional low height model 850mm (h) available.
Optional low height model 800mm (h) available.*
800mm (h) = bespoke option with extended lead time*.

Dimensions

(Wall Sited) Glide Twin Ambient Plate Dispenser.
Dimensions

Model Code GWSAPD2.
(Wall sited) Glide mobile dining cart, ambient twin plate dispenser trolley.
2/1 Gn size.
Model dimensions: 825 mm (l) x 700 mm (d) x 900 mm (h).
Model weight 54 kg.
Spring loaded, self levelling dispensers.
Dispensers adjustable to suit 205-305mm (diam.) 8-12″ plates.
Unit size 825 mm (l) x 700 mm (d) x 900 mm (h) – 2/1 Gn size.
Total capacity 88 -106 plates, depending on plate type.
Customer side front panel in s/steel finish, to match other wall sited Glide units.
Rear & side base panels in leathergrain plastisol steel, colour merlin grey (BS 18B25).
Worktop in 304 gd steel, all other external steel surfaces (customer side front base panel/ corner trims etc.) in 430gd.
Fitted with lockable non-marking rubber tyre castors.
Unit weight 54kg.
Model depth with optional folding tray slide/tray rail fitted: tray slide up = 1000mm (d)/ tray slide down = 740mm (d).
Optional tray slide height: for standard 900 mm (h) worktop = 845 mm, low height 850 mm model = 795mm (h), low height 800 mm model = 745mm (h).
Power Supply N/A.

Options : (Wall Sited) Glide Twin Ambient Plate Dispenser (Model GWSAPD2)

Option	Code	Option	Code	Option	Code
Solid S/steel Tray Slide (Folding)	GSTS2	Tubular S/steel Tray Rail (Folding)	GTTS2	Low Height Model 850mm (h)	G850H
Low Height Model 800mm (h)	G800H	Satin S/steel Side & Rear Panels (430gd.)	GSSTLCHA2	Colour Side & Rear Panels Ocean Blue (BS18C37)	GBLUECHA2
Colour Side & Rear Panels Light Grey (BS10A05)	GGREYCHA2	Colour Side & Rear Panels Forest Green (RAL6002)	GGRENCHA2	Colour Side & Rear Panels Poppy Red (BS04E5B)	GPREDCHA2
Colour Side & Rear Panels Cream (BS10c31)	GCREMCHA2	Colour Side & Rear Panels White (BS00E55)	GWHITCHA2	Colour Side & Rear Panels Black (BS00E53)	GBLAKCHA2
Woodgrain Side & Rear Panels Walnut (DL85)	GWALNCHA2	Woodgrain Side & Rear Panels Beech (DL76)	GBEECCHA2	Woodgrain Side & Rear Panels Oak (DL84)	GOAKCHA2

Popular Model Codes & Options
SUMMARY : Popular Model Codes & Options	Model Code	Option Code	Option Code
(Wall Sited) Glide Twin Ambient Plate Dispenser (& Solid Tray Slide)	GWSAPD2	GSTS2	YYYYX
(Wall Sited) Glide Twin Ambient Plate Dispenser (& Tubular Tray Rail)	GWSAPD2	GTTS2	YYYY

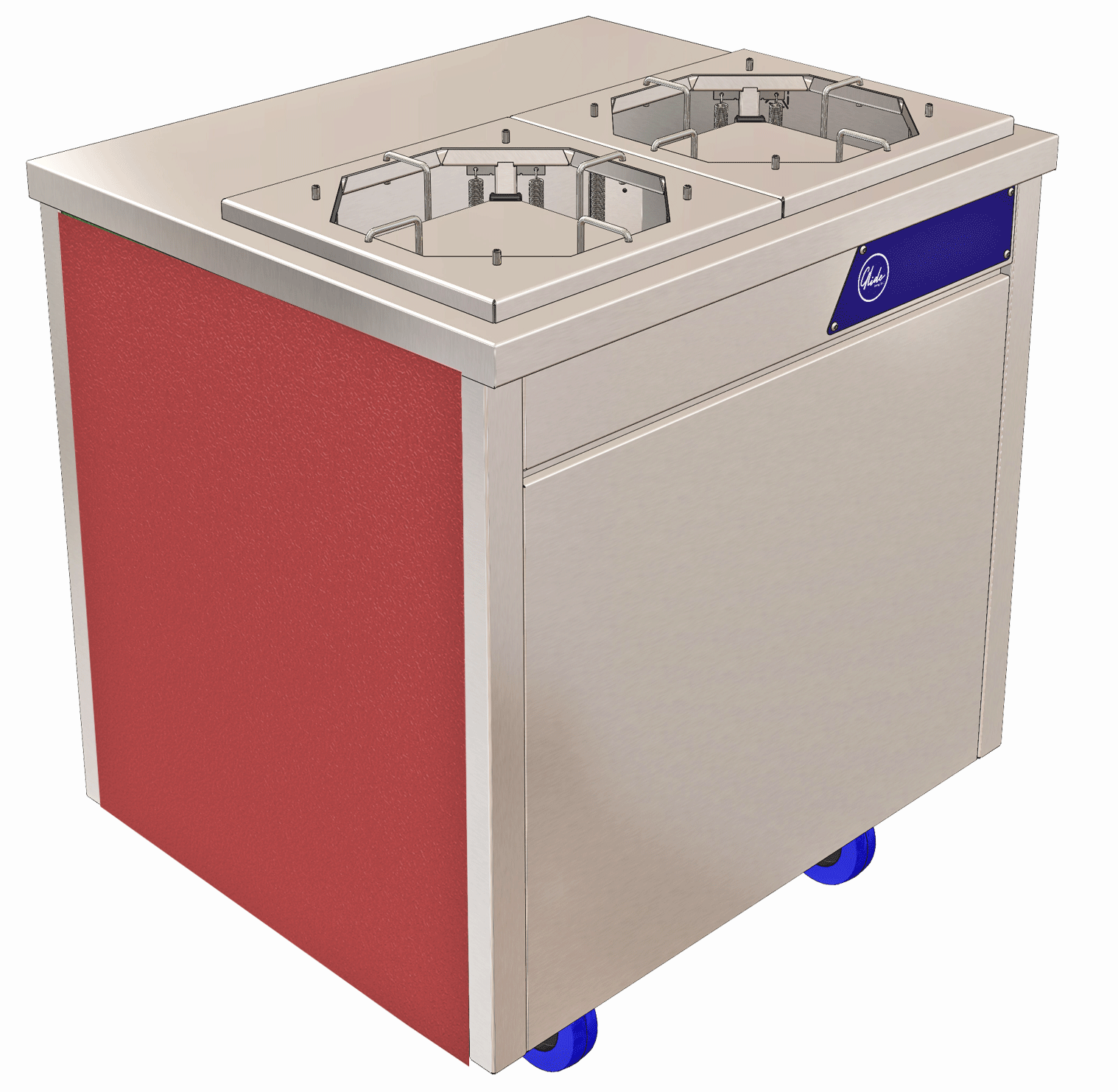

(Wall Sited) Glide Twin Ambient Plate Dispenser (& Colour Finish Ends – Red)	GWSAPD2	GPREDCHA2	YYYY
(Wall Sited) Glide Twin Ambient Plate Dispenser (& Tubular Tray Rail & Colour Finish Ends – Red)	GWSAPD2	GTTS2	GPREDCHA2

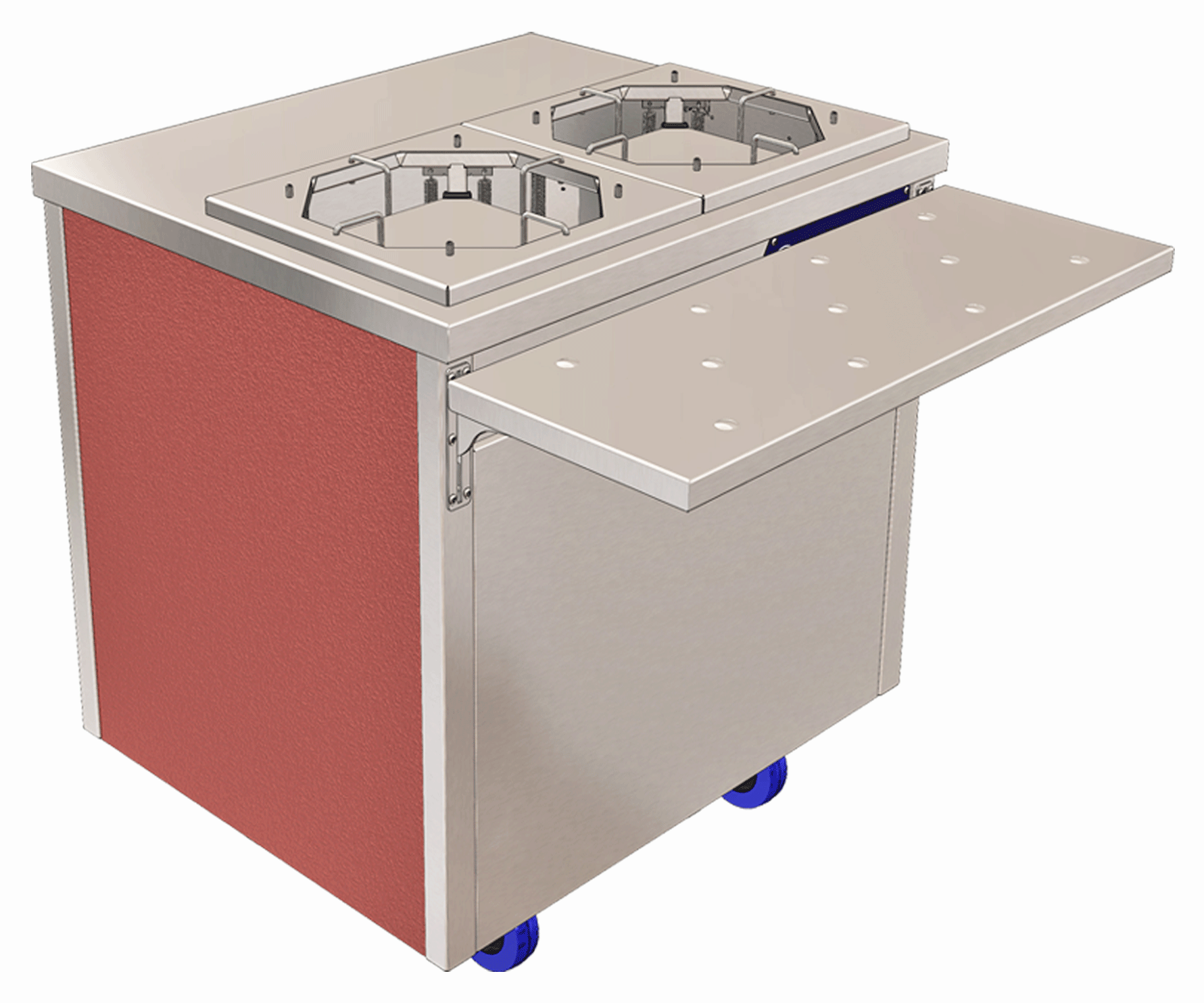

(Wall Sited) Glide Twin Ambient Plate Dispenser (& Solid Tray Slide & Colour Finish Ends – Red)	GWSAPD2	GSTS2	GPREDCHA2
(Wall Sited) Glide Twin Ambient Plate Dispenser (& Colour Finish Ends – Blue)	GWSAPD2	GBLUECHA2	YYYY

Options

(Wall Sited) Glide Twin Ambient Plate Dispenser.
Options.

Glide S/Steel Folding Solid Tray Slide.
(GSTS2) Glide option: 2-1 Gn, s/steel solid tray slide with dimpled surface to assist tray movement, drop down bracket type.
Up position adds 302mm to depth. Down position + 40mm to base unit depth. Trayslide height = base unit height less 55mm.

Glide S/Steel Folding Tubular Tray Rail.
(GTTS2) Glide option: 2-1 Gn, s/steel tubular tray rail, 304 gd. Ø25 tube. Drop down bracket type.
Up position adds 298 mm to depth. Down position + 40mm to base unit depth. Trayslide height = base unit height less 55mm.

Low Height Model ( Glide Junior) – 850mm.
(G850H) Glide junior option: (all cold, hot, ambient, till & corner units) 850mm (h) base unit, c/w 100mm lockable castors.
Height suitable for Junior/Primary Use (Optional trayslide height becomes 795mm high).

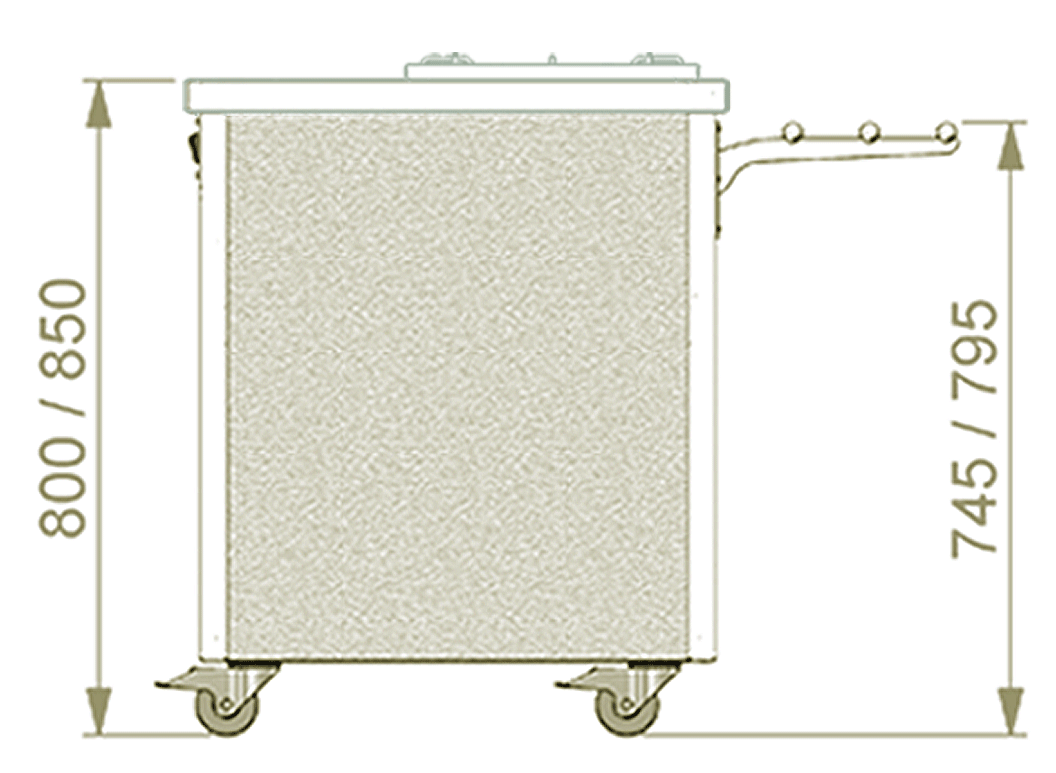

Low Height Model ( Glide Junior) – 800mm.
(G800H) Glide junior option: (all cold, hot, ambient, till & corner units) 800mm (h) base unit, c/w 100mm lockable castors.
Height suitable for Junior/Primary Use (Optional trayslide height becomes 745mm high). * Bespoke Option/ Extended Lead Time *

Glide Colour Finishes To Rear/ Side Panels (Front Panel In S/Steel).

Blue Finish. (Option Code GBLUECHA2) 2-1 Gn set of outer side panels in leathergrain plastisol steel, colour ocean blue (BS 18C37) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

S/steel Finish. (Option Code GSSTLCHA2) 2-1 Gn set of outer side panels in satin s/steel 430 gd. to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

Light Grey Finish. (Option Code GGREYCHA2) 2-1 Gn set of outer side panels in leathergrain plastisol steel, colour goosewing light grey (BS 10A05) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

Forest Green Finish. (Option Code GGRENCHA2) 2-1 Gn set of outer side panels in leathergrain plastisol steel, colour forest green/heritage (RAL 6002) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

Poppy Red Finish. (Option Code GPREDCHA2) 2-1 Gn set of outer side panels in leathergrain plastisol steel, colour poppy red (BS 04E5B) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

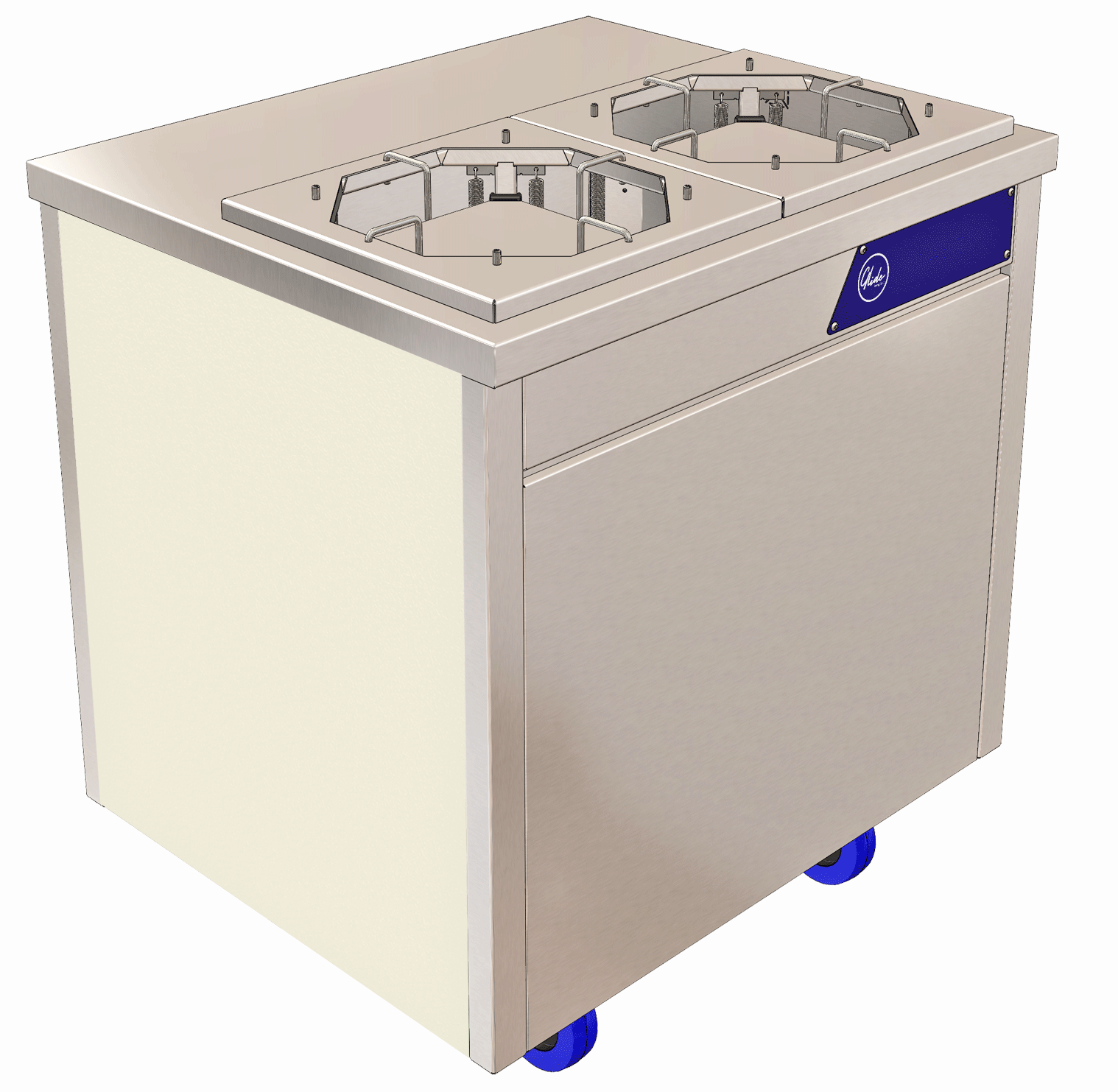

Cream Finish. (Option Code GCREMCHA2) 2-1 Gn set of outer side panels in leathergrain plastisol steel, colour buttermilk cream/ honesty (BS 10C31) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

White Finish. (Option Code GWHITCHA2) 2-1 Gn set of outer side panels in leathergrain plastisol steel, colour white (BS 00E55) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

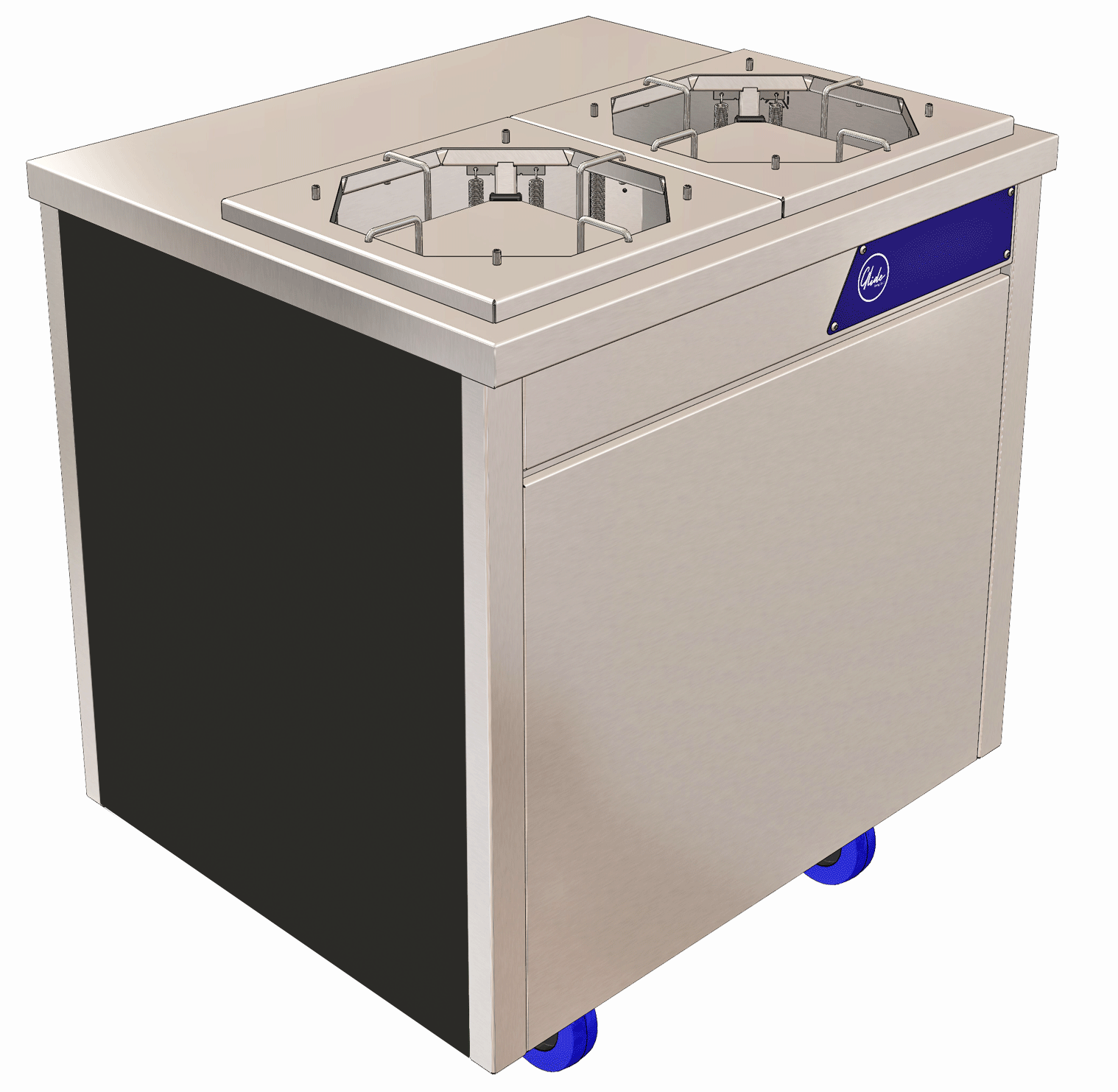

Black Finish. (Option Code GBLAKCHA2) 2-1 Gn set of outer side panels in leathergrain plastisol steel, colour black (BS 00E53) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

Beech Woodgrain Finish. (Option Code GBEECCHA2) 2-1 Gn set of outer side panels in wood grain effect DL76 beech finish to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

Walnut Woodgrain Finish. (Option Code GWALNCHA2) 2-1 Gn set of outer side panels in wood grain effect panel DL85 walnut finish to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

Oak Woodgrain Finish. (Option Code GOAKCHA2) 2-1 Gn set of outer side panels in wood grain effect DL84 oak finish to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

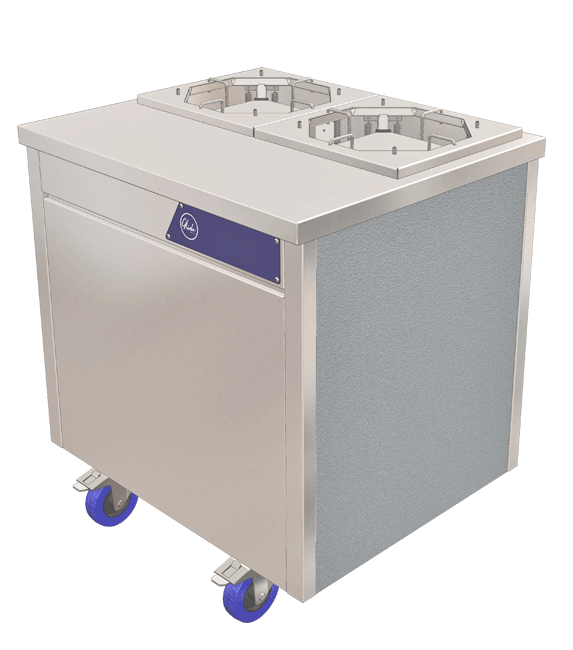

Options : (Wall Sited) Glide Twin Ambient Plate Dispenser (Model GWSAPD2)

Option	Code	Option	Code	Option	Code
Solid S/steel Tray Slide (Folding)	GSTS2	Tubular S/steel Tray Rail (Folding)	GTTS2	Low Height Model 850mm (h)	G850H
Low Height Model 800mm (h)	G800H	Satin S/steel Side & Rear Panels (430gd.)	GSSTLCHA2	Colour Side & Rear Panels Ocean Blue (BS18C37)	GBLUECHA2
Colour Side & Rear Panels Light Grey (BS10A05)	GGREYCHA2	Colour Side & Rear Panels Forest Green (RAL6002)	GGRENCHA2	Colour Side & Rear Panels Poppy Red (BS04E5B)	GPREDCHA2
Colour Side & Rear Panels Cream (BS10c31)	GCREMCHA2	Colour Side & Rear Panels White (BS00E55)	GWHITCHA2	Colour Side & Rear Panels Black (BS00E53)	GBLAKCHA2
Woodgrain Side & Rear Panels Walnut (DL85)	GWALNCHA2	Woodgrain Side & Rear Panels Beech (DL76)	GBEECCHA2	Woodgrain Side & Rear Panels Oak (DL84)	GOAKCHA2
