Glide Cashier Section

Visual

Glide Cashier Section.
Visual

Features

Glide Cashier Section.
Features

• Glide mobile dining cart, cashier section/ till point with recessed seating section to either left or right hand side.
• Free standing application.
• Model Code GCSL (left hand recess) or GCSR (right hand recess).
• Both models in a 3-1 Gn (1175 mm) length.
• Unit size 1175 mm (l) x 700 mm (d) x 900 mm (h).
• Worktop mounted cable management port, integral double socket (for till & cash drawer = max. 3Kw)

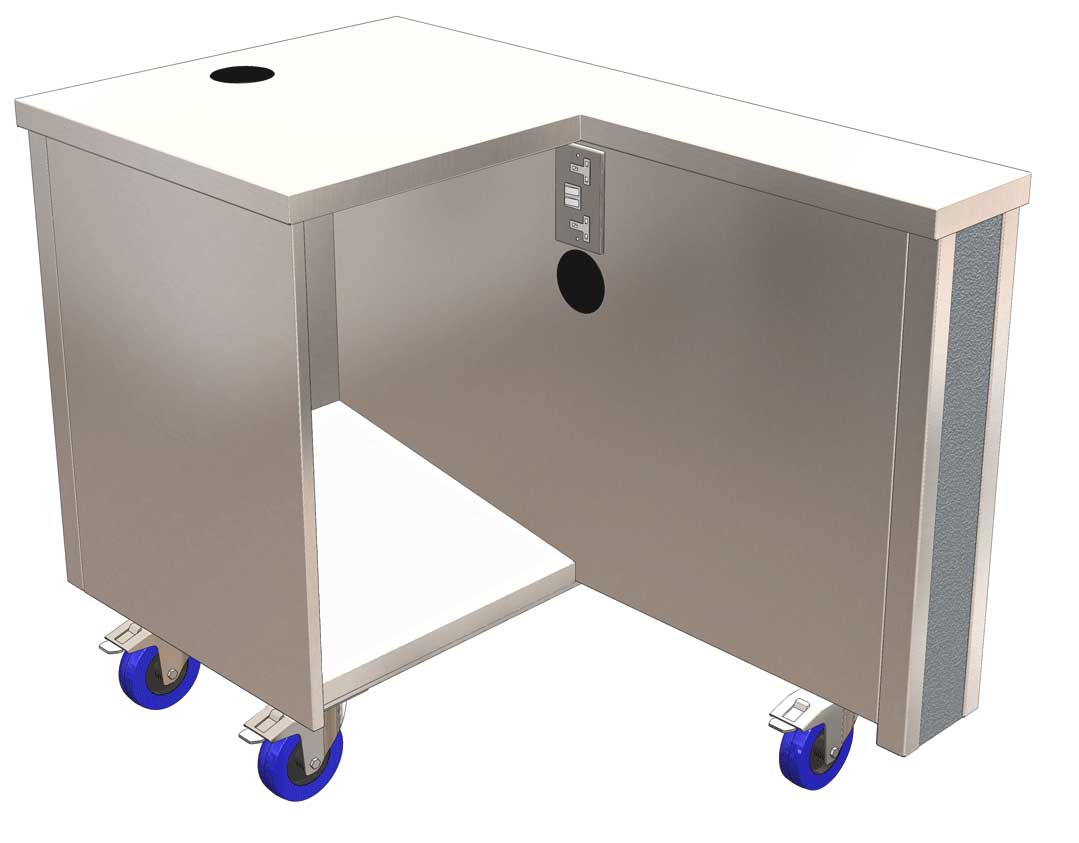

• Data cable tidy/ management port under worktop, which allows concealed data cable route to the cable exit point in base, & avoids fouling seating recess.
• Seating recess features inclined non slip s/steel foot rest.
• Front/ Side base panels in leathergrain plastisol steel, colour merlin grey (BS 18B25),
• Worktop in 304 gd steel, all other external/internal steel surfaces (inner base/ sides etc.) in 430gd.
• Fitted with lockable non-marking rubber tyre castors.
• 3m lead.
• 13A UK plug top 3Kw total, for connection to dedicated 13A SSO.
• Unit weight 57kg.
• Optional folding tray rail weight + 3 kg.
• Optional tray slide weight + 5 kg.

Glide Range: Electrical Connections.

• Most Glide mobile units are operated by 13A plug top connected to a dedicated single socket outlet (SSO) (13A), unless its’ power supply exceeds 13A.
• If connected to a double socket outlet, care must be taken not to exceed the circuit capacity.

Glide Range: Electrical Trailing Lead Protection.

• CED recommend the use of  proprietary cable covers to protect overground trailing leads, to reduce trip hazards, limit accidental electrical partial plug disconnection and to keep wire safe from impact damage, as damaged cable wire can cause an electrical fault.
• HSE GOV.UK Guidance On Planning And Managing Temporary Electrical Installations Re: Cabling.
  ‘Route cables to minimise tripping hazards or potential mechanical damage, and in a position that allows them to be safely installed and removed. Give particular care to the position of cable connections. You can also use cable ramps or similar to protect cables running overground across route ways to help avoid them becoming tripping hazards’

Options

• Optional folding s/steel solid tray slide available (option code GSTS3).
• Optional folding s/steel tubular tray rail Ø25 tube, available (option code GTTS3).
• Unit depth with tray slide-rail fitted – tray slide up (1000mm)/ tray slide down (740mm).
• Optional choice of 11 solid colour & woodgrain base outer side panel finishes available.
• Optional low height model 850mm (h) available.
• Optional low height model 800mm (h) available.*
• 800mm (h) = bespoke option with extended lead time*.

Dimensions

Glide Cashier Section.
Dimensions

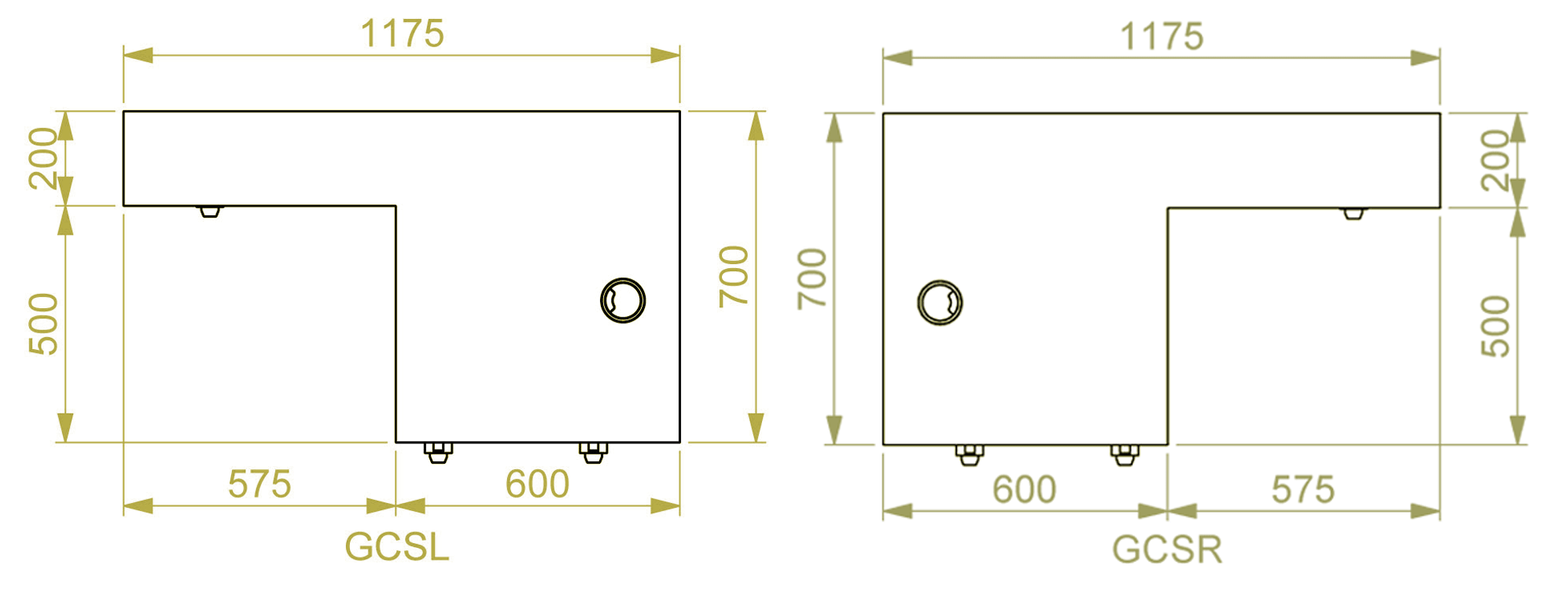

• Model Code GCSL (left hand recess) or GCSR (right hand recess).
• 3/1 Gn size.
• Dimensions: 1175 mm (l) x 700 mm (d) x 900 mm (h).
• Worktop mounted cable management port.
• Integral double socket (for till & cash drawer = max. 3Kw)
• Data cable tidy/management port under worktop.
• Seating recess with inclined non slip s/steel foot rest.
• Worktop finish 304gd s/steel.
• Outer panel finish plastisol steel, colour merlin grey (BS18B25).
• Other external/ internal steel surfaces (inner base/ sides etc.) in 430gd.

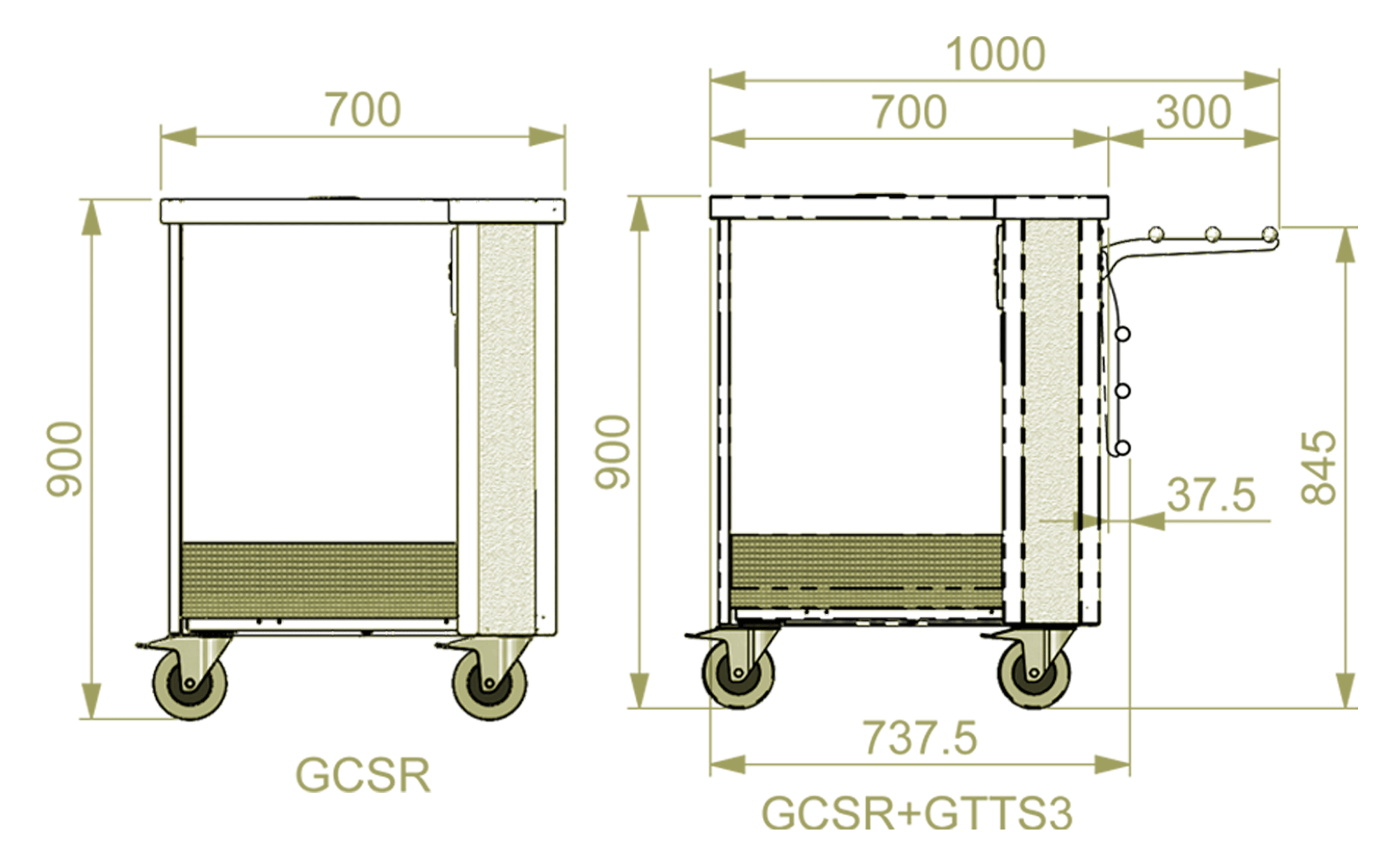

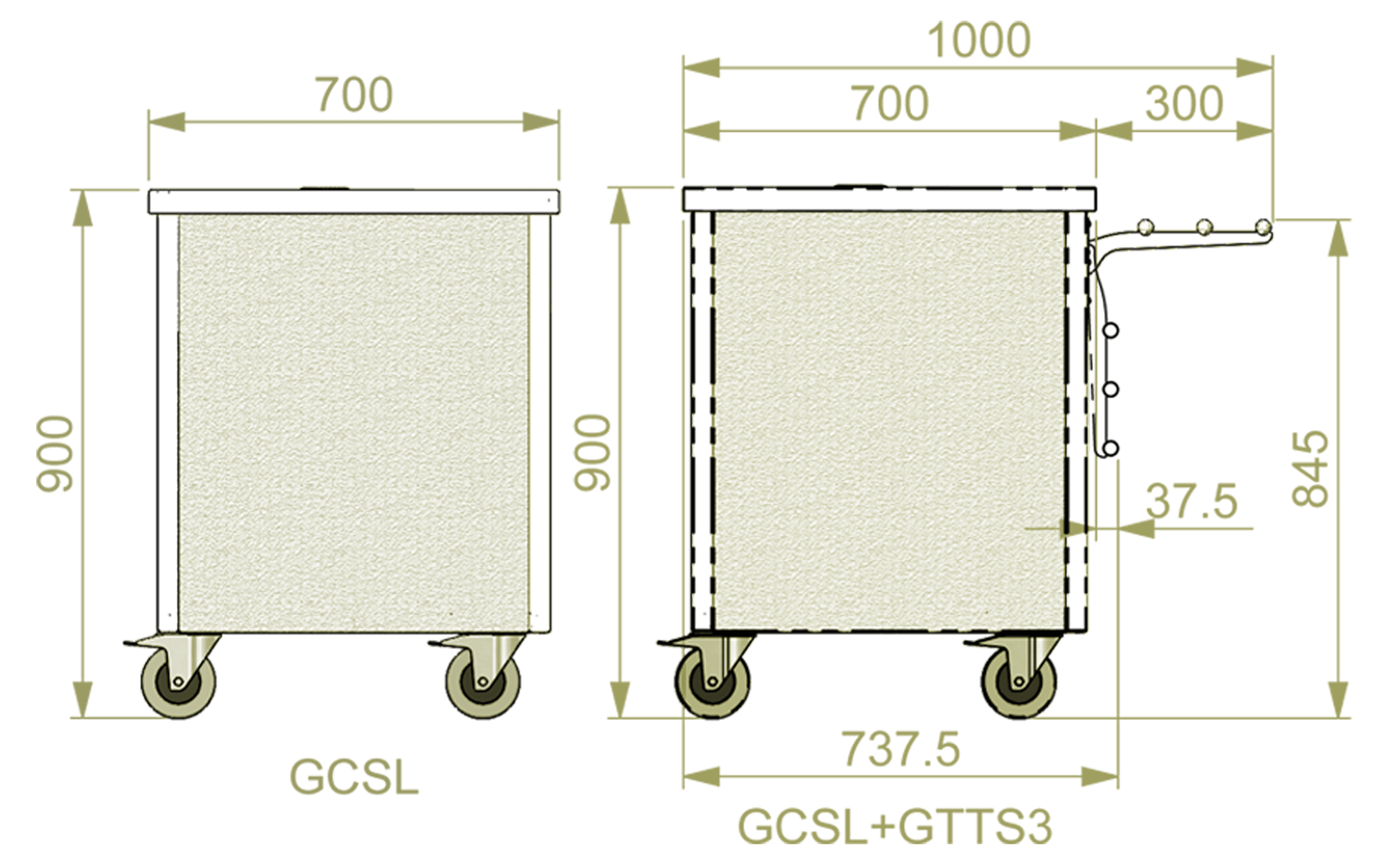

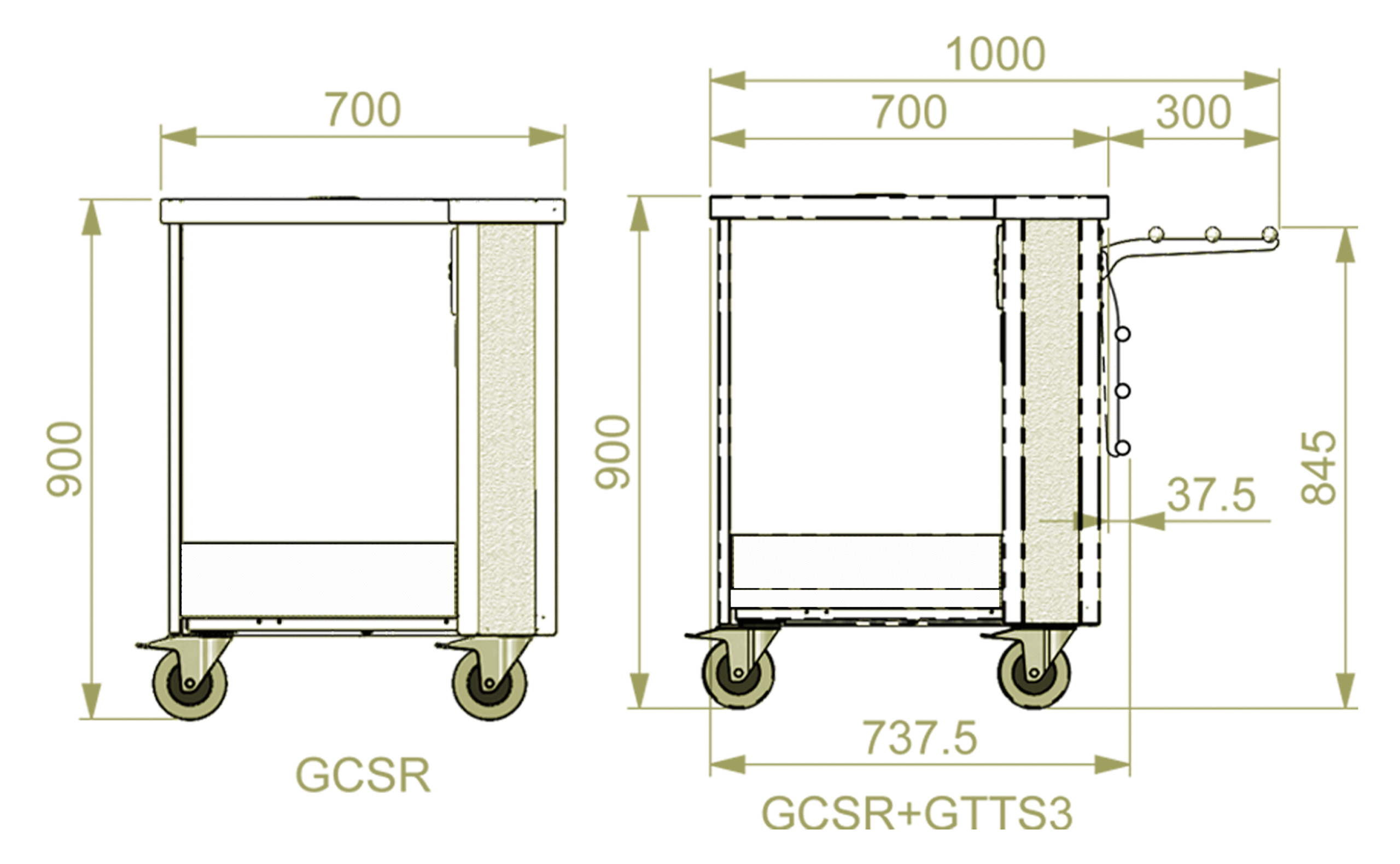

• Model depth with optional folding tray slide/tray rail fitted: tray slide up = 1000mm (d)/ tray slide down = 740mm (d).
• Optional tray slide height: for standard 900 mm (h) worktop = 845 mm, low height 850 mm model = 795mm (h), low height 800 mm model = 745mm (h).
• Supplied With Lockable Castors With Non-Marking Rubber Tyres.
• 13A UK plug top 3Kw total, for connection to dedicated 13A SSO.
• 3M power lead.
• Model weight 57 kg.
• Optional folding tray rail weight + 3 kg.
• Optional tray slide weight + 5 kg.

Options

Glide Cashier Section.
Options.

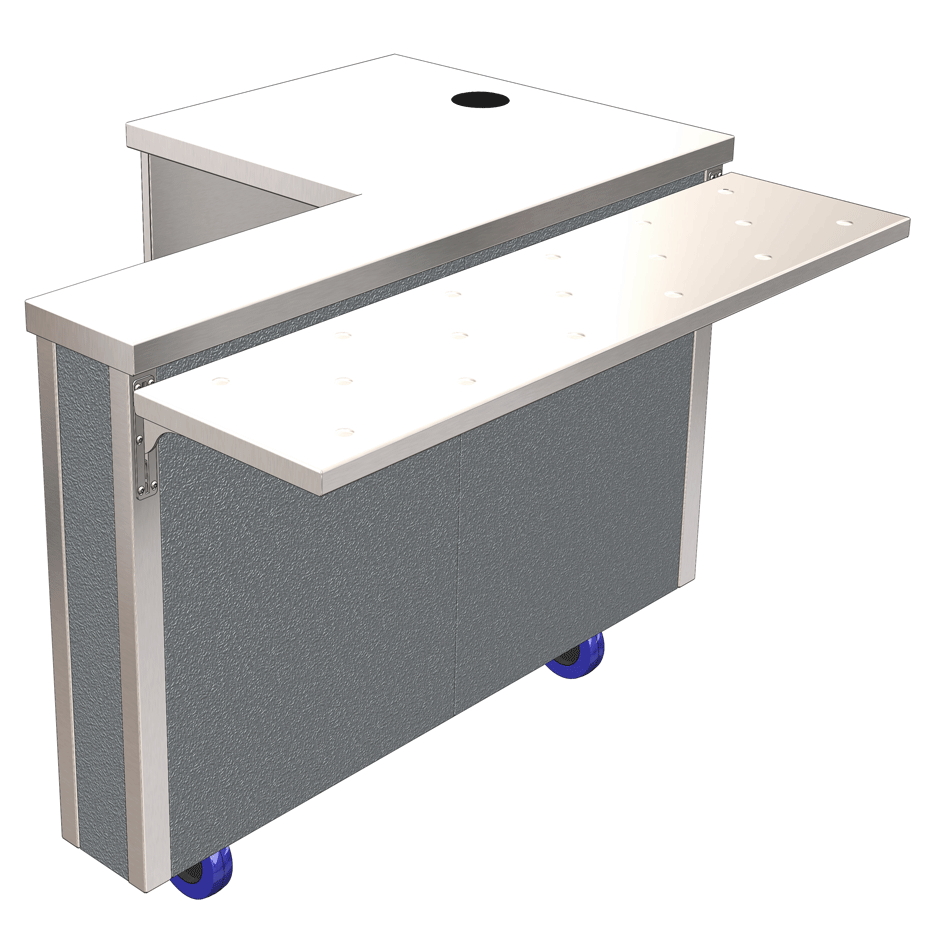

Glide S/Steel Folding Solid Tray Slide.
(GSTS3) Glide option: 3-1 Gn, s/steel solid tray slide with dimpled surface to assist tray movement, drop down bracket type.
Up position adds 302mm to depth. Down position + 40mm to base unit depth. Trayslide height = base unit height less 55mm.

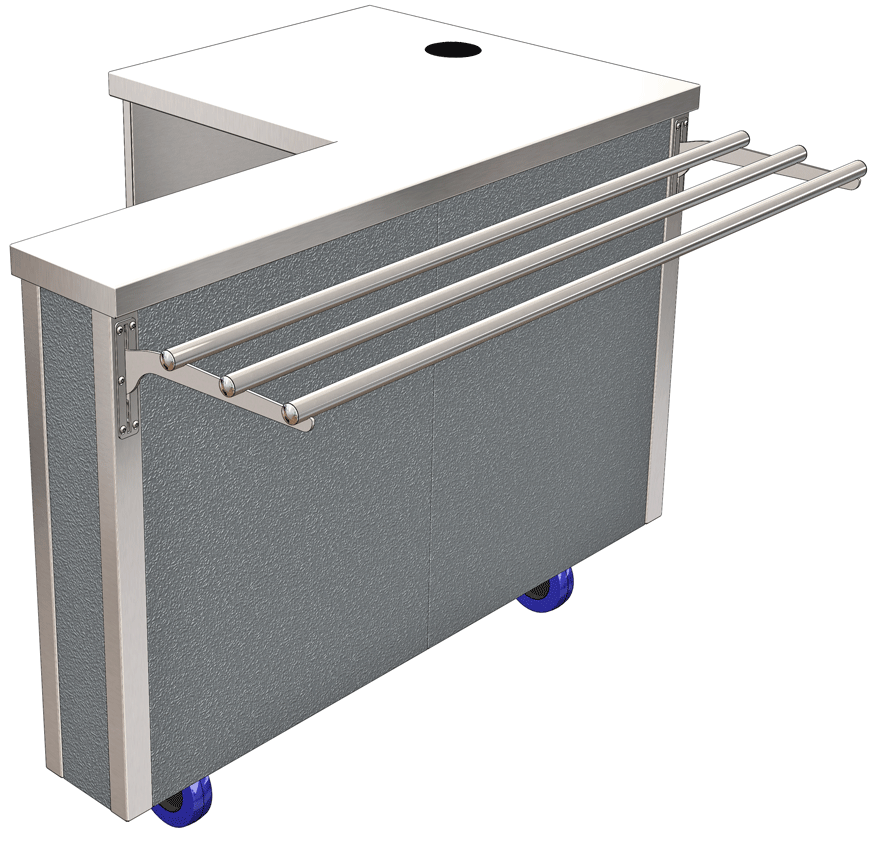

Glide S/Steel Folding Tubular Tray Rail.
(GTTS3) Glide option: 3-1 Gn, s/steel tubular tray rail, 304 gd. Ø25 tube. Drop down bracket type.
Up position adds 298 mm to depth. Down position + 40mm to base unit depth. Trayslide height = base unit height less 55mm.

Low Height Model ( Glide Junior) – 850mm.
(G850H) Glide junior option: (all cold, hot, ambient, till & corner units) 850mm (h) base unit, c/w 100mm lockable castors.
Height suitable for Junior/Primary Use (Optional trayslide height becomes 795mm high).

Low Height Model ( Glide Junior) – 800mm.
(G800H) Glide junior option: (all cold, hot, ambient, till & corner units) 800mm (h) base unit, c/w 100mm lockable castors.
Height suitable for Junior/Primary Use (Optional trayslide height becomes 745mm high). * Bespoke Option/ Extended Lead Time *

Glide Colour Finishes To Front/ Side Base Panels.

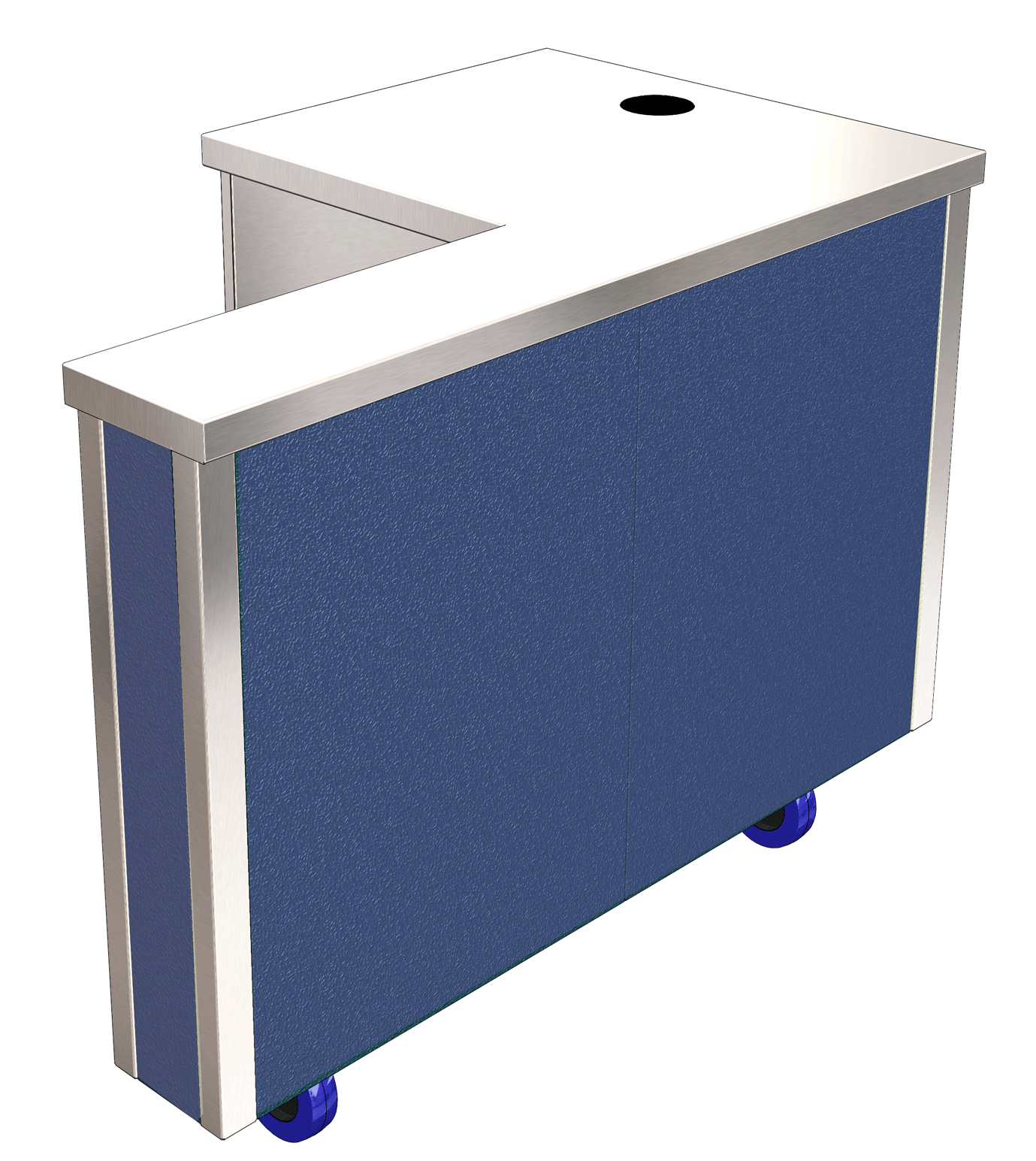

Blue Finish. (Option Code GBLUECS3) 3-1 Gn set of outer front/ side panels in leathergrain plastisol steel, colour ocean blue (BS 18C37) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

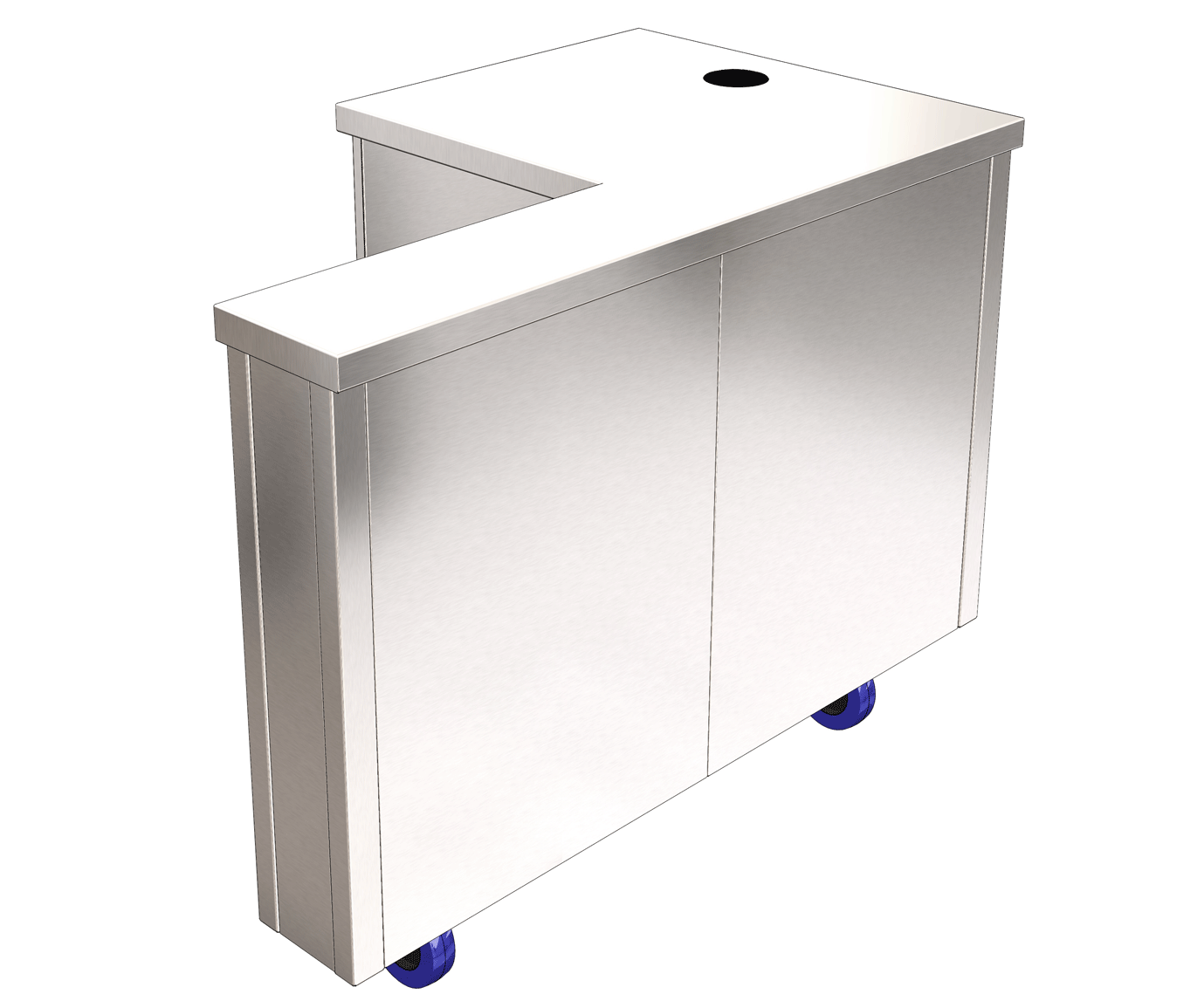

S/steel Finish. (Option Code GSSTLCS3) 3-1 Gn set of outer front/ side panels in satin s/steel 430 gd. to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

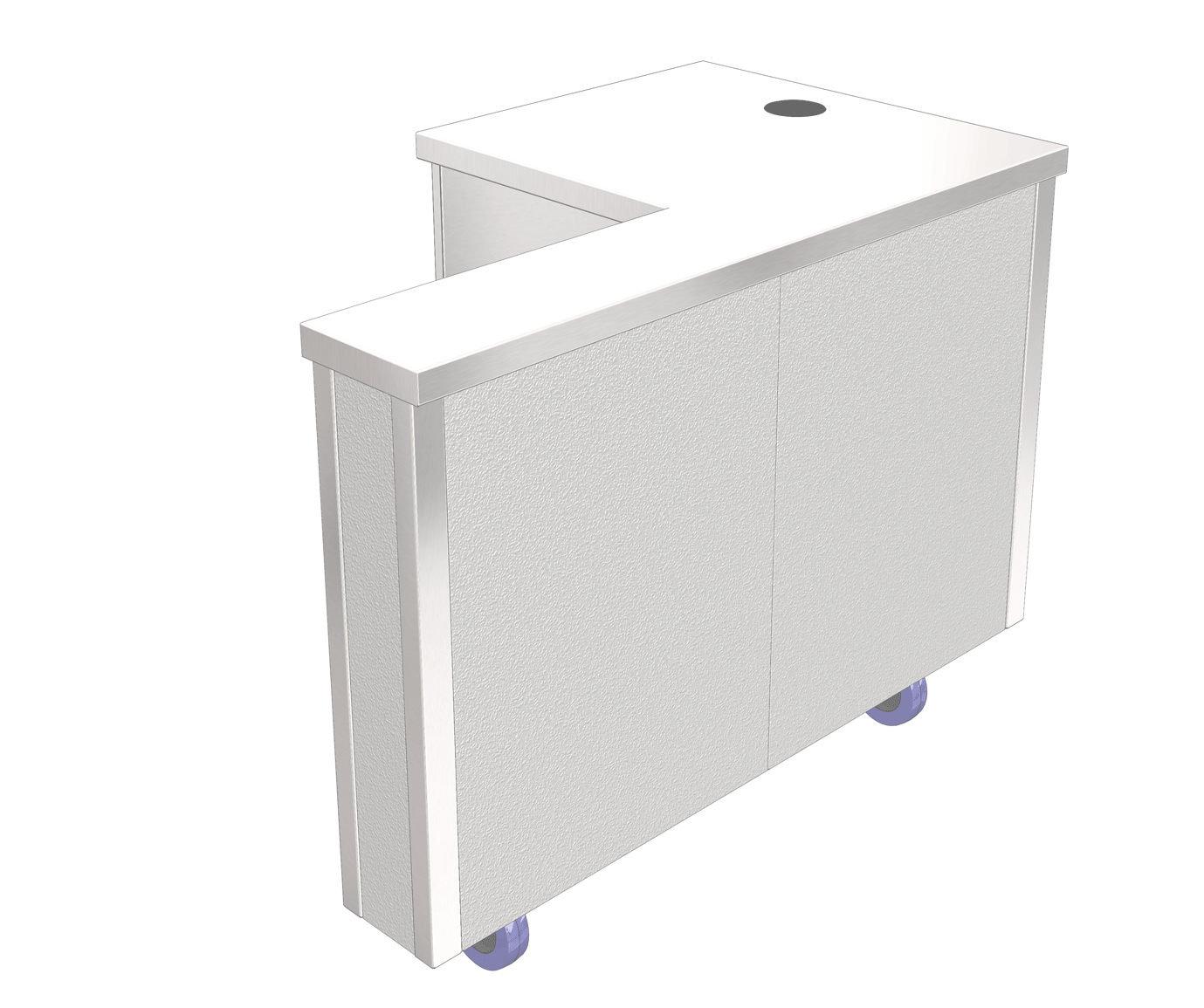

Light Grey Finish. (Option Code GGREYCS3) 3-1 Gn set of outer front/ side panels in leathergrain plastisol steel, colour goosewing light grey (BS 10A05) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

Forest Green Finish. (Option Code GGRENCS3) 3-1 Gn set of outer front/ side panels in leathergrain plastisol steel, colour forest green/heritage (RAL 6002) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

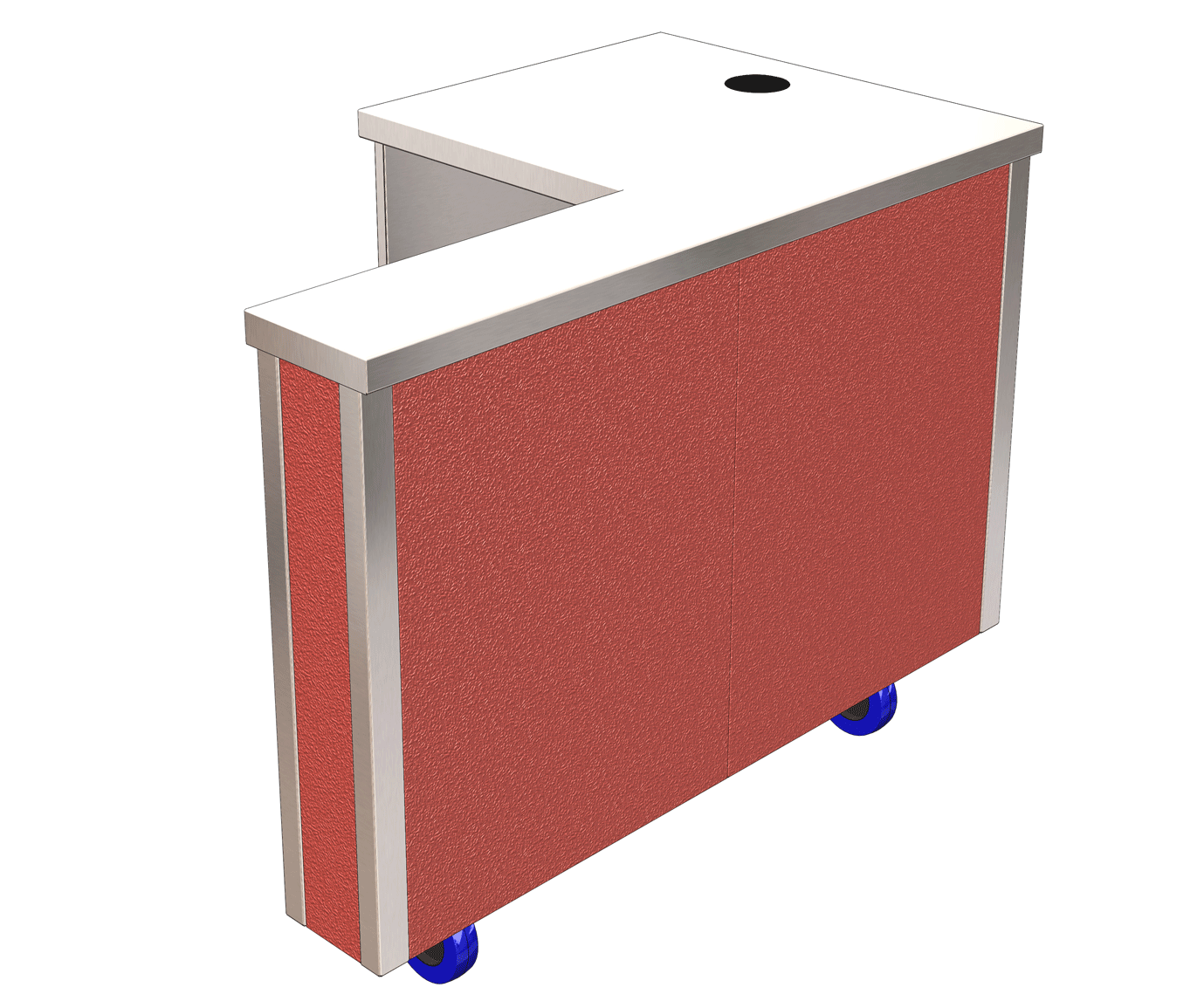

Poppy Red Finish. (Option Code GPREDCS3) 3-1 Gn set of outer front/ side panels in leathergrain plastisol steel, colour poppy red (BS 04E5B) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

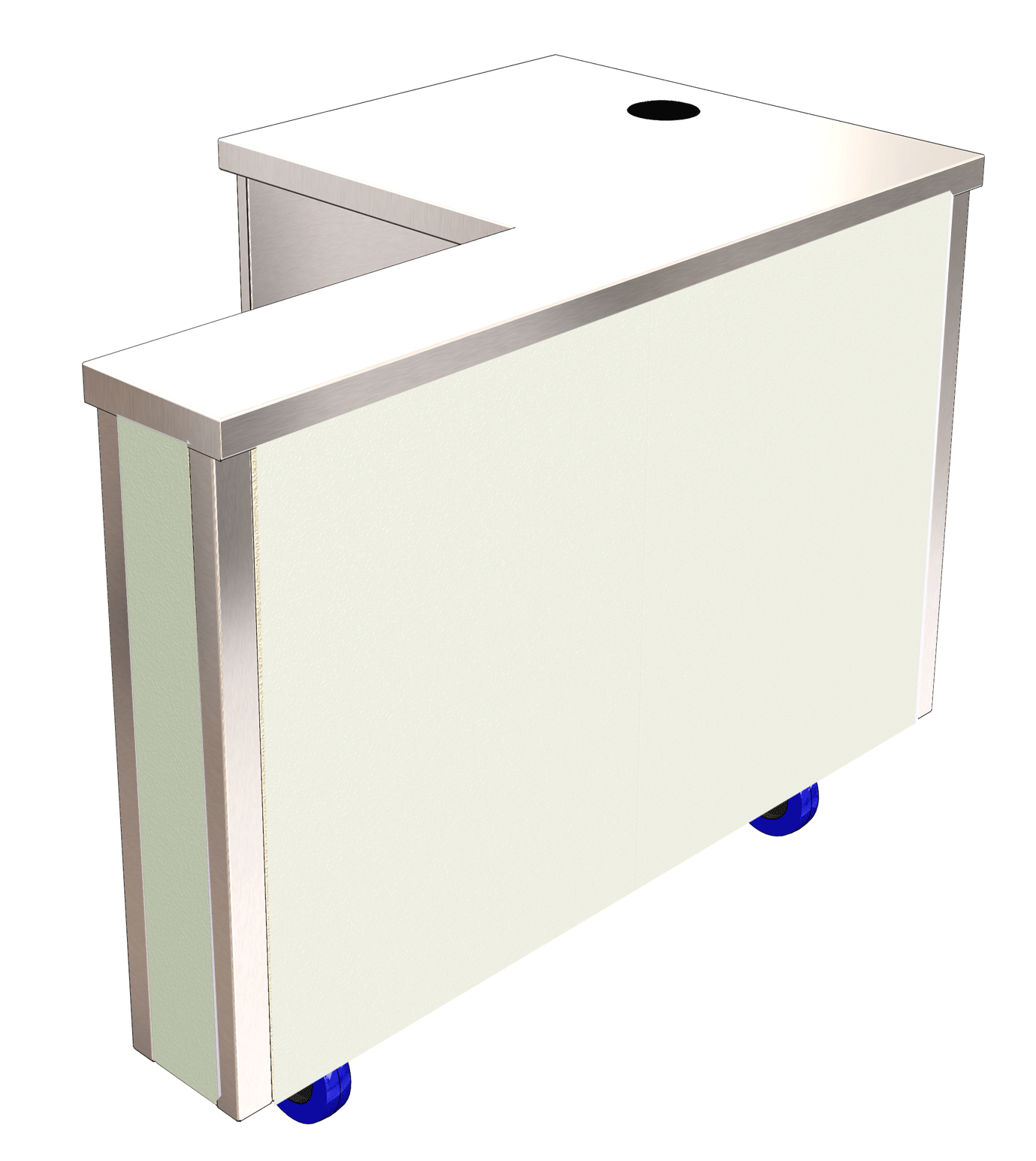

Cream Finish. (Option Code GCREMCS3) 3-1 Gn set of outer front/ side panels in leathergrain plastisol steel, colour buttermilk cream/ honesty (BS 10C31) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

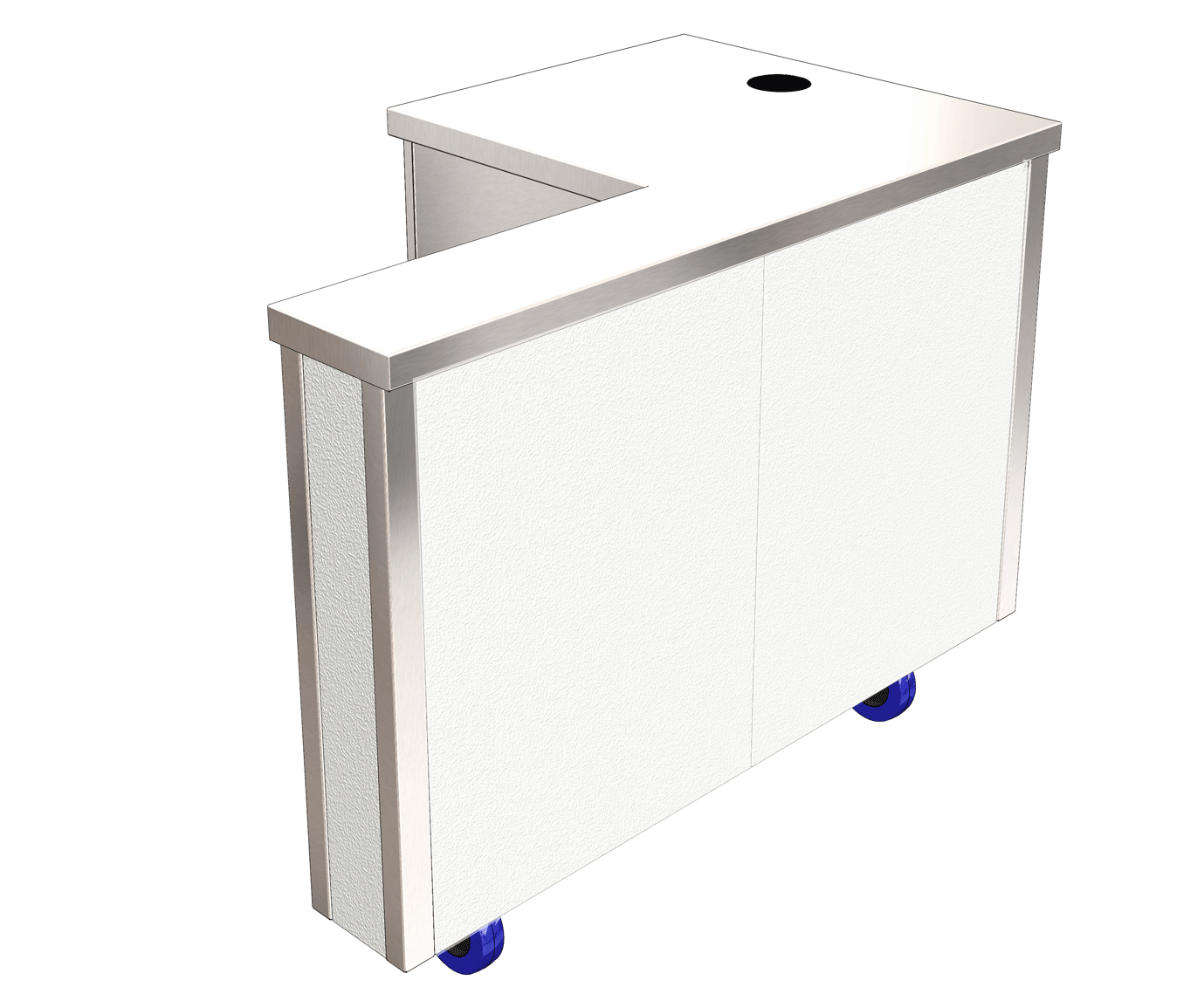

White Finish. (Option Code GWHITCS3) 3-1 Gn set of outer front/ side panels in leathergrain plastisol steel, colour white (BS 00E55)  to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

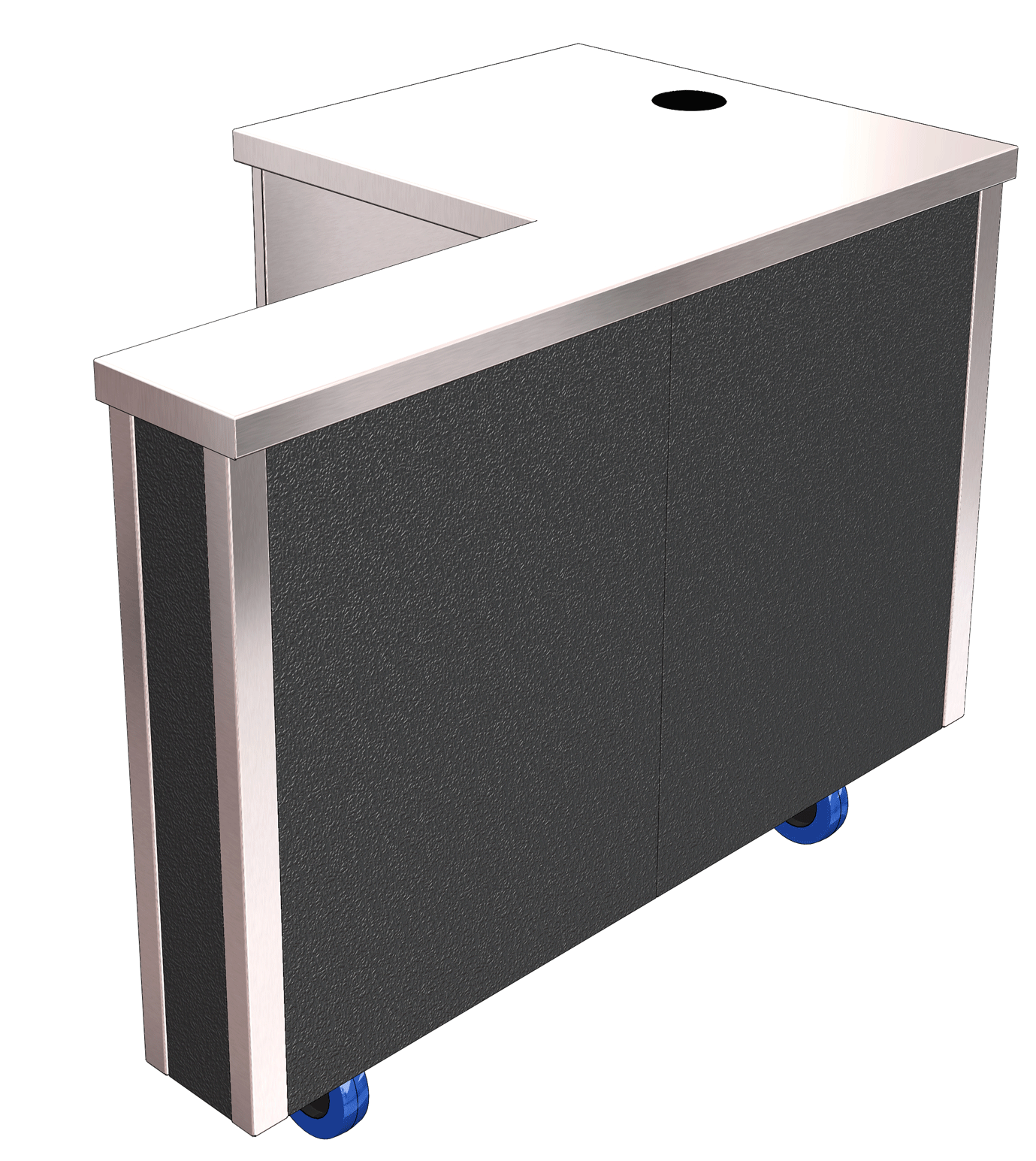

Black Finish. (Option Code GBLAKCS3) 3-1 Gn set of outer front/ side panels in leathergrain plastisol steel, colour black (BS 00E53) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

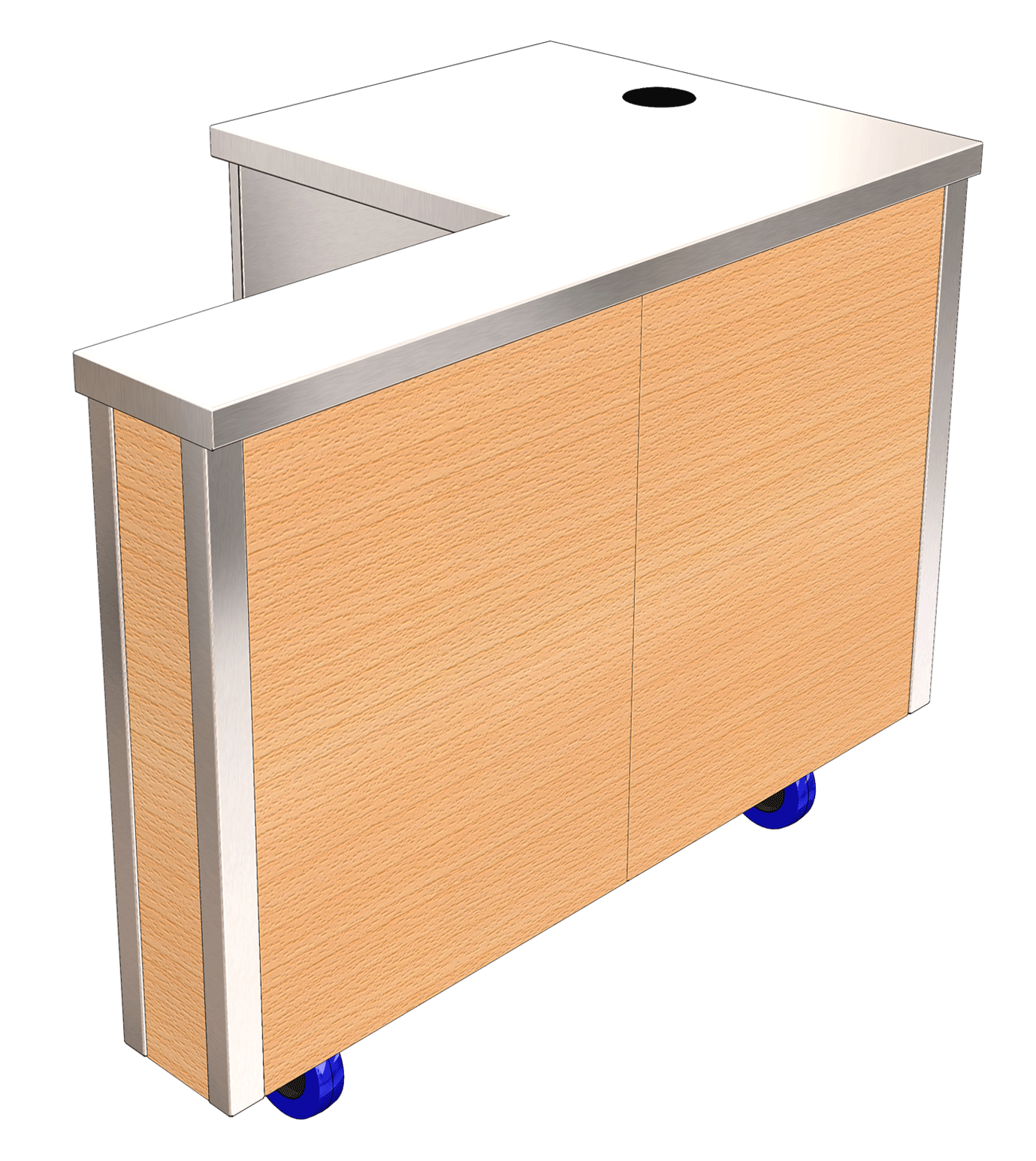

Beech Woodgrain Finish. (Option Code GBEECCS3) 3-1 Gn set of outer front/ side panels in wood grain effect DL76 beech finish to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

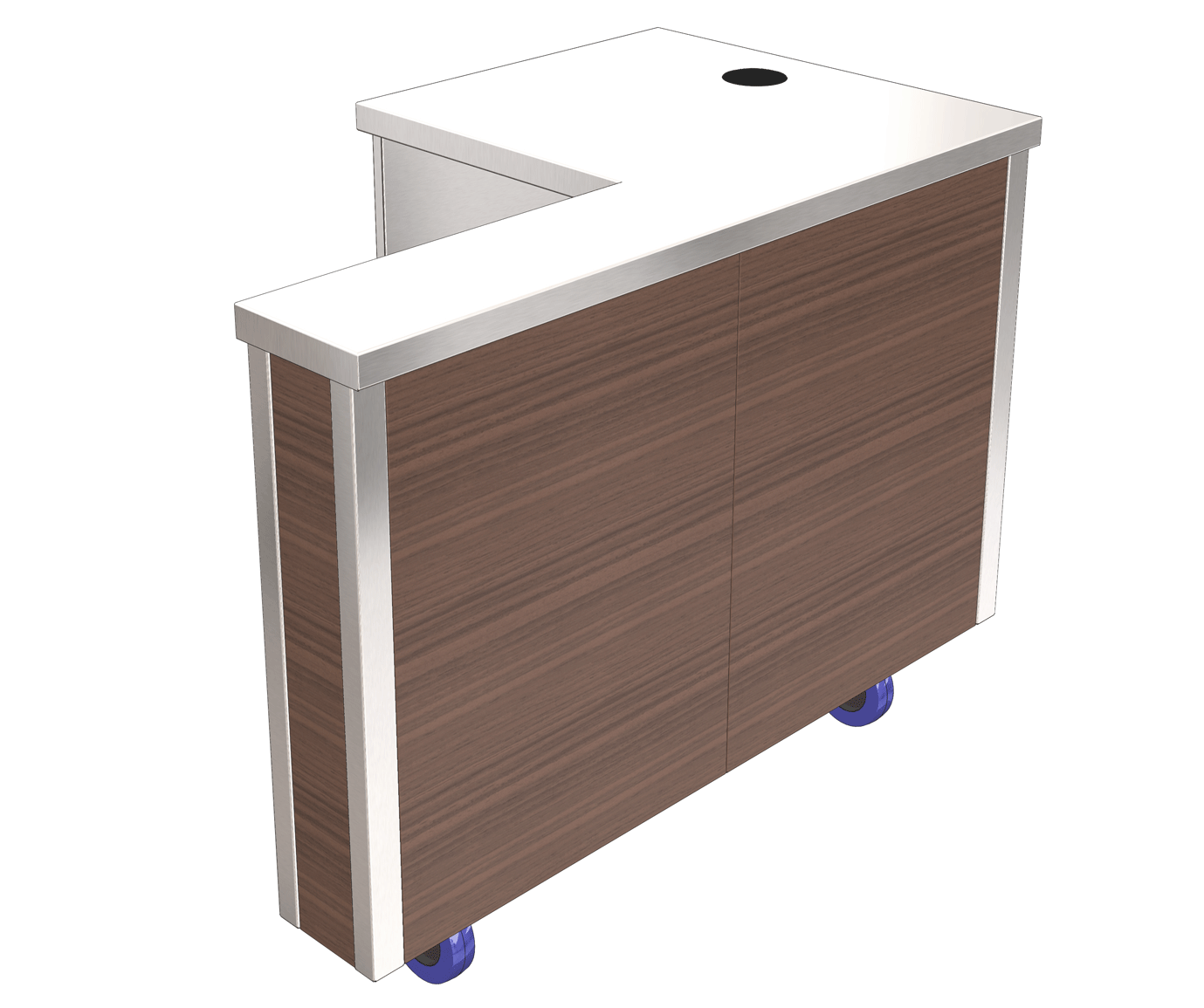

Walnut Woodgrain Finish. (Option Code GWALNCS3) 3-1 Gn set of outer front/ side panels in wood grain effect panel DL85 walnut finish to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

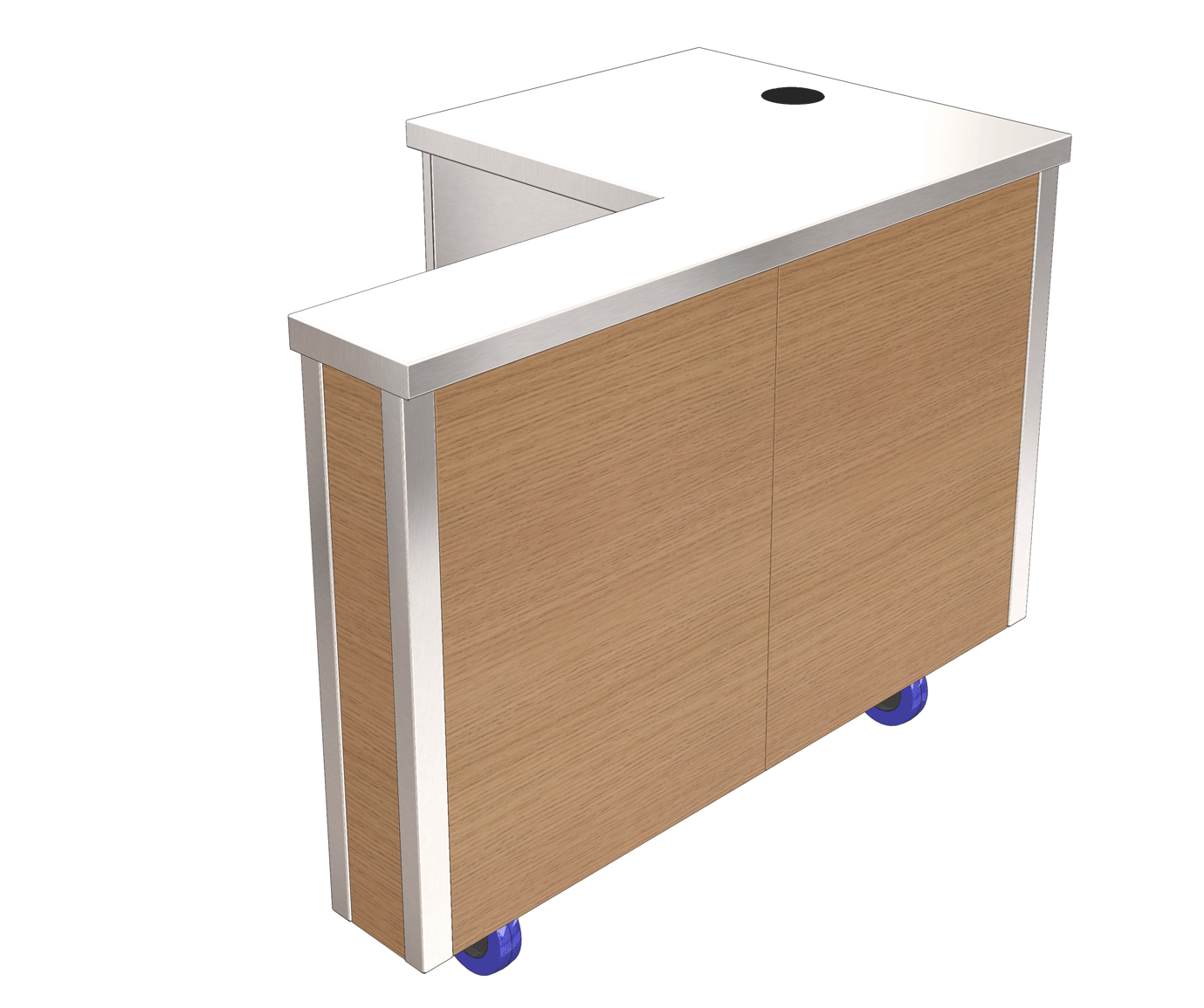

Oak Woodgrain Finish. (Option Code GOAKCS3)  3-1 Gn set of front/ outer side panels in wood grain effect DL84 oak finish to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

Popular Model Codes & Options.

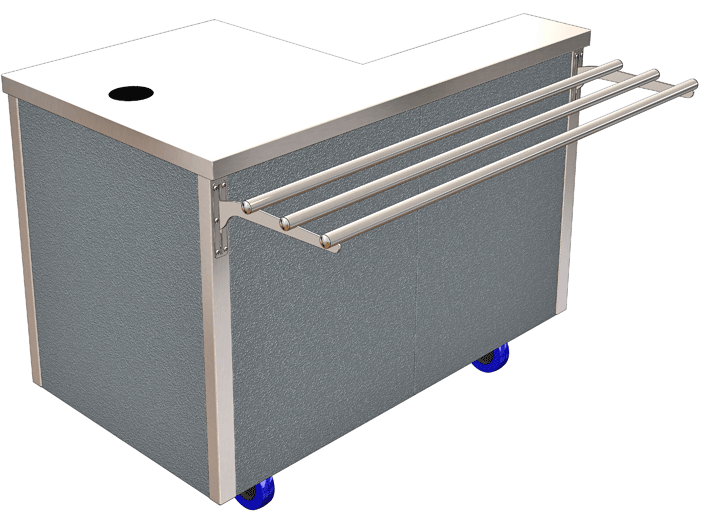

Glide Cashier Section (L/H Recess)
(& Tubular Tray Rail).
Model Code      Option Code
GCSL               GTTS3

Glide Cashier Section (R/H Recess)
(& Tubular Tray Rail).
Model Code      Option Code
GCSR               GTTS3

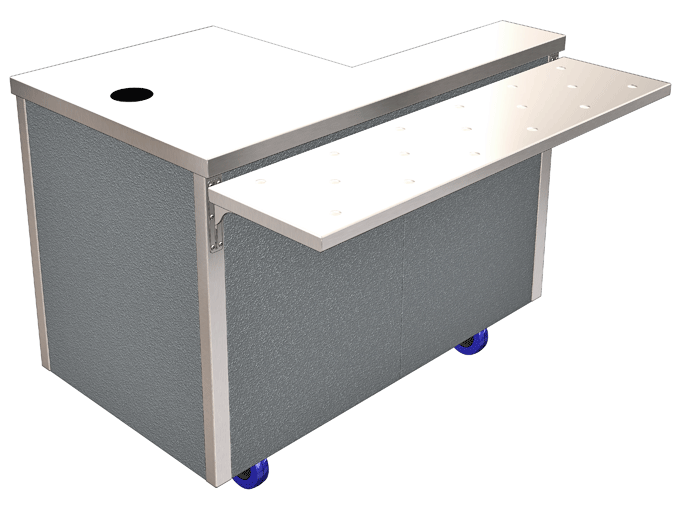

Glide Cashier Section (L/H Recess)
(& Solid Tray Slide).
Model Code      Option Code
GCSL               GSTS3

Glide Cashier Section (R/H Recess)
(& Solid Tray Slide).
Model Code      Option Code
GCSR               GSTS3

fGlide Cashier Section (L/H Recess)
(& Colour Finish Red).
Model Code      Option Code
GCSL                GPREDCS3

Glide Cashier Section (R/H Recess)
(& Colour Finish Red).
Model Code      Option Code
GCSR               GPREDCS3

Downloads

General Layout Drawings
Glide Cashier Section.

Specification Sheet, Base Panel Colour Options, User Manual.
Glide Cashier Section.
