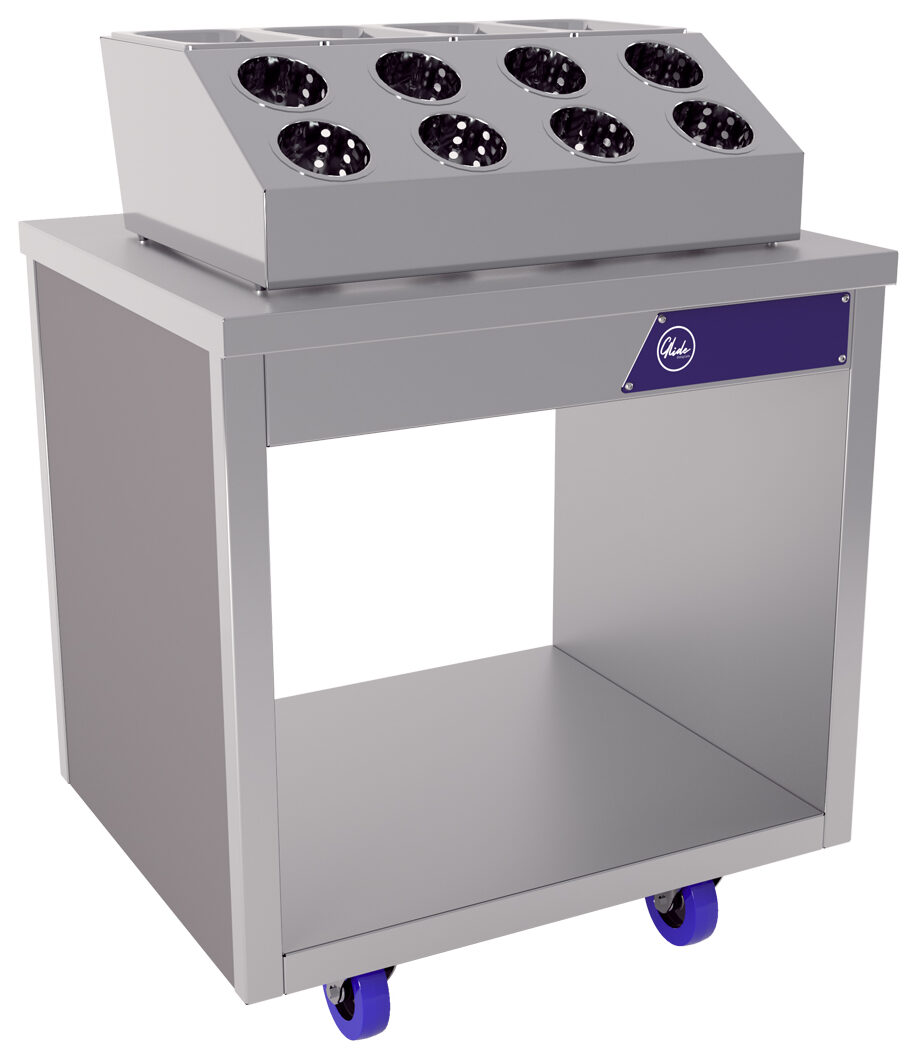

Glide Cutlery Tray Pick Up Unit

This durable self help cutlery dispenser & open tray pick up cupboard forms part of the Glide range of mobile dining carts – a choice of cold, hot & ambient commercial catering carts that combine to form a food severy counter solution as unique as your requirements !

Glide Cutlery Tray Pick Up Unit.
The cutlery/ tray unit is made in a convenient 2-1 Gn size, 825(l) x 700(d) x 900(h) and can be positioned in a counter run or wall sited to suit the servery layout. The standard open tray cupboard features a s/steel plain worktop & 730mm wide open access tray storage base area. The side base panels are finished in leathergrain plastisol steel, colour merlin grey (BS 18B25). Each model comes with lockable castors.
Cutlery Dispenser.
The 235 mm (h) self help s/steel cutlery dispenser has rubber feet to prevent surface scratches. The angled self help front face features 8 x Ø 115mm perforated steel cutlery containers, for easy cutlery choice. The top surface houses 4 x 1/4Gn x 100 (d) Gn containers for storage of condiment sachets, napkins etc.

Height Options. Low Height Model (Glide Junior) – in 850mm or 800mm high options for junior/ primary use.

Accessories & Finishes.
Folding Steel Solid or Tubular Tray Slides – Tray slides add 40mm to unit depth and are set at the worktop height – 55mm.

Colour Finishes To Cutlery/ Tray Unit Side Panels – 11 alternative choices of durable steel, colour & wood effect finishes for cutlery/ tray unit side panels, to compliment other selected models in the servery colour scheme.

Visual

Glide Cutlery Tray Pick Up Unit.
Visual



Features

Glide Cutlery Tray Pick Up Unit.
Features

  • Glide mobile dining cart, sit-on cutlery unit with tray pick-up unit.
  • Free standing or wall sited application.
  • Model Code GCTU.
  • Removable 235 mm (h) s/steel sit-on cutlery dispenser c/w 8 no. perforated s. steel cutlery cylinders Ø 115 mm x 130 mm (d) & 4 no. 1/4Gn x 100 mm (d) sachet/ napkin containers.
  • Unit size 825 mm (l) x 700 mm (d) x 900 mm (h) + 235 mm(h).
  • 730 mm (w) x 675mm (d) open tray storage & pick-up cupboard under.
  • Side base panels in leathergrain plastisol steel, colour merlin grey (BS 18B25),
  • Worktop in 304 gd steel, all other external/internal steel surfaces (inner base/ sides etc.) in 430gd.
  • Fitted with lockable non-marking rubber tyre castors.
  • Unit weight 40kg.

Options

  • Optional folding s/steel solid tray slide available (option code GSTS2).
  • Optional folding s/steel tubular tray rail Ø25 tube, available (option code GTTS2).
  • Unit depth with tray slide-rail fitted – tray slide up (1000mm)/ tray slide down (740mm).
  • Optional choice of 11 solid colour & woodgrain base outer side panel finishes available.
  • Optional low height model 850mm (h) available.
  • Optional low height model 800mm (h) available.*
  • 800mm (h) = bespoke option with extended lead time*.


Dimensions

Glide Cutlery Tray Pick Up Unit.
Dimensions

  • Model Code GCTU.
  • 2/1 Gn size.

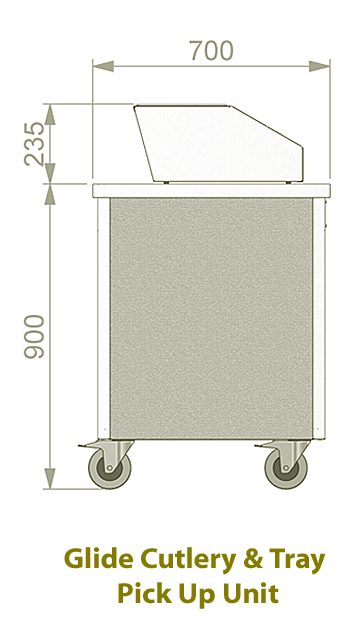

  • Model dimensions: 825 mm (l) x 700 mm (d) x 900 mm (h) + 235 mm(h) cutlery dispenser.
  • Model weight 40 kg.
  • Sit-on cutlery dispenser dimensions: 667 mm (l) x 500 mm (d) x 235 mm (h).
  • Dispenser front storage capacity: 8 no. cutlery cylinders included
    – s/st. perforated Ø 115 mm x 130 mm (d).
  • Dispenser top storage capacity: 4 no. sachet/ napkin containers included
    – 1/4 Gn x 100 mm (d)
  • Worktop finish 304gd s/steel.
  • Outer panel finish plastisol steel, colour merlin grey (BS18B25).
  • Other external/ internal steel surfaces (inner base/ sides etc.) in 430gd.

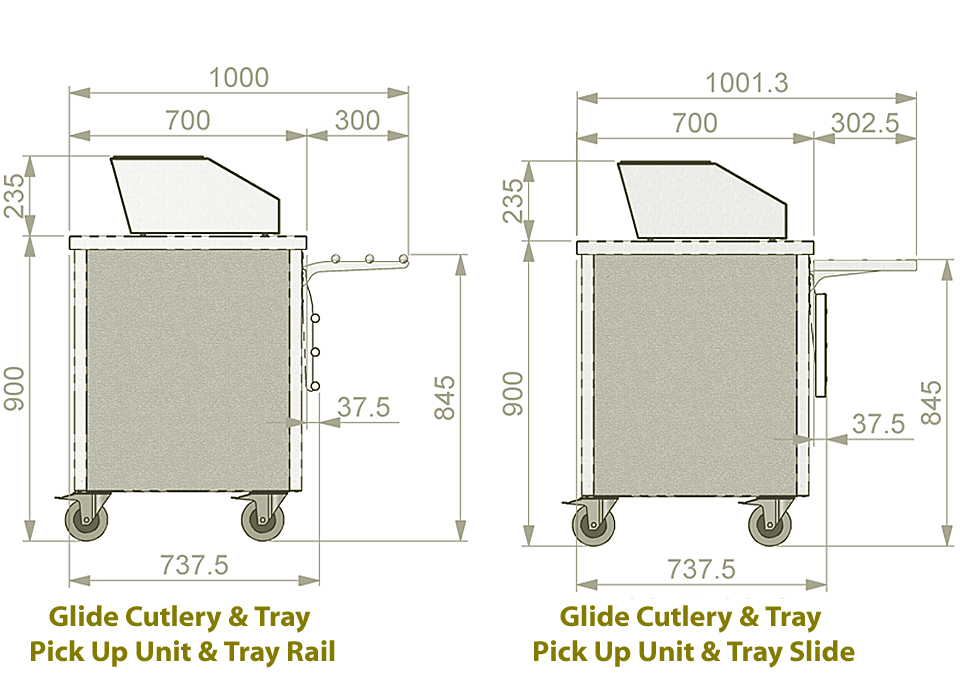

  • Model depth with optional folding tray slide/tray rail fitted: tray slide up = 1000mm (d)/ tray slide down = 740mm (d).
  • Optional tray slide height: for standard 900 mm (h) worktop = 845 mm, low height 850 mm model = 795mm (h), low height 800 mm model = 745mm (h).
  • Supplied With Lockable Castors With Non-Marking Rubber Tyres.
  • Power Supply N/A.

OPTIONS :  Glide Cutlery Tray Pick Up Unit. (Model GCTU).

Option

Code

Option

Code

Option

Code

Solid
S/steel
Tray Slide
(Folding)

GSTS2

Tubular
S/steel Tray
Rail
(Folding)

GTTS2

Low Height
Model
850mm (h)

G850H

Low Height
Model
800mm (h)

G800H

Satin S/steel
Side Panels
(430gd.)

GSSTLEP2

Colour Side Panels
Ocean Blue
(BS18C37)

GBLUEEP2

Colour Side Panels
Light Grey
(BS10A05)

GGREYEP2

Colour Side Panels
Forest Green
(RAL6002)

GGRENEP2

Colour Side Panels
Poppy Red
(BS04E5B)

GPREDEP2

Colour Side Panels
Cream
(BS10c31)

GCREMEP2

Colour Side Panels
White
(BS00E55)

GWHITEP2

Colour Side Panels
Black
(BS00E53)

GBLAKEP2

Woodgrain Side Panels
Walnut
(DL85)

GWALNEP2

Woodgrain Side Panels
Beech
(DL76)

GBEECEP2

Woodgrain Side Panels
Oak
(DL84)

GOAKEP2

Popular Model Codes & Options

SUMMARY : Popular Model Codes & Options

Model Code

Option Code

XXX

Glide Cutlery Tray Pick Up Unit
(& Solid Tray Slide)

GCTU

GSTS2

YYYYX

Glide Cutlery Tray Pick Up Unit
(& Tubular Tray Rail)

GCTU

GTTS2

YYYY

Glide Cutlery Tray Pick Up Unit
(& Colour Finish Ends – Red)

GCTU

GPREDEP2

YYYY

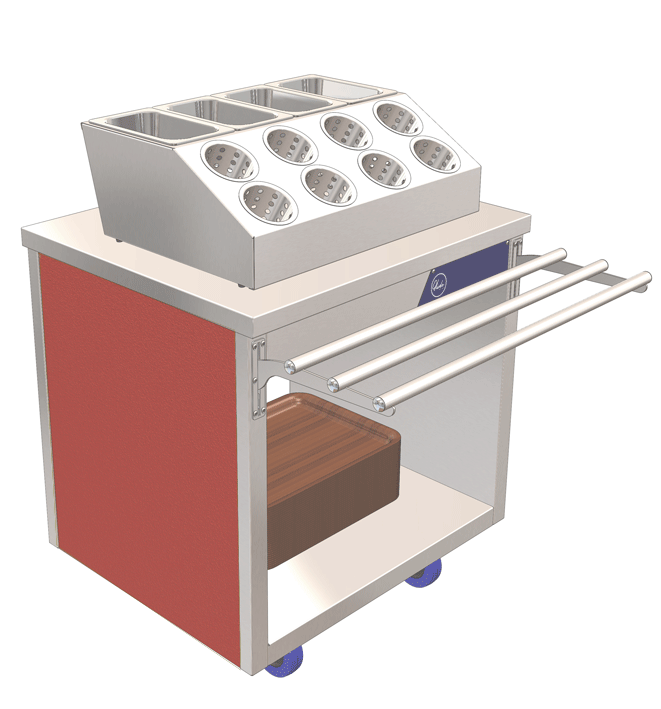

Glide Cutlery Tray Pick Up Unit
(& Tubular Tray Rail & Colour Finish Ends – Red)

GCTU

GTTS2

GPREDEP2

Glide Cutlery Tray Pick Up Unit
(& Solid Tray Slide & Colour Finish Ends – Red)

GCTU

GSTS2

GPREDEP2

Glide Cutlery Tray Pick Up Unit
(& Colour Finish Ends – Blue)

GCTU

GBLUEEP2

YYYY


Options

Glide Cutlery Tray Pick Up Unit.
Options.

Glide S/Steel Folding Solid Tray Slide.
(GSTS2) Glide option: 2-1 Gn, s/steel solid tray slide with dimpled surface to assist tray movement, drop down bracket type.
Up position adds 302mm to depth. Down position + 40mm to base unit depth. Trayslide height = base unit height less 55mm.

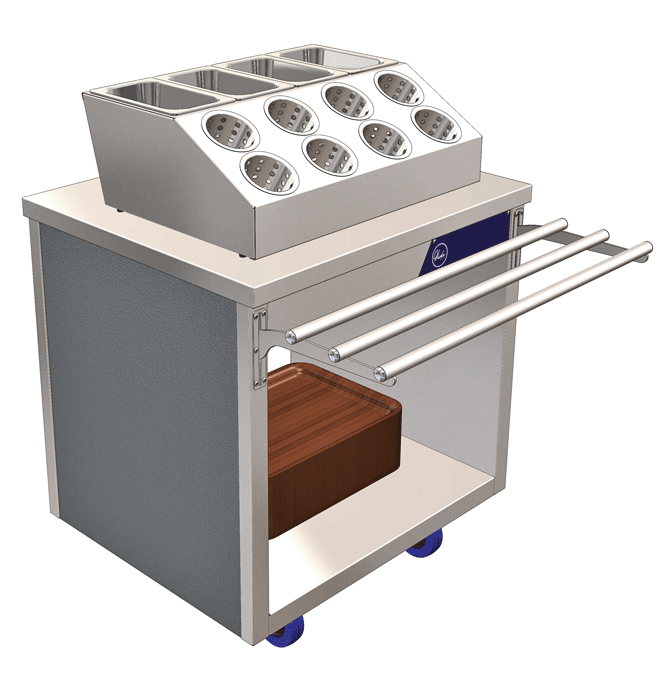

Glide S/Steel Folding Tubular Tray Rail.
(GTTS2) Glide option: 2-1 Gn, s/steel tubular tray rail, 304 gd. Ø25 tube. Drop down bracket type.
Up position adds 298 mm to depth. Down position + 40mm to base unit depth. Trayslide height = base unit height less 55mm.

Low Height Model ( Glide Junior) – 850mm.
(G850H) Glide junior option: (all cold, hot, ambient, till & corner units) 850mm (h) base unit, c/w 100mm lockable castors.
Height suitable for Junior/Primary Use (Optional trayslide height becomes 795mm high).

Low Height Model ( Glide Junior) – 800mm.
(G800H) Glide junior option: (all cold, hot, ambient, till & corner units) 800mm (h) base unit, c/w 100mm lockable castors.
Height suitable for Junior/Primary Use (Optional trayslide height becomes 745mm high). * Bespoke Option/ Extended Lead Time *

Glide Colour Finishes To Front/ Side Panels.

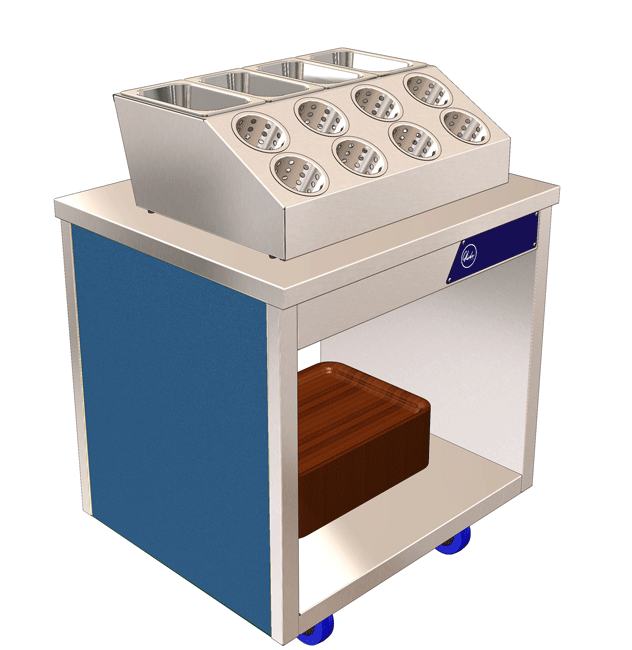

Blue Finish. (Option Code GBLUEEP2) 2-1 Gn set of outer side panels in leathergrain plastisol steel, colour ocean blue (BS 18C37) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

S/steel Finish. (Option Code GSSTLEP2) 2-1 Gn set of outer side panels in satin s/steel 430 gd. to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

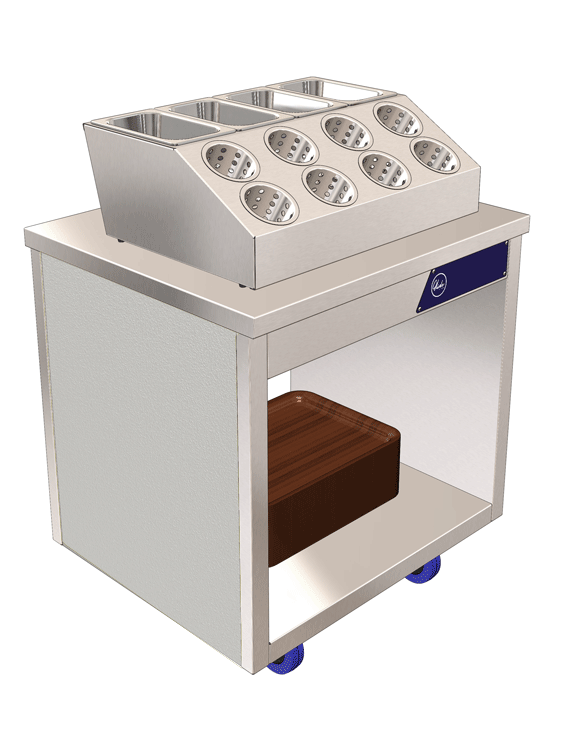

Light Grey Finish. (Option Code GGREYEP2) 2-1 Gn set of outer side panels in leathergrain plastisol steel, colour goosewing light grey (BS 10A05) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

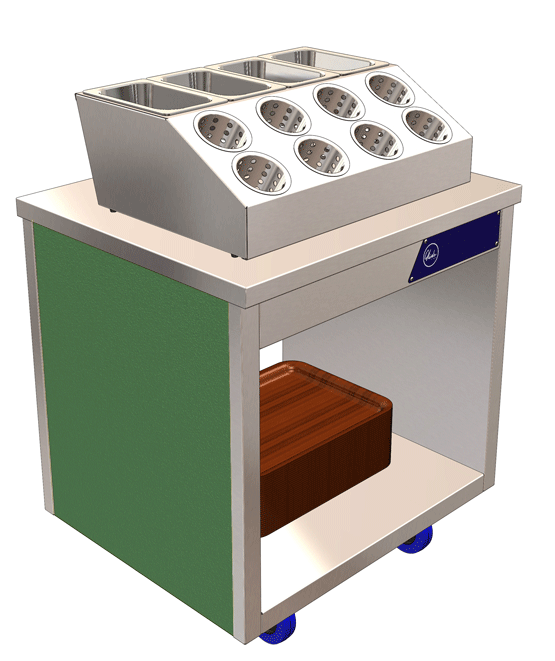

Forest Green Finish. (Option Code GGRENEP2) 2-1 Gn set of outer side panels in leathergrain plastisol steel, colour forest green/heritage (RAL 6002) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

Poppy Red Finish. (Option Code GPREDEP2) 2-1 Gn set of outer side panels in leathergrain plastisol steel, colour poppy red (BS 04E5B) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

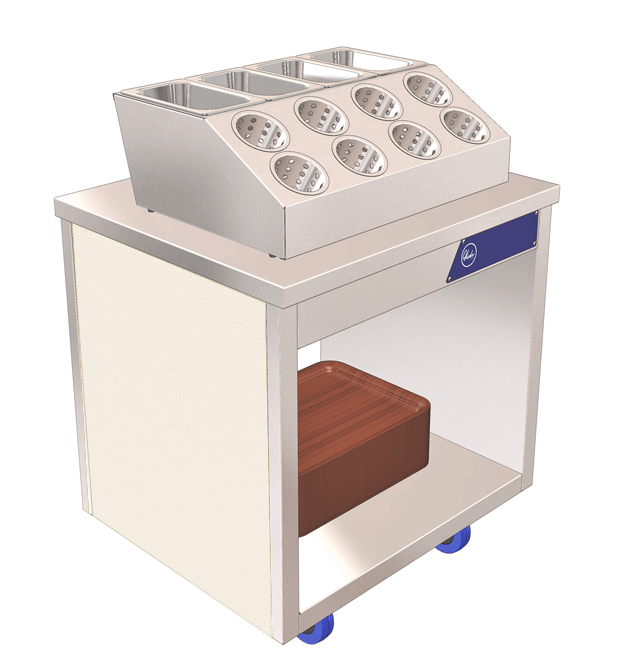

Cream Finish. (Option Code GCREMEP2) 2-1 Gn set of outer side panels in leathergrain plastisol steel, colour buttermilk cream/ honesty (BS 10C31) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

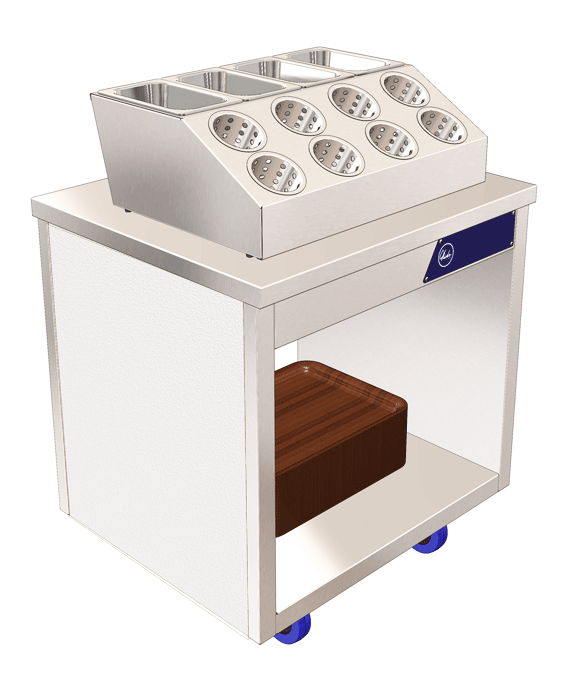

White Finish. (Option Code GWHITEP2) 2-1 Gn set of outer side panels in leathergrain plastisol steel, colour white (BS 00E55)  to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

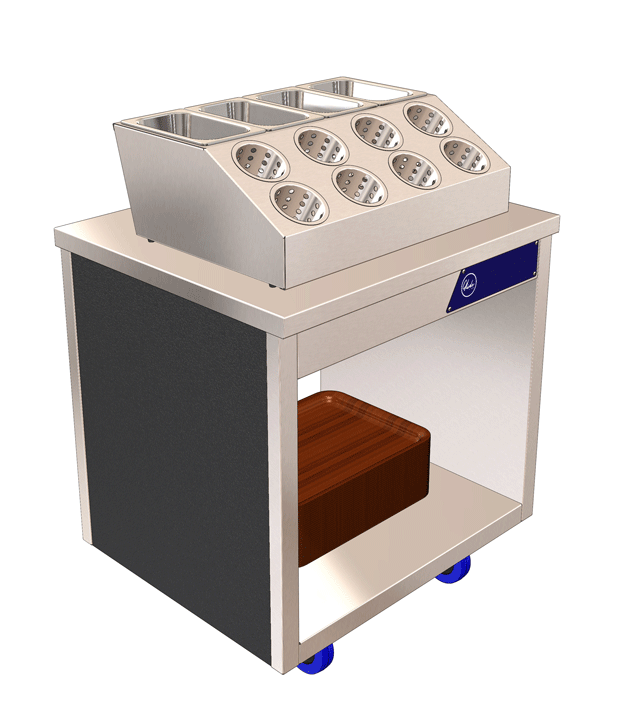

Black Finish. (Option Code GBLAKEP2) 2-1 Gn set of outer side panels in leathergrain plastisol steel, colour black (BS 00E53) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

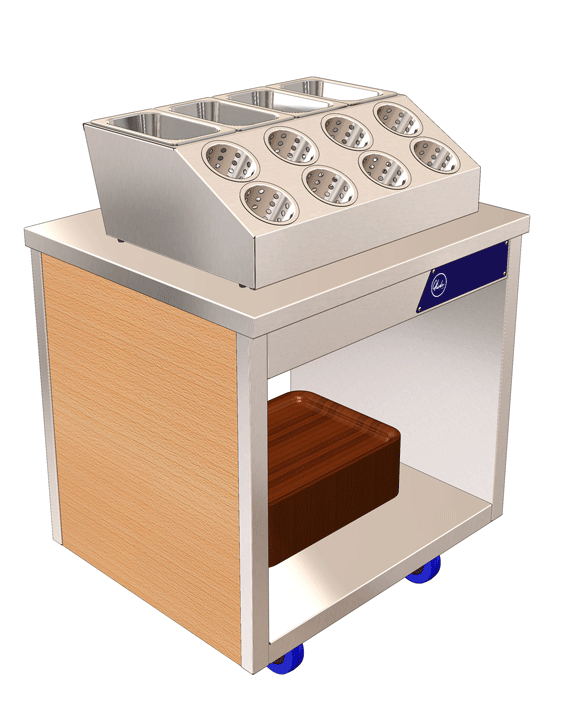

Beech Woodgrain Finish. (Option Code GBEECEP2) 2-1 Gn set of outer side panels in wood grain effect DL76 beech finish to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

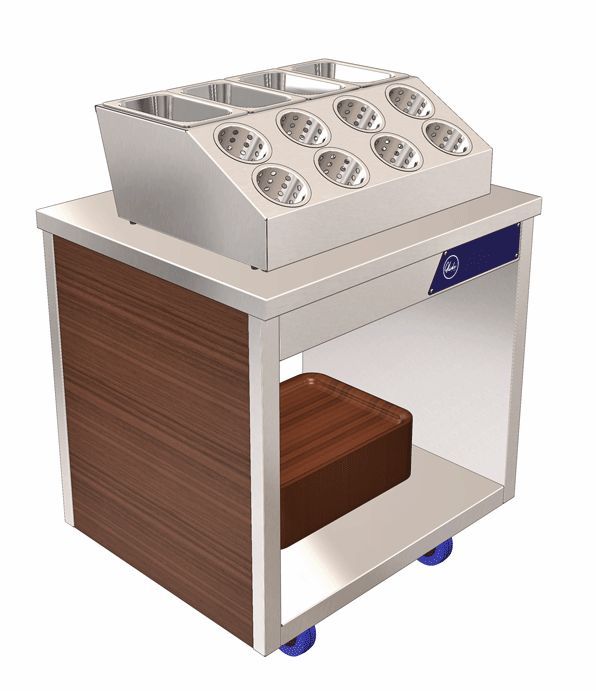

Walnut Woodgrain Finish. (Option Code GWALNEP2) 2-1 Gn set of outer side panels in wood grain effect panel DL85 walnut finish to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

Oak Woodgrain Finish. (Option Code GOAKEP2)  2-1 Gn set of outer side panels in wood grain effect DL84 oak finish to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.



Options Codes :  Glide Cutlery Tray Pick Up Unit (Model GCTU).

Option

Code

Option

Code

Option

Code

Solid
S/steel
Tray Slide
(Folding)

GSTS2

Tubular
S/steel Tray
Rail
(Folding)

GTTS2

Low Height
Model
850mm (h)

G850H

Low Height
Model
800mm (h)

G800H

Satin S/steel
Side Panels
(430gd.)

GSSTLEP2

Colour Side Panels
Ocean Blue
(BS18C37)

GBLUEEP2

Colour Side Panels
Light Grey
(BS10A05)

GGREYEP2

Colour Side Panels
Forest Green
(RAL6002)

GGRENEP2

Colour Side Panels
Poppy Red
(BS04E5B)

GPREDEP2

Colour Side Panels
Cream
(BS10c31)

GCREMEP2

Colour Side Panels
White
(BS00E55)

GWHITEP2

Colour Side Panels
Black
(BS00E53)

GBLAKEP2

Woodgrain Side Panels
Walnut
(DL85)

GWALNEP2

Woodgrain Side Panels
Beech
(DL76)

GBEECEP2

Woodgrain Side Panels
Oak
(DL84)

GOAKEP2



Popular Model Codes & Options.

Glide Cutlery Tray Pick Up Unit
(& Tray Slide).
Model Code      Option Code
GCTU                GSTS2





Glide Cutlery Tray Pick Up Unit
(& Tray Rail).
Model Code      Option Code
GCTU                GTTS2





Glide Cutlery Tray Pick Up Unit
(& Colour Finish – Red).
Model Code      Option Code
GCTU                GPREDEP2









Glide Cutlery Tray Pick Up Unit
(& Tray Rail & Colour Finish – Red).
Model Code      Option Code    Option Code
GCTU                GTTS2             GPREDEP2







Glide Cutlery Tray Pick Up Unit
(& Tray Slide & Colour Finish – Red).
Model Code      Option Code     Option Code
GCTU               GSTS2              GPREDEP2









Glide Cutlery Tray Pick Up Unit
(& Colour Finish – Blue).
Model Code      Option Code
GCTU                GBLUEEP2





Downloads

General Layout Drawings
Glide Cutlery Tray Pick Up Unit.







Specification Sheet, Base Panel Colour Options, User Manual.
Glide Cutlery Tray Pick Up Unit.




.
