Glide Low Height Tray Pick Up Stand
The low height tray pick up stand is part of the Glide range of mobile dining carts – a choice of cold, hot & ambient commercial catering carts that combine to form a food severy counter solution as unique as your requirements !
Glide Low Height Tray Pick Up Stand.

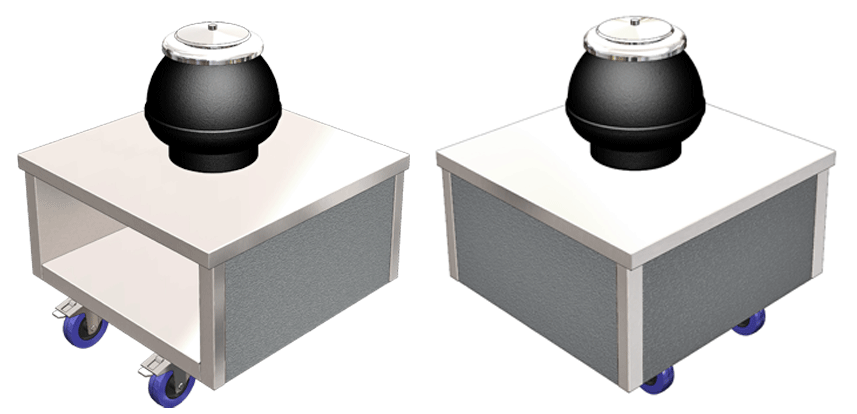

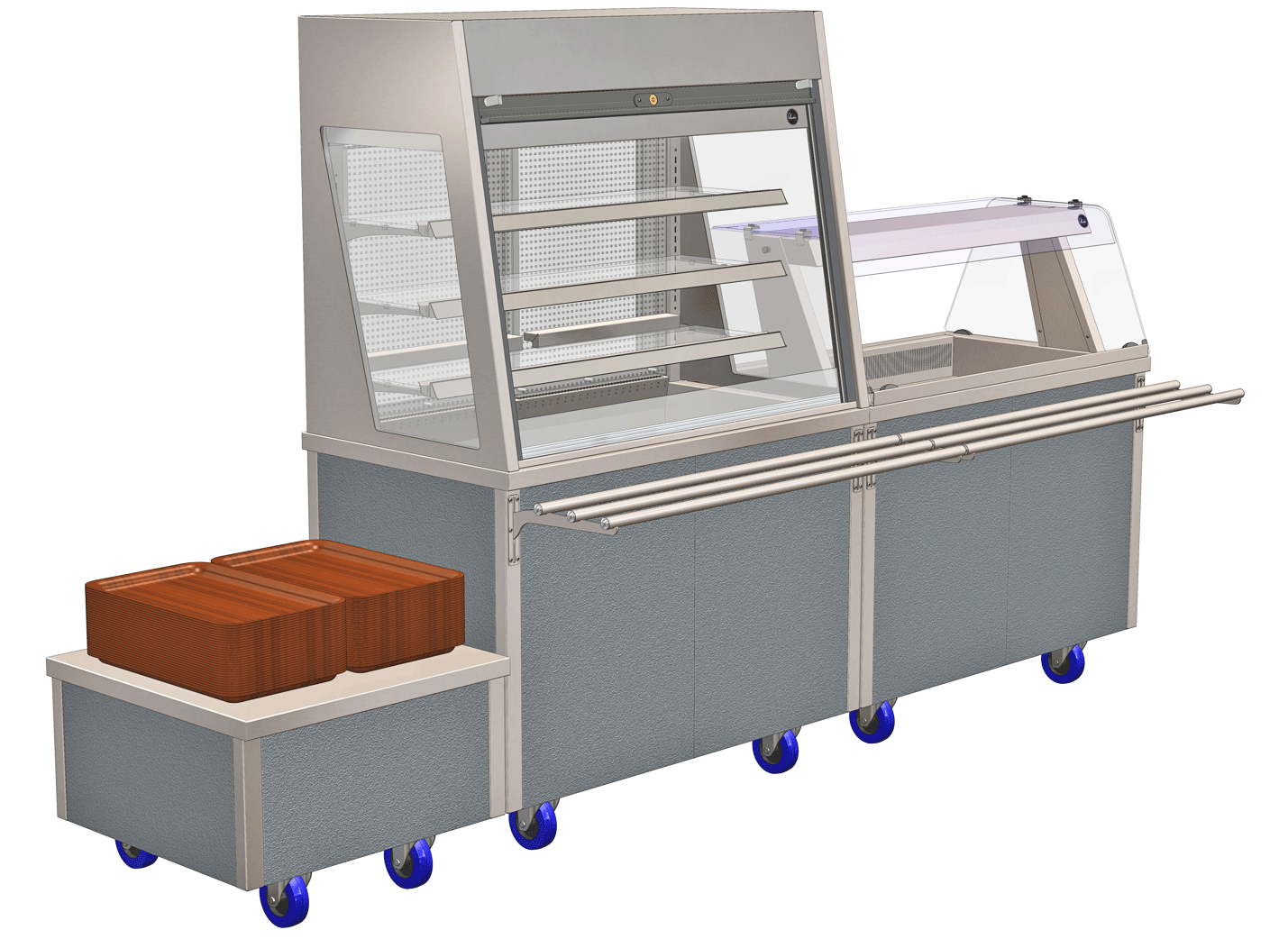

The ambient low height tray pick up also doubles as a soup kettle stand if required & has a plain s/steel 304 gd. worktop. It is ideal for use as freestanding collection point at the entrance to the dining hall or inbetween standard height Glide units in the counter run.
The model has an open rear and a base shelf for storing extra trays in.
The front/side base panels are finished in leathergrain plastisol steel, colour merlin grey (BS 18B25).
Model Details.
This versatile unit is supplied with lockable non marking rubber tyre castors. The Glide low height tray pick up unit is a mobile storage stand with full front and sides clad with external fascia panels, a recessed 605mm wide x 263mm high extra tray storage facility to rear, a 304 gd. s/steel worktop and lockable castors.
The unit is 700 mm deep, to enable positioning alongside adjacent Glide units, or as a freestanding tray collection point at the dining hall entrance.
Suitability For Worktop Mounted Equipment.

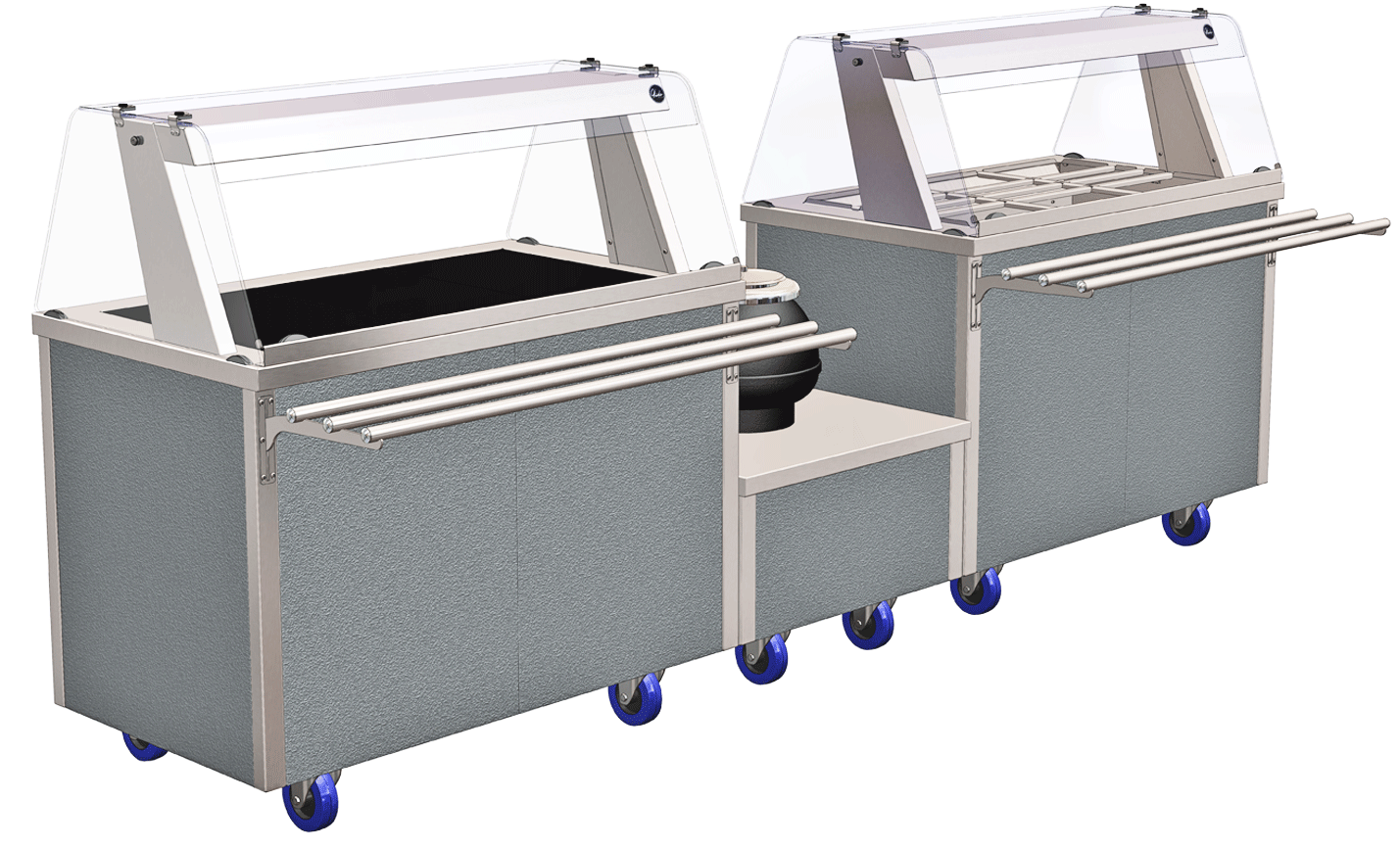

The s/steel worktop is suitable for supporting non electrical counter top equipment also. (max 55Kg). The 500mm high stand can be used as a step down area in the counter run to position a soup kettle stand or gravy station (a localised power supply is required).
Low Maintenance.
Easy, cleanable surfaces and a durable design ensure low maintenance for users.
Model Dimensions.

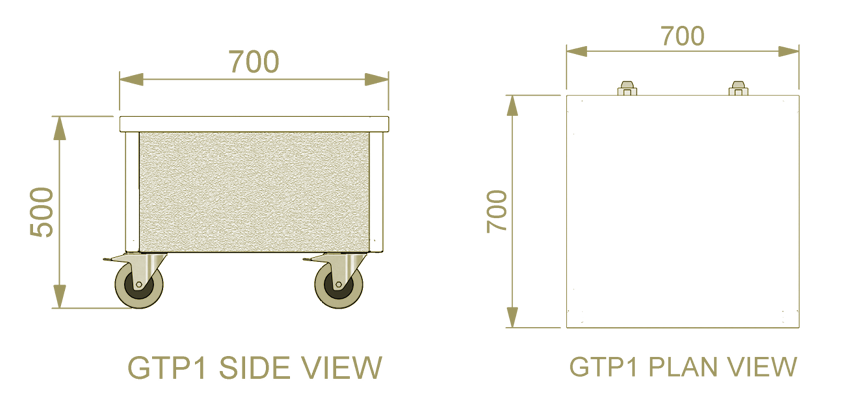

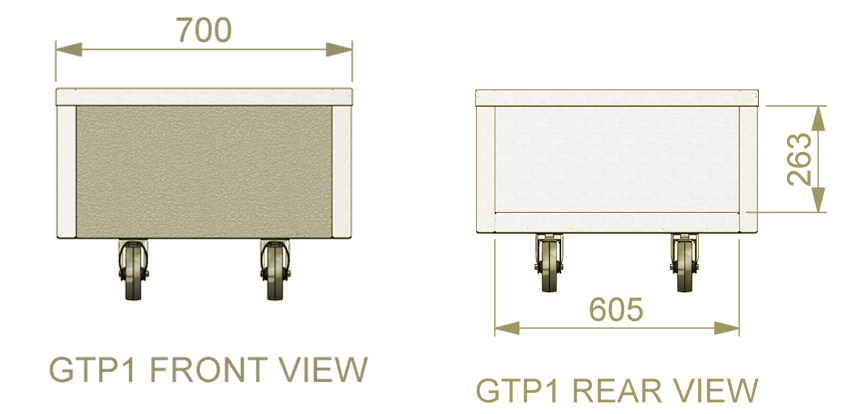

(Model GTP1) = 700mm (L), 700mm (D), 500mm (H) with lockable heavy duty castors.
Model Finishes.
The base front & outer end panels are finished in plastisol steel, colour merlin grey. Worktop is 304 gd. s.steel & all other steel surfaces are 430gd. **This is an ambient unit with no electrical power supply**
Accessories & Finishes.
Colour Finishes To Low Height Tray Pick Up Stand.
11 alternative choices of durable steel, colour & wood effect finishes for low height tray pick up stand outer front/ side panels, to compliment other selected models in the servery colour scheme.
Panels lift off for ease of replacement.
Features
Glide Low Height Tray Pick Up Stand.
Features
- Glide mobile dining cart, ambient low height tray pick up/ soup kettle stand.
- Free standing or wall sited application.
- Model Code GTP1.
- O/all dimensions 700 mm (l) x 700 mm (d) x 500 mm (h).
- Worktop in 304 gd steel, all other external/internal steel surfaces (inner base/ sides etc.) in 430gd.
- For use as a freestanding collection point or in between standard height Glide dining carts.
- Open rear c/w base shelf for storage of extra trays.
- Rear tray storage size 605 mm (w) x 263 mm (h)
- Front/side base panels in leathergrain plastisol steel, colour merlin grey (BS 18B25).
- Fitted with lockable non-marking rubber tyre castors.
- Unit weight 26 kg.
- (Trays are not included)
Options
- Optional choice of 11 solid colour & woodgrain base outer front/ side panel finishes available.
Dimensions
Glide Low Height Tray Pick Up Stand.
Dimensions
- Glide mobile dining cart, ambient low height tray pick up/ soup kettle stand.
- Free standing or wall sited application.
- Model Code GTP1.
- O/all dimensions 700 mm (l) x 700 mm (d) x 500 mm (h).
- Worktop in 304 gd steel, all other external/internal steel surfaces (inner base/ sides etc.) in 430gd.
- For use as a freestanding collection point or in between standard height Glide dining carts.
- Open rear c/w base shelf for storage of extra trays.
- Rear tray storage size 605 mm (w) x 263 mm (h)
- Front/side base panels in leathergrain plastisol steel, colour merlin grey (BS 18B25).
- Fitted with lockable non-marking rubber tyre castors.
- Unit weight 26 kg.
- Power Supply N/A.
- (Trays are not included)
| OPTIONS : Glide Low Height Tray Pick Up Stand. (Model GTP1). | |||||
|
Option |
Code |
Option |
Code |
Option |
Code |
|
Satin S/steel |
GSSTLGTP1 |
Colour Front / Side Panels |
GBLUEGTP1 |
Colour Front / Side Panels |
GGREYGTP1 |
|
Colour Front / Side Panels |
GGRENGTP1 |
Colour Front / Side Panels |
GPREDGTP1 |
Colour Front / Side Panels |
GCREMGTP1 |
|
Colour Front / Side Panels |
GWHITGTP1 |
Colour Front / Side Panels |
GBLAKGTP1 |
Woodgrain Front / Side Panels |
GWALNGTP1 |
|
Woodgrain Front / Side Panels |
GBEECGTP1 |
Woodgrain Front / Side Panels |
GOAKGTP1 |
||
| Model Code & Options | |||
|
SUMMARY : Popular Model Codes & Options |
Model Code |
Option Code |
|
|
Glide Low Height Tray Pick Up Stand. |
GTP1 |
GBLUEGTP1 |
|
|
Glide Low Height Tray Pick Up Stand. |
GTP1 |
GSSTLGTP1 |
|
|
Glide Low Height Tray Pick Up Stand. |
GTP1 |
GGREYGTP1 |
|
|
Glide Low Height Tray Pick Up Stand. |
GTP1 |
GGRENGTP1 |
|
|
Glide Low Height Tray Pick Up Stand. |
GTP1 |
GPREDGTP1 |
|
|
Glide Low Height Tray Pick Up Stand. |
GTP1 |
GCREMGTP1 |
|
|
Glide Low Height Tray Pick Up Stand. |
GTP1 |
GWHITGTP1 |
|
|
Glide Low Height Tray Pick Up Stand. |
GTP1 |
GBLAKGTP1 |
|
|
Glide Low Height Tray Pick Up Stand. |
GTP1 |
GWALNGTP1 |
|
|
Glide Low Height Tray Pick Up Stand. |
GTP1 |
GOAKGTP1 |
|
|
Glide Low Height Tray Pick Up Stand. |
GTP1 |
GBEECGTP1 |
|
Options
Glide Low Height Tray Pick Up Stand.
Options.
Glide Colour Finishes To Front/ Side Panels.
Blue Finish. (Option Code GBLUEGTP1) Set of outer front/ side panels in leathergrain plastisol steel, colour ocean blue (BS 18C37) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

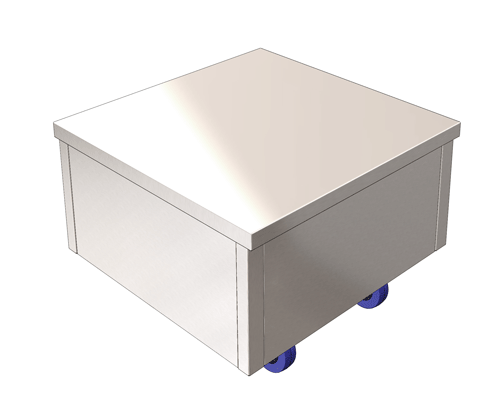

S/steel Finish. (Option Code GSSTLGTP1) Set of outer front/ side panels in satin s/steel 430 gd. to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

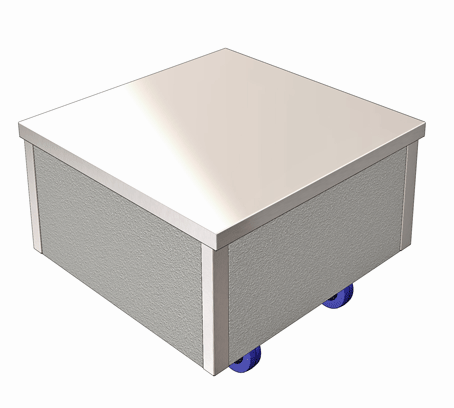

Light Grey Finish. (Option Code GGREYGTP1) Set of outer front/ side panels in leathergrain plastisol steel, colour goosewing light grey (BS 10A05) to suite with other Glide dining carts fitted with colour options. Panels lift off for ease of replacement.
Forest Green Finish. (Option Code GGRENGTP1) Set of outer front/ side panels in leathergrain plastisol steel, colour forest green/heritage (RAL 6002) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

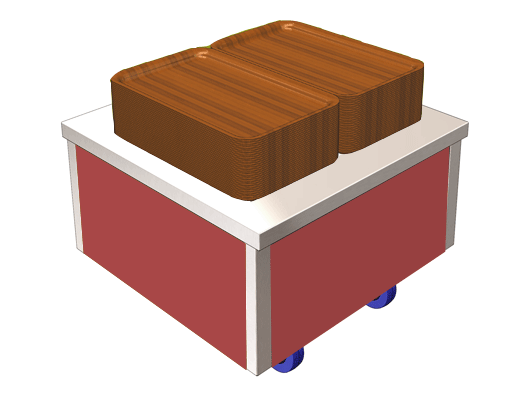

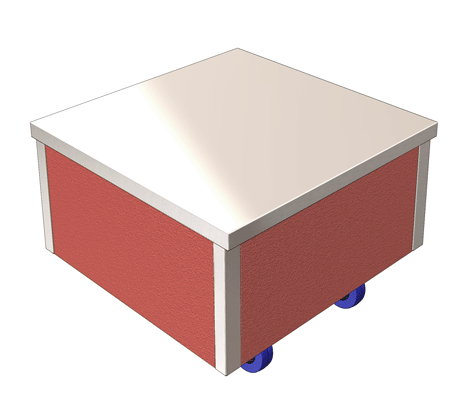

Poppy Red Finish. (Option Code GPREDGTP1) Set of outer front/ side panels in leathergrain plastisol steel, colour poppy red (BS 04E5B) to suite with other Glide dining carts fitted with colour options. Panels lift off for ease of replacement.
Cream Finish. (Option Code GCREMGTP1) Set of outer front/ side panels in plastisol steel, colour buttermilk cream/ honesty (BS 10C31) to suite with other Glide dining carts with colour options. Panels lift off for easy replacement.

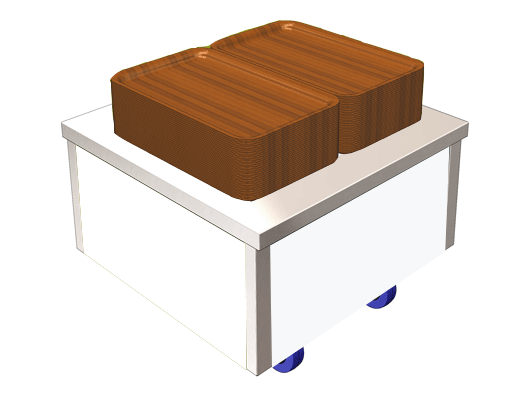

White Finish. (Option Code GWHITGTP1) Set of outer front/ side panels in leathergrain plastisol steel, colour white (BS 00E55) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

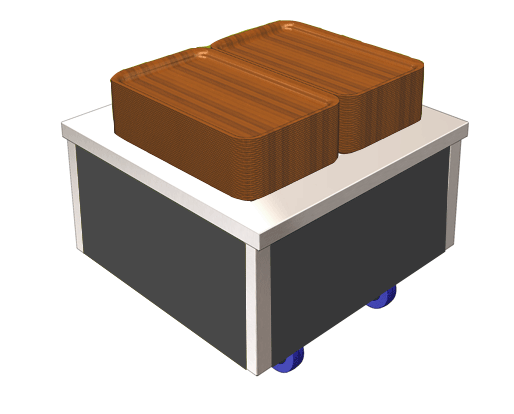

Black Finish. (Option Code GBLAKGTP1) Set of outer front/ side panels in leathergrain plastisol steel, colour black (BS 00E53) to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

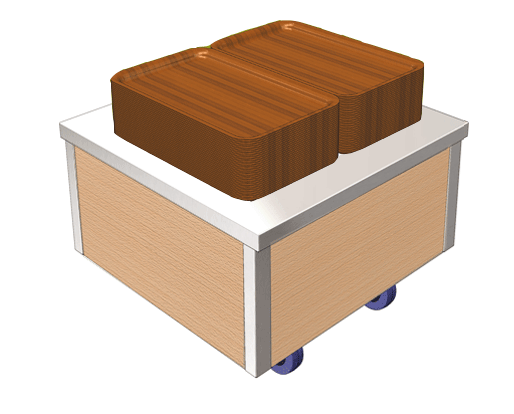

Beech Woodgrain Finish. (Option Code GBEECGTP1) Set of outer front/ side panels in wood grain effect DL76 beech finish to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.
Walnut Woodgrain Finish. (Option Code GWALNGTP1) Set of outer front/ side panels in wood grain effect panel DL85 walnut finish to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.

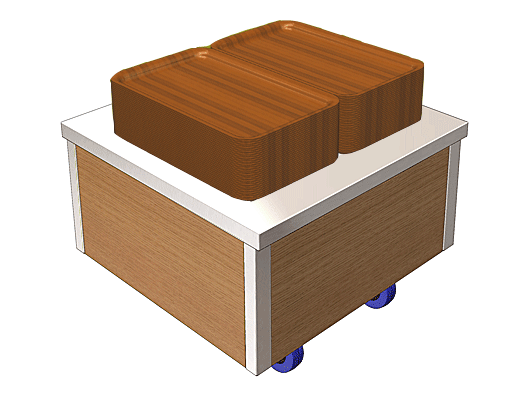

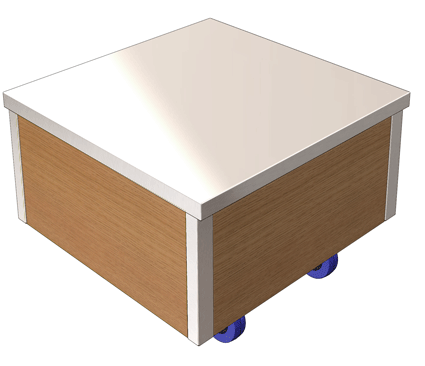

Oak Woodgrain Finish. (Option Code GOAKGTP1) Set of outer front/ side panels in wood grain effect DL84 oak finish to suite with other Glide dining carts fitted with colour options.
Panels lift off for ease of replacement.
| OPTIONS : Glide Low Height Tray Pick Up Stand. (Model GTP1). | |||||
|
Option |
Code |
Option |
Code |
Option |
Code |
|
Satin S/steel |
GSSTLGTP1 |
Colour Front / Side Panels |
GBLUEGTP1 |
Colour Front / Side Panels |
GGREYGTP1 |
|
Colour Front / Side Panels |
GGRENGTP1 |
Colour Front / Side Panels |
GPREDGTP1 |
Colour Front / Side Panels |
GCREMGTP1 |
|
Colour Front / Side Panels |
GWHITGTP1 |
Colour Front / Side Panels |
GBLAKGTP1 |
Woodgrain Front / Side Panels |
GWALNGTP1 |
|
Woodgrain Front / Side Panels |
GBEECGTP1 |
Woodgrain Front / Side Panels |
GOAKGTP1 |
||
Popular Model Codes & Options.
Glide Low Height Tray Pick Up Stand
(& Colour Front/ Side Panels Ocean Blue – BS18C37)
Model Code Option Code
GTP1 GBLUEGTP1
Glide Low Height Tray Pick Up Stand
(& Colour Front/ Side Panels
White – BS 00E55)
Model Code Option Code
GTP1 GWHITGTP1
Glide Low Height Tray Pick Up Stand
(& Colour Front/ Side Panels
Black – BS 00E53)
Model Code Option Code
GTP1 GBLAKGTP1
Glide Low Height Tray Pick Up Stand
(& Colour Front/ Side Panels
Poppy Red – BS 04E5B)
Model Code Option Code
GTP1 GPREDGTP1
Glide Low Height Tray Pick Up Stand
(& Woodgrain Effect Front/ Side Panels
Beech – DL76)
Model Code Option Code
GTP1 GBEECGTP1
Glide Low Height Tray Pick Up Stand
(& Woodgrain Effect Front/ Side Panels
Oak – DL84)
Model Code Option Code
GTP1 GOAKGTP1
Downloads
General Layout Drawings
Glide Low Height Tray Pick Up Stand.
Specification Sheet, Base Panel Colour Options, User Manual.
Glide Low Height Tray Pick Up Stand.
.
