‘Hands Free’ Standard Bowl & Basin Range

GA Wash Hand Bowls (Knee Operated Tap).
3 versions of the knee operated GA range of Wash Hand Bowls are available. The standard Ø 275 mm x 115 mm deep bowl model comes complete with shroud, plug hole and 32 mm waste trap, swan neck mixer tap with aerator, pre-mixer, flexible hose connector & a push button tap control, fitted behind a hinged, knee-operated front valance panel.
(Code 806 331). GA-Bowls---codes--Visual
Two other versions are available, one with rear s/steel splash back (Code 806 332), the other with both splash back & 500 ml manual soap dispenser (Code 806 333). The knee operated swan neck mixer tap supplied has a non return valve and temperature setting.

GC Wash Hand Basins (Knee Operated Tap).
6 versions of the knee operated GC range of Wash Hand Basins are available, all fitted with a rectangular 345 mm x 245 mm x 120 mm deep basin.
They come complete with shroud, plug hole, 32 mm waste trap, swan neck mixer tap & aerator, pre-mixer, flexible hose connector & push button tap control, fitted behind a hinged, knee-operated front valance panel (Code 806 381). GC-Basins---Visual
Three other versions are available, one fitted with a rear 540 mm high s/steel splash back (Code 806 382). One with both 540 mm (H) splash back & 500 ml manual soap dispenser (Code 806 383) and a fourth model, fitted with 540 mm (H) splash back, 500 ml manual soap dispenser and stainless steel bin under (Code 806 397).
Two further versions with a taller 790 mm high rear s/steel splash back are also offered.
One with plain 790 mm high splash back (Code 806 384). The final version has all standard features, but includes the 790 mm high rear s/steel splash back, a 500 ml manual soap dispenser and a paper towel dispenser (Code 806 385).

GC Wash Hand Basins (Infra-Red Tap/ Battery Operated).
This Wash Hand Basin has a rectangular 345 mm x 245 mm x 120 mm deep basin, shroud and is supplied with a battery operated infra-red electronic tap (Code 806 351). The mixer tap comes complete with 6 volt battery – delivering a 3 year service life in between replacement, or 350,000 presses !
GC-Basins-Infra-Red-Tap---c
Two other versions are available, one fitted with a 540 mm high s/steel upstand (Code 806 352), the other with 540 mm upstand & rear mounting 500 ml lockable manual soap dispenser (Code 806 353).

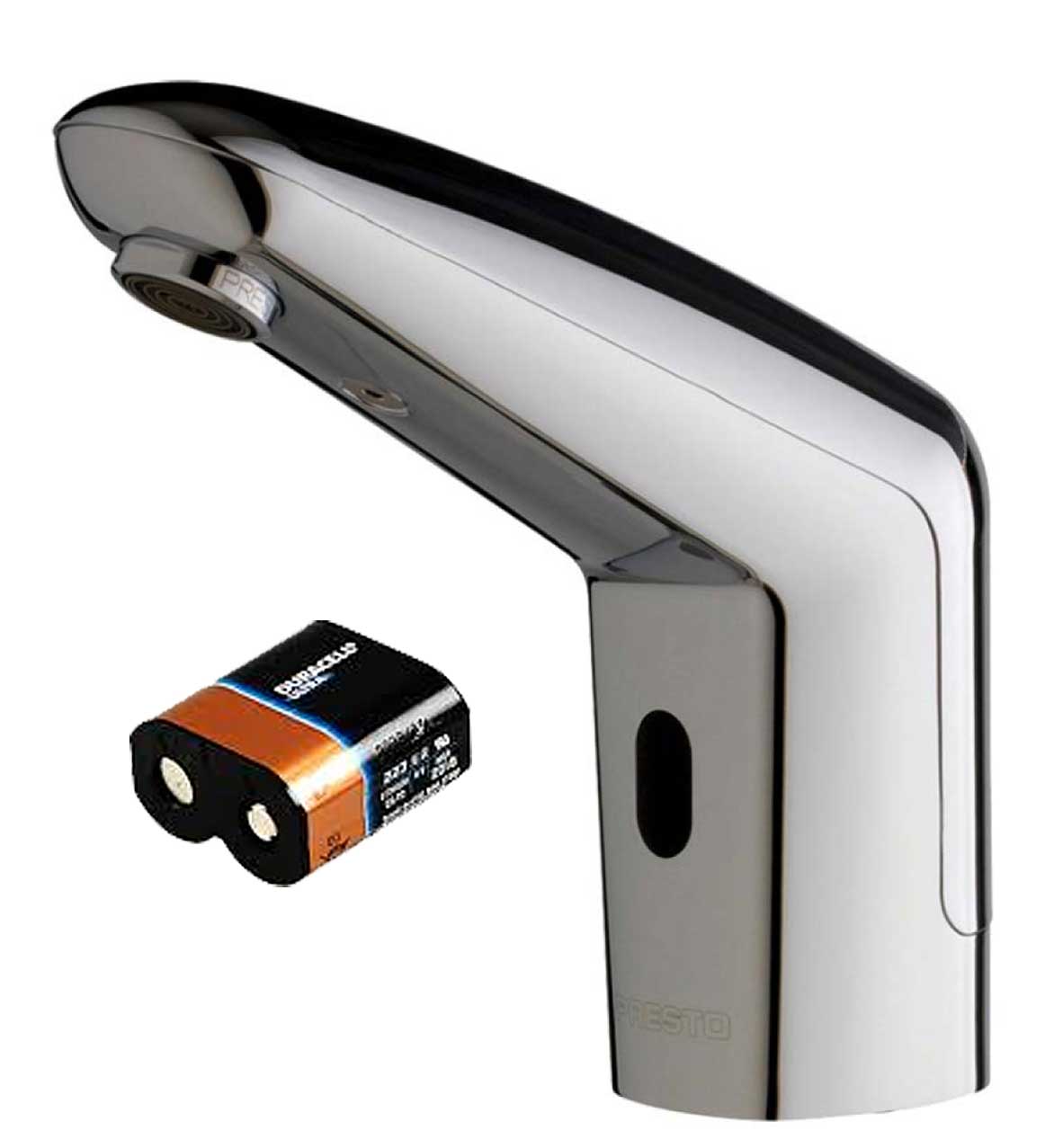

The GC Energy Efficient Infra-Red Electronic Tap.
The french made mixer tap triggers by infra-red detection cell, automatically opening and closing immediately after hands are placed in front of, or removed from the cell. It has no ‘run on’ timer fitted for water saving and the tap head is fitted with an aerator, giving a softer stream of water – further reducing water consumption to only 6 liters/ minute. This WRAS approved tap is available with the GC Basin range as a battery operated (3 year service life) power source.

Visuals

‘Hands Free’ Standard Bowl & Basin Range.
Visual

GA Wash Hand Bowls (Knee operated Tap).

GC Wash Hand Basins (Knee Operated Tap). GC-Basins---Visual

GC Wash Hand Basins (Infra-Red Tap/ Battery Operated).
GC-Basins-Infra-Red-Tap---c

Features

‘Hands Free’ Standard Bowl & Basin Range.
Features

GA Wash Hand Bowls (Knee operated Tap).

Model 806 331: GA Wash Hand Bowl – Knee Operated Tap
Dims. = 330 mm (L) x 330 mm (W) x 170 mm (H) – weight 4.7 Kg.
Model 806 332: GA Wash Hand Bowl – Knee Operated Tap + Rear Upstand.
Dims. = 350 mm (L) x 330 mm (W) x 500 mm (H) – weight 5.6 Kg.
Model 806 333: GA Wash Hand Bowl – Knee Operated Tap + Rear Upstand + 500ml Soap Dispenser.
Dims. = 350 mm (L) x 330 mm (W) x 500 mm (H) – 5.8 Kg.
Wall mounted S/steel wash hand bowl & shroud c/w knee-operated, Swan neck mixer tap.
Integrated bowl pressing and worktop eliminates potential bacteria growth at the bowl edges.
Steel bowl size : Ø 275 mm x 115 mm deep.
Supplied with plug hole & 32 mm waste trap, swan neck mixer tap, pre-mixer with check valves, flexible hose connector & push button tap control, fitted behind bowl shroud.
Supplied with wall Ø 4.5 mm fixing screws + wall plugs.
Water connection to 2 male threaded 1/2″ pre-mixer inlets 15 x 21.
Mixer tap triggered by knee-operated front valance panel (6 second timer).
Mixer tap has non return valves & temperature setting (knob control).
Mixer tap is WRAS approved.
Preset operating temp. 40 deg. C. – Max. operating temp. 70 deg. C – Allowable pressure 1 – 5 bars.
Flow rate at 3 bars = 6 litres/ minute.

GC Wash Hand Basins (Knee Operated Tap).

GC-Basins---Visual

Model 806 381: GC Wash Hand Basin – Knee Operated Tap.
Dims. = 415 mm (L) x 310 mm (D) x 185 mm (H) – weight 6 Kg
Model 806 382: GC Wash Hand Basin – Knee Operated Tap + 540mm (H) Rear Upstand.
Dims. = 440 mm (L) x 335 mm (D) x 540 mm (H) – weight 8.3 Kg.
Model 806 383: GC Wash Hand Basin – Knee Operated Tap + 540mm (H) Rear Upstand + 500ml Soap Dispenser.
Dims. = 440 mm (L) x 335 mm (D) x 540 mm (H) – weight 8.5 Kg.
Model 806 397: GC Wash Hand Basin – Knee Operated Tap + 540mm (H) Rear Upstand + 500ml Soap Dispenser + Underslung S/steel Bin.
Dims. = 440 mm (L) x 335 mm (D) x 985 mm (H) – weight 12.3 Kg.
Model 806 384: GC Wash Hand Basin – Knee Operated Tap + 790mm (H) Rear Upstand.
Dims. = 440 mm (L) x 335 mm (D) x 790 mm (H) – weight 9.2 Kg.
Model 806 385: GC Wash Hand Basin – Knee Operated Tap + 790mm (H) Rear Upstand + 500ml Soap Dispenser + Paper Towel Dispenser.
Dims. = 440 mm (L) x 335 mm (D) x 790 mm (H) – weight 10.3 Kg.
Wall mounted S/steel wash hand basin & shroud c/w knee-operated, Swan neck mixer tap.
Integrated rectangular basin pressing and worktop eliminates potential bacteria growth at the basin edges.
Steel basin size : 345 mm (L) x 245 mm (D) x 120 mm deep.
Supplied with plug hole & 32 mm waste trap, swan neck mixer tap, pre-mixer, flexible hose connector & push button tap control, fitted behind bowl shroud.
Supplied with wall fixing support.
Water connection to 2 male threaded 1/2″ pre-mixer inlets 15 x 21.
Mixer tap triggered by knee-operated front valance panel.
Mixer tap has non return valves & temperature setting.
Mixer tap is WRAS approved.
Preset operating temp. 40 deg. C. – Max. operating temp. 70 deg. C – Allowable pressure 1 – 5 bars.
Flow rate at 3 bars = 6 litres/ minute.

GC Wash Hand Basins (Infra-Red Tap/ Battery Operated).

GC-Basins-Infra-Red-Tap---c

Model 806 351: GC Wash Hand Basin – Battery operated Electronic Mixer Tap – Without Rear Upstand.
Dims. = 415 mm (L) x 310 mm (D) x 185 mm (H) – weight 6 Kg.
Model 806 352: GC Wash Hand Basin – Battery operated Electronic Mixer Tap + Rear Upstand.
Dims. = 440 mm (L) x 335 mm (D) x 540 mm (H) – weight 8.5 Kg.
Model 806 353: GC Wash Hand Basin – Battery operated Electronic Mixer Tap + Rear Upstand + 500ml Soap Dispenser.
Dims. = 440 mm (L) x 335 mm (D) x 540 mm (H) – weight 8.7 Kg
Wall mounted S/steel wash hand basin & shroud c/w infra-red, hand operated mixer tap.
Integrated rectangular basin pressing and worktop eliminates potential bacteria growth at the basin edges.
Steel basin size : 345 mm (L) x 245 mm (D) x 120 mm deep.
Supplied as basin only, with rear upstand or with both upstand & 500 ml soap dispenser.
Supplied with 2 no. 3/8″ flexible water connection hoses, 32 mm waste trap & wall fixing support.
Mixer tap triggered by infra-red detection cell.
Automatic opening and closing of tap occurs immediately after hands are placed in front of or removed from the cell.
Mixer tap has non return valves & temperature setting.
Tap has no ‘run on’ timer fitted for water saving.
Automatic flow stop after 30 seconds continuous use (anti-overflow system).
Tap head fitted with aerator, giving softer stream of water, reduced water consumption to only 6 litres/ minute.
Mixer tap is WRAS approved.
CR-P2 lithium battery operated tap power source – 6 volt (3 year service life/350,000 presses).
Battery low or flat indication LED.
Option Code: 6 Volt Replacement Battery (262 620).
Preset operating temp. 40 deg. C. – Max. operating temp. 75 deg. C – Allowable pressure 1 – 5 bars.

Dimensions

‘Hands Free’ Standard Bowl & Basin Range.
Dimensions

GA Wash Hand Bowls (Knee operated Tap).

Model Code:	806 331	806 332	806 333
Description.	Wall Mounted Ø 275 mm Wash Hand Bowl + Mixer Tap.	Wall Mounted Ø 275 mm Wash Hand Bowl + Mixer Tap + Upstand.	Wall Mounted Ø 275 mm Wash Hand Bowl + Mixer Tap + Upstand + Soap Dispenser.
Bowl Size – 275(mm) diameter x 115(mm) Deep.	Included.	Included.	Included.
Knee Operated Swan-Neck Tap, Pre-Mixer c/w Check Valves & Water Temperature Adjustment (Water Connection To 2 Male Threaded 1/2″ Pre-Mixer Inlets 15 x 21).	Included.	Included.	Included.
Lockable 500ml Manual Soap Dispenser.	N/A.	N/A.	Included.
Sink Pipe, 32(mm) Waste Trap & Pre-Mix/ Tap Connection Hose.	Included.	Included.	Included.
Allowable Water Pressure (Bar). Flow Rate At 3 Bar = 6 Lt./Min)	1-5	1-5	1-5
Pre-Set Water Temp (Deg. C).	40	40	40
Max. Water Temp (Deg. C.).	75	75	75
O/All Unit Height (mm)	170	500	500
O/All Unit Length (mm)	330	350	350
O/All Unit Depth (mm)	330	330	330

GC Wash Hand Basins (Knee Operated Tap).

806 381 806 382 806 383

Model Code:	806 381	806 382	806 383
Description.	Wall Mounted 415 mm (L) Wash Hand Basin + Mixer Tap.	Wall Mounted 440 mm (L) Wash Hand Basin + Mixer Tap + 540 mm (H) Upstand.	Wall Mounted 440 mm (L) Wash Hand Basin + Mixer Tap + 540 mm (H) Upstand + Soap Dispenser.
Basin Size – 345(mm) x 245(mm) x 120(mm) Deep.	Included.	Included.	Included.
Knee Operated Swan-Neck Tap, Pre-Mixer c/w Check Valves & Water Temperature Adjustment (Water Connection To 2 Male Threaded 1/2″ Pre-Mixer Inlets 15 x 21).	Included.	Included.	Included.
Lockable 500ml Manual Soap Dispenser.	N/A.	N/A.	Included.
Sink Pipe, 32(mm) Waste Trap & Pre-Mix/ Tap Connection Hose.	Included.	Included.	Included.
Allowable Water Pressure (Bar). Flow Rate At 3 Bar = 6 Lt./Min)	1-5	1-5	1-5
Pre-Set Water Temp (Deg. C).	40	40	40
Max. Water Temp (Deg. C.).	75	75	75
O/All Unit Height (mm)	185	540	540
O/All Unit Length (mm)	415	440	440
O/All Unit Depth (mm)	310	335	335

806 397 806 384 806 385

Model Code:	806 397	806 384	806 385
Description.	Wall Mounted 440 mm (L) Wash Hand Basin + Mixer Tap + 540 mm (H) Upstand + Soap Dispenser + S/steel Bin	Wall Mounted 440 mm (L) Wash Hand Basin + Mixer Tap + 790 mm (H) Upstand.	Wall Mounted 440 mm (L) Wash Hand Basin + Mixer Tap + 790 mm (H) Upstand + Soap Dispenser + Paper Towel Dispenser.
Basin Size – 345(mm) x 245(mm) x 120(mm) Deep.	Included.	Included.	Included.
Knee Operated Swan-Neck Tap, Pre-Mixer c/w Check Valves & Water Temperature Adjustment (Water Connection To 2 Male Threaded 1/2″ Pre-Mixer Inlets 15 x 21).	Included.	Included.	Included.
Lockable 500ml Manual Soap Dispenser.	Included.	N/A.	Included.
Paper Towel Dispenser.	N/A.	N/A.	Included.
Sink Pipe, 32(mm) Waste Trap & Pre-Mix/ Tap Connection Hose.	Included.	Included.	Included.
Allowable Water Pressure (Bar). Flow Rate At 3 Bar = 6 Lt./Min)	1-5	1-5	1-5
Pre-Set Water Temp (Deg. C).	40	40	40
Max. Water Temp (Deg. C.).	75	75	75
O/All Unit Height (mm)	985 (inc. bin)	790	790
O/All Unit Length (mm)	440	440	440
O/All Unit Depth (mm)	335	335	335

GC Wash Hand Basins (Infra-Red Tap/ Battery Operated).

Model Code:	806 351	806 352	806 353
Description.	Wall Mounted 415 mm (L) Wash Hand Basin + Electronic Mixer Tap.	Wall Mounted 440 mm (L) Wash Hand Basin + Electronic Mixer Tap + 540 mm (H) Upstand.	Wall Mounted 440 mm (L) Wash Hand Basin + Electronic Mixer Tap + 540 mm (H) Upstand + Soap Dispenser.
Basin Size – 345(mm) x 245(mm) x 120(mm) Deep.	Included.	Included.	Included.
Infra-Red Tap Operation.	Electronic control – 6 V Battery Operated.	Electronic control – 6 V Battery Operated.	Electronic control – 6 V Battery Operated.
Lockable 500ml Manual Soap Dispenser.	N/A.	N/A.	Included.
Sink Pipe, 32(mm) Waste Trap & 2(x) 3/8″ Water Connection Hoses.	Included.	Included.	Included.
Allowable Water Pressure (Bar). Flow Rate At 3 Bar = 6 Lt./Min)	1-5	1-5	1-5
Pre-Set Water Temp (Deg. C).	40	40	40
Max. Water Temp (Deg. C.).	75	75	75
O/All Unit Height (mm)	185	540	540
O/All Unit Length (mm)	415	440	440
O/All Unit Depth (mm)	310	335	335

Options

‘Hands Free’ Standard Bowl & Basin Range.
Options

Replacement 6 Volt (CRP2 Lithium) Battery* (Option Code 262 620).

*Suitable for GC Wash Hand Basins C/W Infra-Red Tap/ Battery Operated).
(Model Codes 806 351/ 806 352/ 806 353).

Downloads

Sales & Technical Information.
‘Hands Free’ Standard Bowl & Basin Range

849 downloads GA + GC WHB’s – Sales Literature Download File GA-GC-WHBs-Sales-Literature.zip – 346.48 KB	1079 downloads GA + GC WHB’s – Technical Data Sheets Download File GA-GC-WHBs-Technical-Data-Sheets.zip – 840.04 KB	585 downloads WRAS Approvals – GC Basins Download File WRAS-Approvals-GC-Basins.zip – 2.34 MB
1137 downloads GC Range Infra Red Tap – WRAS Certification Download File WRAS-Certification1.zip – 965.85 KB	110 downloads WRAS Approvals – GA Bowls Download File WRAS-Approvals-GA-Bowls.zip – 2.34 MB

General Layout Drawings & Fitting Instructions.
‘Hands Free’ Standard Bowl & Basin Range

942 downloads GA & GC WHB’s – 2D + 3D All Models Download File GA-GC-WHBs-2D-3D-All-Models.zip – 1.35 MB	743 downloads GA + GC WHB’s – Fitting Instructions Download File GA-GC-WHBs-Fitting-Instructions.zip – 578.38 KB
