Kubus carving inserts and hotplate inserts are available for use with Kubus dry heat and wet well bain maries. The carving insert features a removable 150 mm deep juice collecting tray supported in a collar, over which a spiked insert lid is fitted. This allows sections of the bain marie to be used for periodic carvery offers.
The hotplate inserts offer short term (15-20 mins) holding and is ideal as a counter top height plated meal pass point, or individual plate warming. Two options are available for the hotplate insert, a lift out and a handle version.
Hotplate & Carving Inserts

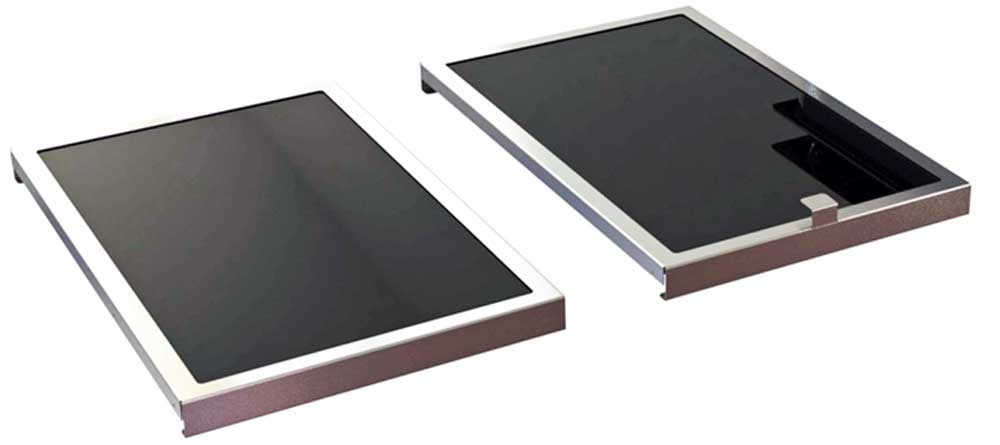

Hotplate Insert.
Features. (HINS1 & HINS2)
- For short term holding use.
- For use with dry heat & wet well bain marie.
- Converts heated bain marie G/n sections to short term (15-20 mins) hotplate type presentation during varied serving periods.
- Glass hotplate drop in insert.
- Option HINS1 – Hotplate glass surface in lift out steel collar.
- Option HINS2 – Hotplate glass surface in steel collar with lift up handle.

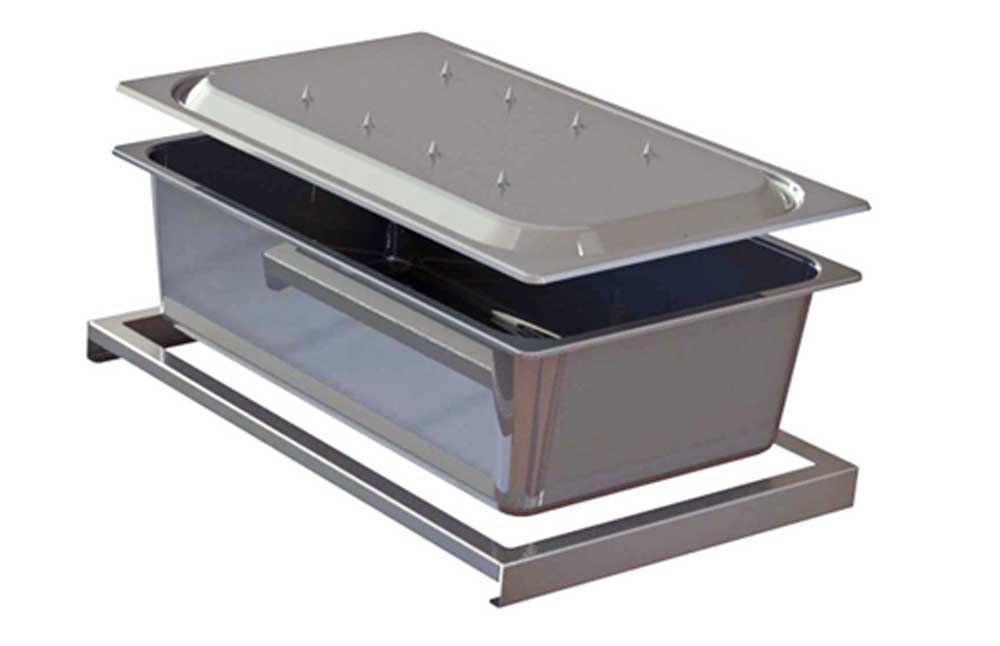

Carvery Insert.
Features. (CINS1)
- For use with dry heat & wet well bain marie.
- 1/1Gn spiked drop in carving insert with drain holes.
- Carving plate features easily removable spiked carving deck.
- Converts heated bain marie G/n sections to carving operation during varied serving periods.
- Supplied with 150 mm deep removable juice collecting tray, suitably sized for dishwashers.
Hotplate & Carving Inserts.
Dimensions.
Model |
HINS1 |
HINS2 |
CINS1 |
Capacity
|
1/1 GN
|
1/1 GN
|
1/1 GN
|
Width (mm)
|
347
|
347
|
347
|
Depth (mm)
|
546
|
546
|
546
|
Weight (uncrated) (kg)
|
5
|
5
|
4
|
Hotplate & Carving Inserts.
General arrangement drawing.
