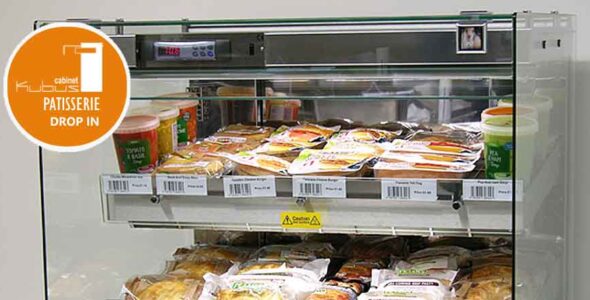

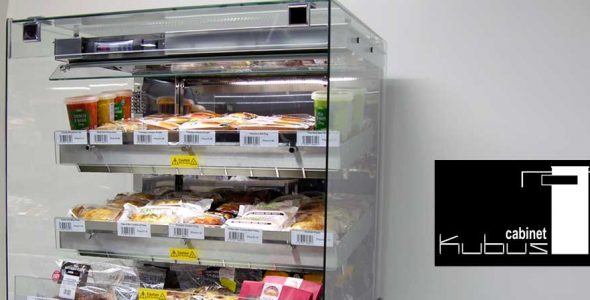

Kubus Hot Drop In Patisserie
Heated Drop In Patisserie.
New for 2025 CED introduce a full range of ‘drop in’ serve over height patisseries in a wide choice of cold, hot & ambient displays to fit in servery counter worktops. Each has 3 tiers of food display comprising 2 steel/ coated aluminum shelves and large hot deck display area.
Control. The new square Kubus 600, 900 & 1200mm wide drop in hot patisseries are ideal for display of pre-heated cooked food, whether packaged or unwrapped. By using static heating, convection heat & removable wire shelf grid covers, the temperature of the 3 heated zones can be independently set by digital displays on the control panel which mounts in the counter body.
Power. All models now operate on a 13A 230V electrical power supply.
Branding. The Kubus drop in heated patisserie features 38mm ‘point of sale’ ticket strip mount at each display level, with optimum product display provided through elliptical glazed side panels.
Features
Self Help (Drop In) Heated Patisserie (Rear Doors).
Features
- Drop in self help heated patisserie, open fronted with rear loading to three display levels.
- Rectilinear flat glass profile is designed to compliment other drop in and patisserie units within the Kubus range.
- Ideal for the display of pre-heated cooked food, either unwrapped, packaged or cartoned heated produce.
- Heated by static heat and convected hot air.
- 3 tier food display levels comprising 2 steel/ coated aluminum shelves and large hot deck display area.
- Double glazed, hinged rear door/s for easier restocking access.
- The temperature of each of the 3 display tier heated zones can be independently set, using digital displays.
- Control panel display is mounted as a cassette on 2m loom, for fitting in rear valance panel of servery counter.
- Product temperature maintained at 70 – 75 deg. C in +18 deg. C ambient.
- Stainless steel & glass canopy, open fronted display and side glass for self help/ serve over presentation.
- Canopy head fitted with serve over top glass & sneeze screen.
- High temperature LED lighting to each display level (4000 Kelvin) – to match chilled/ ambient models.
- 24 hour operation as standard.
- Removable wire steel grid covers on shelves for use with packaged & cartoned heated produce display.
- 40 mm point of sale ticket strip mount & product stop to each display level.
- Features s/steel surround frame/ worktop & 118mm deep tank.
- ‘C’ profile safety edge to all exposed edge glass.
Dimensions
Self Help (Drop In) Heated Patisserie (Rear Doors).
Dimensions
|
Model |
KPH6D |
KPH9D |
KPH12D |
|
|
Length (mm) |
600 |
900 |
1200 |
|
|
Depth (mm) |
750 |
750 |
750 |
|
|
Height Above Worktop (mm) |
843 |
843 |
843 |
|
|
Depth Below Worktop (mm) |
118 |
118 |
118 |
|
|
Weight (Uncrated) (kg) |
110 |
150 |
195 |
|
|
Power (kW) |
2.04 |
2.85 |
2.89 |
|
|
Electrical Supply |
13A 230V |
13A 230V |
13A 230V |
|
- Control panel cassette on 2M loom for fitting
to ‘operator side’ rear valance panel of servery counter.
Food Types
Self Help (Drop In) Heated Patisserie (Rear Doors).
Food Display Types
Liquid Based Foods (Deck Area): Cartoned soups, cartoned vegetable soups, porridge etc.
Food (Deck And Shelving Area): Packaged or wrapped pies, pastries, sausage rolls, stews, curry, chilli dishes, grilled sandwiches, hot baguettes, hot ciabatta, pasta in sauce, ribs with sauce, chicken portions.
Downloads
General Layout Drawings.
Kubus Self Help (Drop In) Heated Patisserie (Rear Doors).
Spec. Sheet, Fitting Instructions, User Manual, Energy Facts.
Kubus Self Help (Drop In) Heated Patisserie (Rear Doors).
Features
Ass. Serve (Drop In) Heated Patisserie (Rear Door).
Features
- Drop in assisted service heated patisserie, flat glass closed front with rear loading to three display levels.
- Rectilinear full height front & side glass profile is designed to compliment other drop ins and patisserie units within the Kubus range.
- Ideal for the display of pre-heated cooked food, either unwrapped, packaged or cartoned heated produce.
- Heated by static heat and convected hot air.
- Full height flat front glass is mounted on locking tilting hinge, for easier cleaning.
- 3 tier food display levels comprising 2 steel/ coated aluminum shelves and large hot deck display area.
- The temperature of each of the 3 display tier heated zones can be independently set, using digital displays.
- Control panel display mounted as a cassette on 2m loom, for fitting in rear valance panel of servery counter.
- Product temperature maintained at 70 – 75 deg. C in +18 deg. C ambient.
- Stainless steel canopy, full glass fronted display and side glass for assisted service/ serve over presentation.
- Canopy head fitted with serve over top glass.
- Double glazed, hinged rear door/s for easier restocking access.
- High temperature LED lighting to each display level (4000 Kelvin) – to match chilled/ ambient models.
- 24 hour operation as standard.
- Removable wire steel grid covers on shelves for use with packaged & cartoned heated produce display.
- 40 mm point of sale ticket strip mount & product stop to each display level.
- Features s/steel surround frame/ worktop & 118mm deep tank.
- ‘C’ profile safety edge to all exposed edge glass.
Dimensions
Ass. Serve (Drop In) Heated Patisserie (Rear Door).
Dimensions
|
Model |
KPH6ASD |
KPH9ASD |
KPH12ASD |
|
|
Length (mm) |
600 |
900 |
1200 |
|
|
Depth (mm) |
750 |
750 |
750 |
|
|
Height Above Worktop (mm) |
843 |
843 |
843 |
|
|
Depth Below Worktop (mm) |
118 |
118 |
118 |
|
|
Weight (Uncrated) (kg) |
117 |
157 |
204 |
|
|
Power (kW) |
2.04 |
2.85 |
2.89 |
|
|
Electrical Supply |
13A 230V |
13A 230V |
13A 230V |
|
- Control panel cassette on 2M loom for fitting
to ‘operator side’ rear valance panel of servery counter.
Food Types
Ass. Serve (Drop In) Heated Patisserie (Rear Door).
Food Display Types
Liquid Based Foods (Deck Area): Cartoned soups, cartoned vegetable soups, porridge etc.
Food (Deck And Shelving Area): Packaged or unwrapped pies, pastries, sausage rolls, stews, curry, chilli dishes, grilled sandwiches, hot baguettes, hot ciabatta, pasta in sauce, ribs with sauce, chicken portions.
Downloads
General Layout Drawings.
Kubus Assisted Service (Drop In) Heated Patisserie (Rear Doors).
Spec. Sheet, Fitting Instructions, User Manual, Energy Facts.
Kubus Assisted Service (Drop In) Heated Patisserie (Rear Doors).
Features

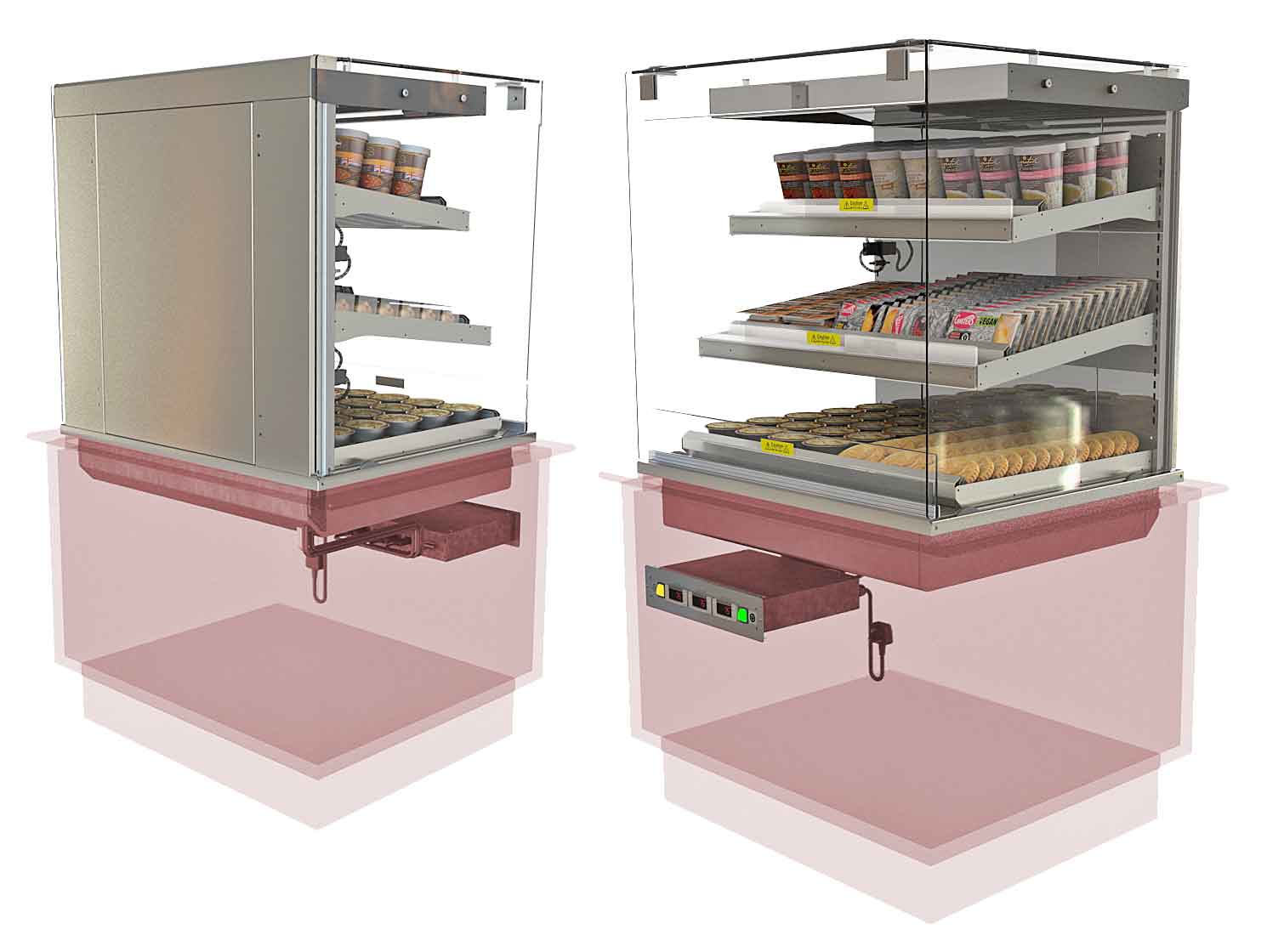

Self Help (Drop In) Heated Patisserie (Fixed Back).
Features
- Drop in self help heated patisserie, open fronted with fixed back panel to three display levels.
- Rectilinear flat glass profile is designed to compliment other drop in and patisserie units within the Kubus range.
- Wall sited server counter application.
- Ideal for the display of pre-heated cooked food, either unwrapped, packaged or cartoned heated produce.
- Heated by static heat and convected hot air.
- 3 tier food display levels comprising 2 steel/ coated aluminum shelves and large hot deck display area.
- The temperature of each of the 3 heated zones can be independently set, using digital displays.
- Control panel display is mounted as a cassette on 2m loom, for fitting in front valance panel of servery counter.
- Product temperature maintained at 70 – 75 deg. C in +18 deg. C ambient.
- Stainless steel & glass canopy, open fronted display and side glass for self help/ serve over presentation.
- Canopy head fitted with serve over top glass & sneeze screen.
- High temperature LED lighting to each display level (4000 Kelvin) – to match chilled/ ambient models.
- 24 hour operation as standard.
- Removable wire steel grid covers on shelves for use with packaged & cartoned heated produce display.
- 40 mm point of sale ticket strip mount & product stop to each display level.
- Features s/steel surround frame/ worktop & 118mm deep tank.
- ‘C’ profile safety edge to all exposed edge glass.
Dimensions
Self Help (Drop In) Heated Patisserie (Fixed Back).
Dimensions
|
Model |
KPH6FBD |
KPH9FBD |
KPH12FBD |
|
|
Length (mm) |
600 |
900 |
1200 |
|
|
Depth (mm) |
750 |
750 |
750 |
|
|
Height Above Worktop (mm) |
843 |
843 |
843 |
|
|
Depth Below Worktop (mm) |
118 |
118 |
118 |
|
|
Weight (Uncrated) (kg) |
110 |
150 |
195 |
|
|
Power (kW) |
2.04 |
2.85 |
2.89 |
|
|
Electrical Supply |
13A 230V |
13A 230V |
13A 230V |
|
- Control panel cassette on 2M loom for fitting
to ‘customer side’ front valance panel of servery counter.
Food Types
Self Help (Drop In) Heated Patisserie (Fixed Back).
Food Display Types
Liquid Based Foods (Deck Area): Cartoned soups, cartoned vegetable soups, porridge etc.
Food (Deck And Shelving Area): Packaged or wrapped pies, pastries, sausage rolls, stews, curry, chilli dishes, grilled sandwiches, hot baguettes, hot ciabatta, pasta in sauce, ribs with sauce, chicken portions.
Downloads
General Layout Drawings.
Self Help (Drop In) Heated Patisserie (Fixed Back).
Spec. Sheet, Fitting Instructions, User Manual, Energy Facts.
Self Help (Drop In) Heated Patisserie (Fixed Back).
.
