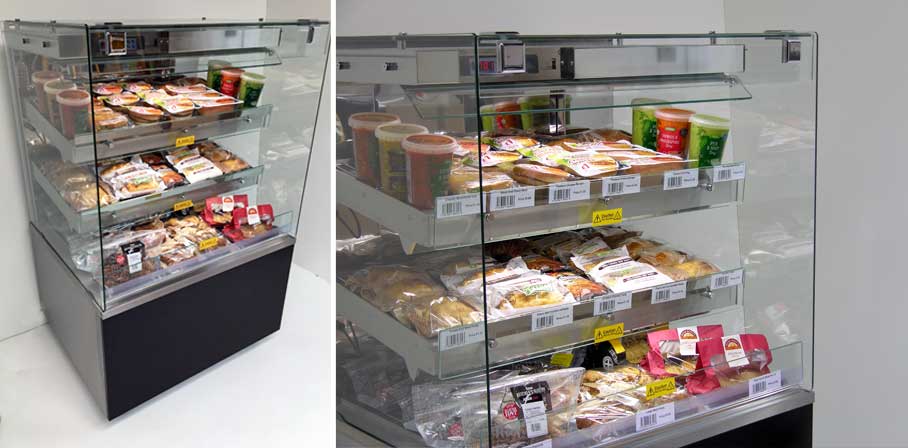

Kubus Hot Patisserie
A new range of Kubus & Designline freestanding cold, ambient & heated patisseries also launch in 2025 with additional 1500 & 1800 cold sizes added to increase the range. All freestanding patisseries now come with black base panels pre-fitted & heated models now operate as a plug n go 13A unit in all 3 sizes. The freestanding 900, 1200, 1500 & 1800 long chilled (rear door) patisserie models are re-engineered with airflow in/out to the rear as standard. The same sized wall sited chilled models now feature airflow in/out to the front.
The new 600, 900 & 1200 wide hot patisseries are ideal for display of pre-heated cooked food, whether packaged or unwrapped. By using static heating, convection heat & removable wire shelf grid covers, the temperature of the 3 heated zones can be independently set by digital displays on the control panel. Optional kick plinths, night blinds (cold models) & steel finish base panels can be added also.
Features

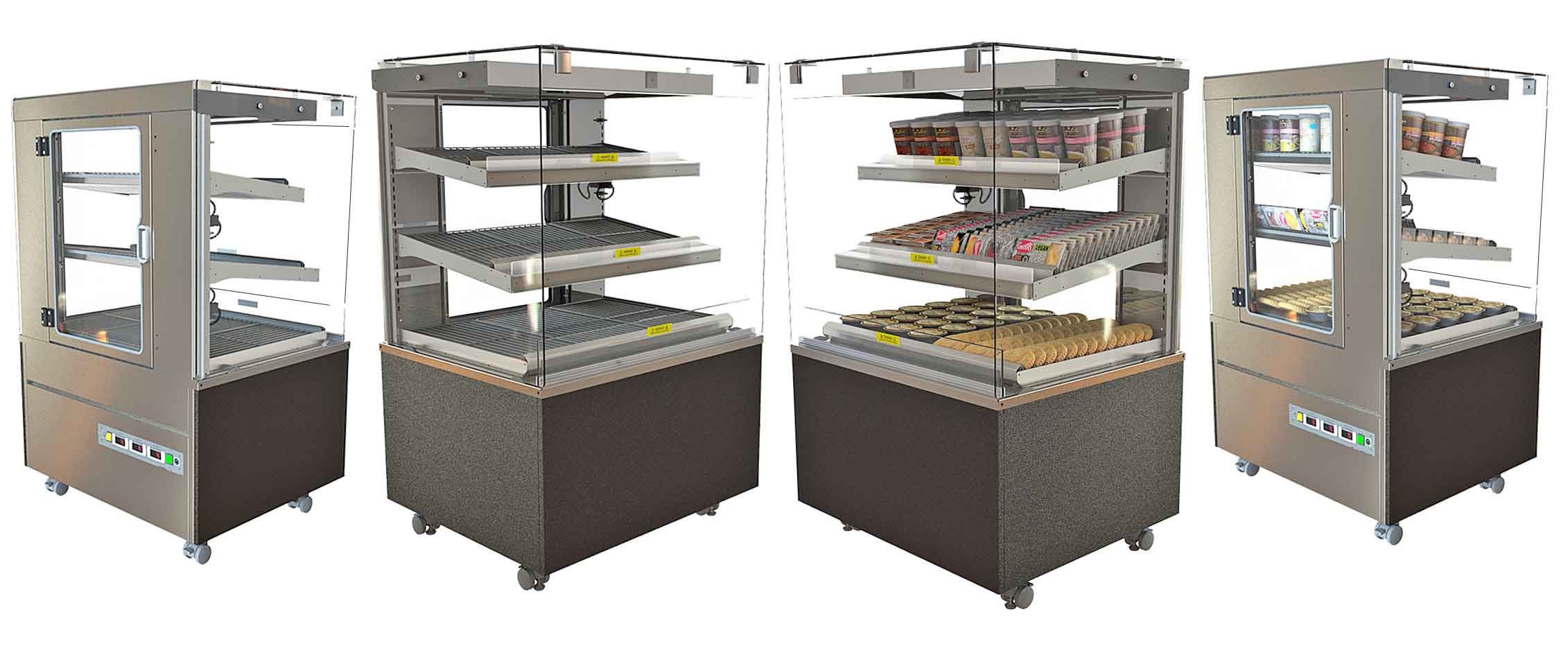

Self Help Heated Patisserie (Rear Doors).
Features
- Rectilinear flat glass profile is designed to compliment other drop in and patisserie units within the Kubus range.
- Freestanding self help heated patisserie, open fronted with rear loading to three display levels.
- Ideal for the display of pre-heated cooked food, either unwrapped, packaged or cartoned heated produce.
- Heated by both static heat and convected hot air.
- 3 tier food display levels comprising 2 steel/ coated aluminum shelves and large hot deck display area.
- The temperature of 3 heated zones can be independently set, using digital displays mounted in the rear base panel.
- Product temperature maintained at 70 – 75 deg. C in +18 deg. C ambient.
- Stainless steel & glass canopy, open fronted display and side glass for self help/ serve over presentation.
- Double glazed, hinged rear door/s for easier restocking access.
- High temperature LED lighting to each display level (4000 Kelvin) – to match chilled/ ambient models.
- 24 hour operation as standard.
- Removable wire steel deck & shelf grid covers for use with packaged & cartoned heated produce display.
- Black plasticised steel front fascia & side panels.
- 40mm point of sale ticket strip mount & product stop to each display level.
- Mobile lockable transportation combined castor/ feet.
- Adjustable final positioning/ levelling feet.
- ‘C’ profile safety edge to all exposed edge glass.
Food Types
Self Help Heated Patisserie (Rear Doors).
Food Display Types
Liquid Based Foods (Deck Area): Cartoned soups, cartoned vegetable soups, porridge etc.
Food (Deck And Shelving Area): Packaged or unwrapped pies, pastries, sausage rolls, stews, curry, chilli dishes, grilled sandwiches, hot baguettes, hot ciabatta, pasta in sauce, ribs with sauce, chicken portions.
Dimensions
Self Help Heated Patisserie (Rear Doors).
Dimensions
|
Model |
KPH6 |
KPH9 |
KPH12 |
|
|
Length (mm) |
600 |
900 |
1200 |
|
|
Depth (mm) |
750 |
750 |
750 |
|
|
Height (mm) |
1423/1433 |
1423/1433 |
1423/1433 |
|
|
Weight (Uncrated) (kg) |
120 |
165 |
215 |
|
|
Power (kW) |
2.04 |
2.85 |
2.89 |
|
|
Electrical Supply |
13A 230V |
13A 230V |
13A 230V |
|
- Controls to ‘operator side’ rear base panel of display.
Options
Self Help Heated Patisserie (Rear Doors).
Options
|
Option |
KPH6 |
KPH9 |
KPH12 |
|
|
S/Steel Front Panel (Solid): |
KASF6 |
KASF9 |
KASF12 |
|
|
S/Steel Side Panels: |
KSSP |
KSSP |
KSSP |
|
|
Kickplinth S/Steel (Set) |
PKICK6A |
PKICK9A |
PKICK12A |
|
Downloads
General Layout Drawings.
Kubus Self Help Heated Patisserie (Rear Doors).
Option: Patisserie S/Steel Kickplinth Set (PKICK)
Spec. Sheet, Fitting Instructions, User Manual, Energy Facts.
Kubus Self Help Heated Patisserie (Rear Doors).
Features

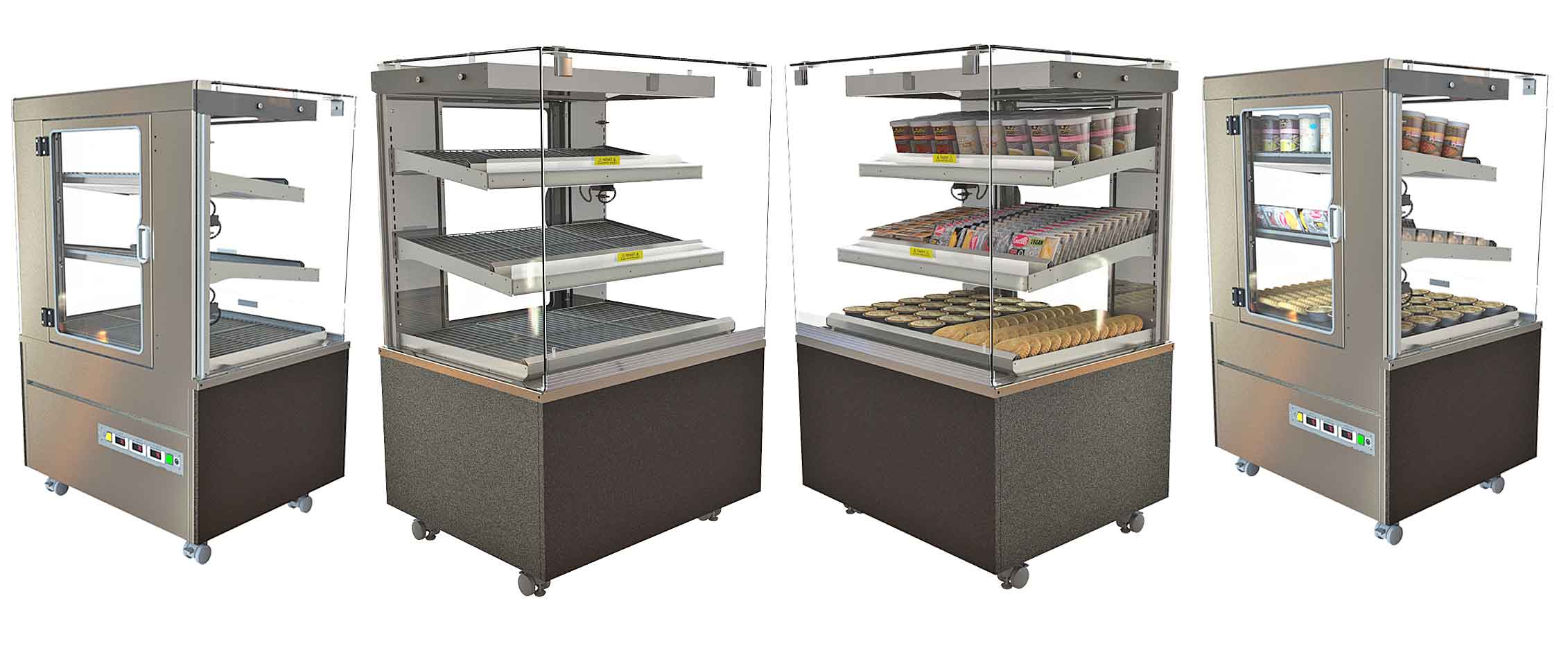

Assisted Service Heated Patisserie (Rear Doors).
Features
- Rectilinear flat full height front & side glass profile is designed to compliment other drop in and patisserie units within the Kubus range.
- Freestanding assisted service heated patisserie, closed flat glass front with rear loading to three display levels.
- Ideal for the display of pre-heated cooked food, either unwrapped, packaged or cartoned heated produce.
- Heated by both static heat and convected hot air.
- 3 tier food display levels comprising 2 steel/ coated aluminum shelves and large hot deck display area.
- The temperature of 3 heated zones can be independently set, using digital displays mounted in the rear base panel.
- Product temperature maintained at 70 – 75 deg. C in +18 deg. C ambient.
- Stainless steel canopy, full glass fronted display and side glass for assisted service/ serve over presentation.
- Double glazed, hinged rear door/s for easier restocking access.
- High temperature LED lighting to each display level (4000 Kelvin) – to match chilled/ ambient models.
- 24 hour operation as standard.
- Removable wire steel deck & shelf grid covers for use with packaged & cartoned heated produce display.
- Full height flat front glass is mounted on locking tilting hinge, for easier cleaning.
- Black plasticised steel front fascia & side panels.
- 40mm point of sale ticket strip mount & product stop to each display level.
- Mobile lockable transportation combined castor/ feet.
- Adjustable final positioning/ levelling feet.
- ‘C’ profile safety edge to all exposed edge glass.
Food Types
Assisted Service Heated Patisserie (Rear Doors).
Food Display Types
Liquid Based Foods (Deck Area): Cartoned soups, cartoned vegetable soups, porridge etc.
Food (Deck And Shelving Area): Packaged or unwrapped pies, pastries, sausage rolls, stews, curry, chilli dishes, grilled sandwiches, hot baguettes, hot ciabatta, pasta in sauce, ribs with sauce, chicken portions.
Dimensions
Assisted Service Heated Patisserie (Rear Doors).
Dimensions
|
Model |
KPH6AS |
KPH9AS |
KPH12AS |
|
|
Length (mm) |
600 |
900 |
1200 |
|
|
Depth (mm) |
750 |
750 |
750 |
|
|
Height (mm) |
1423/1433 |
1423/1433 |
1423/1433 |
|
|
Weight (Uncrated) (kg) |
127 |
172 |
224 |
|
|
Power (kW) |
2.04 |
2.85 |
2.89 |
|
|
Electrical Supply |
13A 230V |
13A 230V |
13A 230V |
|
- Controls to ‘operator side’ rear base panel of display.
Options
Assisted Service Heated Patisserie (Rear Doors).
Options
|
Option |
KPH6AS |
KPH9AS |
KPH12AS |
|
|
S/Steel Front Panel (Solid): |
KASF6 |
KASF9 |
KASF12 |
|
|
S/Steel Side Panels: |
KSSP |
KSSP |
KSSP |
|
|
Kickplinth S/Steel (Set) |
PKICK6A |
PKICK9A |
PKICK12A |
|
Downloads
General Layout Drawings.
Kubus Assisted Service Heated Patisserie (Rear Doors).
Option: Patisserie S/Steel Kickplinth Set (PKICK)
Spec. Sheet, Fitting Instructions, User Manual, Energy Facts.
Kubus Assisted Service Heated Patisserie (Rear Doors).
Features

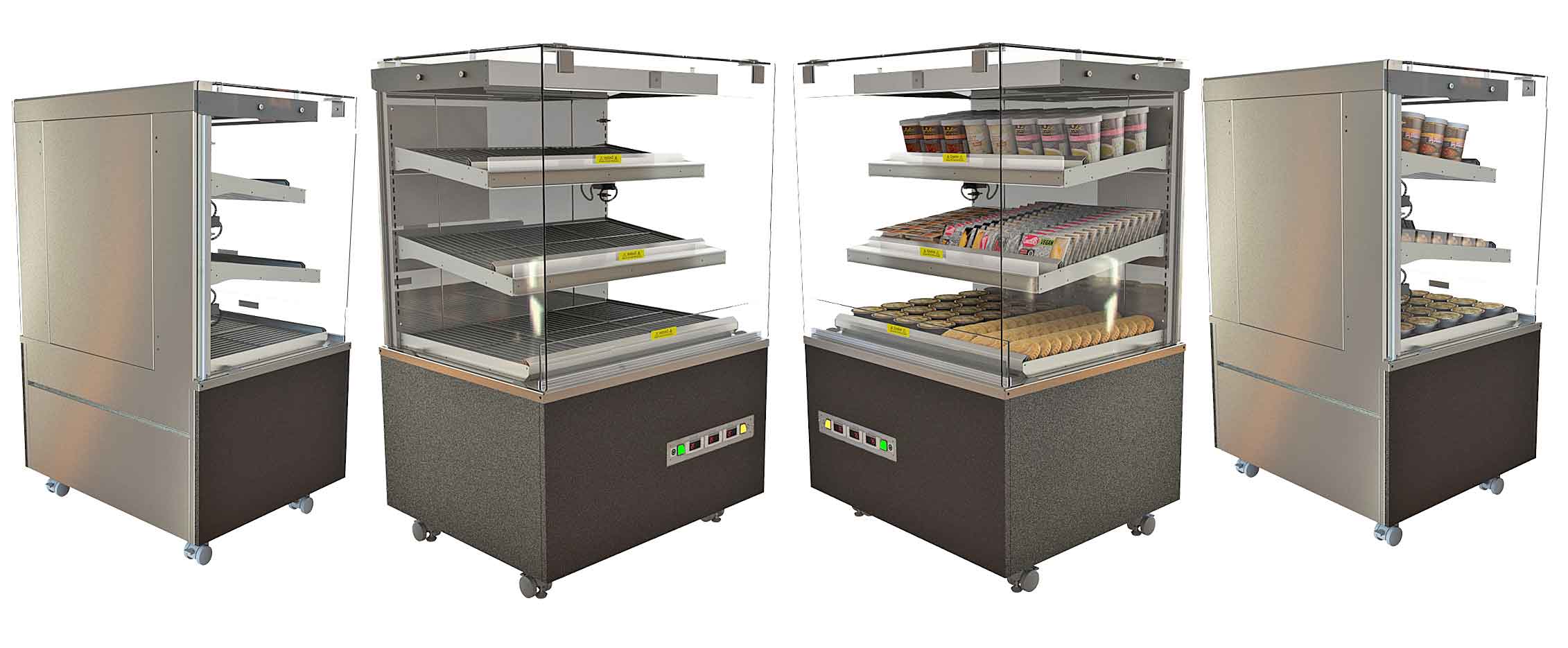

Self Help Heated Patisserie (Fixed Back).
Features
- Rectilinear flat glass profile is designed to compliment other drop in and patisserie units within the Kubus range.
- Freestanding self help heated patisserie, open fronted, with fixed back panel to three display levels.
- Ideal for the display of pre-heated cooked food, either unwrapped, packaged or cartoned heated produce.
- Heated by both static heat and convected hot air.
- 3 tier food display levels comprising 2 steel/ coated aluminum shelves and large hot deck display area.
- The temperature of 3 heated zones can be independently set, using digital displays mounted in the front of the base panel.
- Product temperature maintained at 70 – 75 deg. C in +18 deg. C ambient.
- Stainless steel & glass canopy, open fronted display and side glass for self help/ serve over presentation.
- Front loading restocking access.
- High temperature LED lighting to each display level (4000 Kelvin) – to match chilled/ ambient models.
- 24 hour operation as standard.
- Removable wire steel deck & shelf grid covers for use with packaged & cartoned heated produce display.
- Black plasticised steel front fascia & side panels.
- 40 mm point of sale ticket strip mounts & product stop to each display level.
- Mobile lockable transportation combined castor/ feet.
- Adjustable final positioning/ levelling feet.
- ‘C’ profile safety edge to all exposed edge glass.
Food Types
Self Help Heated Patisserie (Fixed Back).
Food Display Types.
Liquid Based Foods (Deck Area): Cartoned soups, cartoned vegetable soups, porridge etc.
Food (Deck And Shelving Area): Packaged or unwrapped pies, pastries, sausage rolls, stews, curry, chilli dishes, grilled sandwiches, hot baguettes, hot ciabatta, pasta in sauce, ribs with sauce, chicken portions.
Dimensions
Self Help Heated Patisserie (Fixed Back).
Dimensions
|
Model |
KPH6FB |
KPH9FB |
KPH12FB |
|
|
Length (mm) |
600 |
900 |
1200 |
|
|
Depth (mm) |
750 |
750 |
750 |
|
|
Height (mm) |
1423/1433 |
1423/1433 |
1423/1433 |
|
|
Weight (Uncrated) (kg) |
120 |
165 |
215 |
|
|
Power (kW) |
2.04 |
2.85 |
2.89 |
|
|
Electrical Supply |
13A 230V |
13A 230V |
13A 230V |
|
- Controls to ‘customer side’ front fascia base panel of display.
Options
Self Help Heated Patisserie (Fixed Back).
Options
|
Option |
KPH6FB |
KPH9FB |
KPH12FB |
|
|
S/Steel Front Panel (Solid): |
KHSF6 |
KHSF9 |
KHSF12 |
|
|
S/Steel Side Panels: |
KSSP |
KSSP |
KSSP |
|
|
Kickplinth S/Steel (Set) |
PKICK6A |
PKICK9A |
PKICK12A |
|
Downloads
General Layout Drawings.
Kubus Self Help Heated Patisserie (Fixed Back).
Option: Patisserie S/Steel Kickplinth Set (PKICK)
Spec. Sheet, Fitting Instructions, User Manual, Energy Facts.
Kubus Self Help Heated Patisserie (Fixed Back).
.
