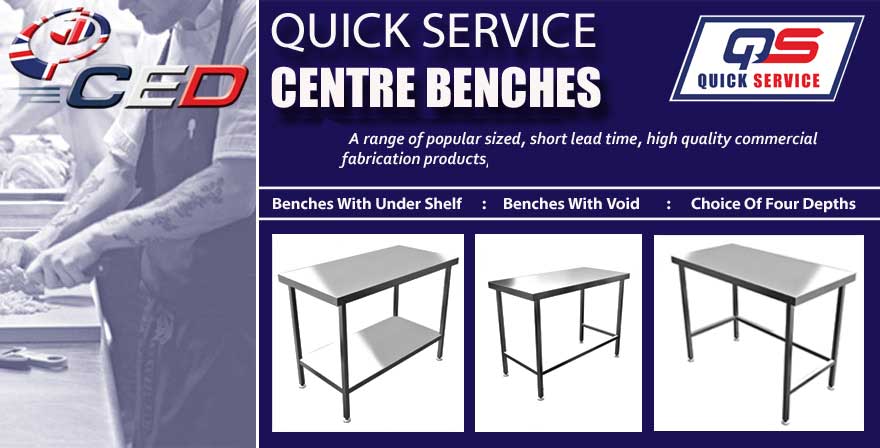

Quick Service: Centre Bench Range
Quick Service Fabrication. We’ve taken our vast experience producing every conceivable kind of made to measure commercial kitchen fabrication, in order to develop the new Quick Service fabrication range.
Quick Service now offers dealers a complete range of CED standard fabrication in the popular sizes you want.
Quick Service 2 Year Warranty. There is no compromise on quality with Quick Service fabrication either, otherwise we couldn’t offer our 2 year warranty as standard.
Quick Service Choice. There’s over 150 of our most popular kitchen equipment products to select from, including single or double bowl sinks, wall & corner cupboards, wall & corner benches, centre benches, heavy duty wall shelving, pan storage & microwave shelving.
Quick Service Centre Benches.
Centre Benches (With Under Shelf).
CED’s Quick Service range of fully welded centre benches with under shelf, are constructed from sturdy 30 mm 430 gd. sq box section framing with durable 1.2 mm thick 304 gd. steel worktops and 1.2 mm thick 430 gd. under shelves as standard. Centre bench units are available in four depths and up to seven standard lengths.
The Quick Service centre bench height is 900mm, to suit most kitchen area back counters. Each centre bench type has a solid steel worktop with 50 mm downstand to each edge. The legs of the centre benches are fitted with adjustable height flanged feet, for securing the unit to a floor surface on site. All centre bench legs are inset 25 mm at the front & rear. Centre bench legs are set inboard of the worktop 50 mm at each end.
Centre Benches (With Void).
A further choice of Quick Service centre benches with voids under, are ideal for under counter equipment storage. These are also available in matching depths, with a selection of length options.
600mm deep models have a 545mm deep void
650mm deep models have a 595mm deep void
700mm deep models have a 645mm deep void
Quick Service Centre Bench Types.
Specification
Centre Bench (With Under Shelf).
Specification.
- Fully welded free standing, wall sited commercial s/steel centre bench with worktop.
- Worktop constructed in 304 gd (1.2 thk.) s/steel supported on 30 x 30 box section 430 gd (1.2 thk.) framework.
- Welded low level 430 gd (1.2 thk.) s/steel storage under-shelf.
- Available in 600, 800, 900, 1200, 1500, 1800 & 2100 mm popular lengths.
- Available in 600, 650, 700 & 900 mm depths.
- Standard centre bench height is 900 mm – to suit most kitchen area back counters.
- Steel worktop features 50 mm down stand to each edge.
- Centre bench legs are inset 25 mm at the front & rear, they are also inboard of the worktop 50 mm at each end.
- Frame fitted with flanged levelling feet for mechanical fixing to floor surface.
- Centre bench height adjustment: -15/+35mm.
Dimensions
Centre Bench (With Under Shelf).
(600mm deep) Dimensions.
|
Model |
QCB |
QCB |
QCB |
QCB |
QCB |
QCB |
QCB |
|
|
Type |
C.Bench |
C.Bench |
C.Bench |
C.Bench |
C.Bench |
C.Bench |
C.Bench |
|
|
Length |
600 |
800 |
900 |
1200 |
1500 |
1800 |
2100 |
|
|
Depth |
600 |
600 |
600 |
600 |
600 |
600 |
600 |
|
|
Worktop |
900 |
900 |
900 |
900 |
900 |
900 |
900 |
|
|
Worktop |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
|
|
1 Shelf |
Included |
Included |
Included |
Included |
Included |
Included |
Included |
|
|
Height |
-15/+35 |
-15/+35 |
-15/+35 |
-15/+35 |
-15/+35 |
-15/+35 |
-15/+35 |
|
|
Weight |
14 (kg) |
18 (kg) |
19 (kg) |
24 (kg) |
29 (kg) |
35 (kg) |
40 (kg) |

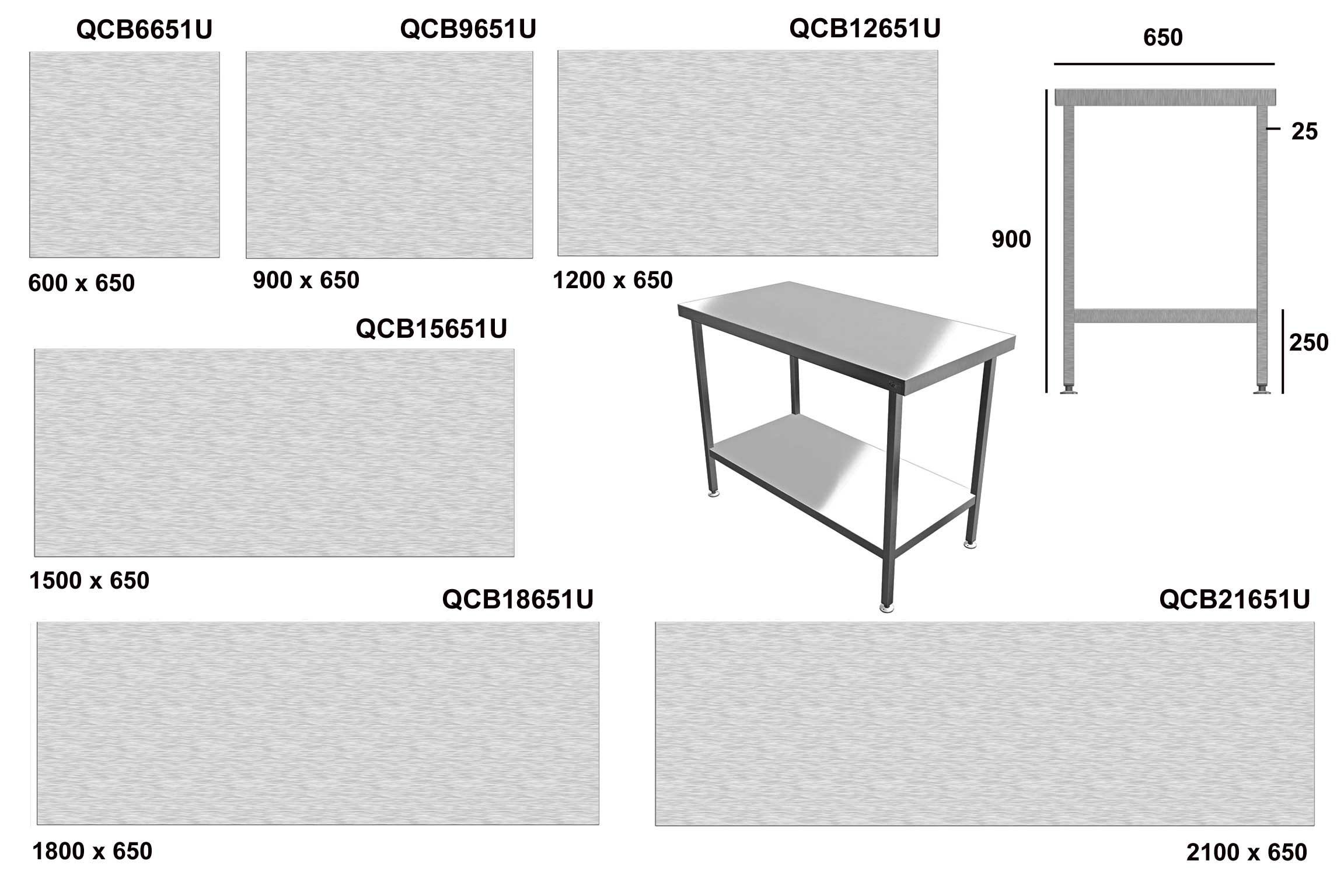

Centre Bench (With Under Shelf).
(650mm deep) Dimensions.
|
Model |
QCB |
QCB |
QCB |
QCB |
QCB |
QCB |
|
Type |
C.Bench |
C.Bench |
C.Bench |
C.Bench |
C.Bench |
C.Bench |
|
Length |
600 |
900 |
1200 |
1500 |
1800 |
2100 |
|
Depth |
650 |
650 |
650 |
650 |
650 |
650 |
|
Worktop |
900 |
900 |
900 |
900 |
900 |
900 |
|
Worktop |
50 |
50 |
50 |
50 |
50 |
50 |
|
1 Shelf |
Included |
Included |
Included |
Included |
Included |
Included |
|
Height |
-15/+35 |
-15/+35 |
-15/+35 |
-15/+35 |
-15/+35 |
-15/+35 |
|
Weight |
15 (kg) |
20 (kg) |
26 (kg) |
31 (kg) |
37 (kg) |
42 (kg) |
Centre Bench (With Under Shelf).
(700mm & 900mm deep) Dimensions.
|
Model |
QCB |
QCB |
QCB |
QCB |
QCB |
QCB |
QCB |
QCB |
|
Type |
C.Bench |
C.Bench |
C.Bench |
C.Bench |
C.Bench |
C.Bench |
C.Bench |
C.Bench |
|
Length |
600 |
900 |
1200 |
1500 |
1800 |
1900 |
2100 |
1800 |
|
Depth |
700 |
700 |
700 |
700 |
700 |
700 |
700 |
900 |
|
Worktop Height |
900 |
900 |
900 |
900 |
900 |
900 |
900 |
900 |
|
Worktop |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
|
1 Shelf |
Included |
Included |
Included |
Included |
Included |
Included |
Included |
Included |
|
Height |
-15/+35 |
-15/+35 |
-15/+35 |
-15/+35 |
-15/+35 |
-15/+35 |
-15/+35 |
-15/+35 |
|
Weight |
16 (kg) |
22 (kg) |
27 (kg) |
33 (kg) |
39 (kg) |
40 (kg) |
44 (kg) |
47 (kg) |
Downloads
General Layout Drawings.
All Centre Benches (With Under Shelf).
Specification Sheet & User Guide.
All Centre Benches (With Under Shelf).
Specification
Centre Bench (With Void).
Specification.
- Fully welded free standing, wall sited commercial s/steel centre bench with worktop.
- Worktop constructed in 304 gd (1.2 thk.) s/steel supported on 30 x 30 box section 430 gd (1.2 thk.) framework.
- Void underneath replaces s/steel storage under-shelf – to accommodate under-counter equipment.
- Rear tie bar is fitted @ 250mm (H) between rear legs, within void.
- Available in 900, 1200 & 1800 mm popular lengths.
- Available in 600, 650 & 700 mm depths.
- Centre bench height is 900 mm – to suit most kitchen area back counters.
- Steel worktop features 50 mm down stand to each edge.
- Centre bench legs are inset 25 mm at the front & rear, they are also inboard of the worktop 50 mm at each end.
- 600mm (D) models have a 545mm (D) void
- 650mm (D) models have a 595mm (D) void
- 700mm (D) models have a 645mm (D) void
- Frame fitted with flanged levelling feet for mechanical fixing to floor surface.
- Centre bench height adjustment: -15/+35mm.
Dimensions
Centre Bench (With Void).
(600mm, 650mm & 700mm deep) Dimensions.
|
Model |
QCB |
QCB |
QCB |
QCB |
QCB |
|
Type |
C.Bench |
C.Bench |
C.Bench |
C.Bench |
C.Bench |
|
Length |
900 |
1200 |
1800 |
1200 |
1200 |
|
Depth |
600 |
600 |
600 |
650 |
700 |
|
Worktop |
900 |
900 |
900 |
900 |
900 |
|
Void Size (mm) |
740 (L) |
1040 (L) |
1640 (L) |
1040 (L) |
1040 (L) |
|
Worktop |
50 |
50 |
50 |
50 |
50 |
|
Rear Tie Bar Height (mm) |
250 |
250 |
250 |
250 |
250 |
|
Height |
-15/+35 |
-15/+35 |
-15/+35 |
-15/+35 |
-15/+35 |
|
Weight |
16 (kg) |
20 (kg) |
27 (kg) |
21 (kg) |
22 (kg) |
Downloads
General Layout Drawings.
All Centre Benches (With Void).
Specification Sheet & User Guide.
All Centre Benches (With Void).
.
