Quick Service: Wall Cupboards

Quick Service Fabrication. We’ve taken our vast experience producing every conceivable kind of made to measure commercial kitchen fabrication, in order to develop the new Quick Service fabrication range.
Quick Service now offers dealers a complete range of CED standard fabrication in the popular sizes you want.
Quick Service 2 Year Warranty. There is no compromise on quality with Quick Service fabrication either, otherwise we couldn’t offer our 2 year warranty as standard.
Quick Service Choice. There’s over 150 of our most popular kitchen equipment products to select from, including single or double bowl sinks, wall & corner cupboards, wall & corner benches, centre benches, heavy duty wall shelving, pan storage & microwave shelving.

Quick Service Wall Cupboards.
Quick Service wall cupboards are made from high quality 430gd stainless steel & provide hygenic storage in the commercial kitchen area. They are available with either sliding or hinged doors – either door type is also offered with lockable doors.

Sliding door cupboards are available in five standard lengths (900, 1000, 1200, 1500 or 1800mm long) & are 300mm deep & 540mm high. The sliding doors can be taken out for deep cleaning, without the need for tools.

Hinged door cupboards are available in 450, 600, 750, 900 or 1200mm long & are 300mm deep & 540mm high. Wall cupboards are fully enclosed with wrap round side panels and base shelf.

The internal mid shelf is adjustable in height. The roof features a small rear up stand for sealing against a surface where items may be stored on top.
A full height flush steel back panel lines the internal space. A rear wall hook is also supplied, to support the load, in addition to the fixing holes provided on the roof rear upstand (Fixing hole size Ø 7.2mm).

The angled corner wall cupboard (with doors) utilises dead space and can be used in conjunction with 300mm deep cupboards either side, to provide continuous high level storage. The angled corner cupboard offers a deeper storage area and is available as a lockable version also. These cupboards can be used in conjunction with Quick Service angled corner wall benches, to maximise continuous working areas in the kitchen.

Quick Service Wall Cupboard Types.

Visual

Wall Cupboard (With Sliding Doors).
Visual.

Specification

Wall Cupboard (With Sliding Doors).
Specification.

Wall mounted commercial s/steel fully enclosed storage cupboard.
Outer panels, doors, top & base shelf constructed in 430 gd (0.9 thk.) s/steel.
Available in 900, 1000, 1200, 1500 & 1800 mm standard lengths.
Adjustable height 430 gd (1.2 thk.) s/steel storage mid-shelf.
Standard cupboard height 540 mm.
Standard cupboard depth 300 mm.
Rear up stand to roof for sealing against a surface where items may be stored on top.
Roof upstand fixing hole size Ø 7.2mm.
Full height flush steel back panel.
Wall mounting support brackets supplied – fixing hole size Ø 7.2mm.
Sliding door models feature top hung sliding steel doors (inner/ outer panel type) fitted with chrome D handles..
Sliding door models fitted with central door channel guide.

Lockable Wall Cupboard (With Sliding Doors).
Specification.

Wall mounted commercial s/steel fully enclosed lockable storage cupboard.
Outer panels, doors, top & base shelf constructed in 430 gd (0.9 thk.) s/steel.
Available in 900, 1000, 1200, 1500 & 1800 mm standard lengths.
Adjustable height 430 gd (1.2 thk.) s/steel storage mid-shelf.
Standard cupboard height 540 mm. Standard cupboard depth 300 mm.
40mm (H) rear up stand to roof for sealing against a surface where items may be stored on top.
Roof upstand fixing hole size Ø 7.2mm.
Full height flush steel back panel.
Wall mounting support brackets supplied – fixing hole size Ø 7.2mm.
Lockable sliding door models feature top hung sliding steel doors (inner/ outer panel type) fitted with chrome D handles.
Lockable sliding door models fitted with central door channel guide.
Plunge lock and two suited keys.

Dimensions

Wall Cupboard (With Sliding Doors).
Dimensions.

Model	QWC 93S	QWC 103S	QWC 123S	QWC 153S	QWC 183S
Type	Wall Cupboard Sliding Door	Wall Cupboard Sliding Door	Wall Cupboard Sliding Door	Wall Cupboard Sliding Door	Wall Cupboard Sliding Door
Length (mm)	900	1000	1200	1500	1800
Depth (mm)	300	300	300	300	300
Model Height (mm)	540	540	540	540	540
Capacity (Lt.)	127	140	168	211	254
*Roof Upstand (mm)	40	40	40	40	40
Adjustable Height Shelf	Included	Included	Included	Included	Included
Wall Bracket. (Qty).	4	4	4	4	4
Weight (Kg).	31	33	39	47	55

*Roof Upstand/ Wall Bracket Fixing Hole Size Ø 7.2mm.

Lockable Wall Cupboard (With Sliding Doors).
Dimensions.

Model	QWC 93LS	QWC 103LS	QWC 123LS	QWC 153LS	QWC 183LS
Type	Lockable Wall Cupbd. Sliding Door	Lockable Wall Cupbd. Sliding Door	Lockable Wall Cupbd. Sliding Door	Lockable Wall Cupbd. Sliding Door	Lockable Wall Cupbd. Sliding Door
Length (mm)	900	1000	1200	1500	1800
Depth (mm)	300	300	300	300	300
Model Height (mm)	540	540	540	540	540
Capacity (Lt.)	127	140	168	211	254
*Roof Upstand (mm)	40	40	40	40	40
Adjustable Height Shelf	Included	Included	Included	Included	Included
Wall Bracket (Qty).	4	4	4	4	4
Weight (Kg).	31	33	39	47	55

*Roof Upstand/ Wall Bracket Fixing Hole Size Ø 7.2mm.

Wall mounted commercial s/steel fully enclosed storage cupboard.
Outer panels, doors, top & base shelf constructed in 430 gd (0.9 thk.) s/steel.
Available in 450, 600, 750, 900 & 1200 mm standard lengths.
Adjustable height 430 gd (1.2 thk.) s/steel storage mid-shelf.
Standard cupboard height 540 mm. Standard cupboard depth 300 mm.
Rear up stand to roof for sealing against a surface where items may be stored on top.
Roof upstand fixing hole size Ø 7.2mm.
Full height flush steel back panel.
Wall mounting support brackets supplied – fixing hole size Ø 7.2mm.
Hinged door models feature side hung steel doors (inner/ outer panel type) fitted with chrome D handles.

Lockable Wall Cupboard (With Hinged Doors).
Specification.

Wall mounted commercial s/steel fully enclosed storage cupboard.
Outer panels, doors, top & base shelf constructed in 430 gd (0.9 thk.) s/steel.
Available in 450, 600, 750, 900 & 1200 mm standard lengths.
Adjustable height 430 gd (1.2 thk.) s/steel storage mid-shelf.
Standard cupboard height 540 mm. Standard cupboard depth 300 mm.
Rear up stand to roof for sealing against a surface where items may be stored on top.
Roof upstand fixing hole size Ø 7.2mm.
Full height flush steel back panel.
Wall mounting support brackets supplied – fixing hole size Ø 7.2mm.
Lockable hinged door models feature side hung steel doors (inner/ outer panel type) fitted with chrome D handles.
Barrel lock and two suited keys.

Dimensions

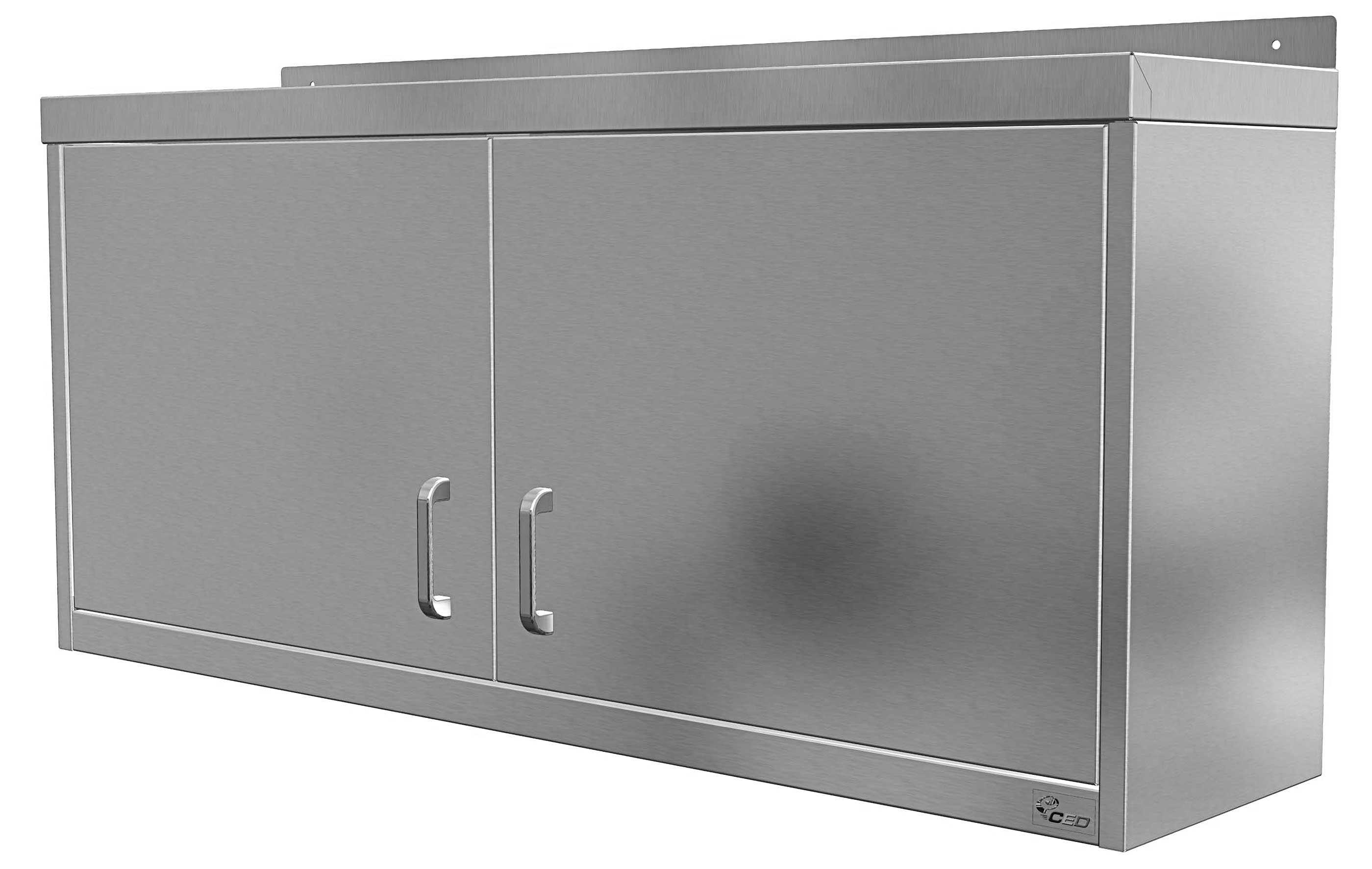

Wall Cupboard (With Hinged Doors).
Dimensions.

Model	QWC 453HL	QWC 63HL	QWC 453HR	QWC 63HR	QWC 753H	QWC 93H	QWC 123H
Type	Wall Cupbd. L.Hinged Door	Wall Cupbd. L.Hinged Door	Wall Cupbd. R.Hinged Door	Wall Cupbd. R.Hinged Door	Wall Cupbd. Hinged Doors	Wall Cupbd. Hinged Doors	Wall Cupbd. Hinged Doors
Length (mm)	450	600	450	600	750	900	1200
Door Hinged	Left	Left	Right	Right	Double	Double	Double
Depth (mm)	300	300	300	300	300	300	300
Model Height (mm)	540	540	540	540	540	540	540
Capacity (Lt.)	64	84	64	84	104	127	168
*Roof Upstand (mm)	40	40	40	40	40	40	40
Adjustable Shelf	Included	Included	Included	Included	Included	Included	Included
Wall Bracket (Qty.)	4	4	4	4	4	4	4
Weight (Kg)	18	21	18	21	26	30	37

*Roof Upstand/ Wall Bracket Fixing Hole Size Ø 7.2mm.

Lockable Wall Cupboard (With Hinged Doors).
Dimensions.

Model	QWC 453LHL	QWC 63LHL	QWC 453LHR	QWC 63LHR	QWC 753LH	QWC 93LH	QWC 123LH
Type	Lockable Wall Cupbd. L.Hinged Door	Lockable Wall Cupbd. L.Hinged Door	Lockable Wall Cupbd. R.Hinged Door	Lockable Wall Cupbd. R.Hinged Door	Lockable Wall Cupboard Hinged Doors	Lockable Wall Cupboard Hinged Doors	Lockable Wall Cupboard Hinged Doors
Length (mm)	450	600	450	600	750	900	1200
Door Hinged	Left	Left	Right	Right	Double	Double	Double
Depth (mm)	300	300	300	300	300	300	300
Model Height (mm)	540	540	540	540	540	540	540
Capacity (Lt.)	64	84	64	84	104	127	168
*Roof Upstand (mm)	40	40	40	40	40	40	40
Adjustable Shelf	Included	Included	Included	Included	Included	Included	Included
Wall Bracket (Qty.)	4	4	4	4	4	4	4
Weight (Kg)	18	21	18	21	26	30	37

*Roof Upstand/ Wall Bracket Fixing Hole Size Ø 7.2mm.

Wall mounted commercial s/steel fully enclosed angled corner storage cupboard.
Can be used in conjunction with 300mm deep cupboards either side, to provide continuous high level storage.
Outer panels, doors, top & base shelf constructed in 430 gd (0.9 thk.) s/steel.
Available in a 750mm standard angled length.
Adjustable height 430 gd (1.2 thk.) s/steel storage mid-shelf.
Standard cupboard height 540 mm. Cupboard shelf depth – up to 690 mm.
Rear up stand to roof for sealing against a surface where items may be stored on top.
Roof upstand fixing hole Size Ø 7.2mm.
Full height flush steel back panel.
Wall mounting support brackets supplied – fixing hole size Ø 7.2mm.
Hinged door model features side hung steel doors (inner/ outer panel type) fitted with chrome D handles.

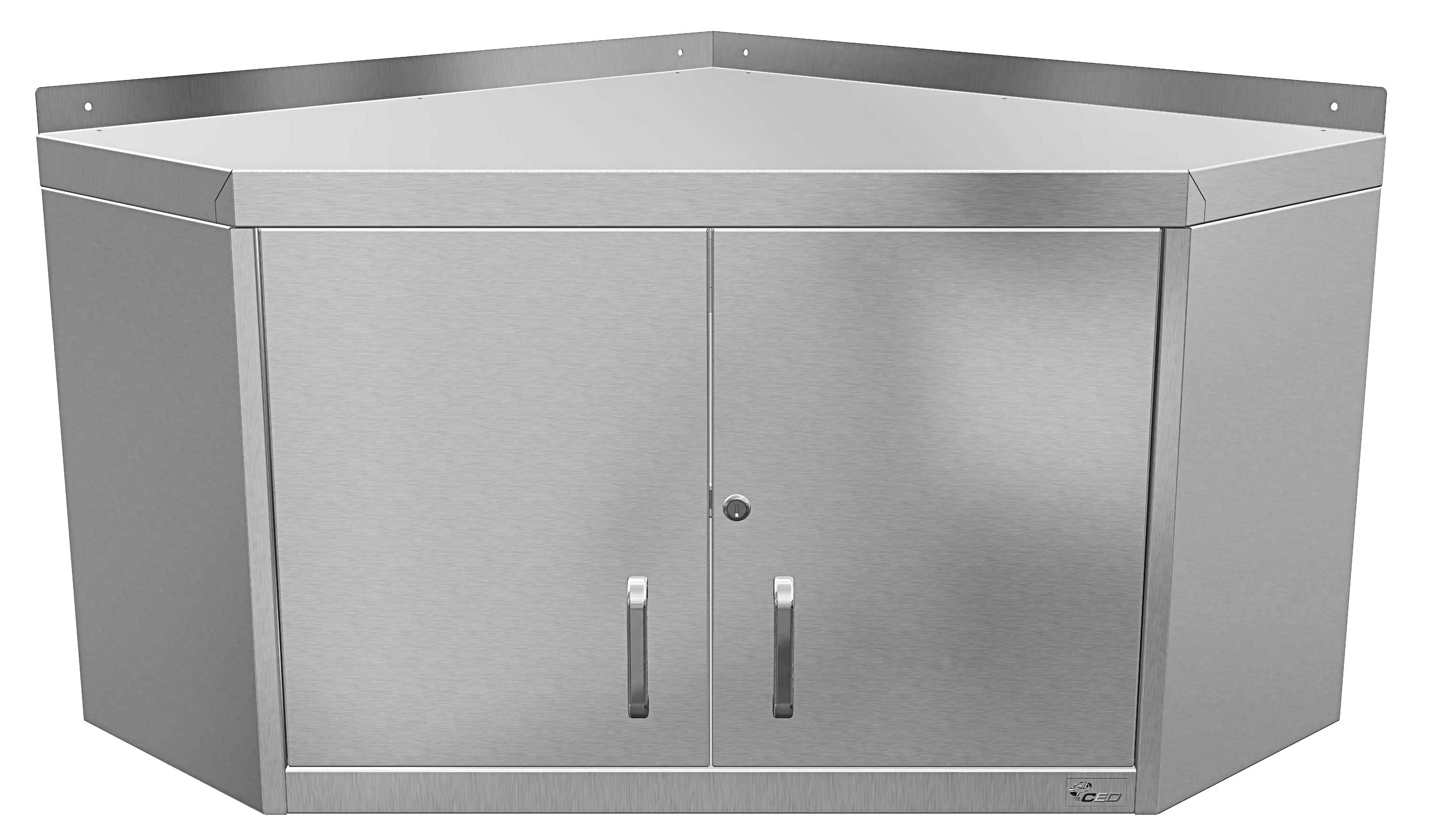

Lockable Angled Corner Wall Cupboard (With Doors).
Specification.

Wall mounted commercial s/steel fully enclosed angled corner storage cupboard.
Can be used in conjunction with 300mm deep cupboards either side, to provide continuous high level storage.
Outer panels, doors, top & base shelf constructed in 430 gd (0.9 thk.) s/steel.
Available in a 750mm standard angled length.
Adjustable height 430 gd (1.2 thk.) s/steel storage mid-shelf.
Standard cupboard height 540 mm. Cupboard shelf depth – up to 690 mm.
Rear up stand to roof for sealing against a surface where items may be stored on top.
Roof upstand fixing hole Size Ø 7.2mm.
Full height flush steel back panel.
Wall mounting support brackets supplied – fixing hole size Ø 7.2mm.
Hinged door model features side hung steel doors (inner/ outer panel type) fitted with chrome D handles.
Barrel lock and two suited keys.

Dimensions

Angled Corner Wall Cupboard (With Doors).
Dimensions.

Model	QAWC753H
Type	Angled Corner Wall Cupboard Hinged Doors
Angled Corner Length (mm)	750
O/all Width/Depth (mm)	820 (w) x 820 (d)
Model Height (mm)	540
Capacity (Lt.)	188
*Roof Upstand (mm)	40
Adjustable Shelf	Included
Wall Brackets (Qty.)	4
Weight (Kg)	39

*Roof Upstand/ Wall Bracket Fixing Hole Size Ø 7.2mm.

Lockable Angled Corner Wall Cupboard (With Doors).
Dimensions.

Model	QAWC753LH
Type	Angled Corner Wall Cupboard Hinged Doors
Angled Corner Length (mm)	750
O/all Width/Depth (mm)	820 (w) x 820 (d)
Model Height (mm)	540
Capacity (Lt.)	188
*Roof Upstand (mm)	40
Adjustable Shelf	Included
Wall Brackets (Qty.)	4
Weight (Kg)	39
