CED’s Kubus drop in displays are a deco cubist companion to the classic elliptical Designline styling. Kubus displays optimise a clean rectilinear design perspective, enhanced by durable chrome plated  aluminium superstructures and lighting ducts, all enclosed within toughened flat glass hoods, sneeze screens and side panels.

Visual

Self Help Ambient Gantry

Kubus Ambient Gantry



Features

Self Help Ambient Gantry.
Features.

  • Rectilinear glass profile is designed to compliment other units within the range.
  • Ambient gantry for illumination and single sided sneeze guard protection of worktop displayed ambient product.
  • Self help application.
  • Product illumination is provided from diffused LED lighting (4000 Kelvin) in a rectangular profile.
  • Rectangular flat glass profile is designed to compliment other units within the range.
  • Lighting is controlled from a push button switch on gantry end plate.
  • Superstructure in bright polished steel and aluminium profile.
  • Supplied with post fixing plates, bolts, 2 m lead & plug top, for connection to a single 13 Amp socket (13A 230V 50 Hz).


Food Types

Self Help Ambient Gantry.
Food Display Types.



Drinks (Deck Area): Racked wine, impulse drinks (still & carbonated), bottled, canned & cartoned, water, UHT dairy, lemonade, wine, beer, lager, fruit juice & health drinks, fruit, (basket displayed).



Food (Deck & Shelving Area): Chocolate, confectionery, crisps, snacks, cakes, flowers, napkins, menus, wine list, table condiment sets, corporate branding, art & craft, souvenirs.

  • *  Sandwiches, baguettes, rolls, barm cakes & cheese subject to local health regulations re: display times.


Dimensions

Self Help Ambient Gantry.
Dimensions.

Model

KAG2

KAG3

KAG4

KAG5

KAG6

Capacity

2/1 GN

3/1 GN

4/1 GN

5/1 GN

6/1 GN

Length (mm)

795

1145

1495

1845

2195

Depth (mm)

474

474

474

474

474

Height above worktop (mm)

540

540

540

540

540

Weight (uncrated) (kg)

15

18

22

26

30

Power (kW)

0.1

0.1

0.1

0.1

0.1

Electrical supply

13A 230V

13A 230V

13A 230V

13A 230V

13A 230V



Downloads

General Layout Drawings.
Kubus Self Help Ambient Gantries.





Fitting Instructions & User Manual.
Kubus Self Help Ambient Gantries.




Kubus Ambient

Visual

Self Help Ambient Island Gantry

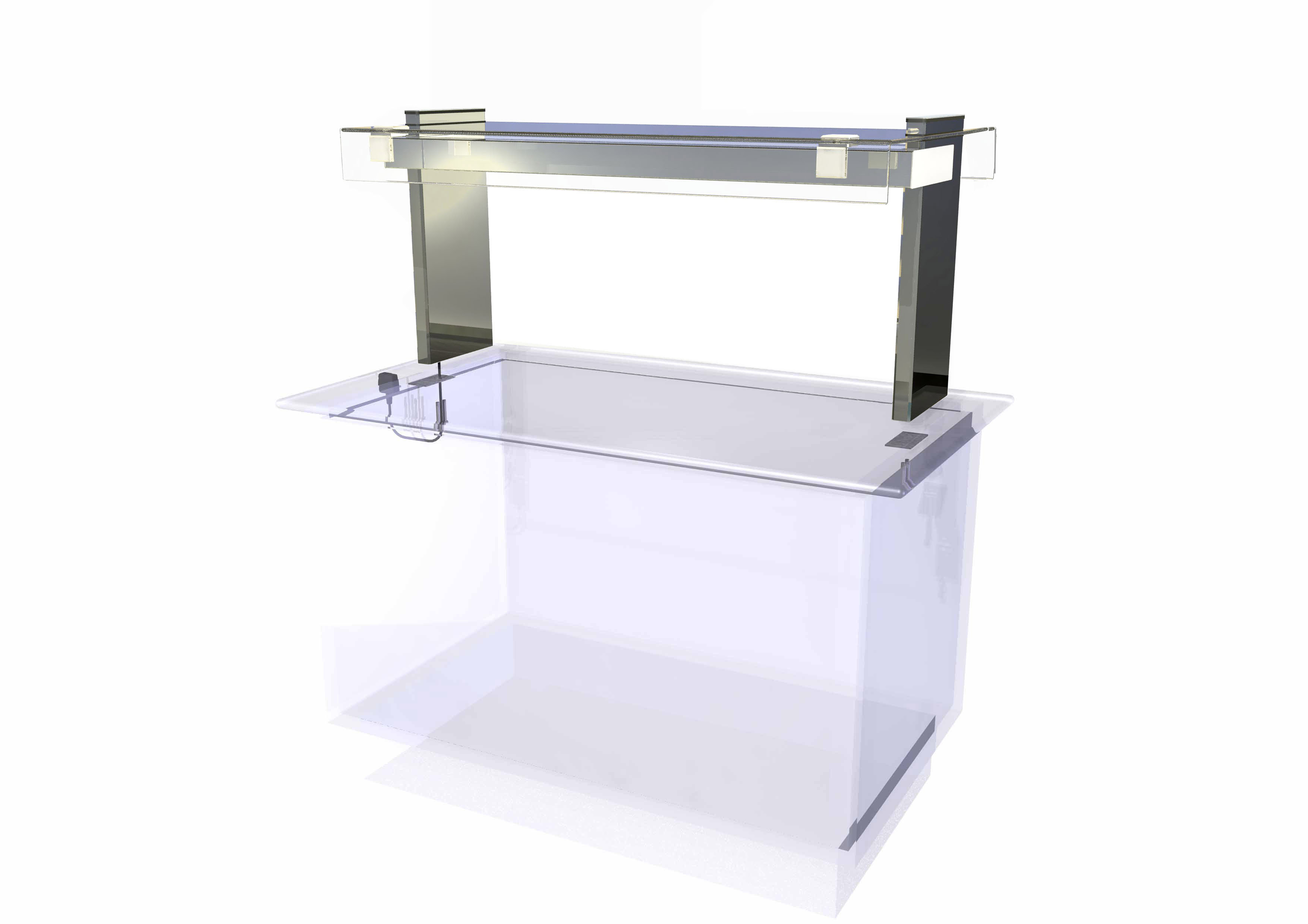

Kubus Ambient Island Gantry



Features

Self Help Ambient Island Gantry.
Features.

  • Rectilinear island flat glass profile is designed to compliment other units within the range.
  • Ambient gantry for illumination and double sided sneeze guard protection of worktop displayed ambient product, where access is required to both sides of the display ( i.e. in a freestanding island counter worktop)
  • Self help application.
  • Product illumination is provided from diffused LED lighting (4000 Kelvin) in a rectangular profile.
  • Lighting is controlled from a push button switch on gantry end plate.
  • Superstructure in bright polished steel and aluminium profile.
  • Supplied with post fixing plates, bolts, 2 m lead & plug top, for connection to a single 13 Amp socket (13A 230V 50 Hz).


Food Types

Self help Ambient Island Gantry.
Food Display Types.



Drinks (Deck Area): Racked wine, impulse drinks (still & carbonated), bottled, canned & cartoned, water, UHT dairy, lemonade, wine, beer, lager, fruit juice & health drinks, fruit, (basket displayed).



Food (Deck & Shelving Area): Chocolate, confectionery, crisps, snacks, cakes, flowers, napkins, menus, wine list, table condiment sets, corporate branding, art & craft, souvenirs.

  • *  Sandwiches, baguettes, rolls, barm cakes & cheese subject to local health regulations re: display times.





Dimensions

Self Help Ambient Island Gantry.
Dimensions

Model

KAIG2

KAIG3

KAIG4

KAIG5

KAIG6

Capacity

2/1 GN

3/1 GN

4/1 GN

5/1 GN

6/1 GN

Length (mm)

795

1145

1495

1845

2195

Depth (mm)

602

602

602

602

602

Height above worktop (mm)

540

540

540

540

540

Weight (uncrated) (kg)

20

23

27

31

36

Power (kW)

0.1

0.1

0.1

0.1

0.1

Electrical supply

13A 230V

13A 230V

13A 230V

13A 230V

13A 230V



Downloads

General Layout Drawings.
Kubus Self Help Ambient Island Gantries.





Fitting Instructions & User Manual.
Kubus Self Help Ambient Island Gantries.
