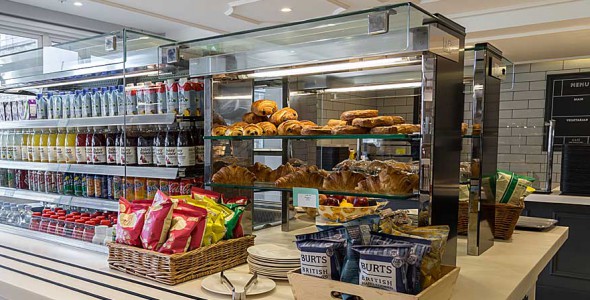

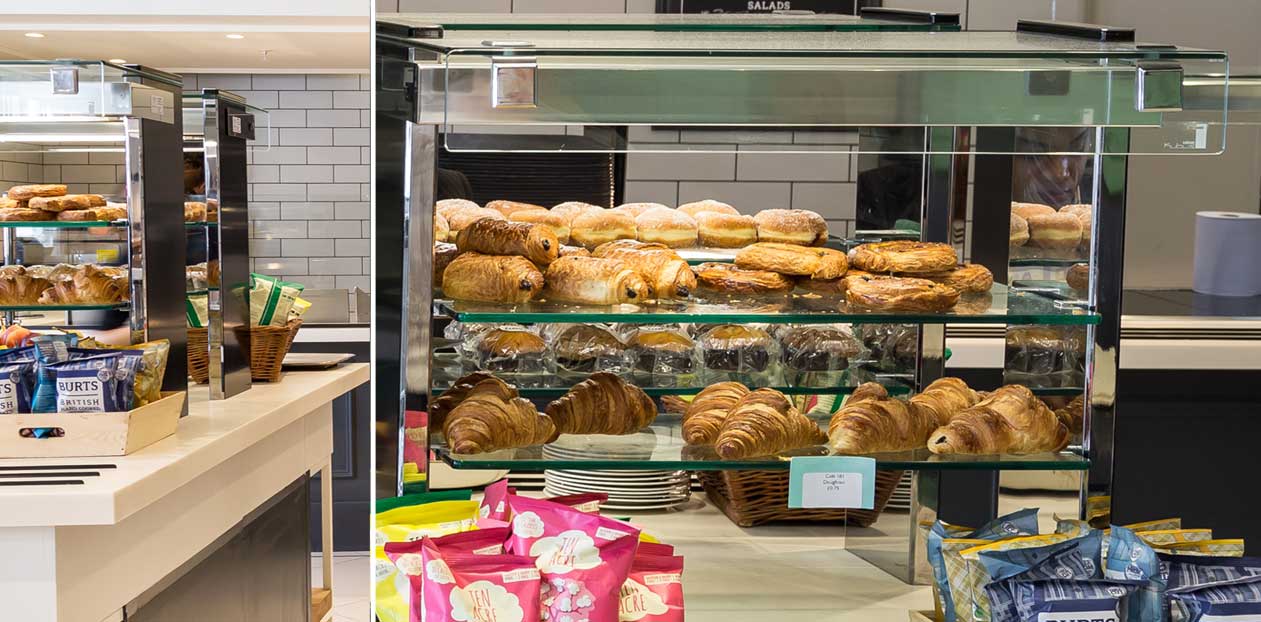

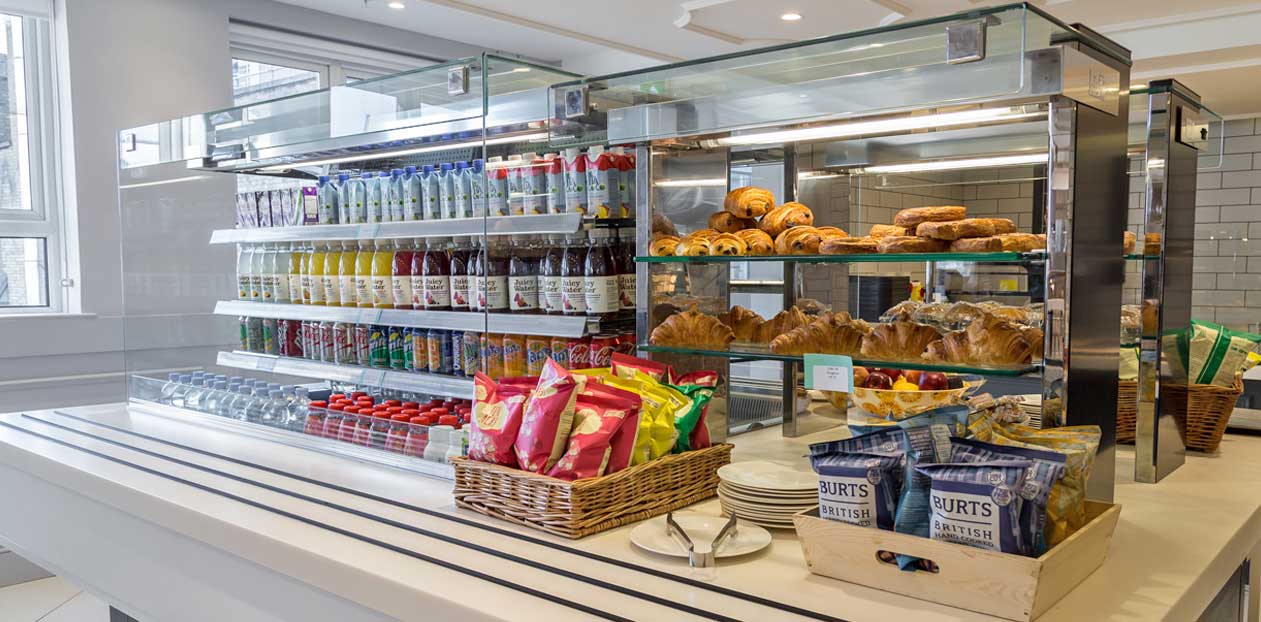

Kubus Ambient Multi Level Gantry/+Shelf Lights

CED Kubus drop in displays are a deco cubist companion to the classic elliptical Designline styling. Kubus displays optimise a clean rectilinear design perspective, enhanced by durable chrome plated aluminium superstructures and lighting ducts, all enclosed within toughened flat glass hoods, sneeze screens and side panels.

Visual

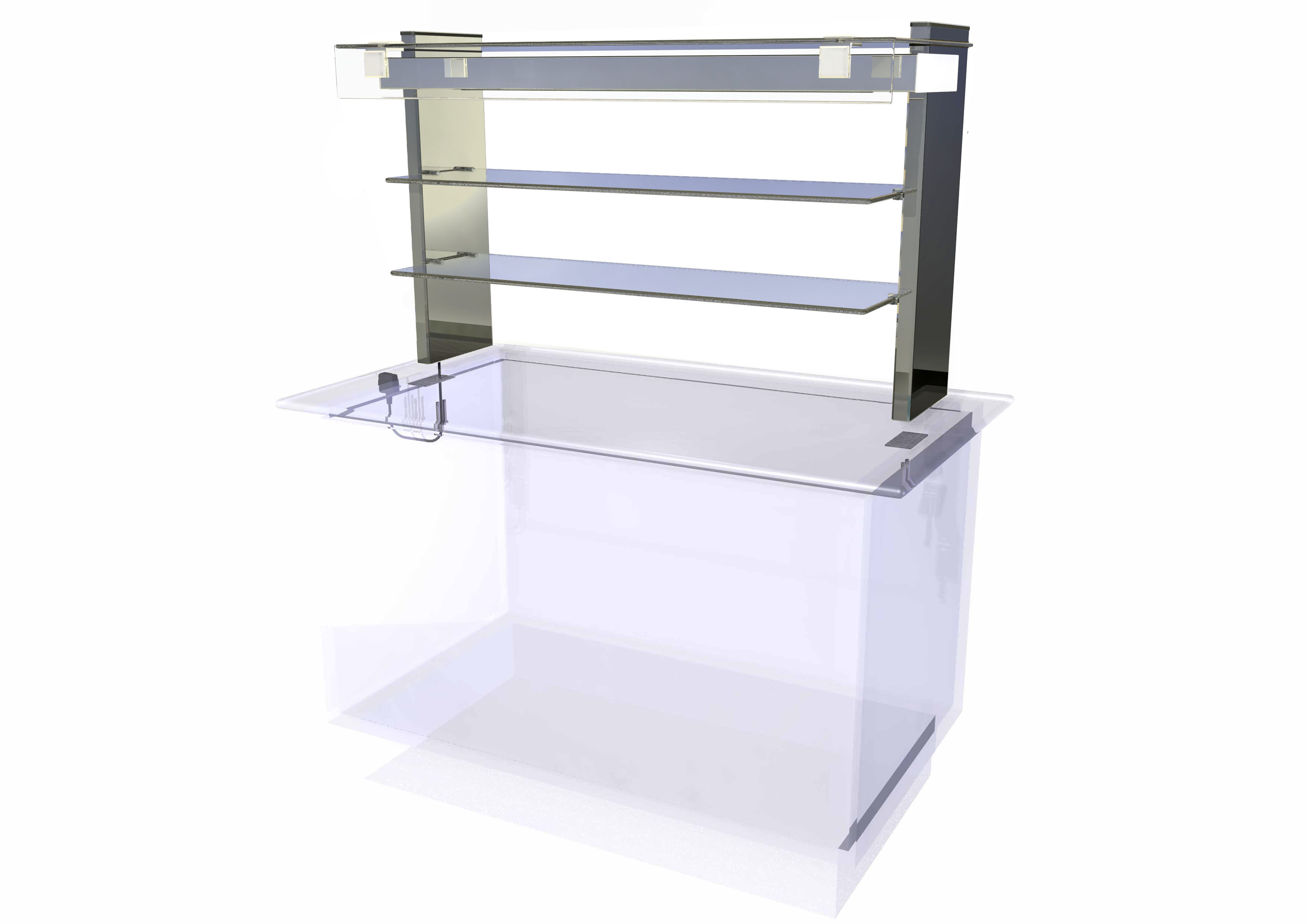

Self Help Ambient Multi Level Gantry

Features

Self Help Ambient Multi Level Gantry.
Features.

Rectilinear flat glass profile is designed to compliment other units within the range.
Ambient gantry for illumination and sneeze guard protection of shelf & worktop displayed ambient product.
Unit supplied with two flat toughened glass ambient impulse/ display shelves.
Superstructure in bright polished steel and aluminium profile.
Self help application.
Product illumination is provided from diffused LED lighting (4000 Kelvin) in a rectangular profile gantry.
Lighting is controlled from a push button switch on gantry end plate.
Superstructure supports a toughened flat sneeze protection glass screen.
Supplied with post fixing plates, bolts, 2 in lead & plug top, for connection to a single 13 Amp socket (13A 230V 50 Hz).

Food Types

Self Help Ambient Multi Level Gantry.
Food Display Types.

Drinks: Still & carbonated, bottled, canned or carton, water, UHT dairy, lemonade, wine, beer, lager, fruit juice & health drinks.

Food: Danish pastries, muffins, donuts, fruit cake, biscuits, fruit, chocolate, crackers, rice cakes, tacos, crisps, nuts & breakfast cereals.

* Sandwiches, baguettes, rolls, barm cakes & cheese subject to local health regulations re: display times.

Dimensions

Self Help Ambient Multi Level Gantry.
Dimensions.


Model	KAMG2	KAMG3	KAMG4	KAMG5
Capacity	2/1 GN	3/1 GN	4/1 GN	5/1 GN
Length (mm)	800	1150	1500	1850
Depth (mm)	474	474	474	474
Height above worktop (mm)	700	700	700	700
Weight (uncrated) (kg)	25	35	45	55
Power (kW)	0.1	0.1	0.1	0.1
Electrical supply	13A 230V	13A 230V	13A 230V	13A 230V

Downloads

General Layout Drawings.
Kubus Self Help Ambient Multi Level Gantries.

Fitting Instructions & User Manual.
Kubus Self Help Ambient Multi Level Gantries.

Visual

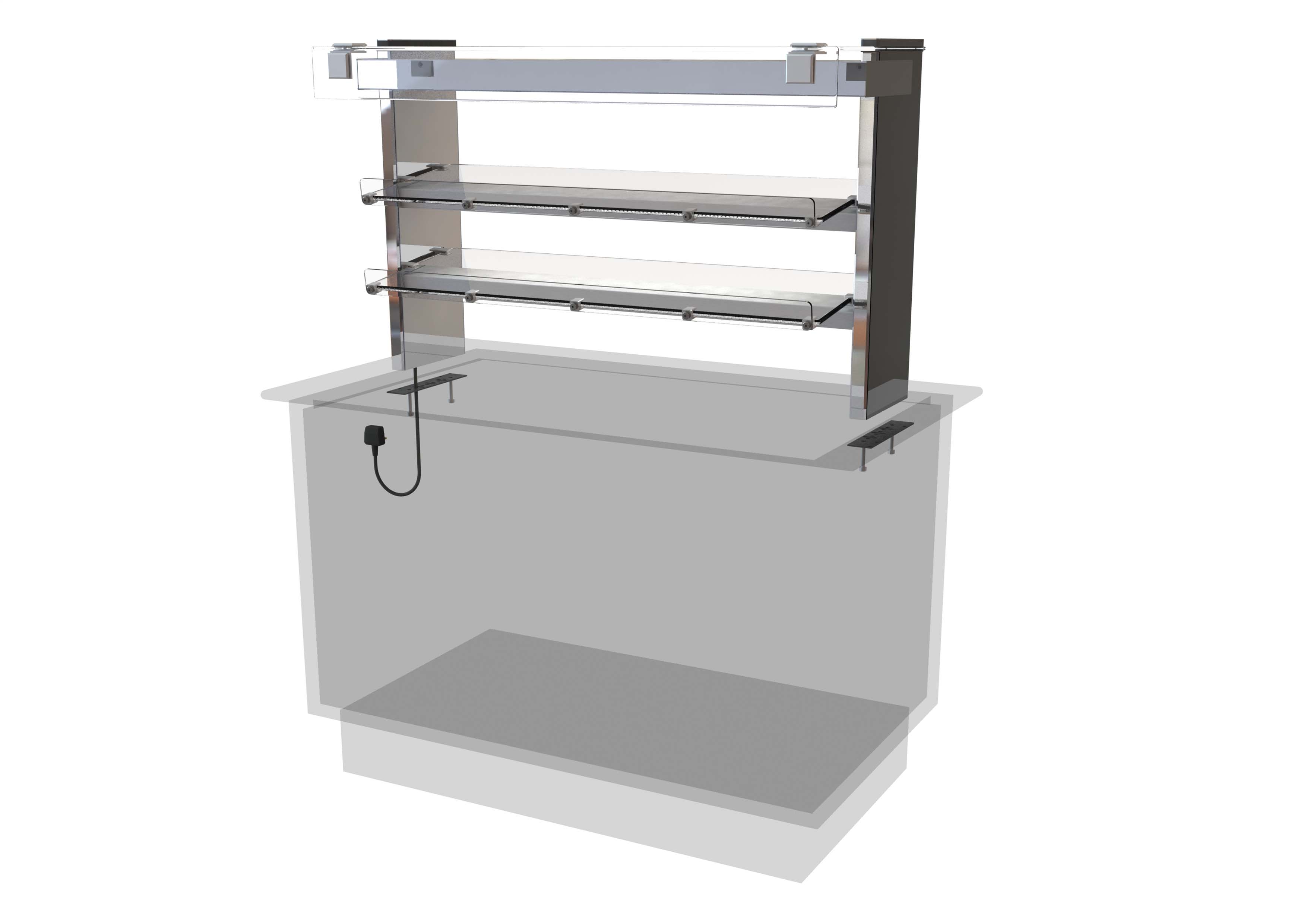

Self Help Ambient Multi Level Gantry-Under shelf Lights

Features

Self Help Ambient Multi Level Gantry-Under shelf Lights.
Features.

Rectilinear flat glass profile is designed to compliment other units within the range.
Ambient gantry for illumination and sneeze guard protection of shelf & worktop displayed ambient product.
Self help ambient confectionery/morning goods display gantry, for counter top installation.
Two inclined flat toughened glass impulse/ display shelves c/w under shelf lighting.
Product illumination is from diffused LED lighting (4000 Kelvin) in a rectangular profile gantry.
Self help application.
Each shelf fitted with clear acrylic product stop/ point of sale fixing points.
Superstructure in bright polished steel and aluminium profile.
Lighting is controlled from a push button switch on gantry end plate.
Supplied with post fixing plates, post collars, end glass supports, fixing bolts, 2 m lead & plug top, for connection to a single 13 Amp socket (13A 230V 50 Hz).

Food Types

Self Help Ambient Multi Level Gantry-Under shelf Lights.
Food Display Types.

Drinks: Still & carbonated, bottled, canned or carton, water, UHT dairy, lemonade, wine, beer, lager, fruit juice & health drinks.

Food: Danish pastries, muffins, donuts, fruit cake, biscuits, fruit, chocolate, crackers, rice cakes, tacos, crisps, nuts & breakfast cereals.

* Sandwiches, baguettes, rolls, barm cakes & cheese subject to local health regulations re: display times.

Dimensions

Self Help Ambient Multi Level Gantry-Under shelf Lights.
Dimensions.


Model	KMMG2	KMMG3	KMMG4
Capacity	2/1 GN	3/1 GN	4/1 GN
Length (mm)	800	1150	1500
Depth (mm)	474	474	474
Height above worktop (mm)	700	700	700
Weight (uncrated) (kg)	35	45	55
Power (kW)	0.1	0.1	0.1
Electrical supply	13A 230V	13A 230V	13A 230V
