Designline Heated Patisserie Range.

Designline Hot Patisserie.

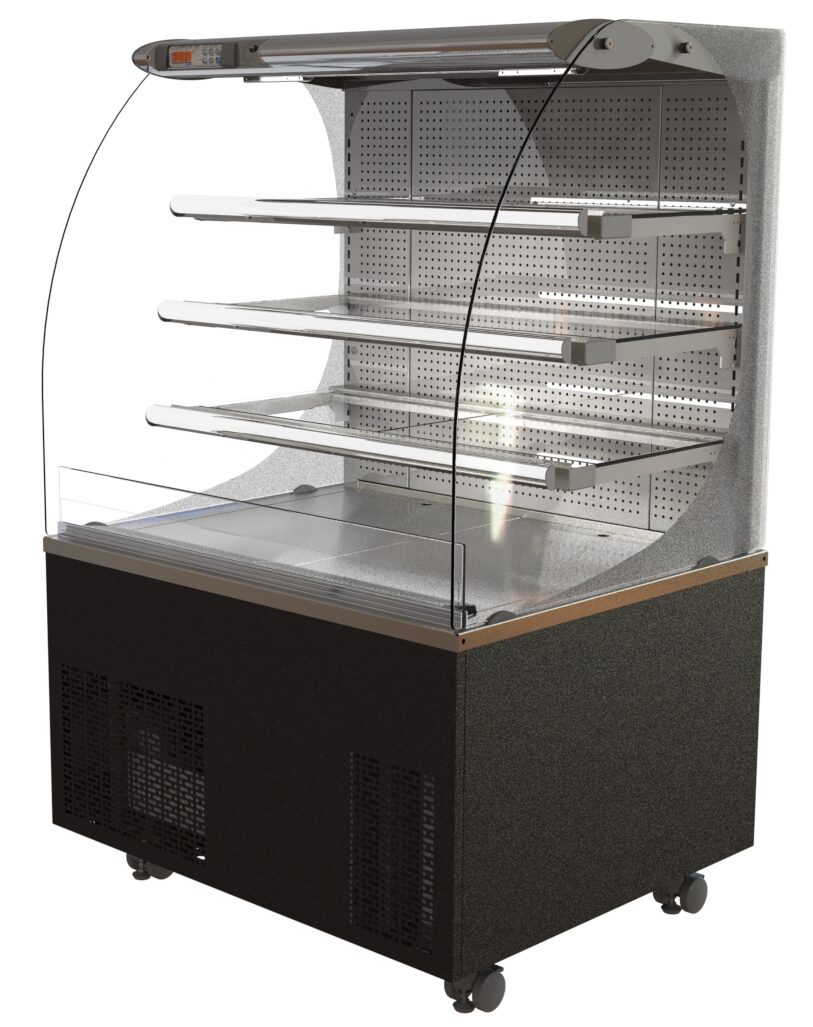

A new range of Kubus & Designline freestanding cold, ambient & heated patisseries also launch in 2025 with additional cold 1500 & 1800 sizes added to increase the range.
All freestanding patisseries now come with black base panels pre-fitted & heated models now operate as a plug n go 13A unit in all 3 sizes.

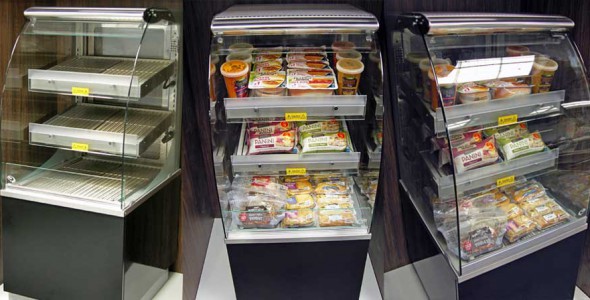

The new curved Designline 600, 900 & 1200 wide hot patisseries are ideal for display of pre-heated cooked food, whether packaged or unwrapped.
By using static heating, convection heat & removable wire shelf grid covers, the temperature of the 3 heated zones can be independently set by digital displays on the control panel. Optional kick plinths, night blinds (cold models) & steel finish base panels can be added also.

Self Help Hot Patisserie (Rear Doors).

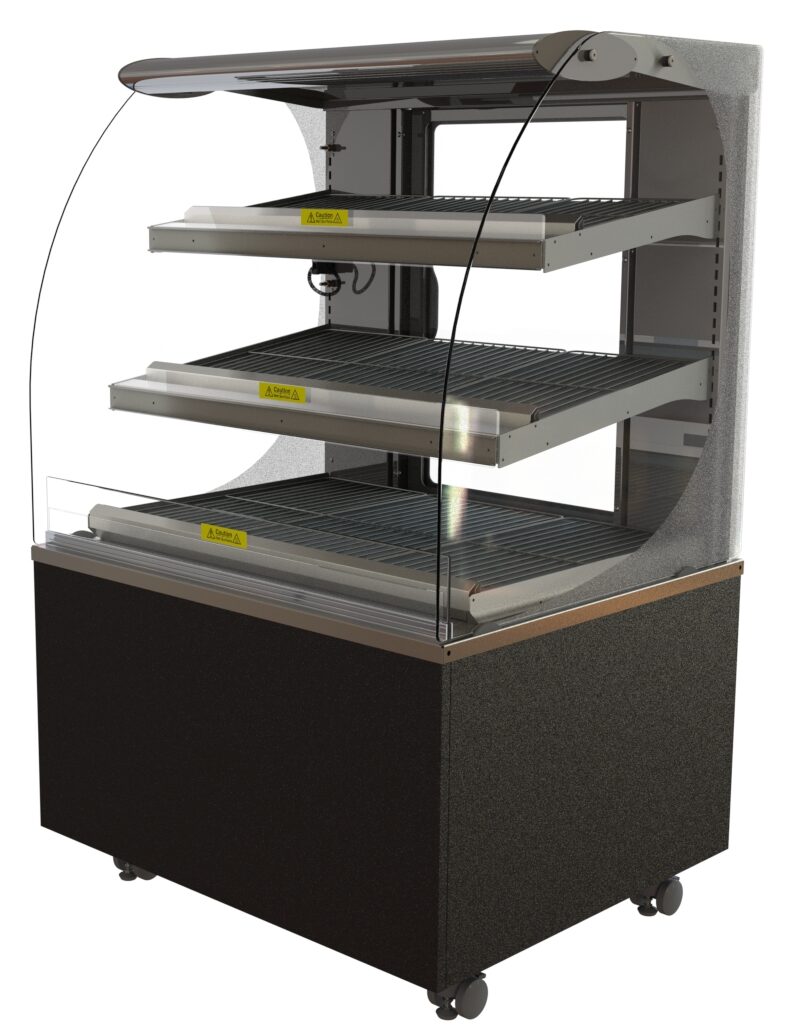

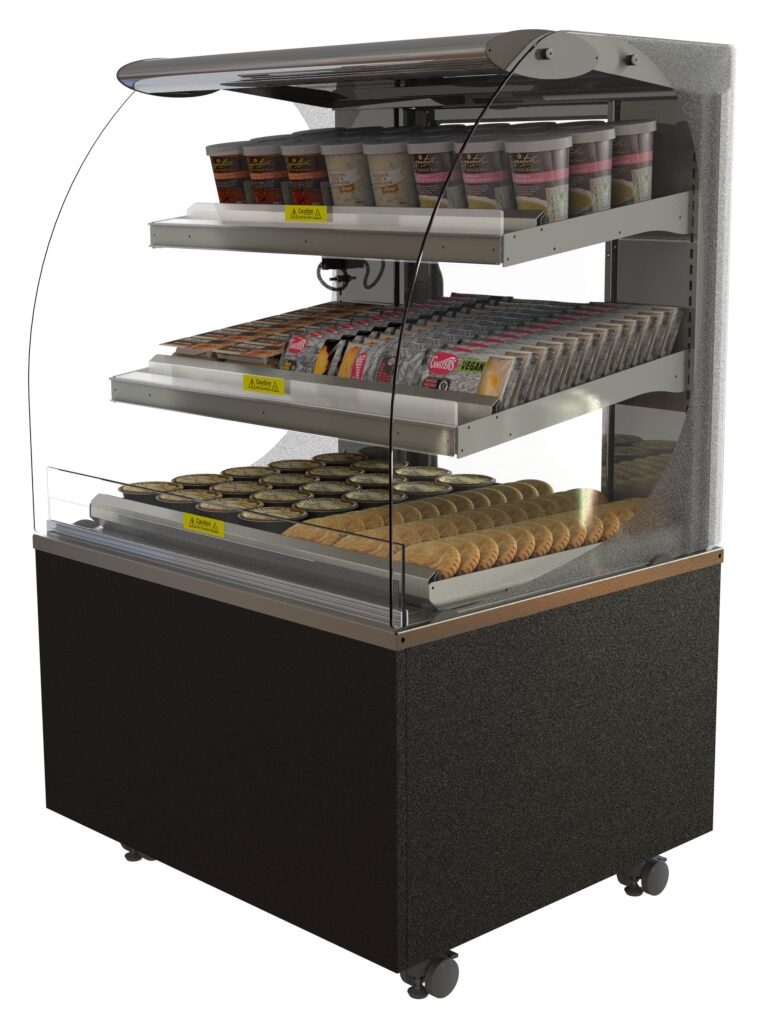

This curved model is a freestanding self help hot patisserie & is open fronted with rear loading to three display levels. Ideal for the display of pre-heated cooked food, either unwrapped or packaged.
Heated by both static heat and convection hot air, the patisserie has 3 tiers of food display comprising 2 steel/ coated aluminum shelves and a large hot deck display area. The temperature of 3 heated zones can be independently set, using digital displays mounted in the rear base panel. Product temperature is maintained at 70 – 75 deg. C in +18 deg. C ambient.

Double glazed, hinged rear door/s are provided for restocking access. High temperature LED lighting is fitted to each display level (4000 Kelvin). Removable wire steel deck/ shelf grid covers are provided for use with packaged produce. The base is finished with black plasticised steel front fascia & side panels. A s/steel 38mm point of sale ticket strip mount is fitted to each shelf level. Deck also has ticket strip mount. The base features lockable transportation castor with adjustable height foot for final positioning/ levelling. The display requires a 13A 230v electrical supply.

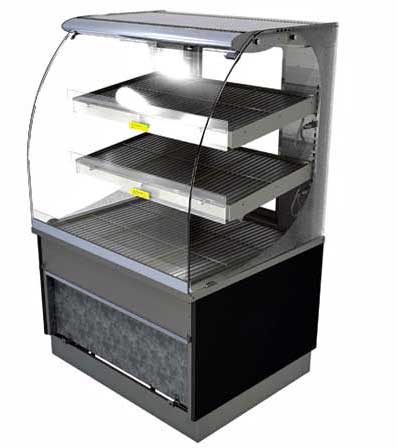

Assisted Service Hot Patisserie (Rear Doors).
The curved Designline freestanding assisted service hot patisserie features a full height curved front hinged glass front with rear loading to three display levels, for the display of pre-heated cooked food, either unwrapped or packaged.
Heated by both static heat and convection hot air, the 3 tiers of food display comprise 2 steel/ coated aluminum shelves and a large hot deck display area. The temperature of 3 heated zones can be independently set, using digital displays mounted in the rear base panel. Product temperature is maintained at 70 – 75 deg. C in +18 deg. C ambient.

Double glazed, hinged rear door/s are provided for restocking access. High temperature LED lighting is fitted to each display level (4000 Kelvin). Removable wire steel deck/ shelf grid covers are provided for use with packaged produce. The base is finished with black plasticised steel front fascia & side panels. A s/steel 38mm point of sale ticket strip mount is fitted to each shelf level. Deck also has ticket strip mount. The base features lockable transportation castor with adjustable height foot for final positioning/ levelling. The display requires a 13A 230v electrical supply.

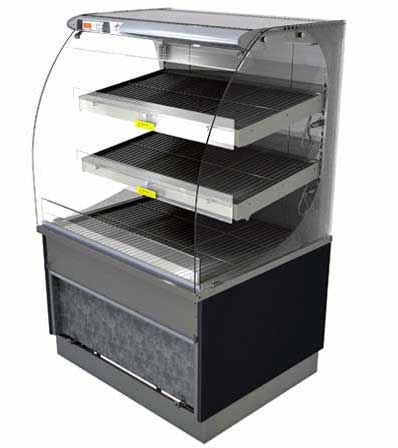

Self Help Hot Patisserie (Fixed Back).
The Designline curved wall sited freestanding self help hot patisserie, can be used in alcoves or smaller retail spaces & features open fronted serving/restocking with a solid s/steel rear back panel to three display levels. The model is ideal for the display of pre-heated cooked food, either unwrapped or packaged.

Heated by both static heat and convection hot air, the patisserie has 3 tiers of food display comprising 2 steel/ coated aluminum shelves and a large hot deck display area. The temperature of 3 heated zones can be independently set, using digital displays mounted in the rear base panel. Product temperature is maintained at 70 – 75 deg. C in +18 deg. C ambient.

High temperature LED lighting is fitted to each display level (4000 Kelvin). Removable wire steel deck/ shelf grid covers are provided for use with packaged produce. The base is finished with black plasticised steel front fascia & side panels. A s/steel 38mm point of sale ticket strip mount is fitted to each shelf level. Deck also has ticket strip mount. The base features lockable transportation castor with adjustable height foot for final positioning/ levelling. The display requires a 13A 230v electrical supply.
