Kubus Cold (HT) Patisserie Range.

Kubus Cold Hydrocarbon (HT) Patisserie.

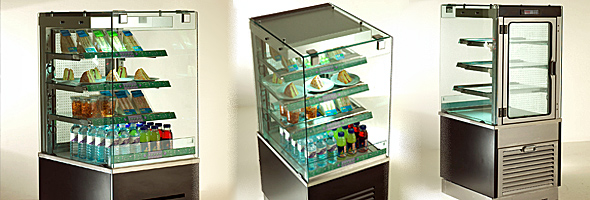

Kubus freestanding chilled patisseries are a further cubist companion to the range of Kubus drop in displays. Available in both self help and assisted service, Kubus patisseries feature a matching clean rectilinear profile, durable bright steel and chrome plated aluminium superstructure, all within a toughened flat glass hood, sneeze screen and glazed side panels.

Innovation As Standard.
The Kubus chilled patisserie is part of CED’s flagship range of energy efficient chilled hydrocarbon food displays. Kubus patisseries have energy saving refrigeration, diffused LED lighting, ‘point of sale’ branding, steel kick plinths, mobile castors and adjustable feet as standard.
Chilled by integral hydrocarbon technology (a solution that’s kinder to the environment and your budget, with lower running costs than conventional R404A refrigerant), each cold patisserie also contains intelligent, gantry mounted digital control technology & CED’s continued assurance of beautiful toughness and ruthless reliability in the field.

Self  Help Cold Patisserie Displays.

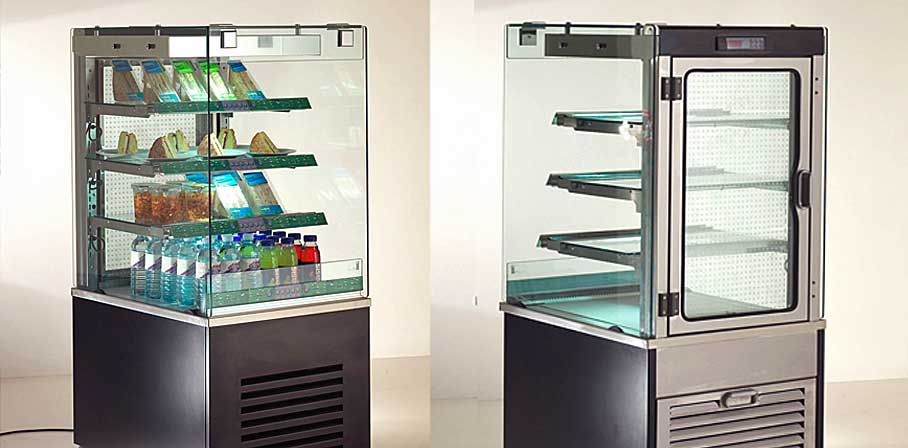

Two types of self help cold model are available, a model with rear double glazed doors and a version with a bright steel back panel.

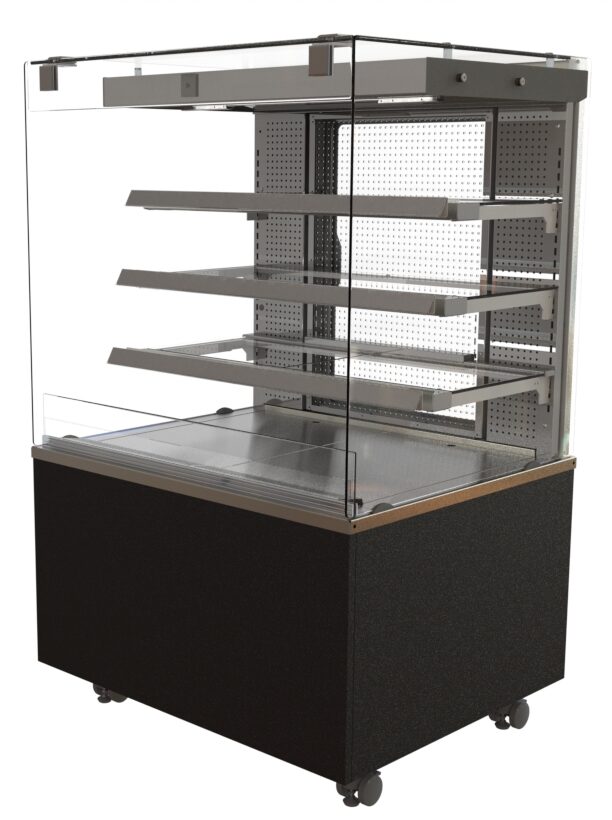

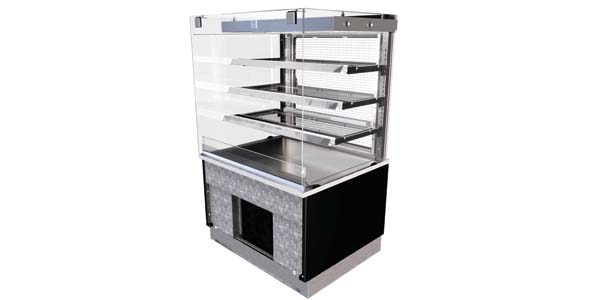

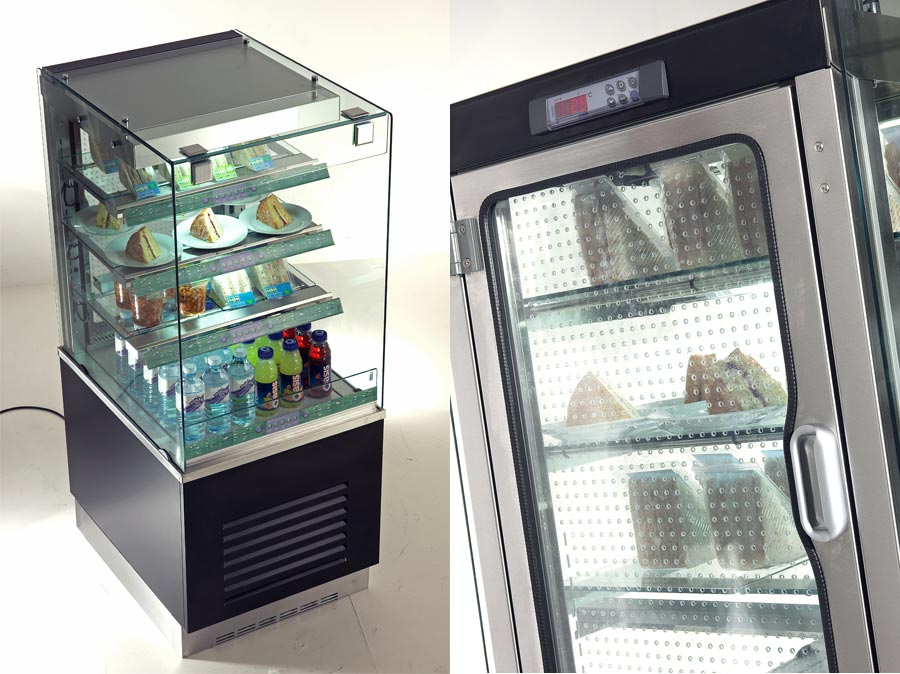

Self Help Cold Patisserie-Rear Doors.

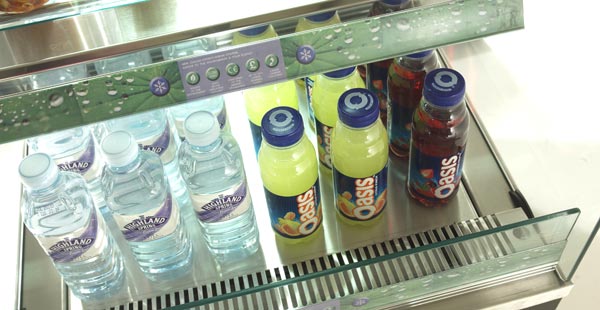

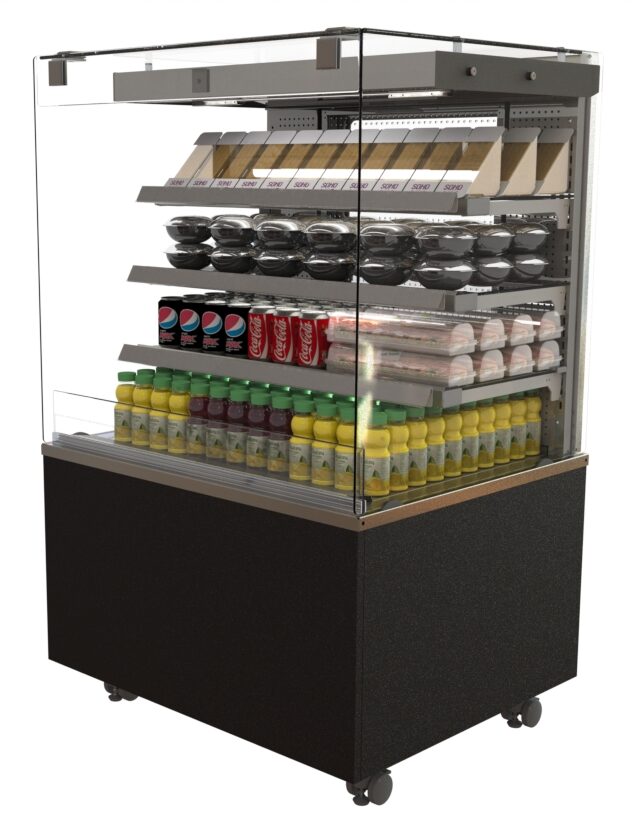

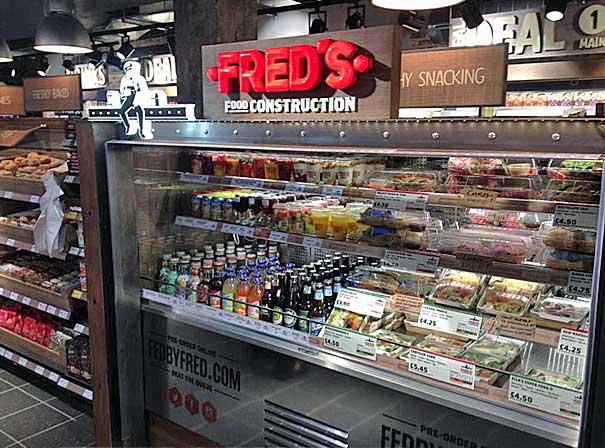

Available in either 600mm, 900mm, 1200mm or 2000mm wide ‘food hall’ size, the Kubus self help chilled patisserie can be used as a freestanding ‘grab and go’ unit or located within a servery counter run. The display houses an open chilled steel bottle display deck and 3 tiers of toughened adjustable height glass shelves.

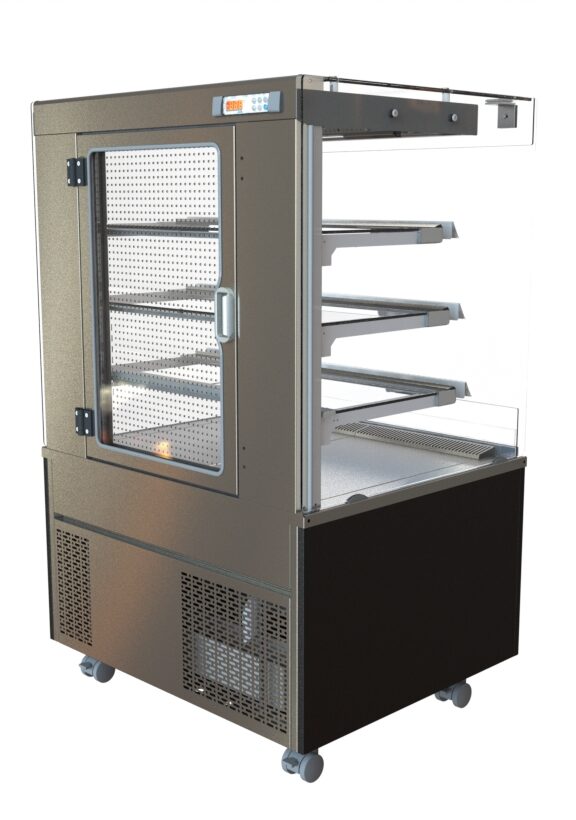

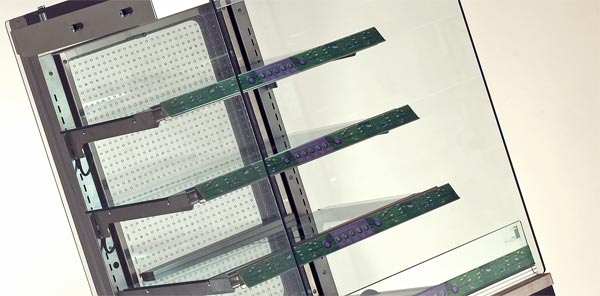

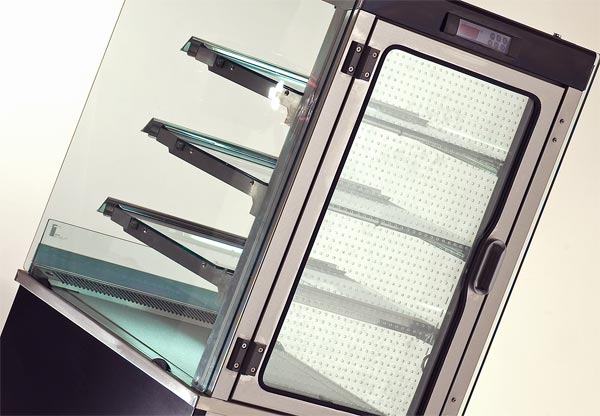

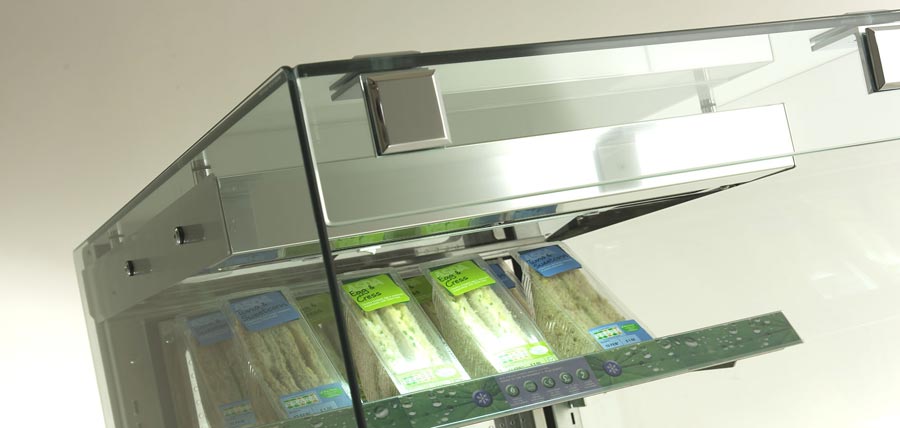

Each of the display levels are fitted with combined 40mm ticket display, product stop and low energy diffused LED lighting.  Re-stocking the unit is undertaken through hinged double glazed doors to the rear. All chilled product is highly visible through the toughened glass canopy, sneeze screen and side panels. The glass canopy hood can form a serve-over section or be used for impulse display.

*Optional non standard air flow in/ out to operator side is available on self help cold (rear doors) 1200mm & 2000mm patisserie models only.

Model KPC20HT shown.

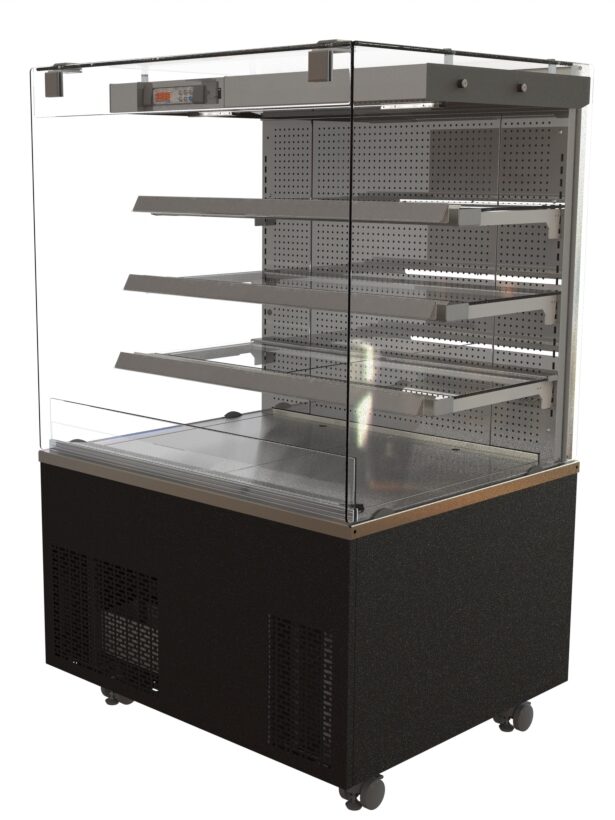

Self Help Cold Patisserie-Fixed Back.

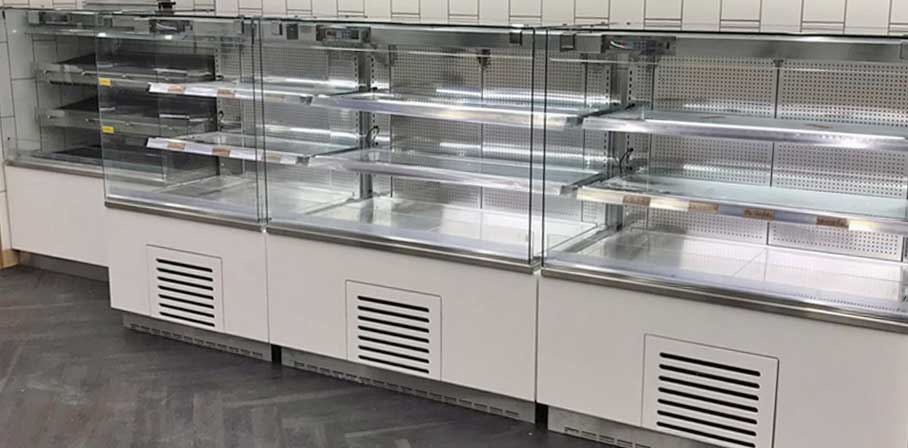

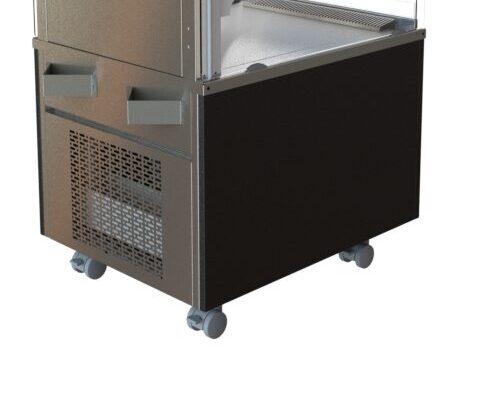

A wall-sited version is available in 600mm, 900mm, 1200mm or 2000mm ‘food hall’ size, allowing the display to be positioned in alcoves, wall sited counter runs, high street retail environments or smaller restrictive sites. Stand off brackets to the rear of the display ensure there is no interference to airflow.  The rear door is replaced with a bright steel back panel. Product re-stocking is through the open face of the cabinet. The fixed back cabinet matches all other Kubus patisseries.

Assisted Service Cold Patisserie Displays.

The assisted service model is used in a traditional operator served environment, where the customer can be ‘served over’ the patisserie display.

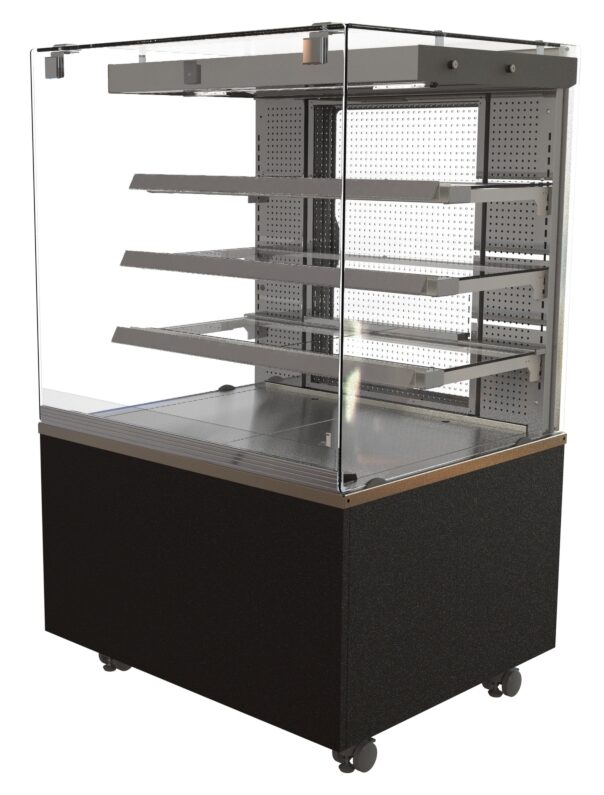

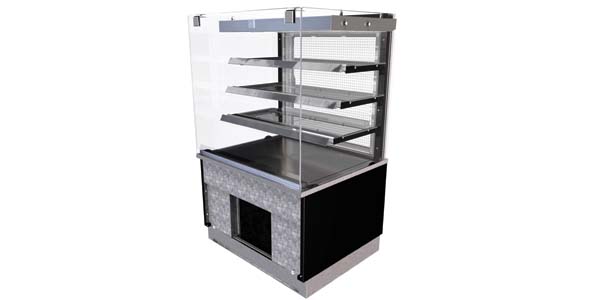

Assisted Service Cold Patisserie-Rear Doors.

The display is available in either 600mm, 900mm, 1200mm or 2000mm wide ‘food hall’ size. Usually located in an assisted service counter run, the Kubus assisted service chilled patisserie also houses a chilled steel bottle display deck and 3 tiers of toughened adjustable height glass shelves. Each of the display levels are fitted with combined 40mm ticket display, product stop and low energy diffused LED lighting.  The full height flat glass front screen tilts forward and locks, to allow the operator unhindered cleaning access. Re-stocking the unit is undertaken through hinged double glazed doors to the rear. All chilled product is highly visible through the toughened glass canopy, full front screen and side panels. The glass canopy hood can form a serve-over section or be used for impulse display.

*Optional non standard air flow in/ out to operator side is available on assisted service cold (rear doors) 1200mm & 2000mm patisserie models only.

Fascia Panel Options – Cold Patisseries.

The standard cold patisserie may fit behind a shopfitted fascia panel within a counter run.  With the addition of optional black epoxy coated or steel fascia panels, the chilled patisseries can be located in prime trading areas as freestanding ‘grab n go’ impulse displays.
