Money Maker Chilled Merchandiser (HT) – Superceeded

Visual

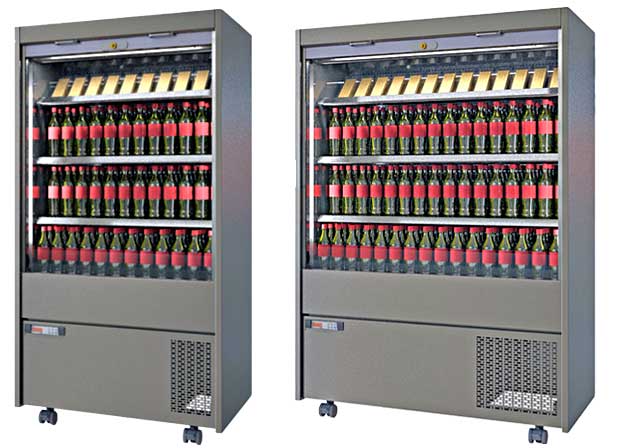

Money Maker 3 Tier Slim Merchandiser (Night Blind) (HT)
Visual

Specification

Money Maker 3 Tier Slim Merchandiser (Night Blind) (HT)
Specification

• Mobile chilled merchandiser in compact range of sizes, for retail locations where space is a premium.
• Features integral energy efficient chilled R290 hydrocarbon refrigeration (HT).
• Self help (fixed back) application.
• 3 tier steel adjustable height shelving, for increased chilled product display area.
• Additional cold deck area, typically used as bottle storage.
• Can achieve temperatures of 0°C to 5°C (max 27°C ambient 55% relative humidity).
• Product illumination is from horizontal & vertical diffused LED lighting (4000 Kelvin).
• Fitted with energy saving retractable insulated night blind.
• Available in 600, 900, 1200, 1500 & 1800 mm wide.
• Slimline unit depth 635 mm (+50), unit height 1725 mm.
• 24-hour operation.
• Superstructure in bright polished (internal) and satin (external) steel.
• Bright polished steel rear back panel for typical use in wall sited situation
• Features low-level digital temperature display and control panel (customer side).
• Features ‘tamper proof’ temperature control facility.
• 40 mm tall ‘point of sale’ display/ ticket strips are fitted as standard.
• Integral automatic condensate water evaporation eliminates the need for site drainage.
• Supplied with 2m lead, cord wrap & parking socket, for connection to a single 13 Amp socket (13A 230V 50 Hz).
• Removable steel front fascia panel, for ease of cleaning/ service maintenance.
• Modular removable deck plate system for easier cleaning and maintenance.
• Stand off brackets for wall siting included, to ensure adequate unit ventilation.
• Adjustable final positioning/ levelling feet.

Options

• Ø 100 mm heavy duty castor (2 braked to customer side)
  **unit height increases to 1765 mm**.
• Panoramic glazed side panels.
• Hook in chrome wire impulse basket.
• Mobile impulse timber basket. (4 finishes)
• 3 tier glass shelving (Set).
• Additional glass shelf – allows 4 display tiers – when product displayed is not predominantly bottle storage.
• Additional steel shelf – allows 4 display tiers – when product displayed is not predominantly bottle storage.
• Double glazed rear door/s (Set) –Night Blind Models Only.
• Coloured external surface finishes available (20 RAL Colours).

Wall Sited Model Installation:

• Do not remove the rear stand-off brackets during installation, these allow the warm air to travel up the back of the merchandisers.

Wall Sited Model Installation (In A Shop fitted Housing) :

Ensure the housing has either:

• 100mm clearance above the merchandiser (at front pelmet) to allow warm air to escape, or
• The housing is left open above the merchandiser to disperse warm air from the rear into free space above the housing (not trapped by a suspended ceiling) or
• The housing may have a part depth soffit (with 25mm front pelmet clearance) above the merchandiser, as long as the soffit finishes with a 100mm clearance at rear, to allow warm air escape.

Dimensions

Money Maker 3 Tier Slim Merchandiser (Night Blind) (HT)
Dimensions.



Option Codes
Model	MM600SHT	MM900SHT	MM1200SHT	MM1500SHT	MM1800SHT
D/Glazed Side Panels	DGPS	DGPS	DGPS	DGPS	DGPS
Ø100mm H.Duty Castor (1765 mm Unit Height)	HDC6	HDC9	HDC12	HDC15	HDC18
Hook In Chrome Wire Impulse Basket.	MMIB6	MMIB9	MMIB12	MMIB15	MMIB18
Mobile Impulse Timber Basket.(Redwood Clear Varnish)	MITB6	MITB9	MITB12	MITB15	MITB18
Wood Stain To Mobile Impulse Timber Basket (Oak/Wenge/Ash Grey).	MITB6S	MITB9S	MITB12S	MITB15S	MITB18S
Rear Doors (Night Blind Only).	MMDR6S	MMDR9S	MMDR12S	MMDR15S	MMDR18S
Glass Shelving (Set).	GSSETMM6S	GSSETMM9S	GSSETMM12S	GSSETMM15S	GSSETMM18S
Additional Glass Shelf.	AGSMM6S	AGSMM9S	AGSMM12S	AGSMM15S	AGSMM18S
Additional Steel Shelf.	ASSMM6S	ASSMM9S	ASSMM12S	ASSMM15S	ASSMM18S
Coloured Surface Finish (20 Colours).	MMPCO	MMPCO	MMPCO	MMPCO	MMPCO

Food Types

Money Maker 3 Tier Slim Merchandiser (Night Blind) (HT)
Food Display Types.



Drinks: Still & carbonated, bottled, canned or carton, water, dairy, lemonade, wine, beer, lager, fruit juice & health drinks. Shelving typically accepts 1/2 litre 240 mm (h) cola bottles/ sandwich packs etc.

Food: Wrapped sandwiches, baguettes, rolls & barm cakes, salad, pasta, cheese snacks, cream cakes & pastries, cakes, yoghurt, cereals, fruit in juice & fruit.

Options

Money Maker 3 Tier Slim Merchandiser (Night Blind) (HT)
Options.

Ø 100 mm Heavy Duty Castors.
Set of heavy duty castors – 2 braked to customer side (200 kg load/ castor).*1765 mm Unit Height*

Model	MM600SHT	MM900SHT	MM1200SHT	MM1500SHT	MM1800SHT
Option – Ø 100 mm Heavy Duty Castor (1765 mm Unit Height)	HDC6	HDC9	HDC12	HDC15	HDC18
Revised Height (mm)	1765	1765	1765	1765	1765













Double Glazed Rear Door Set – (Night Blind Models Only)
Set of rear s/steel hinged door/s with double glazed window, allows re-stocking of the cabinet from operator side, when the unit is not wall sited.

Model	MM600SHT	MM900SHT	MM1200SHT	MM1500SHT	MM1800SHT
Option – Double Glazed Rear Door (Set).	MMDR6S	MMDR9S	MMDR12S	MMDR15S	MMDR18S
Qty. Doors Per Model.	One	Two	Two	Two	Four

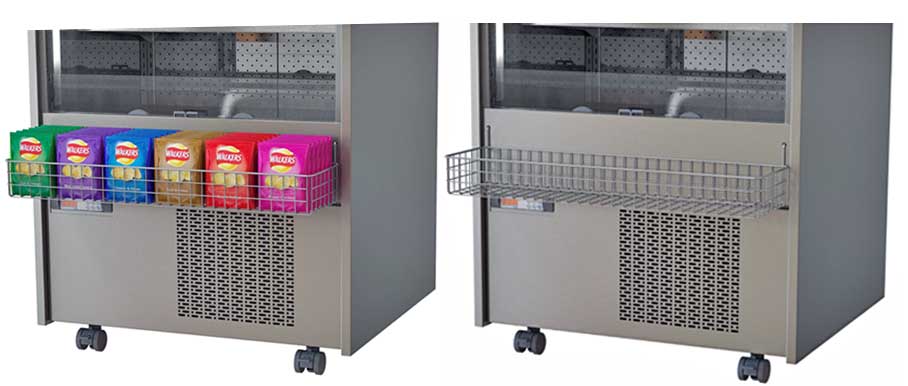

Wire Impulse Basket.
Factory fitted hook in chrome wire basket, continuous open frame type, for local display of ambient product ( crisps etc.) to merchandiser front. Ideal for maximizing impulse sales, meal deal offers. Basket depth accepts 6 x standard 32.5 g crisp packets.





Model	MM600SHT	MM900SHT	MM1200SHT	MM1500SHT	MM1800SHT
Option – Hook In Impulse Basket.	MMIB6	MMIB9	MMIB12	MMIB15	MMIB18
Basket Size L x H x D (mm)	540 x 99 x 210	840 x 99 x 210	1140 x 99 x 210	1440 x 99 x 210	1740 x 99 x 210











Mobile Impulse Timber Basket.
Freestanding mobile timber impulse basket, with open slat redwood frame in clear satin varnish finish, steel support straps & lockable castors, for local display of ambient product ( crisps etc.) to merchandiser front.  Ideal for maximizing impulse sales, meal deal offers. Timber Basket (storage area) depth accepts 10 x standard 32.5 g crisp packets.





Model	MM600SHT	MM900SHT	MM1200SHT	MM1500SHT	MM1800SHT
Option – Mobile Impulse Timber Basket (Varnish Finish).	MITB6	MITB9	MITB12	MITB15	MITB18
Basket Size L x H x D (mm)	600 x 660 x 300	900 x 660 x 300	1200 x 660 x 300	1500 x 660 x 300	1800 x 660 x 300
Storage Area L x H x D (mm)	570 x 270 x 147	870 x 270 x 147	1170 x 270 x 147	1470 x 270 x 147	1770 x 270 x 147













Colour Stain To Mobile Impulse Timber Basket.
Blanchon wood stain in Oak, Wenge or Ash Grey applied prior to varnish finish.

Model	MM600SHT	MM900SHT	MM1200SHT	MM1500SHT	MM1800SHT
Option – Wood Stain (Oak/ Wenge/ Ash Grey).	MITB6S	MITB9S	MITB12S	MITB15S	MITB18S





Panoramic Glazed Side Panels.
Partially double glazed end panels provide a more panoramic view of displayed merchandise, whilst also adding more natural light to the cabinet. Vertical LED lighting is retained to the display area.



Model	MM600SHT	MM900SHT	MM1200SHT	MM1500SHT	MM1800SHT
Option – Panoramic Glazed Side Panels	DGPS	DGPS	DGPS	DGPS	DGPS













3 Tier Glass Shelving (Set).
Set of 10 mm thick toughened glass shelves, for enhanced product display.

Model	MM600SHT	MM900SHT	MM1200SHT	MM1500SHT	MM1800SHT
Option – 3 Tier Glass Shelving (Set).	GSSETMM6S	GSSETMM9S	GSSETMM12S	GSSETMM15S	GSSETMM18S
Shelf Length Divided Into 2 Parts (For Ease Of Adjustment).	N/A	N/A	N/A	Yes	Yes

















Additional Glass Shelf. Converts the 3 Tier glass shelving option into 4 tiers of chilled glass shelf storage, ideal where product displayed is not predominantly bottle storage.

Model	MM600SHT	MM900SHT	MM1200SHT	MM1500SHT	MM1800SHT
Option – Additional Glass Shelf (Converts 3 Tier To 4 Tier Glass Shelving).	AGSMM6S	AGSMM9S	AGSMM12S	AGSMM15S	AGSMM18S
Additional Storage Area – Length x Depth (mm).	528 x 291	828 x 291	1128 x 291	1412 x 291	1712 x 291
Shelf Length Divided Into 2 Parts (For Ease Of Adjustment).	N/A	N/A	N/A	Yes	Yes















Additional Steel Shelf.
Converts the 3 Tier model into 4 tiers of chilled steel shelf storage, ideal where product displayed is not predominantly bottle storage.

Model	MM600SHT	MM900SHT	MM1200SHT	MM1500SHT	MM1800SHT
Option – Additional S/Steel Shelf (Converts 3 Tier To 4 Tier Shelving).	ASSMM6S	ASSMM9S	ASSMM12S	ASSMM15S	ASSMM18S
Additional Storage Area – Length x Depth (mm).	528 x 291	828 x 291	1128 x 291	1412 x 291	1712 x 291
Shelf Length Divided Into 2 Parts (For Ease Of Adjustment).	N/A	N/A	N/A	Yes	Yes















Coloured Surface Finish.
A tough, durable powder coated colour finish can be applied to the external body of the merchandiser, to match many standard RAL colour references.

Model	MM600SHT	MM900SHT	MM1200SHT	MM1500SHT	MM1800SHT
Option – Coloured Surface Finish.	MMPCO	MMPCO	MMPCO	MMPCO	MMPCO

**Please state selected RAL Reference at point of order**





Installation Service Of ‘Money Maker’ Merchandiser.
The new merchandiser can be delivered direct to site/positioned, de-papered, switched on and left operational for customers. (Standard terms of installation i.e. ground floor location, or access to goods lift, within UK Mainland, normal working hours).

WEEE Disposal Of Redundant Merchandiser.
Collection and WEEE disposal of the redundant cabinet can also take place on delivery of any new CED Money Maker Merchandiser. (Standard terms of collection i.e. ground floor location, or access to goods lift, within UK Mainland, normal working hours).

Model	MM600SHT	MM900SHT	MM1200SHT	MM1500SHT	MM1800SHT
Option – Unpack & Position Money Maker.	MMUP69	MMUP69	MMUP1215	MMUP1215	MMUP18
Option – WEEE Disposal Of Redundant Multideck During Delivery.	MMWEEE	MMWEEE	MMWEEE	MMWEEE	MMWEEE



Downloads

General Layout Drawings/ Fitting Details.
Money Maker 3 Tier Slim Merchandiser (Night Blind) (HT).





Specification Sheets, Catalogue & User Manual.
Money Maker Chilled Merchandiser Range.



Visual

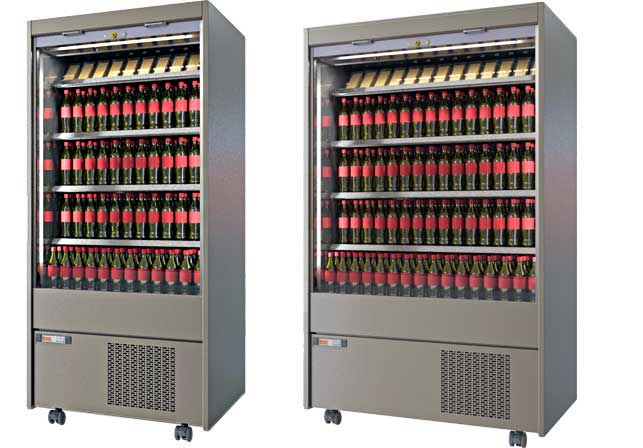

Money Maker 4 Tier Large Merchandiser (Night Blind) (HT)
Visual



Specification

Money Maker 4 Tier Large Merchandiser (Night Blind) (HT)
Specification.



• Mobile chilled merchandiser in a large range of sizes, for retail locations where maximum merchandising capacity is a premium.
• Features integral energy efficient chilled R290 hydrocarbon refrigeration (HT).
• Self help (fixed back) application.
• 4 tier steel adjustable height shelving, for maximum chilled product display area in a minimum footprint.
• Additional cold deck area, typically used as bottle storage.
• Can achieve temperatures of 0°C to 5°C (max 27°C ambient 55% relative humidity).
• Product illumination is from horizontal & vertical diffused LED lighting (4000 Kelvin).
• Fitted with energy saving retractable insulated night blind.
• Available in 600, 900, 1200, 1500 & 1800 mm wide.
• Large unit depth 795 mm (+50), unit height 1965 mm.
• 24-hour operation.
• Superstructure in bright polished (internal) and satin (external) steel.
• Bright polished steel rear back panel for typical use in wall sited situation
• Features low-level digital temperature display and control panel (customer side).
• Features ‘tamper proof’ temperature control facility.
• 40 mm tall ‘point of sale’ display/ ticket strips are fitted as standard.
• Integral automatic condensate water evaporation eliminates the need for site drainage.
• Supplied with 2m lead, cord wrap & parking socket, for connection to a single 13 Amp socket (13A 230V 50 Hz).
• Removable steel front fascia panel, for ease of cleaning/ service maintenance.
• Modular removable deck plate system for easier cleaning and maintenance.
• Stand off brackets for wall siting included, to ensure adequate unit ventilation.
• Adjustable final positioning/ levelling feet.

Options

• Ø 100 mm heavy duty castor (2 braked to customer side)
  **unit height increases to 2005 mm**.

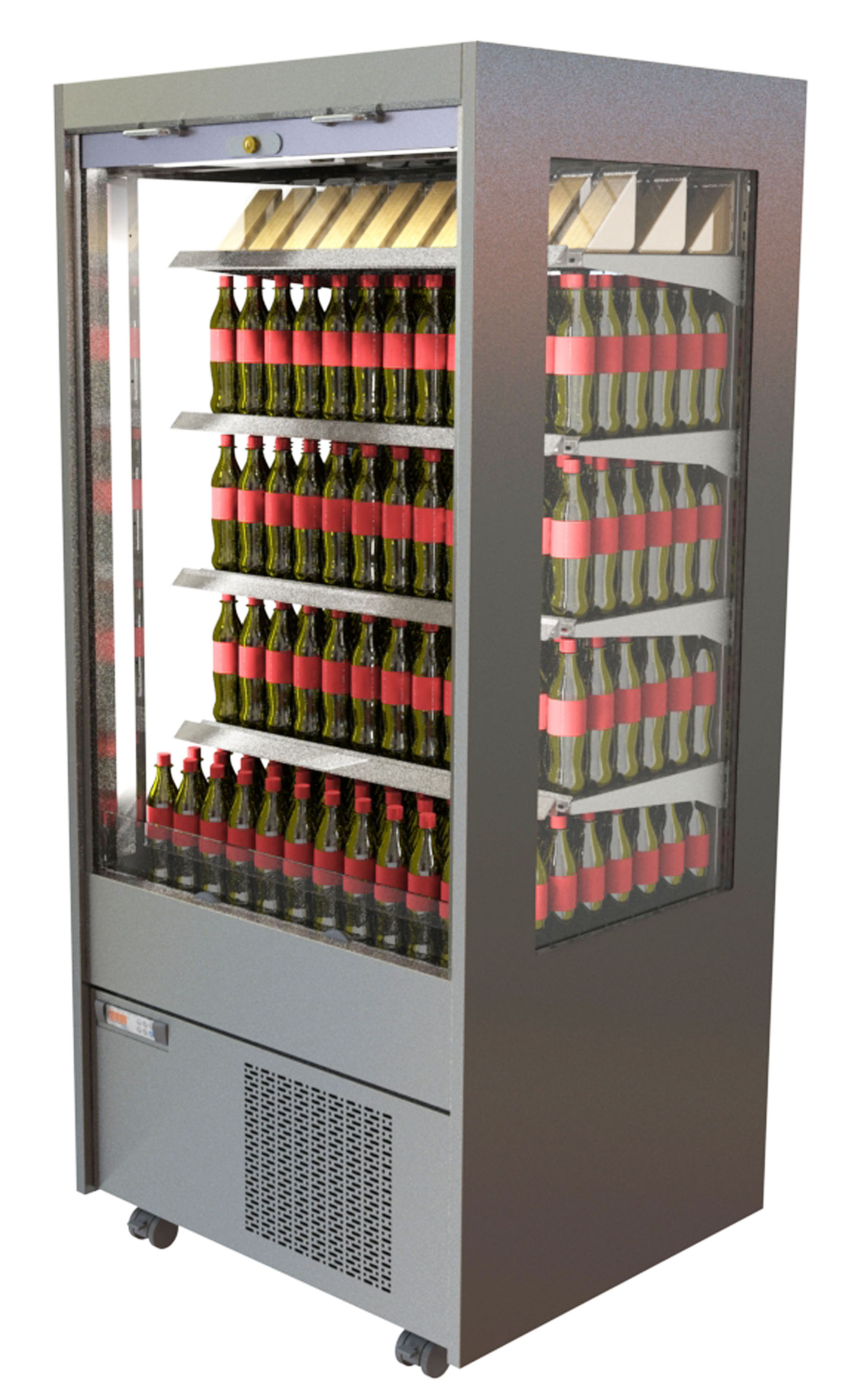

• Panoramic glazed side panels.
• Hook in chrome wire impulse basket.
• Mobile impulse timber basket. (4 finishes)
• 4 tier glass shelving (Set).
• Additional glass shelf option – allows 5 display tiers – when product displayed is not predominantly bottle storage.
• Additional steel shelf option – allows 5 display tiers – when product displayed is not predominantly bottle storage.
• Double glazed rear door/s (Set)-Night Blind Models Only.
• Coloured external surface finishes available (20 RAL Colours).

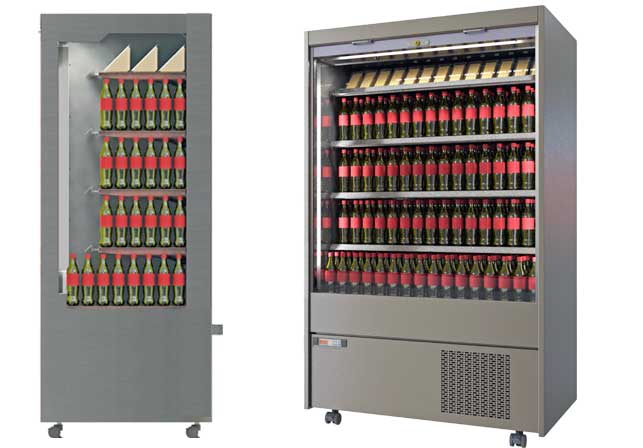

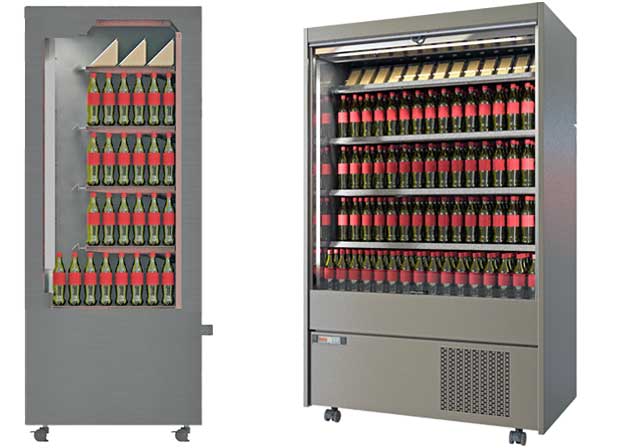

Dimensions

Money Maker 4 Tier Large Merchandiser (Night Blind) (HT)
Dimensions.



Option Codes
Model	MM600LHT	MM900LHT	MM1200LHT	MM1500LHT	MM1800LHT
D/Glazed Side Panels	DGPL	DGPL	DGPL	DGPL	DGPL
Ø100mm H.Duty Castor (2005 mm Unit Height)	HDC6	HDC9	HDC12	HDC15	HDC18
Hook In Chrome Wire Impulse Basket	MMIB6	MMIB9	MMIB12	MMIB15	MMIB18
Mobile Impulse Timber Basket (Redwood Clear Varnish)	MITB6	MITB9	MITB12	MITB15	MITB18
Wood Stain To Mobile Impulse Timber Basket (Oak/Wenge/Ash Grey)	MITB6S	MITB9S	MITB12S	MITB15S	MITB18S
Rear Doors (Night Blind Only).	MMDR6L	MMDR9L	MMDR12L	MMDR15L	MMDR18L
Glass Shelving (Set).	GSSETMM6L	GSSETMM9L	GSSETMM12L	GSSETMM15L	GSSETMM18L
Additional Glass Shelf.	AGSMM6L	AGSMM9L	AGSMM12L	AGSMM15L	AGSMM18L
Additional Steel Shelf.	ASSMM6L	ASSMM9L	ASSMM12L	ASSMM15L	ASSMM18L
Coloured Surface Finish (20 Colours).	MMPCO	MMPCO	MMPCO	MMPCO	MMPCO

Food Types

Money Maker 4 Tier Large Merchandiser (Night Blind) (HT)
Food Display Types.



Drinks: Still & carbonated, bottled, canned or carton, water, dairy, lemonade, wine, beer, lager, fruit juice & health drinks. Shelving typically accepts 1/2 litre 240 mm (h) cola bottles/ sandwich packs etc.

Food: Sandwiches, baguettes, rolls, barm cakes, salad, pasta, cheese snacks, cream cakes & pastries, cakes, yoghurt, cereals, fruit in juice & fruit.

Options

Money Maker 4 Tier Large Merchandiser (Night Blind) (HT)
Display Options.



Ø 100 mm Heavy Duty Castor.
Set of heavy duty castors – 2 braked to customer side (200 kg load/ castor).*2005 mm Unit Height*

Model	MM600LHT	MM900LHT	MM1200LHT	MM1500LHT	MM1800LHT
Option – Ø 100 mm Heavy Duty Castor                          (1765 mm Unit Height)	HDC6	HDC9	HDC12	HDC15	HDC18
Revised Height (mm)	2005	2005	2005	2005	2005













Double Glazed Rear Door Set – (Night Blind Models Only)
Set of rear s/steel hinged door/s with double glazed window, allows re-stocking of the cabinet from operator side, when the unit is not wall sited.

Model	MM600LHT	MM900LHT	MM1200LHT	MM1500LHT	MM1800LHT
Option – Double Glazed Rear Door (Set).	MMDR6L	MMDR9L	MMDR12L	MMDR15L	MMDR18L
Qty. Doors Per Model.	One	Two	Two	Two	Four







Wire Impulse Basket.
Factory fitted hook in chrome wire basket, continuous open frame type, for local display of ambient product ( crisps etc.) to merchandiser front. Ideal for maximizing impulse sales, meal deal offers. Basket depth accepts 6 x standard 32.5 g crisp packets.









Model	MM600LHT	MM900LHT	MM1200LHT	MM1500LHT	MM1800LHT
Option – Hook In Impulse Basket.	MMIB6	MMIB9	MMIB12	MMIB15	MMIB18
Basket Size L x H x D (mm)	540 x 99 x 210	840 x 99 x 210	1140 x 99 x 210	1440 x 99 x 210	1740 x 99 x 210







Mobile Impulse Timber Basket.
Freestanding mobile timber impulse basket, with open slat redwood frame in clear satin varnish finish, steel support straps & lockable castors, for local display of ambient product ( crisps etc.) to merchandiser front.  Ideal for maximizing impulse sales, meal deal offers. Timber Basket (storage area) depth accepts 10 x standard 32.5 g crisp packets.





Model	MM600LHT	MM900LHT	MM1200LHT	MM1500LHT	MM1800LHT
Option – Mobile Impulse Timber Basket (Varnish Finish).	MITB6	MITB9	MITB12	MITB15	MITB18
Basket Size L x H x D (mm)	600 x 660 x 300	900 x 660 x 300	1200 x 660 x 300	1500 x 660 x 300	1800 x 660 x 300
Storage Area L x H x D (mm)	570 x 270 x 147	870 x 270 x 147	1170 x 270 x 147	1470 x 270 x 147	1770 x 270 x 147













Colour Stain To Mobile Impulse Timber Basket.
Blanchon wood stain in Oak, Wenge or Ash Grey applied prior to varnish finish.

Model	MM600LHT	MM900LHT	MM1200LHT	MM1500LHT	MM1800LHT
Option – Wood Stain (Oak/ Wenge/ Ash Grey).	MITB6S	MITB9S	MITB12S	MITB15S	MITB18S





Panoramic Glazed Side Panels.
Partially double glazed end panels provide a more panoramic view of displayed merchandise, whilst also adding more natural light to the cabinet. Vertical LED lighting is retained to the display area.



Model	MM600LHT	MM900LHT	MM1200LHT	MM1500LHT	MM1800LHT
Option – Panoramic Glazed Side Panels	DGPL	DGPL	DGPL	DGPL	DGPL













4 Tier Glass Shelving (Set).
Set of 10 mm thick toughened glass shelves, for enhanced product display.

Model	MM600LHT	MM900LHT	MM1200LHT	MM1500LHT	MM1800LHT
Option – 4 Tier Glass Shelving (Set).	GSSETMM6L	GSSETMM9L	GSSETMM12L	GSSETMM15L	GSSETMM18L
Shelf Length Divided Into 2 Parts (For Ease Of Adjustment).	N/A	N/A	N/A	Yes	Yes

















Additional Glass Shelf. Converts the 4 Tier glass shelving option into 5 tiers of chilled glass shelf storage, ideal where product displayed is not predominantly bottle storage.

Model	MM600LHT	MM900LHT	MM1200LHT	MM1500LHT	MM1800LHT
Option – Additional Glass Shelf (Converts 4 Tier To 5 Tier Glass Shelving).	AGSMM6L	AGSMM9L	AGSMM12L	AGSMM15L	AGSMM18L
Additional Storage Area – Length x Depth (mm).	528 x 391	828 x 391	1128 x 391	1412 x 391	1712 x 391
Shelf Length Divided Into 2 Parts (For Ease Of Adjustment).	N/A	N/A	N/A	Yes	Yes















Additional Steel Shelf.
Converts the 4 Tier model into 5 tiers of chilled steel shelf storage, ideal where product displayed is not predominantly bottle storage.

Model	MM600LHT	MM900LHT	MM1200LHT	MM1500LHT	MM1800LHT
Option – Additional S/Steel Shelf (Converts 4 Tier To 5 Tier Shelving).	ASSMM6L	ASSMM9L	ASSMM12L	ASSMM15L	ASSMM18L
Additional Storage Area – Length x Depth (mm).	528 x 391	828 x 391	1128 x 391	1412 x 391	1712 x 391
Shelf Length Divided Into 2 Parts (For Ease Of Adjustment).	N/A	N/A	N/A	Yes	Yes















Coloured Surface Finish.
A tough, durable powder coated colour finish can be applied to the external body of the merchandiser, to match many standard RAL colour references.

Model	MM600LHT	MM900LHT	MM1200LHT	MM1500LHT	MM1800LHT
Option – Coloured Surface Finish.	MMPCO	MMPCO	MMPCO	MMPCO	MMPCO

**Please state selected RAL Reference at point of order**





Installation Service Of ‘Money Maker’ Merchandiser.
The new merchandiser can be delivered direct to site/positioned, de-papered, switched on and left operational for customers. (Standard terms of installation i.e. ground floor location, or access to goods lift, within UK Mainland, normal working hours).

WEEE Disposal Of Redundant Merchandiser.
Collection and WEEE disposal of the redundant cabinet can also take place on delivery of any new CED Money Maker Merchandiser. (Standard terms of collection i.e. ground floor location, or access to goods lift, within UK Mainland, normal working hours).

Model	MM600LHT	MM900LHT	MM1200LHT	MM1500LHT	MM1800LHT
Option – Unpack & Position Money Maker.	MMUP69	MMUP69	MMUP1215	MMUP1215	MMUP18
Option – WEEE Disposal Of Redundant Multideck During Delivery.	MMWEEE	MMWEEE	MMWEEE	MMWEEE	MMWEEE



Downloads

General Layout Drawings/ Fitting Details.
Money Maker 4 Tier Large Merchandiser (Night Blind) (HT).





Specification Sheets, Catalogue & User Manual.
Money Maker Chilled Merchandiser Range.



Visual

Money Maker 3 Tier Slim Merchandiser (Roller Shutter) (HT)
Visual

Specification

Money Maker 3 Tier Slim Merchandiser (Roller Shutter) (HT)
Specification

• Mobile chilled merchandiser in compact range of sizes, for retail locations where space is a premium.
• Features integral energy efficient chilled R290 hydrocarbon refrigeration (HT).
• Self help (fixed back) application.
• 3 tier steel adjustable height shelving, for increased chilled product display area.
• Additional cold deck area, typically used as bottle storage.
• Can achieve temperatures of 0°C to 5°C (max 27°C ambient 55% relative humidity).
• Product illumination is from horizontal & vertical diffused LED lighting (4000 Kelvin).
• Lockable roller shutter – overhead type, twin locking, insulated aluminum lath, silver finish. (unit height 1725 mm).
• Available in 600, 900, 1200, 1500 & 1800 mm wide.
• Slimline unit depth 635 mm (+50), unit height 1725 mm.
• 24-hour operation.
• Superstructure in bright polished (internal) and satin (external) steel.
• Bright polished steel rear back panel for typical use in wall sited situation
• Features low-level digital temperature display and control panel (customer side).
• Features ‘tamper proof’ temperature control facility.
• 40 mm tall ‘point of sale’ display/ ticket strips are fitted as standard.
• Integral automatic condensate water evaporation eliminates the need for site drainage.
• Supplied with 2m lead, cord wrap & parking socket, for connection to a single 13 Amp socket (13A 230V 50 Hz).
• Removable steel front fascia panel, for ease of cleaning/ service maintenance.
• Modular removable deck plate system for easier cleaning and maintenance.
• Stand off brackets for wall siting included, to ensure adequate unit ventilation.
• Adjustable final positioning/ levelling feet.

Options

• Ø 100 mm heavy duty castor (2 braked to customer side)
  **unit height increases to 1765 mm**.
• Panoramic glazed side panels.
• Hook in chrome wire impulse basket.
• Mobile impulse timber basket. (4 finishes)
• 3 tier glass shelving (Set).
• Additional glass shelf – allows 4 display tiers – when product displayed is not predominantly bottle storage.
• Additional steel shelf – allows 4 display tiers – when product displayed is not predominantly bottle storage.
• Coloured external surface finishes available (20 RAL Colours).

Dimensions

Money Maker 3 Tier Slim Merchandiser (Roller Shutter) (HT)
Dimensions.



Option Codes
Model	MM600SRHT	MM900SRHT	MM1200SRHT	MM1500SRHT	MM1800SRHT
Ø100mm H.Duty Castor (1765 mm Unit Height)	HDC6	HDC9	HDC12	HDC15	HDC18
D/Glazed Side Panels	DGPS	DGPS	DGPS	DGPS	DGPS
Hook In Chrome Wire Impulse Basket	MMIB6	MMIB9	MMIB12	MMIB15	MMIB18
Mobile Impulse Timber Basket (Redwood Clear Varnish)	MITB6	MITB9	MITB12	MITB15	MITB18
Wood Stain To Mobile Impulse Timber Basket (Oak/ Wenge/ Ash Grey).	MITB6S	MITB9S	MITB12S	MITB15S	MITB18S
Glass Shelving (Set).	GSSETMM6S	GSSETMM9S	GSSETMM12S	GSSETMM15S	GSSETMM18S
Additional Glass Shelf.	AGSMM6S	AGSMM9S	AGSMM12S	AGSMM15S	AGSMM18S
Additional Steel Shelf.	ASSMM6S	ASSMM9S	ASSMM12S	ASSMM15S	ASSMM18S
Coloured Surface Finish (20 Colours).	MMPCO	MMPCO	MMPCO	MMPCO	MMPCO

Food Types

Money Maker 3 Tier Slim Merchandiser (Roller Shutter) (HT)
Food Display Types.



Drinks: Still & carbonated, bottled, canned or carton, water, dairy, lemonade, wine, beer, lager, fruit juice & health drinks. Shelving typically accepts 1/2 litre 240 mm (h) cola bottles/ sandwich packs etc.

Food: Wrapped sandwiches, baguettes, rolls & barm cakes, salad, pasta, cheese snacks, cream cakes & pastries, cakes, yoghurt, cereals, fruit in juice & fruit.



Options

Money Maker 3 Tier Slim Merchandiser (Roller Shutter) (HT)
Display Options.



Ø 100 mm Heavy Duty Castor.
Set of heavy duty castors – 2 braked to customer side (200 kg load/ castor).*1765 mm Unit Height*

Model	MM600SRHT	MM900SRHT	MM1200SRHT	MM1500SRHT	MM1800SRHT
Option – Ø 100 mm Heavy Duty Castor (1765 mm Unit Height)	HDC6	HDC9	HDC12	HDC15	HDC18
Revised Height (mm)	1765	1765	1765	1765	1765













Wire Impulse Basket.
Factory fitted hook in chrome wire basket, continuous open frame type, for local display of ambient product ( crisps etc.) to merchandiser front. Ideal for maximizing impulse sales, meal deal offers. Basket depth accepts 6 x standard 32.5 g crisp packets.









Model	MM600SRHT	MM900SRHT	MM1200SRHT	MM1500SRHT	MM1800SRHT
Option – Hook In Impulse Basket.	MMIB6	MMIB9	MMIB12	MMIB15	MMIB18
Basket Size L x H x D (mm)	540 x 99 x 210	840 x 99 x 210	1140 x 99 x 210	1440 x 99 x 210	1740 x 99 x 210









Mobile Impulse Timber Basket.
Freestanding mobile timber impulse basket, with open slat redwood frame in clear satin varnish finish, steel support straps & lockable castors, for local display of ambient product ( crisps etc.) to merchandiser front.  Ideal for maximizing impulse sales, meal deal offers. Timber Basket (storage area) depth accepts 10 x standard 32.5 g crisp packets.





Model	MM600SRHT	MM900SRHT	MM1200SRHT	MM1500SRHT	MM1800SRHT
Option – Mobile Impulse Timber Basket (Varnish Finish).	MITB6	MITB9	MITB12	MITB15	MITB18
Basket Size L x H x D (mm)	600 x 660 x 300	900 x 660 x 300	1200 x 660 x 300	1500 x 660 x 300	1800 x 660 x 300
Storage Area L x H x D (mm)	570 x 270 x 147	870 x 270 x 147	1170 x 270 x 147	1470 x 270 x 147	1770 x 270 x 147















Colour Stain To Mobile Impulse Timber Basket.
Blanchon wood stain in Oak, Wenge or Ash Grey applied prior to varnish finish.

Model	MM600SRHT	MM900SRHT	MM1200SRHT	MM1500SRHT	MM1800SRHT
Option – Wood Stain (Oak/ Wenge/ Ash Grey).	MITB6S	MITB9S	MITB12S	MITB15S	MITB18S







Panoramic Glazed Side Panels.
Partially double glazed end panels provide a more panoramic view of displayed merchandise, whilst also adding more natural light to the cabinet. Vertical LED lighting is retained to the display area.

Model	MM600SRHT	MM900SRHT	MM1200SRHT	MM1500SRHT	MM1800SRHT
Option – Panoramic Glazed Side Panels	DGPS	DGPS	DGPS	DGPS	DGPS

















3 Tier Glass Shelving (Set).
Set of 10 mm thick toughened glass shelves, for enhanced product display.

Model	MM600SRHT	MM900SRHT	MM1200SRHT	MM1500SRHT	MM1800SRHT
Option – 3 Tier Glass Shelving (Set).	GSSETMM6S	GSSETMM9S	GSSETMM12S	GSSETMM15S	GSSETMM18S
Shelf Length Divided Into 2 Parts (For Ease Of Adjustment).	N/A	N/A	N/A	Yes	Yes

















Additional Glass Shelf. Converts the 3 Tier glass shelving option into 4 tiers of chilled glass shelf storage, ideal where product displayed is not  predominantly bottle storage.

Model	MM600SRHT	MM900SRHT	MM1200SRHT	MM1500SRHT	MM1800SRHT
Option – Additional Glass Shelf (Converts 3 Tier To 4 Tier Glass Shelving).	AGSMM6S	AGSMM9S	AGSMM12S	AGSMM15S	AGSMM18S
Additional Storage Area – Length x Depth (mm).	528 x 291	828 x 291	1128 x 291	1412 x 291	1712 x 291
Shelf Length Divided Into 2 Parts (For Ease Of Adjustment).	N/A	N/A	N/A	Yes	Yes

















Additional Steel Shelf.
Converts the 3 Tier model into 4 tiers of chilled steel shelf storage, ideal where product displayed is not predominantly bottle storage.

Model	MM600SRHT	MM900SRHT	MM1200SRHT	MM1500SRHT	MM1800SRHT
Option – Additional S/Steel Shelf (Converts 3 Tier To 4 Tier Shelving).	ASSMM6S	ASSMM9S	ASSMM12S	ASSMM15S	ASSMM18S
Additional Storage Area – Length x Depth (mm).	528 x 291	828 x 291	1128 x 291	1412 x 291	1712 x 291
Shelf Length Divided Into 2 Parts (For Ease Of Adjustment).	N/A	N/A	N/A	Yes	Yes















Coloured Surface Finish.
A tough, durable powder coated colour finish can be applied to the external body of the merchandiser, to match many standard RAL colour references.

Model	MM600SRHT	MM900SRHT	MM1200SRHT	MM1500SRHT	MM1800SRHT
Option – Coloured Surface Finish.	MMPCO	MMPCO	MMPCO	MMPCO	MMPCO

**Please state selected RAL Reference at point of order**







Installation Service Of ‘Money Maker’ Merchandiser.
The new merchandiser can be delivered direct to site/positioned, de-papered, switched on and left operational for customers. (Standard terms of installation i.e. ground floor location, or access to goods lift, within UK Mainland, normal working hours).

WEEE Disposal Of Redundant Merchandiser.
Collection and WEEE disposal of the redundant cabinet can also take place on delivery of any new CED Money Maker Merchandiser. (Standard terms of collection i.e. ground floor location, or access to goods lift, within UK Mainland, normal working hours).

Model	MM600SRHT	MM900SRHT	MM1200SRHT	MM1500SRHT	MM1800SRHT
Option – Unpack & Position Money Maker.	MMUP69	MMUP69	MMUP1215	MMUP1215	MMUP18
Option – WEEE Disposal Of Redundant Multideck During Delivery.	MMWEEE	MMWEEE	MMWEEE	MMWEEE	MMWEEE



Downloads

General Layout Drawings/ Fitting Details.
Money Maker 3 Tier Slim Merchandiser (Roller Shutter) (HT).





Specification Sheets, Catalogue & User Manual.
Money Maker Chilled Merchandiser Range.



Visual

Money Maker 4 Tier Large Merchandiser (Roller Shutter) (HT)
Visual



Specification

Money Maker 4 Tier Large Merchandiser (Roller Shutter) (HT)
Specification.

• Mobile chilled merchandiser in a large range of sizes, for retail locations where maximum merchandising capacity is a premium.
• Features integral energy efficient chilled R290 hydrocarbon refrigeration (HT).
• Self help (fixed back) application.
• 4 tier steel adjustable height shelving, for maximum chilled product display area in a minimum footprint.
• Additional cold deck area, typically used as bottle storage.
• Can achieve temperatures of 0°C to 5°C (max 27°C ambient 55% relative humidity).
• Product illumination is from horizontal & vertical diffused LED lighting (4000 Kelvin).
• Lockable roller shutter – overhead type, twin locking, insulated aluminum lath, silver finish. (unit height 1965 mm).
• Available in 600, 900, 1200, 1500 & 1800 mm wide.
• Large unit depth 795 mm (+50), unit height 1965 mm.
• 24-hour operation.
• Superstructure in bright polished (internal) and satin (external) steel.
• Bright polished steel rear back panel for typical use in wall sited situation
• Features low-level digital temperature display and control panel (customer side).
• Features ‘tamper proof’ temperature control facility.
• 40 mm tall ‘point of sale’ display/ ticket strips are fitted as standard.
• Integral automatic condensate water evaporation eliminates the need for site drainage.
• Supplied with 2m lead, cord wrap & parking socket, for connection to a single 13 Amp socket (13A 230V 50 Hz).
• Removable steel front fascia panel, for ease of cleaning/ service maintenance.
• Modular removable deck plate system for easier cleaning and maintenance.
• Stand off brackets for wall siting included, to ensure adequate unit ventilation.
• Adjustable final positioning/ levelling feet.

Options

• Ø 100 mm heavy duty castor (2 braked to customer side)
  **unit height increases to 2005 mm**.
• Panoramic glazed side panels.
• Hook in chrome wire impulse basket.
• Mobile impulse timber basket. (4 finishes)
• 4 tier glass shelving (Set).
• Additional glass shelf – allows 5 display tiers – when product displayed is not predominantly bottle storage.
• Additional steel shelf – allows 5 display tiers – when product displayed is not predominantly bottle storage.
• Coloured external surface finishes available (20 RAL Colours).

Dimensions

Money Maker 4 Tier Large Merchandiser (Roller Shutter) (HT)
Dimensions.



Option Codes
Model	MM600LRHT	MM900LRHT	MM1200LRHT	MM1500LRHT	MM1800LRHT
Ø100mm H.Duty Castor (2005 mm Unit Height)	HDC6	HDC9	HDC12	HDC15	HDC18
D/Glazed Side Panels	DGPL	DGPL	DGPL	DGPL	DGPL
Hook In Chrome Wire Impulse Basket	MMIB6	MMIB9	MMIB12	MMIB15	MMIB18
Mobile Impulse Timber Basket (Redwood Clear Varnish)	MITB6	MITB9	MITB12	MITB15	MITB18
Wood Stain To Mobile Impulse Timber Basket (Oak/ Wenge/ Ash Grey)	MITB6S	MITB9S	MITB12S	MITB15S	MITB18S
Glass Shelving (Set).	GSSETMM6L	GSSETMM9L	GSSETMM12L	GSSETMM15L	GSSETMM18L
Additional Glass Shelf.	AGSMM6L	AGSMM9L	AGSMM12L	AGSMM15L	AGSMM18L
Additional Steel Shelf.	ASSMM6L	ASSMM9L	ASSMM12L	ASSMM15L	ASSMM18L
Coloured Surface Finish (20 Colours).	MMPCO	MMPCO	MMPCO	MMPCO	MMPCO

Food Types

Money Maker 4 Tier Large Merchandiser (Roller Shutter) (HT)
Food Display Types.



Drinks: Still & carbonated, bottled, canned or carton, water, dairy, lemonade, wine, beer, lager, fruit juice & health drinks. Shelving typically accepts 1/2 litre 240 mm (h) cola bottles/ sandwich packs etc.

Food: Sandwiches, baguettes, rolls, barm cakes, salad, pasta, cheese snacks, cream cakes & pastries, cakes, yoghurt, cereals, fruit in juice & fruit.

Options

Money Maker 4 Tier Large Merchandiser (Roller Shutter) (HT)
Display Options.


Ø 100 mm Heavy Duty Castor.
Set of heavy duty castors – 2 braked to customer side (200 kg load/ castor).*2005 mm Unit Height*

Model	MM600LRHT	MM900LRHT	MM1200LRHT	MM1500LRHT	MM1800LRHT
Option – Ø 100 mm Heavy Duty Castor (2005 mm Unit Height)	HDC6	HDC9	HDC12	HDC15	HDC18
Revised Height (mm)	2005	2005	2005	2005	2005













Wire Impulse Basket.
Factory fitted hook in chrome wire basket, continuous open frame type, for local display of ambient product ( crisps etc.) to merchandiser front. Ideal for maximizing impulse sales, meal deal offers. Basket depth accepts 6 x standard 32.5 g crisp packets.









Model	MM600LRHT	MM900LRHT	MM1200LRHT	MM1500LRHT	MM1800LRHT
Option – Hook In Impulse Basket.	MMIB6	MMIB9	MMIB12	MMIB15	MMIB18
Basket Size L x H x D (mm)	540 x 99 x 210	840 x 99 x 210	1140 x 99 x 210	1440 x 99 x 210	1740 x 99 x 210







Mobile Impulse Timber Basket.
Freestanding mobile timber impulse basket, with open slat redwood frame in clear satin varnish finish, steel support straps & lockable castors, for local display of ambient product ( crisps etc.) to merchandiser front.  Ideal for maximizing impulse sales, meal deal offers. Timber Basket (storage area) depth accepts 10 x standard 32.5 g crisp packets.





Model	MM600LRHT	MM900LRHT	MM1200LRHT	MM1500LRHT	MM1800LRHT
Option – Mobile Impulse Timber Basket (Varnish Finish).	MITB6	MITB9	MITB12	MITB15	MITB18
Basket Size L x H x D (mm)	600 x 660 x 300	900 x 660 x 300	1200 x 660 x 300	1500 x 660 x 300	1800 x 660 x 300
Storage Area L x H x D (mm)	570 x 270 x 147	870 x 270 x 147	1170 x 270 x 147	1470 x 270 x 147	1770 x 270 x 147













Colour Stain To Mobile Impulse Timber Basket.
Blanchon wood stain in Oak, Wenge or Ash Grey applied prior to varnish finish.

Model	MM600LRHT	MM900LRHT	MM1200LRHT	MM1500LRHT	MM1800LRHT
Option – Wood Stain (Oak/ Wenge/ Ash Grey).	MITB6S	MITB9S	MITB12S	MITB15S	MITB18S





Panoramic Glazed Side Panels.
Partially double glazed end panels provide a more panoramic view of displayed merchandise, whilst also adding more natural light to the cabinet. Vertical LED lighting is retained to the display area.

Model	MM600LRHT	MM900LRHT	MM1200LRHT	MM1500LRHT	MM1800LRHT
Option – Panoramic Glazed Side Panels	DGPL	DGPL	DGPL	DGPL	DGPL

















4 Tier Glass Shelving (Set).
Set of 10 mm thick toughened glass shelves, for enhanced product display.

Model	MM600LRHT	MM900LRHT	MM1200LRHT	MM1500LRHT	MM1800LRHT
Option – 4 Tier Glass Shelving (Set).	GSSETMM6L	GSSETMM9L	GSSETMM12L	GSSETMM15L	GSSETMM18L
Shelf Length Divided Into 2 Parts (For Ease Of Adjustment).	N/A	N/A	N/A	Yes	Yes

















Additional Glass Shelf. Converts the 4 Tier glass shelving option into 5 tiers of chilled glass shelf storage, ideal where product displayed is not predominantly bottle storage.

Model	MM600LRHT	MM900LRHT	MM1200LRHT	MM1500LRHT	MM1800LRHT
Option – Additional Glass Shelf (Converts 4 Tier To 5 Tier Glass Shelving).	AGSMM6L	AGSMM9L	AGSMM12L	AGSMM15L	AGSMM18L
Additional Storage Area – Length x Depth (mm).	528 x 391	828 x 391	1128 x 391	1412 x 391	1712 x 391
Shelf Length Divided Into 2 Parts (For Ease Of Adjustment).	N/A	N/A	N/A	Yes	Yes















Additional Steel Shelf.
Converts the 4 Tier model into 5 tiers of chilled steel shelf storage, ideal where product displayed is not predominantly bottle storage.

Model	MM600LRHT	MM900LRHT	MM1200LRHT	MM1500LRHT	MM1800LRHT
Option – Additional S/Steel Shelf (Converts 4 Tier To 5 Tier Shelving).	ASSMM6L	ASSMM9L	ASSMM12L	ASSMM15L	ASSMM18L
Additional Storage Area – Length x Depth (mm).	528 x 391	828 x 391	1128 x 391	1412 x 391	1712 x 391
Shelf Length Divided Into 2 Parts (For Ease Of Adjustment).	N/A	N/A	N/A	Yes	Yes















Coloured Surface Finish.
A tough, durable powder coated colour finish can be applied to the external body of the merchandiser, to match many standard RAL colour references.

Model	MM600LRHT	MM900LRHT	MM1200LRHT	MM1500LRHT	MM1800LRHT
Option – Coloured Surface Finish.	MMPCO	MMPCO	MMPCO	MMPCO	MMPCO

**Please state selected RAL Reference at point of order**





Installation Service Of ‘Money Maker’ Merchandiser.
The new merchandiser can be delivered direct to site/positioned, de-papered, switched on and left operational for customers. (Standard terms of installation i.e. ground floor location, or access to goods lift, within UK Mainland, normal working hours).

WEEE Disposal Of Redundant Merchandiser.
Collection and WEEE disposal of the redundant cabinet can also take place on delivery of any new CED Money Maker Merchandiser. (Standard terms of collection i.e. ground floor location, or access to goods lift, within UK Mainland, normal working hours).

Model	MM600LRHT	MM900LRHT	MM1200LRHT	MM1500LRHT	MM1800LRHT
Option – Unpack & Position Money Maker.	MMUP69	MMUP69	MMUP1215	MMUP1215	MMUP18
Option – WEEE Disposal Of Redundant Multideck During Delivery.	MMWEEE	MMWEEE	MMWEEE	MMWEEE	MMWEEE



Downloads

General Layout Drawings/ Fitting Details.
Money Maker 4 Tier Large Merchandiser (Roller Shutter) (HT).





Specification Sheets, Catalogue & User Manual.
Money Maker Chilled Merchandiser Range.
