Soaking Sink Trolleys & Tubs.
Visual soaking-sinks-on-wheels-gro

Soaking Sink Trolleys & Tubs.
Features.

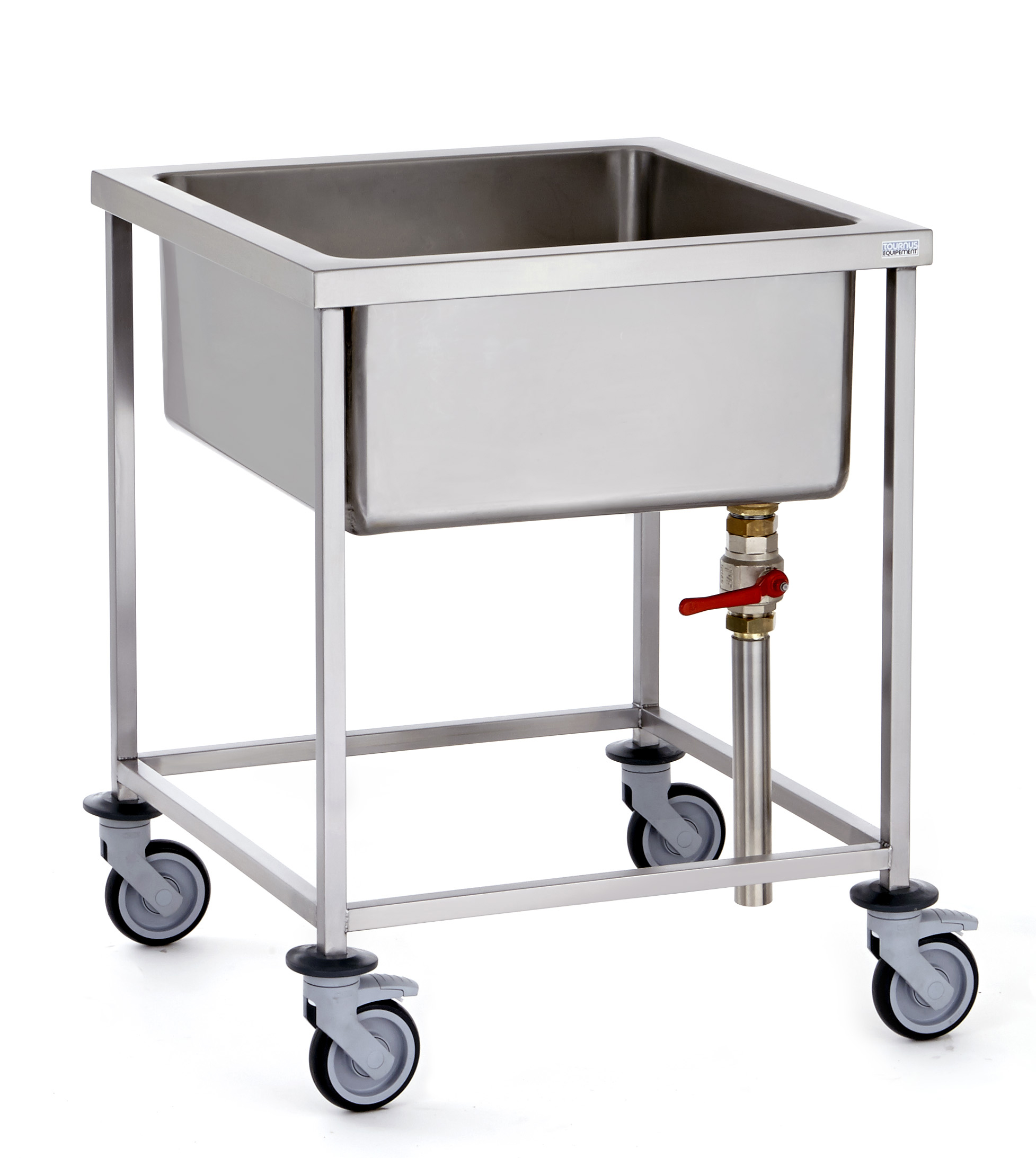

Soaking Sink Trolley (100 Litre Capacity).

Model code for soaking sink trolley – capacity 100 Litre (806 066).
S/steel soaking sink trolley, ideal for soaking and washing kitchen utensils and large-sized baskets.
Working height of 900 mm high.
S/steel bowl size 600 mm (L) x 600 mm (W) x 300 mm (D).
Features 25 mm x 25 mm tubular steel frame.
100 Litre capacity.
Drain plug, quarter turn tap and Ø 42 mm steel discharge drain, set at 130 mm above finished floor level.
Fitted with 4 no. Ø 125 mm swivel wheels with annular bumpers & polyamide covers, including 2 braked.

Stainless Steel Wheeled Tubs (140 Litre Capacity).
sink-on-wheels-2

S/steel wheeled tub, ideal for soaking and washing kitchen utensils and large-sized baskets.
140 Litre Capacity.
Available in 2 heights : 540 mm (H) and 750 mm (H).
S/steel bowl size of 760 mm (L) x 510 mm (W) x 380 mm (D).
Low height model (540 mm H) – supplied with strainer grill and overflow plug.
Raised platform model (750 mm H) – mounts on 25 mm x 25 mm tubular steel frame.
Raised platform model – has an overflow with lever under and retaining grid within tank.
Each model fitted with 4 no. Ø 125 mm swivel wheels & polyamide covers, including 2 braked.
Each model also has continuous protection bumper fitted to the bowl rim.
Model code for low height s/steel wheeled tub – capacity 140 Litre (806 050).
Model code for raised platform height s/steel wheeled tub – capacity 140 Litre (806 051).

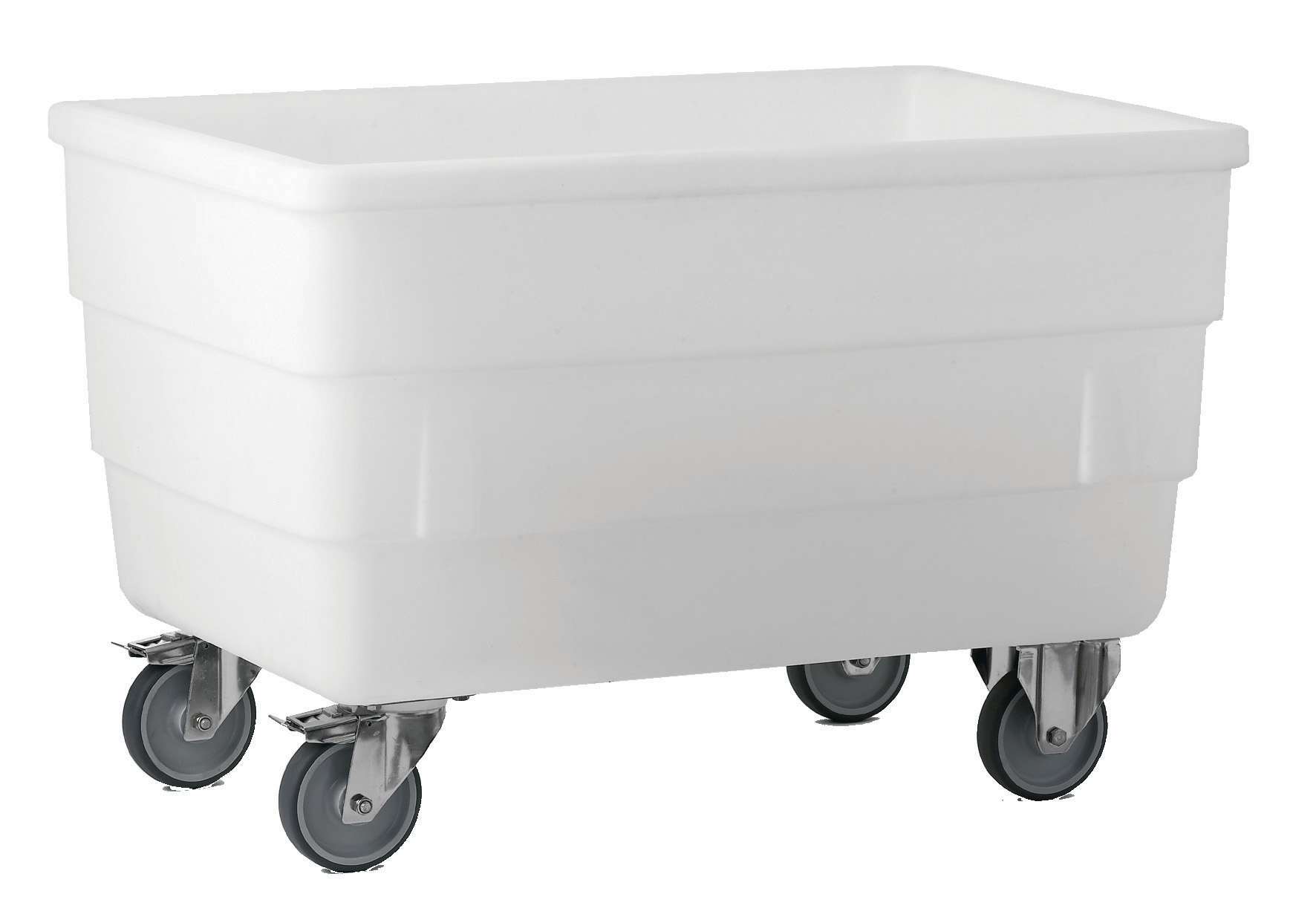

Polyethylene Wheeled Tubs (300/500 & 600 Litre Capacity).

Injection moulded polyethylene wheeled tub, ideal for soaking and washing kitchen utensils and large-sized baskets.
300/500 & 600 Litre capacity models available.
Each model features moulded tub & drain plug.
Mounted on 4 no. Ø 160 mm swivel wheels with steel covers, including 2 braked.
300 Litre model: O/all dimensions 1200 mm (L) x 800 mm (W) x 800 (H).
500 Litre model: O/all dimensions 1200 mm (L) x 800 mm (W) x 1100 (H).
600 Litre model: O/all dimensions 1300 mm (L) x 910 mm (W) x 870 (H).
Model code for polyethylene wheeled tub – capacity 300 Litre (816 157).
Model code for polyethylene wheeled tub – capacity 500 Litre (816 158).
Model code for polyethylene wheeled tub – capacity 600 Litre (816 159).

Soaking Sink Trolleys & Tubs.
Dimensions.

Soaking Sink Trolleys & Tubs.

soaking-sinks-on-wheels-gro

Model	806 066	806 050	806 051	816 157	816 158	816 159
Capacity: (Litres)	100	140	140	300	500	600
Bowl/ Tub Type	S/steel	S/steel	S/steel	Polyethylene	Polyethylene	Polyethylene
Drain Facility	Drain plug, quarter turn tap, Ø 42 mm steel discharge drain	Strainer grill, overflow plug	Drain plug, overflow with lever and retaining grid	Drain plug	Drain plug	Drain plug
Bowl/ Tub Size: L (mm) x W (mm) x Depth (mm)	600 x 600 x 300	760 x 510 x 380	760 x 510 x 380	1200 x 800 x 640	1200 x 800 x 940	1300 x 910 x 710
O/all Unit Height (mm)	900	540	750	800	1100	870
O/all Unit Length (mm)	740	810	810	1200	1190	1300
O/all Unit Depth (mm)	740	560	560	800	775	910
